Der CreatBot DE mit 400 °C Dual-Extruder, der optional um ein weiteres Hotend erweitert werden kann,
pausiert wenn das Filament zur Neige geht und schaltet sich automatisch ab sobald der Druckauftrag beendet ist.

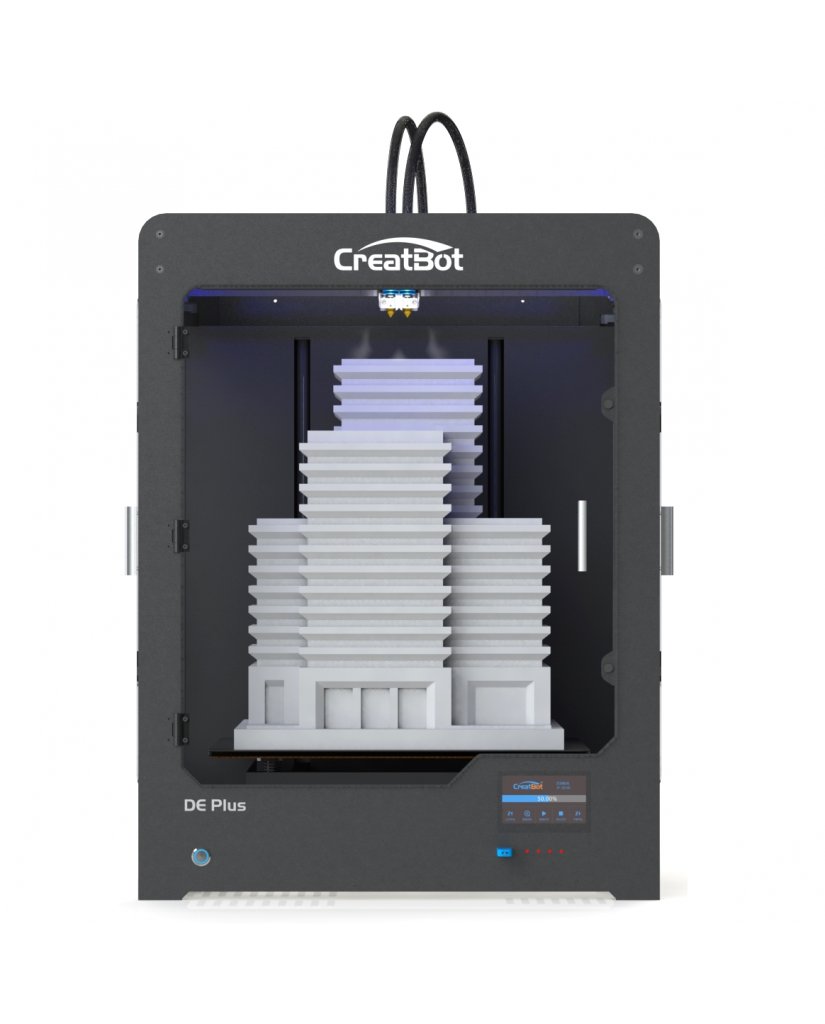

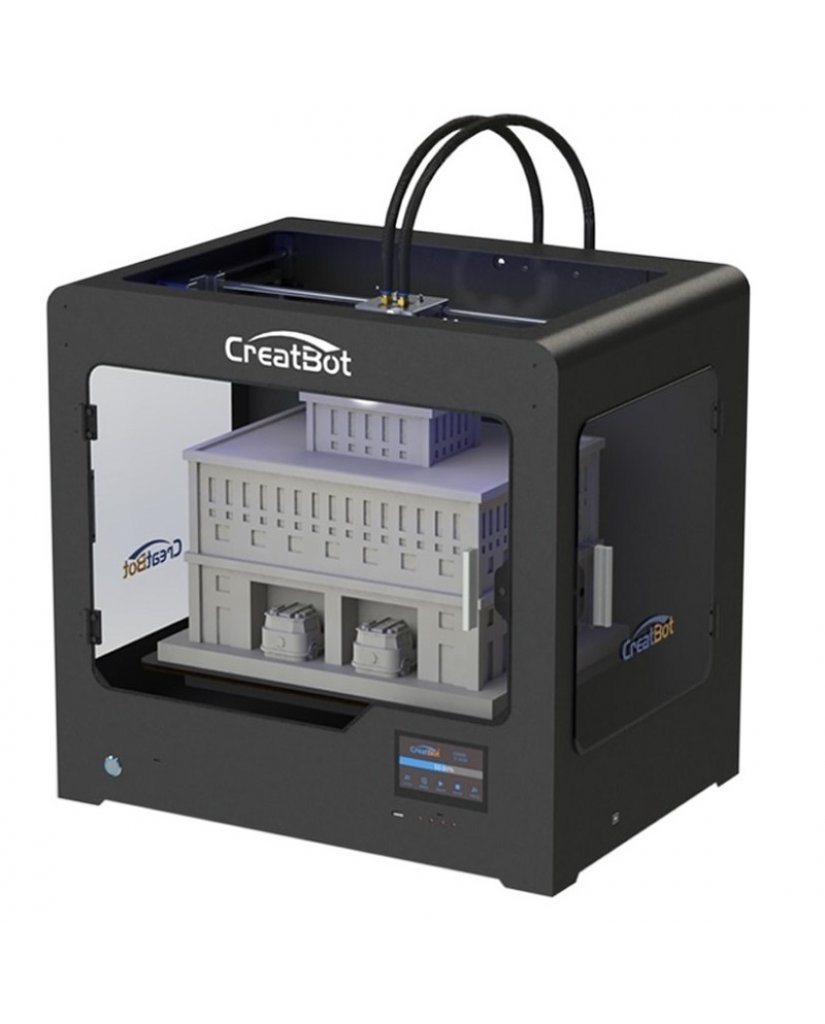

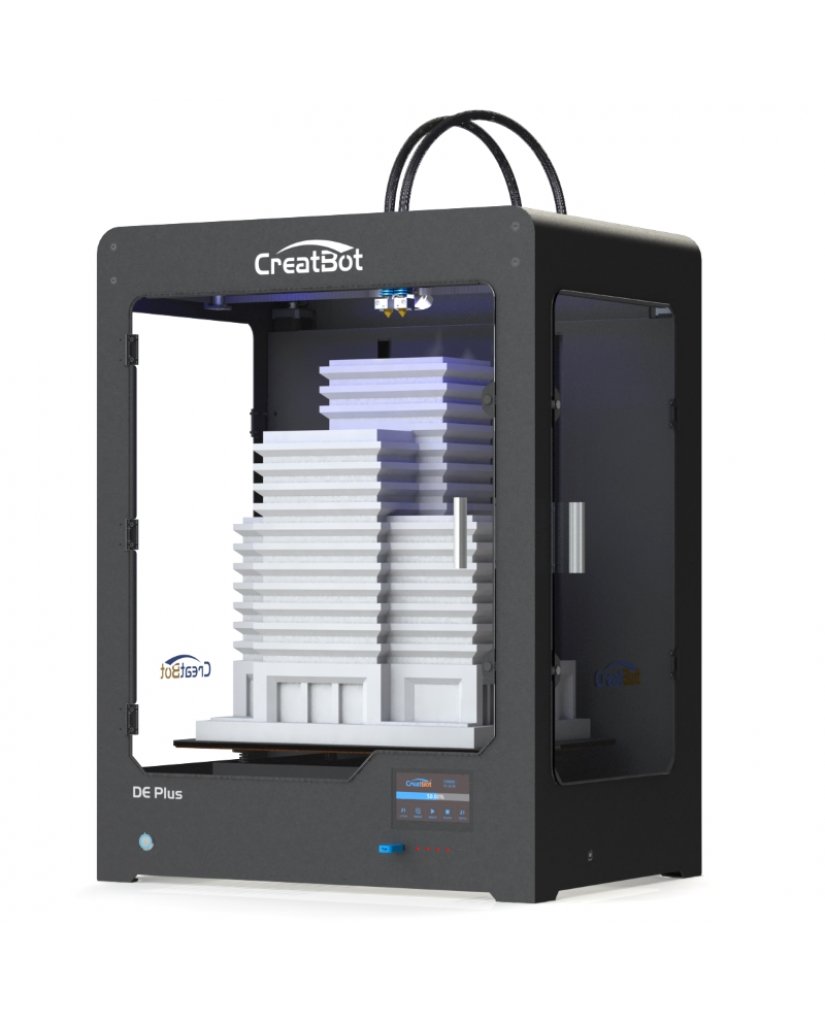

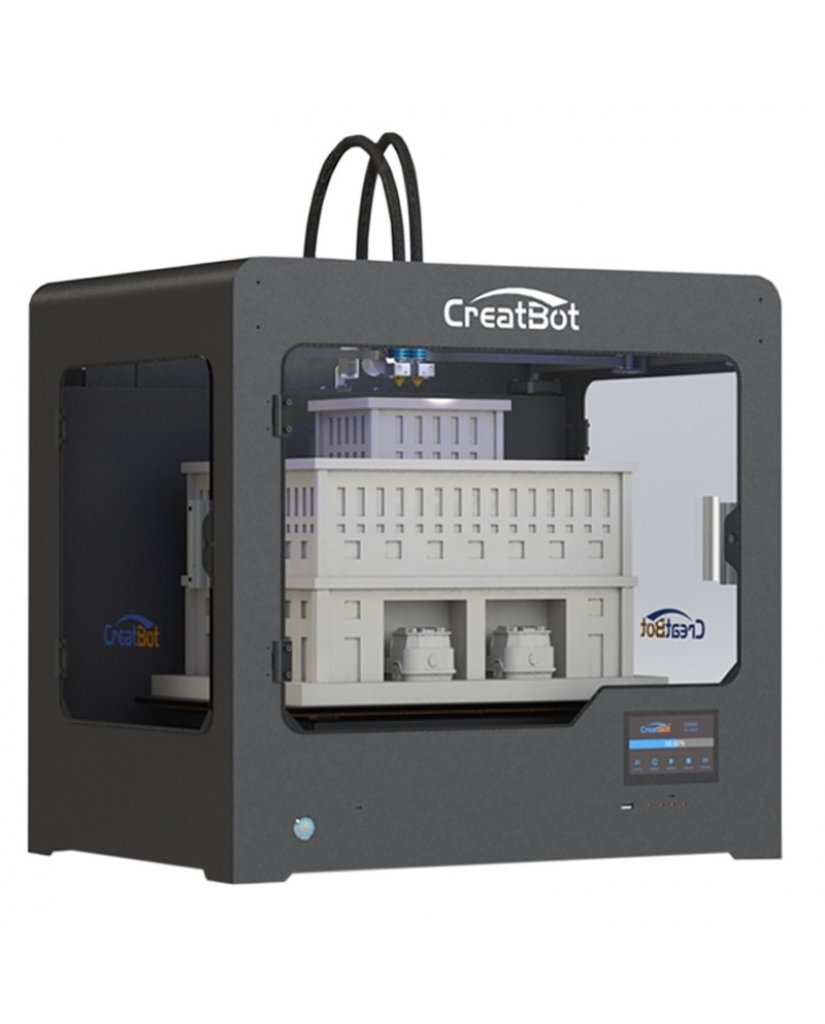

Creatbot DE / DE Plus
Main Features:
Metal Body: Creatbot 3d Printer is a full steel structure 3D printer, in addition to this,99% parts of this printer are made of high strength or high tolerance materials that ensures high-precision printing,
long term serve time and much better than wooden frame printer.
Large Build size: Build size is up to 400*300*520 mm (L/W/H), far more than other available 3D
printer in the worldwide market.
Thermostat: With insulating cover for constant temperature printing space, preventing edge warping and deformation
while large prototype printing. and the cover is easily removed. For the extruder, max temperature can heat to 400 degree .
Triple Nozzle: The extruder made by special materials and used advanced design technology,
which is more stable and longer life. And can make 1 colors printing.
Triple extruder
Monocrystal Heated bed: Our 3d printer is used monocrystal material as the print bed,
which can prevent the glass board be scraped, and confrim the model effect. What's more,
our bed can be heated, the max temperature is about 120 degree.
High precision: Imported bearing and rail, all parts made by CNC, accuracy of X, Y is up to 0.0127 mm,
Z to 0.00125mm, and the minimum layer is only 0.02 mm.
Accuracy Feeder: Exclusively designed filament feeder, and using professional precision gear
motor can ensure feed filament accurately.
High Speed: highest speed printer in the market, travel speed is up to 200mm/sec,
and print speed is up to 120mm/sec, which are more than reprap and makerbot.
Various Filament: PLA, ABS, PVA, and other kind can be used. We support to use PLA,
for no smell, environmental, degradable and easy to shape.
Self-researched Motherboard and Software
TEMPERATURE UP TO 350°C
We are the first one to publish 350°C ultra-hight temperature nozzle to mass market and it possess exclusive patent.
This kind of nozzle allow to print with a variety of filaments. And the fantasy blue metal cooling sink can efficiently
cool down the heatbreak.
The nozzle height can also be micro adjusted. And we accept customized for single/double/triple head.
HIGH PRECISION
We exclusively research and develop the extruder feeding system support high-speed printing,
and accuracy can reach high to 0.05mm, it allows to extrude filament steady without block.
Precision up to:0.05mm Speed up to: 200mm/s
STABILITY
The whole-steel body not only ensure the stability when printing but also greatly extend the usage period.
The optimization and cooperation of overall structure ensure the sustainable and efficient operation.
The first batch of CreatBot 3D printers have been working for 5 years and more than 8000 hours.

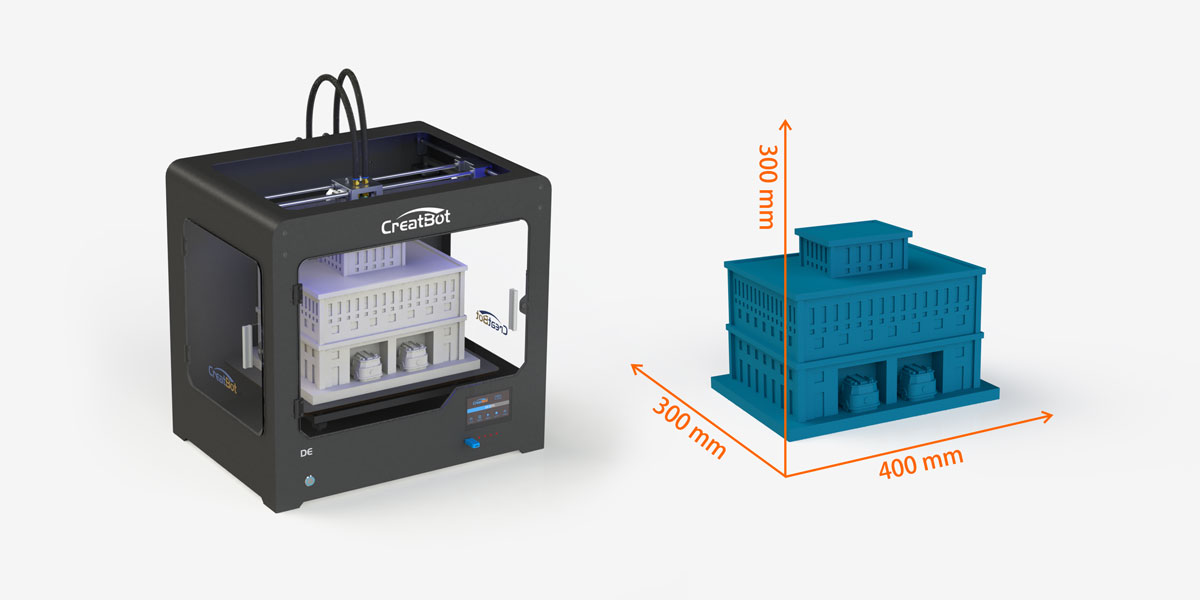

LARGE BUILD SIZE
We provide variety of printing sizes for you reference.
The largest build volume is 5 to 20 times bigger than it of other ordinary 3D printers in nowadays market.

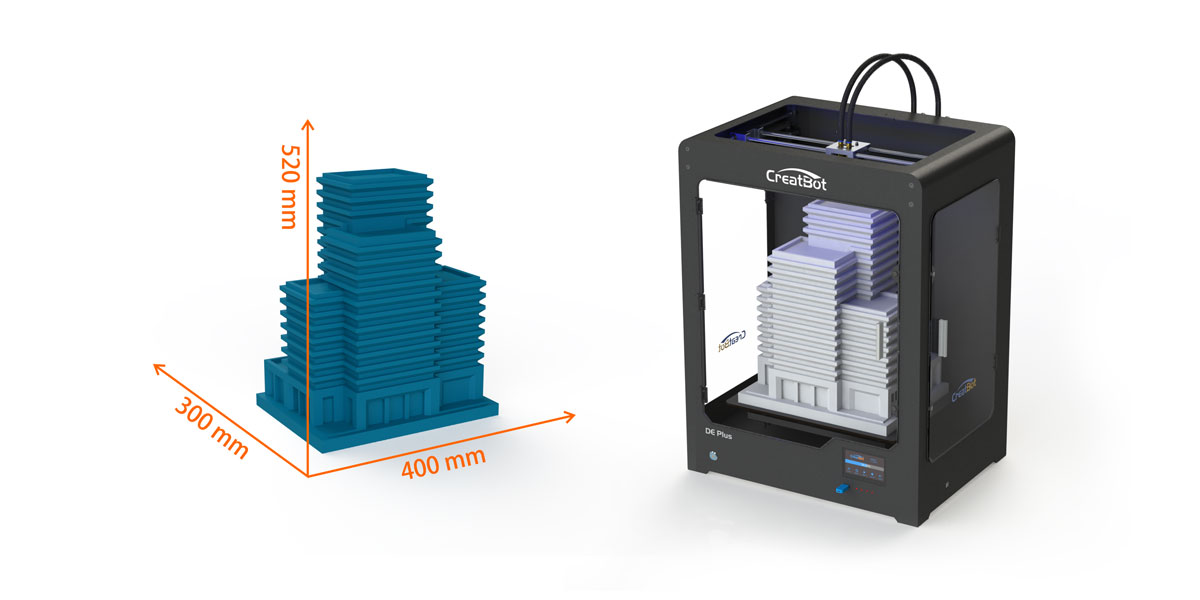

CreatBot DE build volume: 400*300*300mm and DE Plus Build Volume: 400*300*520mm
OUTAGE RESTORED & FILAMENT DETECTION
The printer will automatically memorize the current position and save the print data,
lower the working platform and withdraw filament when the power off suddenly.

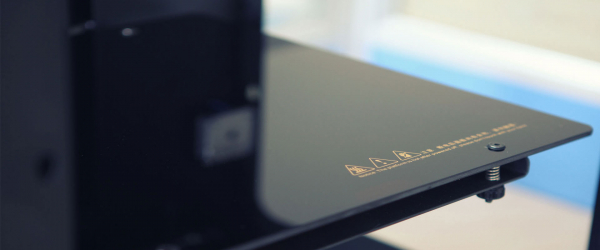

GLASS CERAMIC PLATFORM
The printer has mico-crystal platform so that can support hight thermal efficiency,
you can set the parameters to turn off the hot bed automatically after the specified number of layers.
EASY TOUCH SCREEN
The printer has a 4.3" touch screen, more easy to operate.
We also provide One-Key to preheat, print, home as well as other shortcut keys..
SIMPLE FEEDING FRAME
The stepper is separated with the hotend, so that the hotend is even lighter,
smaller and will has less inertia of movement, also greater space utilization.
FILAMENT FEEDER
Geared motor can reduce speed intelligently and it support super torque so that it can feed filament in high precision
without slipping and delay when withdrawing the filament.
TRIPLE EXTRUDERS
Support three color printing, support printing sort of materials using triple nozzles
PRINT SAMPLES
Some of the showcase printed parts from the machine
Tech Specs:
PRINTING
Print Technology:
Fused Deposition Modeling
Build Volume:
400*300*300mm (DE)
400*300*520mm (DE Plus)
* 3 nozzles build width: 380mm
Number of Nozzles:
Double (Max.3)
Resolution:
0.05mm
Layer Resolution:
0.02mm
Filament Diameter:
3.0mm (1.75mm optional)
Filament Compatibility:
PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, etc.
Nozzle Diameter:
0.4mm (0.3, 0.5, 0.6, 0.8, 1.0mm)
Print File Type:
GCO, GCODE
TEMPERATURE
Ambient Operating Temperature:
15-32°C
Max. Nozzle Temperature:
350°C
Max. Bed Temperature:
100°C
SPEED
Best Printing speed:
45mm/s
Max. Printing speed:
120mm/s
Max. traveling speed:
200mm/s
MECHANICAL
Construction:
Power-Coated Steel, Aluminum Casting for Motion Components, POM
Build Plate:
Glass Ceramic Panel
Build Plate Leveling:
Factory Leveled, Adjust Manually
Extruder:
Geared motor (1:10 rate)
Stepper Motors:
1.8° Step Angle with 1/16 Micro-stepping
X Y Positioning Precision:
12.7 Microns
Z Positioning Precision:
1.25 Microns
ELECTRICAL
Power Requirements:
100-240V, 50-60Hz
Max. Power:
360W
Screen:
128*64 LCD with Multi-language
Control Chip:
ATmega 2560
Storage Media:
USB Disk
Connectivity:
USB
SOFTWARE
Software Bundle:
CreatWare Multi-language
Supported File Types:
STL, OBJ, AMF
Operating Systems:
Windows (7,8,10)
Mac OS X
SPECIAL FUNCTION
Outage Restored:
Save data when power is off
Filament Detection:
Pause printing when filament run out
Automatic Shut-down:
Turn off the power automatically when printing is complete
SIZE & WEIGHT
Product Dimensions & Weight:
590*430*560mm 35Kg (DE)
590*430*780mm 42Kg (DE Plus)
Packing Size & Weight:
720*560*670mm 45Kg (DE)
720*560*870mm 55Kg (DE Plus)
About Estimated Lead/Shipping Time
Warehouse | Estimated Shipping Time |
---|---|
China Warehouse: | 7 to 30 days |
Maße: 59 x 43 x 56 cm
Gewicht: 35 kg
Bauvolumen: 40 x 30 x 30 cm
Bauplattform: beheizt
Dual Extruder: Ja
Filamente: PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, etc.
Software: CreatWare
Dateitypen: STL, OBJ, AMF; GCO, GCODE
Betriebssysteme: Windows, Mac
Besonderheiten: Dual-Extruder, bis Dreifach-Extruder upgradebar, 400 °C Hotend
Technical Specs
Printing | |
Print Technology | Fused Deposition Modeling |
Build Volume | 400*300*300 mm (DE) |
400*300*520 mm (DE Plus) | |
* 3 nozzles build width:380mm | |
Number of Nozzles | Double (Max.3) |
Resolution | 0.05 mm |
Layer Resolution | 0.05 mm |
Filament Diameter | 1.75 mm (3.0/2.85 mm optional) |
Filament Compatibility | PLA, ABS, Carbon Fiber, PTEG, etc. |
Nozzle Diameter | 0.4 mm(0.3 0.5 0.6 0.8 1.0 mm) |
Print File Type | STL, OBJ, AMF, Gcode |
Speed | |
Best Printing speed | 45 mm/s |
Max. Printing speed | 200 mm/s |
Electrical | |
Power Requirements | 100V-110V or 200V-240V / 50-60Hz (Depending on your country's default voltage) |
Max. Power | 360 W |
Screen | 4.3'' full color touch screen, multi-language |
Control Chip | ATmega 2560 |
Storage Media | U Disk |
Connectivity | USB |
Software | |
Software Bundle | CreatWare, Simplify 3D, Cura, Slice 3r, etc |
Supported File Types | STL,OBJ,AMF |
Operating Systems | Win7/8/10, MacOS |
Temperature | |
Ambient Operating Temperature | 15-32 ℃ |
Max. Nozzle Temperature | 260 ℃ |
Max. Bed Temperature | 100 ℃ |
Special Function | |
Outage Restored | Save data when power is off |
Filament Detection | Pause printing when filament run out |
Automatic Shut-down | Turn off the power automatically when printing is complete |
Mechanical | |
Construction | Power-Coated Steel, Aluminum Casting for Motion Components, POM etc |
Build Plate | Glass Panel |
Build Plate Leveling | Factory Leveled, Adjust Manually |
Extruder | Geared motor (1:10 rate) |
Stepper Motors | 1.8°Step Angle with 1/16 Micro-stepping |
X Y Positioning Precision | 12.7 μm |
Z Positioning Precision | 1.25 μm |
Size & Weight | |
Product Dimensions & Weight | 590*430*560 mm 35 kg (DE) |
590*430*780 mm 42 kg (DE Plus) | |
Packing Size & Weight | 720*560*670 mm 45 kg (DE) |
720*560*870 mm 55 kg (DE Plus) |
