Die Neuerungen im Überblick:
- Für eine verbesserte Kühlung der Hardware bei einem dauerhaften Einsatz des Zortrax M200 Plus ist ein zweiter Radiallüfter eingebaut worden. Der Kühler soll Herstellerangaben zufolge für eine dauerhafte Kühlung der obersten Komponente am Hotend sorgen.
- Der Antriebsmechanismus erhielt eine Anpassung und soll Filamente jetzt besser verarbeiten können. Ein dritter Lüfter dient dazu, das gedruckte Objekt abzukühlen. Der übrige Teil des Hotend bekam an einigen Stellen eine Überarbeitung und Verbesserung.
- Ein bald endendes Filament wird durch einen neuen Filament-Sensor erkannt, worauf der 3D-Druck automatisch pausiert und dem Anwender die Möglichkeit gibt ein neues Filament einzulegen.
- Der Zortrax M200 Plus verfügt außerdem über einen USB-Port, was auf Kosten des SD-Kartenslots geht, der beim Vorgänger M200 noch verbaut war.
- Außerdem ist beim M200 Plus das Touchscreen-Display erweitert worden, um einerseits eine höherer Benutzerfreundlichkeit zu bieten und andererseits Einstellungen zeitsparender zu ändern.
Die
integrierte WLAN-Schnittstelle erlaubt es 3D-Daten per Funk an den 3D-Drucker zu übermitteln und so zum Beispiel die Firmware zu aktualisieren

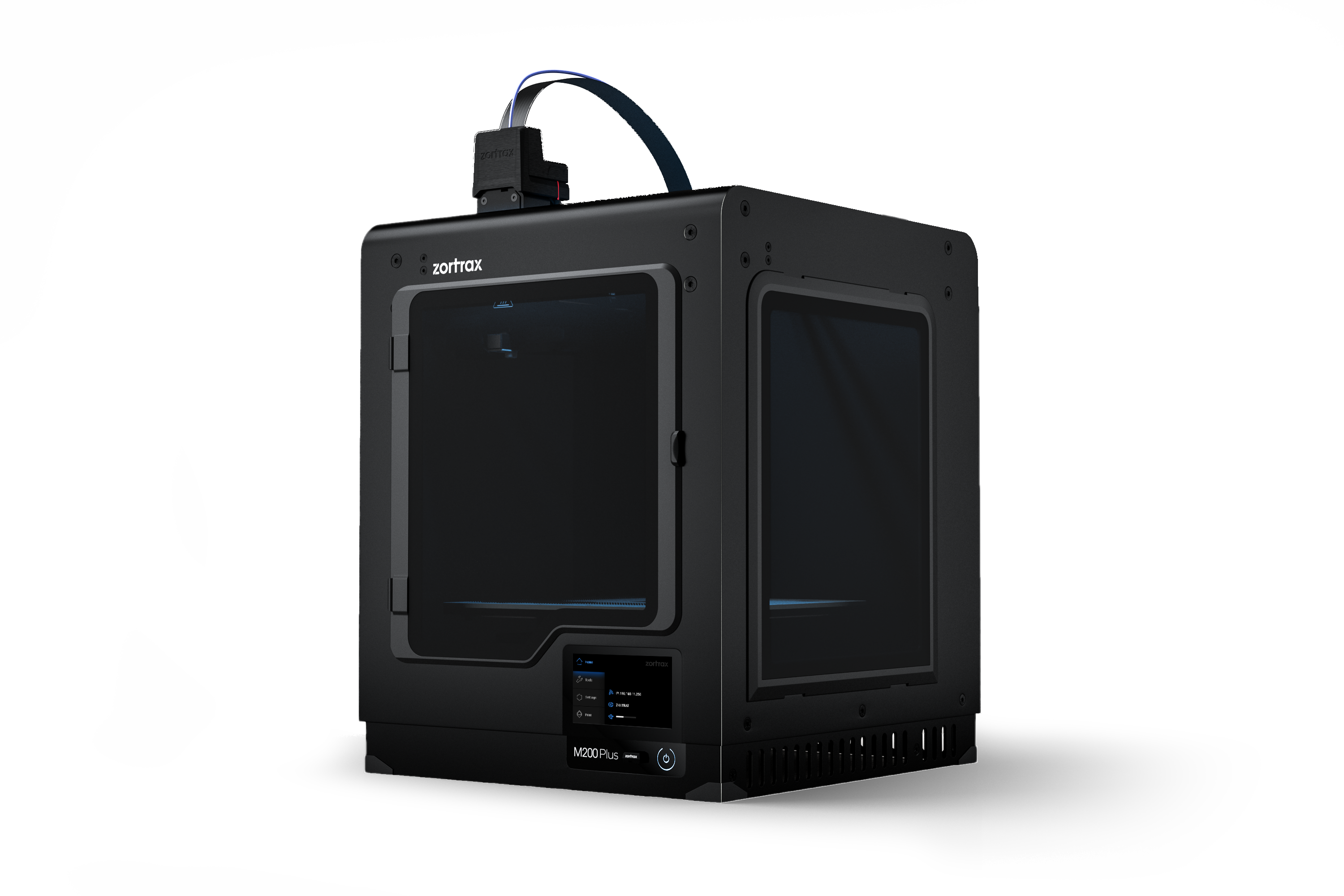

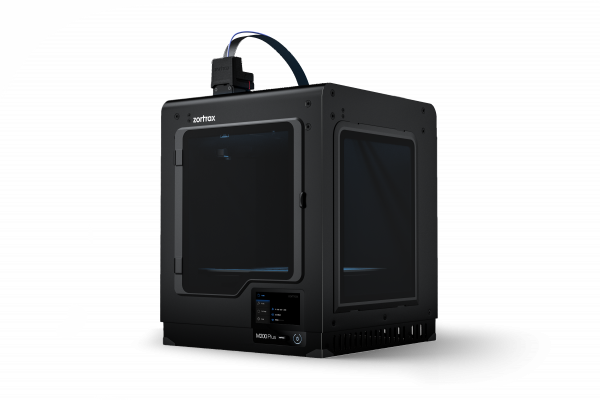

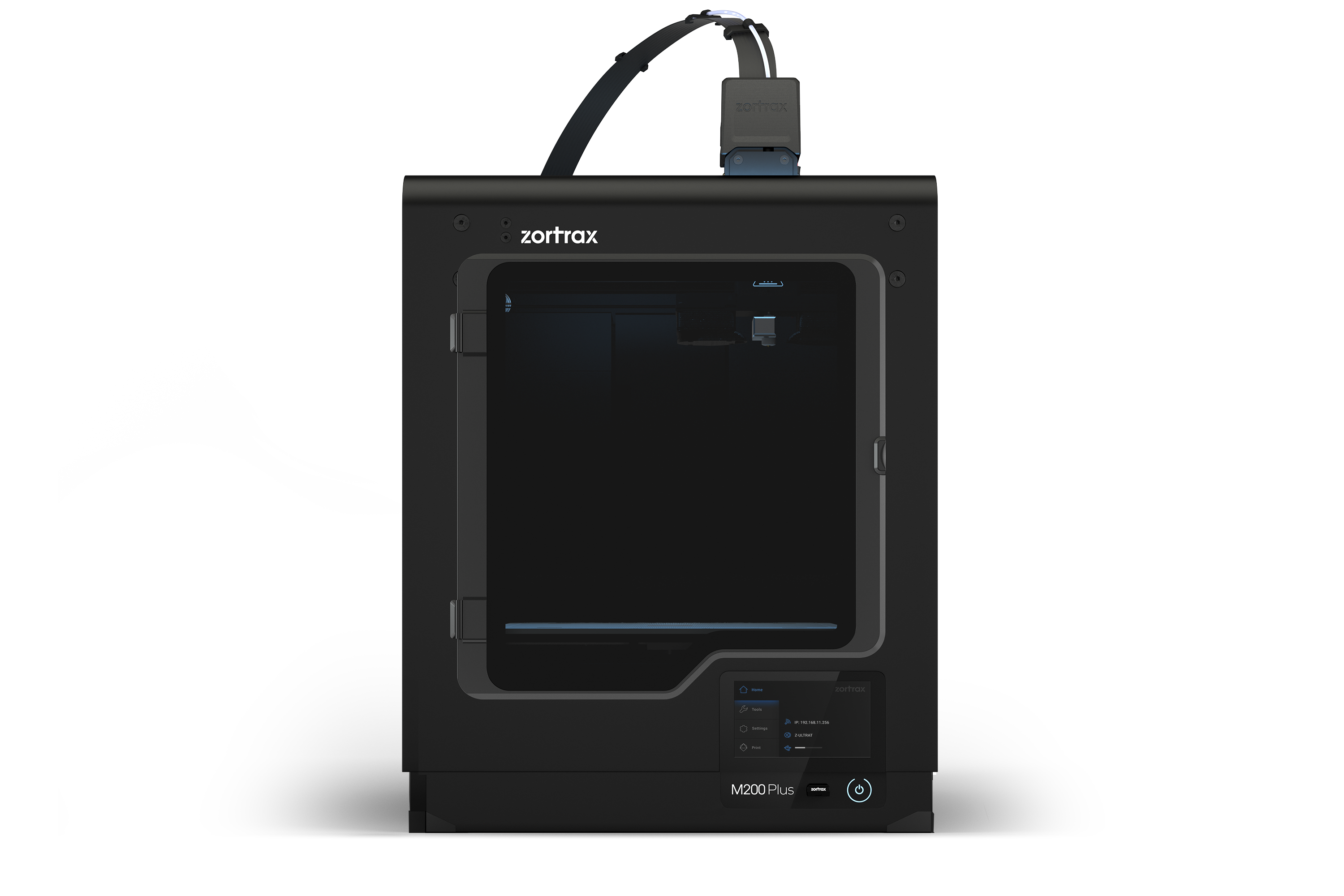

Desktop 3D printer ready for rapid manufacturing
Expand your 3D printing capabilities with Zortrax M200 Plus 3D printer. Easily manage multiple devices over Wi-Fi using Z-SUITE slicing software.
Monitor the progress with the built-in camera. Whether it is for industrial manufacturing or prototyping, Zortrax M200 Plus offers remarkable dimensional
accuracy and consistency of integrated Zortrax Ecosystem.
Wi-Fi Module
Create wireless networks
of 3D printers and transfer
files over Wi-Fi.
Material End Detection
3D printing will automatically
pause when the material runs out.
Upgraded cooling system
Extruder cooling system has
been improved to guarantee
the highest efficiency.
Built-in camera
Watch the 3D printing process
on your computer.
User-friendly design
Zortrax M200 Plus is an advanced 3D printer, ready for high quality 3D
printing right after unboxing. Just plug & 3D print, no assembly or
tinkering needed.
Easily select available options by touching the icons on the built-in
touchscreen. You can also preview 3D models directly on the screen.
Moreover, the interface can be improved with automatic firmware
updates over Wi-Fi. Beside transferring files wirelessly, you can also use
a USB storage device of any kind.
Network of 3D printers
With Zortrax M200 Plus connected, your computer becomes the command center of smart, reliable manufacturing.
Wi-Fi module installed in Zortrax M200 Plus offers a fitting alternative for the file transfer between computer and the 3D printer.
Connect
Wi-Fi module allows you to connect the devices together, creating network ready to cope with the most ambitious projects.
Manage
Manage all your 3D printers easily from a screen of your computer. Divide work between the devices to finish it quickly.
Check
Rely on the smart functionalities like material end detection, upgraded extruder, build platform and camera
Key features of Z-SUITE 2
Wi-Fi Module
Create wireless networks of 3D printers and transfer files over Wi-Fi.
Tabbed projects
Work on many projects simultaneously.
Quality of Zortrax
Materials Profiles
Use 3D printing materials from Zortrax Ecosystem to maximize the quality of your 3D prints.
External Materials
Support
The software allows you to experiment with third-party materials
Smart Lab
Z-SUITE 2 slicing software is a link between your idea and product. Use the multitude of functionalities
and tools to streamline the 3D model preparation process.
Material Range
Zortrax M200 Plus is compatible with all materials available for M Series 3D printers.
What’s more, the upgraded extruder allows you to 3D print with the Z-SEMIFLEX material.
Available materials: Z-ABS, Z-HIPS, Z-ULTRAT, Z-PETG, Z-GLASS, Z-ESD, Z-PLA Pro, Z-ASA Pro, Z-PCABS, Z-SEMIFLEX
Z-SEMIFLEX
Strong and flexible
Z-SEMIFLEX is a semi-elastic thermoplastic that can bend without breaking
when a force is applied to its surface. Offering both resilience and elasticity,
the material is a perfect choice for heavy-duty flexible parts
Z-ULTRAT, Z-PETG
Resilience and durability
Excellent durability makes Z-ULTRAT an ideal material for functional prototypes.
Z-PETG, in turn, offers resistance to salts, acids, and alkalis. Both materials set
the quality of 3D prints on par with injection-molded products.
Z-ASA Pro, Z-PLA Pro
Great rigidity
UV resistant Z-ASA Pro is a perfect material for outdoor applications.
On the other hand, Z-PLA Pro offers great rigidity and durability with almost
no warping.
Z-ABS, Z-HIPS
Strength and precision
ABS-based materials are resistant to heat and chemicals which makes
them a perfect choice for various kinds of functional prototypes that can
be printed in multiple colors.
Specification for Zortrax M200 Plus:
Device features
Build volume: 200 x 200 x 180mm (7.9 x 7.9 x 7.1 in)
Material container: Spool
Material diameter: 1.75 mm (0.069 in)
Nozzle diameter: 0.4 mm (0.016 in)
Connectivity: USB, RJ45, WiFi
Extruder: Single (upgraded for experimental materials)
New cooling system: Double fan and extruder cooling
Hotend: V3 and nozzle with new geometry
Material runout: Mechanical endstop
Build Plate: Perforated plate with pogopins instead of small connector
Support: Mechanicaly removed
Materials: M Series dedicated materials (recommended) + new Z-SEMIFLEX
External materials: Applicable
Touchscreen:4" IPS 800x480
In the box: 3D Printer, Hotend V3, Side Covers, Z-SUITE, Starter Kit, 1 spool of material, improved spoolholder
Printing:
Technology: LPD (Layer Plastic Deposition) / FFF
Layer resolution: 90-390 microns
Minimal wall thickness: 400 microns
Dimensional accuracy: +/- 0,2%*
Angle accuracy: +/- 0,2%**
Maximum printing temperature (extruder): 290° C (554° F)
Operation system: Android
Maximum platform temperature: 105° C (221° F)
Ambient operation temperature: 20° - 30° C (68°-86° F)
Storage temperature: 0° - 35° C (32°-95° F)
AC input: 110 V ~ 5.9 A 50/60 Hz
240 V ~ 2.5 A 50/60 Hz
Maximum power consumption: 320 W
Software
Software bundle: Z-SUITE 2.0
Supported file types: .stl, .obj, .dxf, .3mf
Supported operating systems: Mac OS X / Windows 7 and newer versions
