Quality of Your Prints Covered

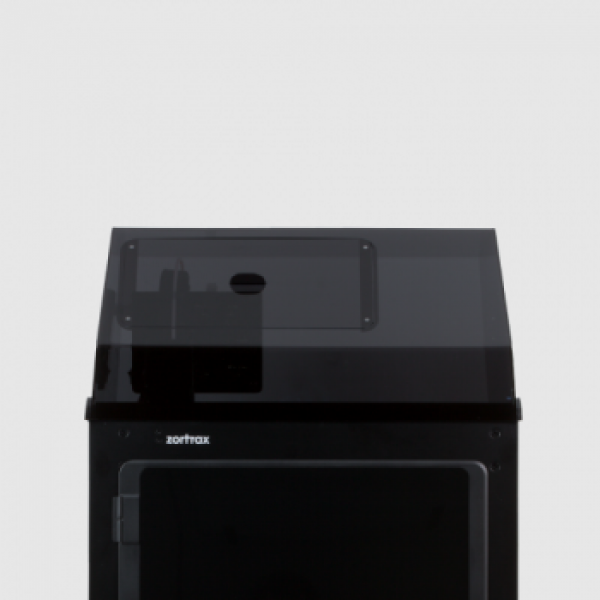

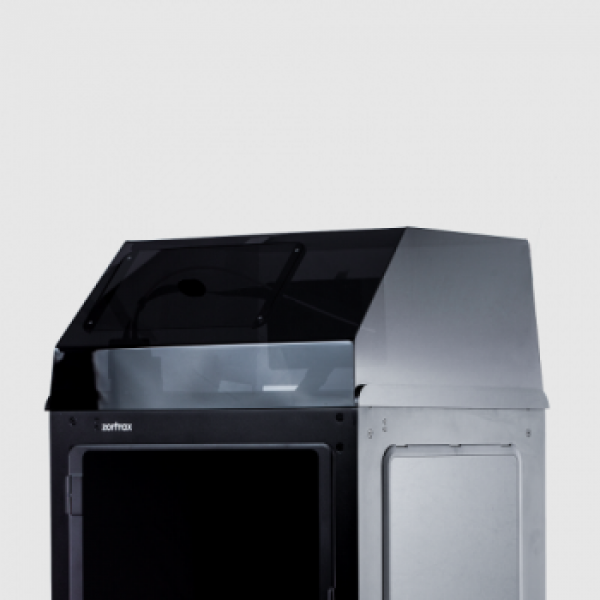

Zortrax HEPA Cover is a filtering device compatible with Zortrax M300 and Zortrax M300 Plus 3D printers.
It keeps the temperature stable inside the printing chamber to reduce warping of ABS-based materials.
Built-in carbon filter gets rid of unpleasant odors released in the 3D printing process, while HEPA filter
catches over 99% of 3D printing emissions, including ultra fine particles.
Zortrax HEPA Cover solves following issues
- Maintains stable temperature inside the printing chamber to reduce warping of ABS-based materials
- Carbon filter eliminates unpleasant smells
- HEPA filter catches over 99% of 3D printing emissions, including ultra fine particles
What's in the box
- Zortrax HEPA Cover
- Filter Module (Electric Fan with Regulated Speed, HEPA Filter, Carbon Filter)
- Power Supply Unit
- Front Door
- User's Manual
Before the first use you need to follow a few simple steps to set your Zortrax HEPA Cover up and properly attach it onto your
Zortrax M300 or M300 Plus 3D printer.
Specification
Device parameters
HEPA cover dimensions*: 545 x 483 x 280 mm (21.5 x 19 x 11 in)
Weight: 2,55 kg (5.6 lbs)
Box dimensions: 565 x 550 x 335 mm (22.2 x 21.7 x 13.2 in)
Total weight of the box: 4,8 kg (10.6 Ibs)
Odors filter: Carbon filter
Particle filter: HEPA
HEPA filter efficiency: Over 99%
Mains voltage: 100-240 VAC, 0.7 A 50/60 Hz
Power supply. 12 VDC, 0.5 A (min):
Average energy consumption: 6 W:

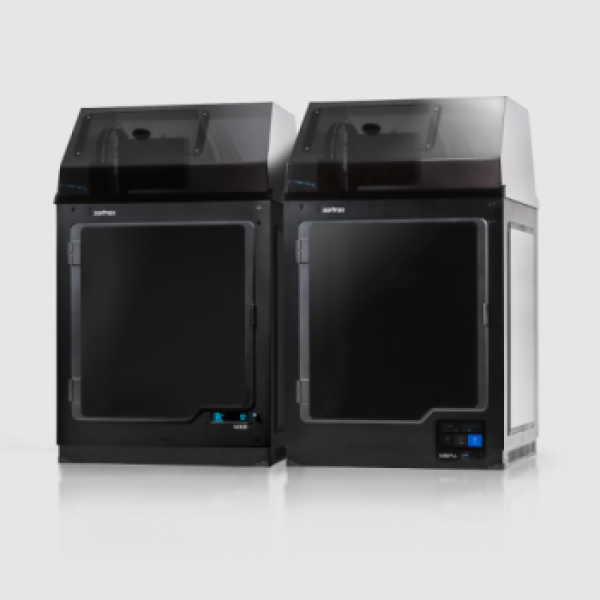

Compatible with. Zortrax M300 / Zortrax M300 Plus
In the box: Zortrax HEPA Cover, filter module (electric fan with regulated speed, HEPA filter, carbon filter),
power supply unit, front door, user's manual
