SINTERIT Powder Handling Station

Sinterit Powder Handling Station

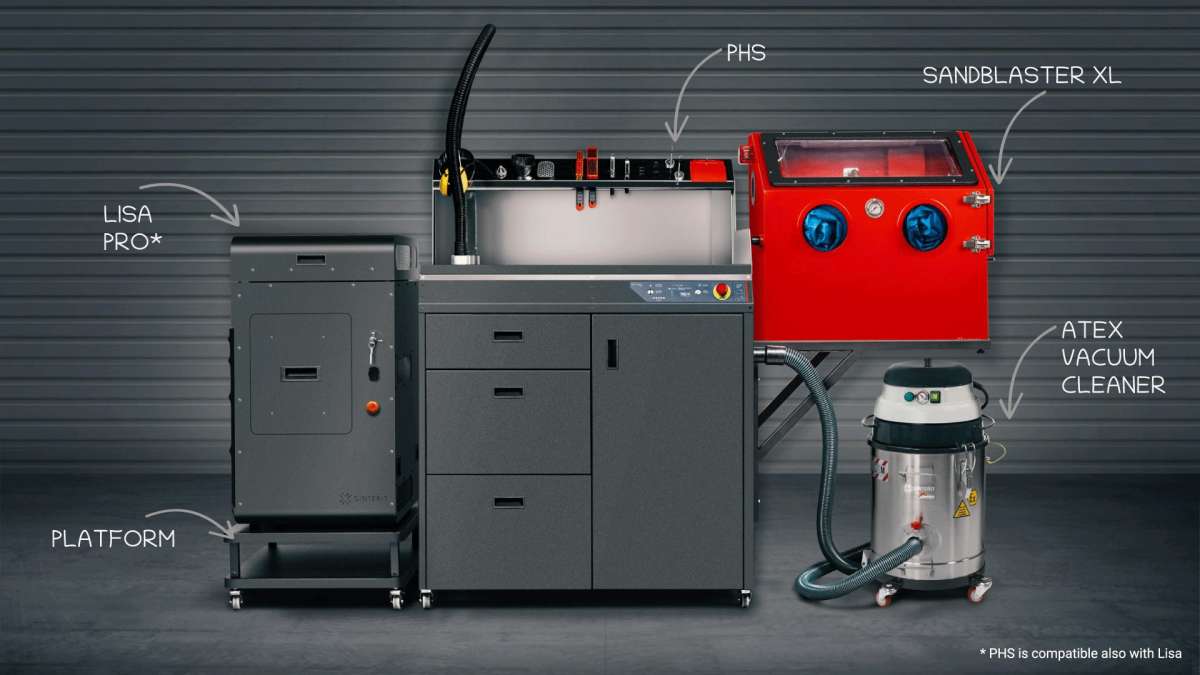

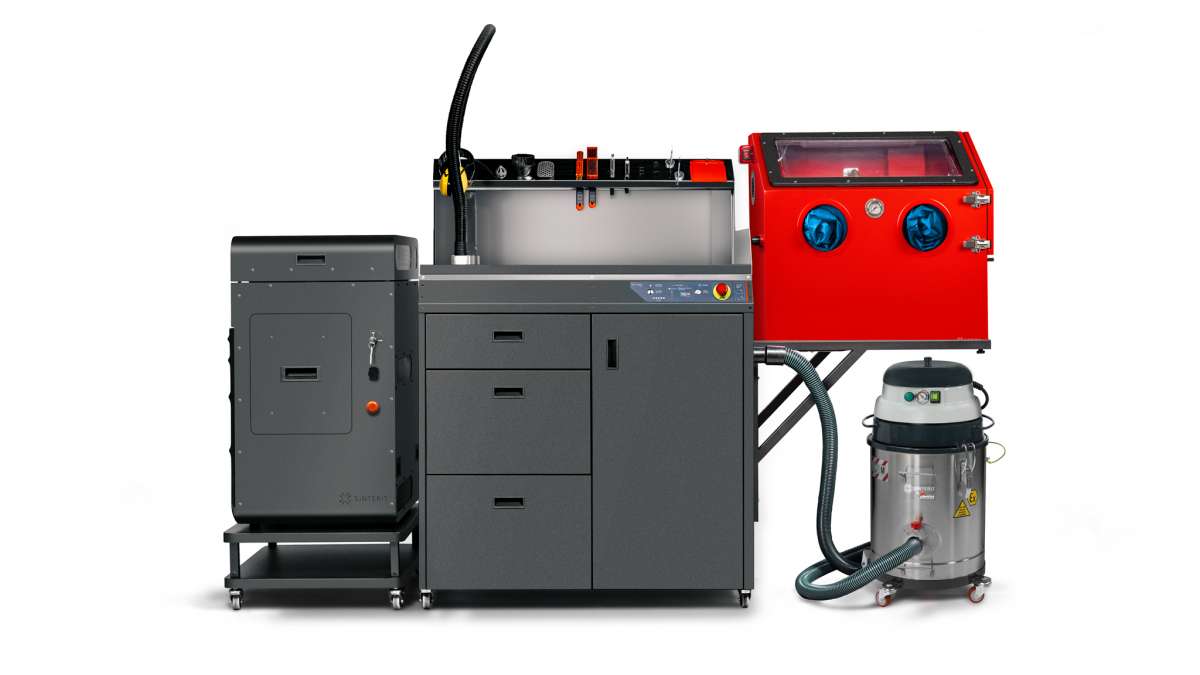

What you also need:

• Sinterit Lisa / Lisa Pro SLS printer
• Atex Vacuum Cleaner
• Platform for Sinterit Lisa SLS printers
• Dedicated powder tools
• Powder Sieve
• Sandblaster (XL)

New way of handling powder

Support device that does post processing and powder recovery like that
should make it as clean as possible.

All processes in one place

Post-processing and powder recovery: all processes in one place!

To press

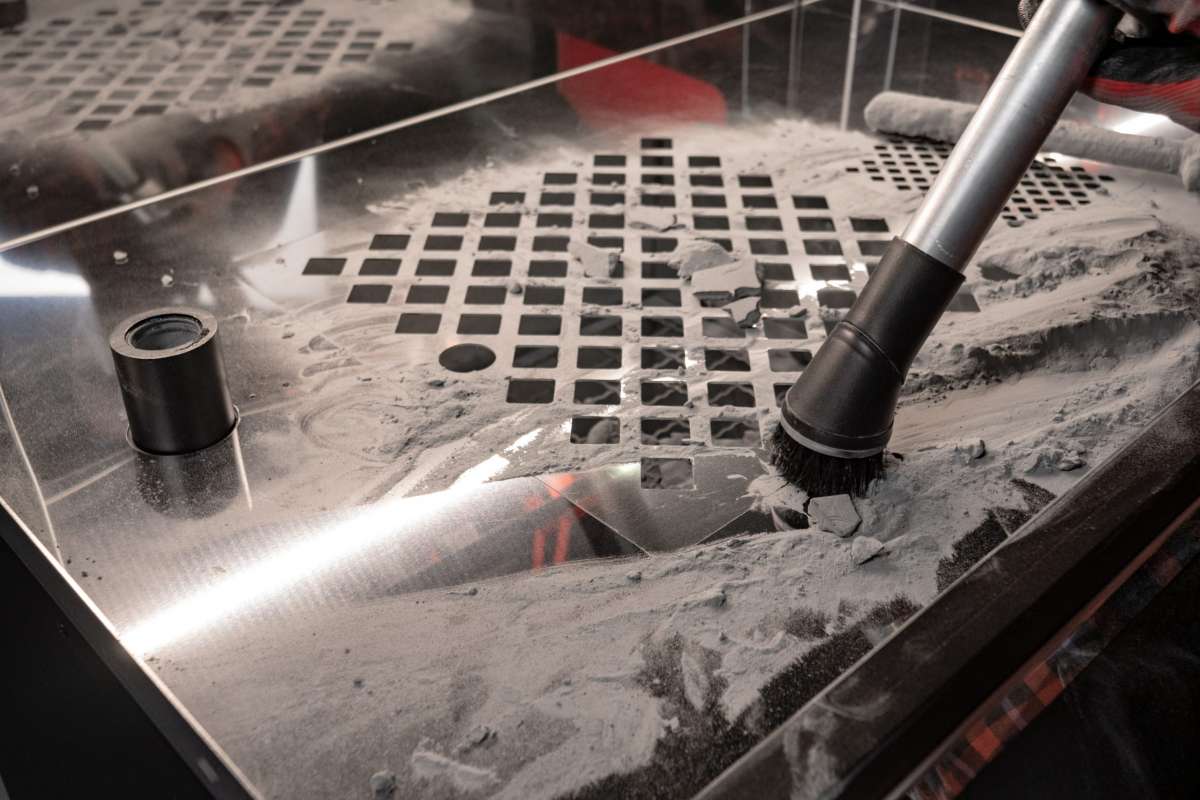

Cleaning the printer and work area

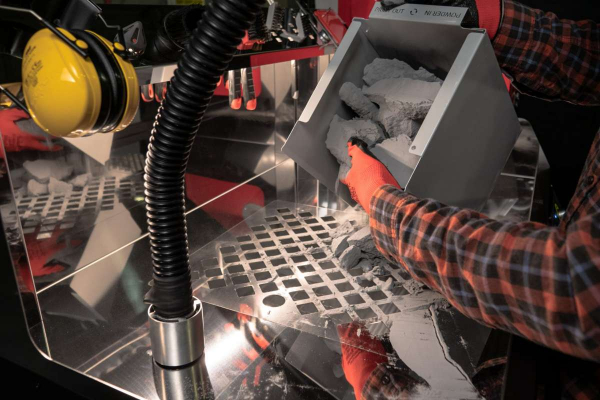

initial depowdering
precise de-powdering
Print sandblasting
Powder refreshing

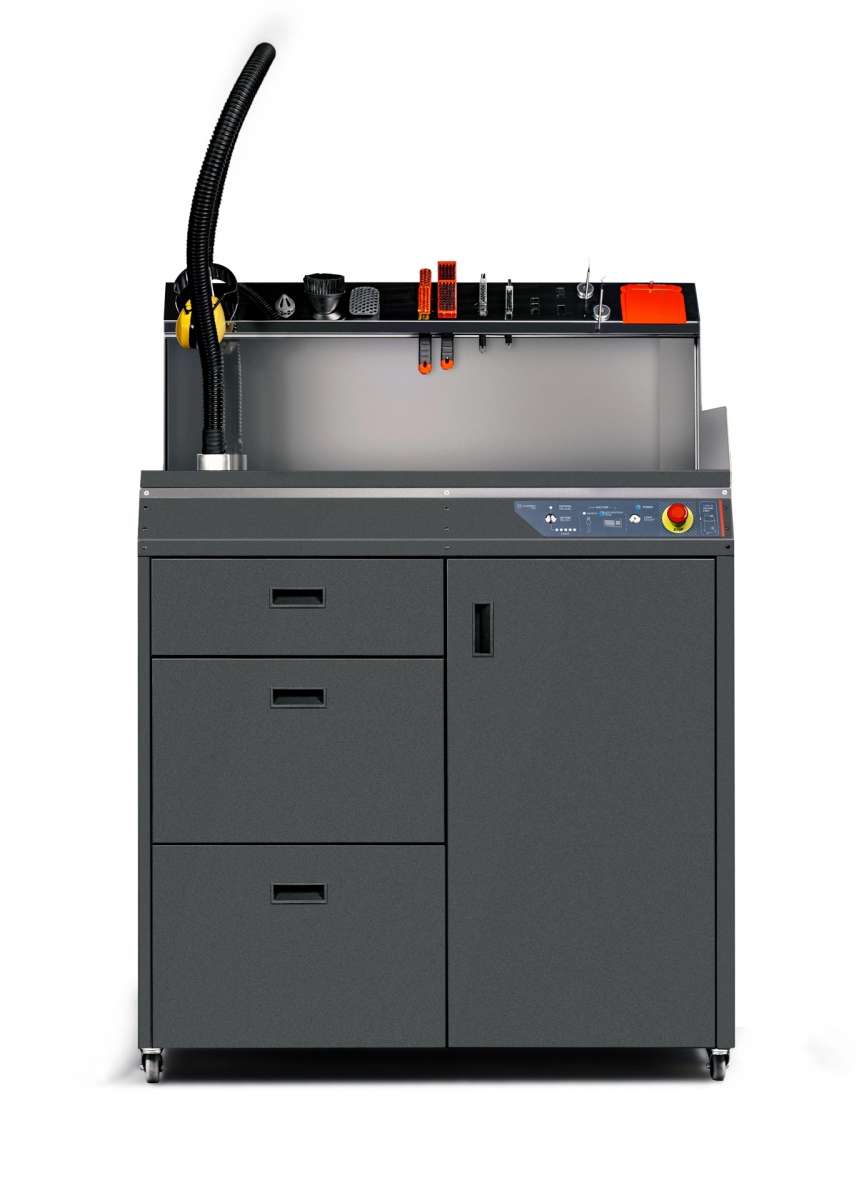

Clever workspace

Designed to be useful

• Removable suction hose for use as a vacuum cleaner to clean the printer and the work area
• Worktop with suction opening for powder removal
• Shelf for Sandblaster & Sandblaster XL for a smooth workflow or shelf for foldable storage (optional)
• Storage place for the most frequently used tools
• Control panel
• Powder separator
• Powder sieve module
• Drawer for metal containers

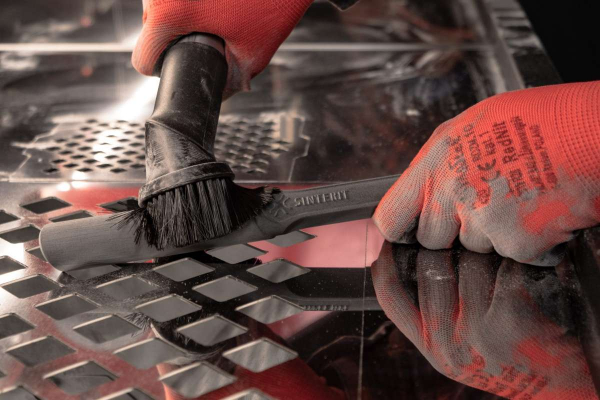

Tools near you

Everything you need is always at hand

• Holes for special suction hose nozzles​
• Shelf for storing precision work tools
• LED light
• Additional powder chamber cover for cleaning small parts
• 3 drawers: storage space for de-powdering

Powder refreshment

• All of the recovered powder is transferred to a sieve module and then goes into a metal chamber.
• The sieve module located there makes the powder ready for further processing.

Features

• Suction system compatible with Sinterit ATEX vacuum cleaner

• Dedicated 3D printed vacuum inlets for de-powdering

• Built-in LED lighting

• Storage space - 3 drawers and shelf for frequently used tools

• Built-in sieve module and powder separator

• Compatible with standard sintered powder container

• easy to clean

• Sandblaster Shelf

Technical Data

• Dimensions [mm]/[in]: 700 x 1000 x 1580 / 27,6 x 39,4 x 62,2

• Total Weight: 160 kg / 352.7 lbs
• Installation space [mm]/[in]: 1700 x 2200 x 1800 / 66,9 x 86,6 x 70,9
• Tension: 230 [V] AC, 50/60 [Hz] oder 110 [V] AC 50/60 [Hz]
• Power Supply: 110/230 V AC, 12 VDC 6,67 A, 80 W
