Sinterit Nils 480

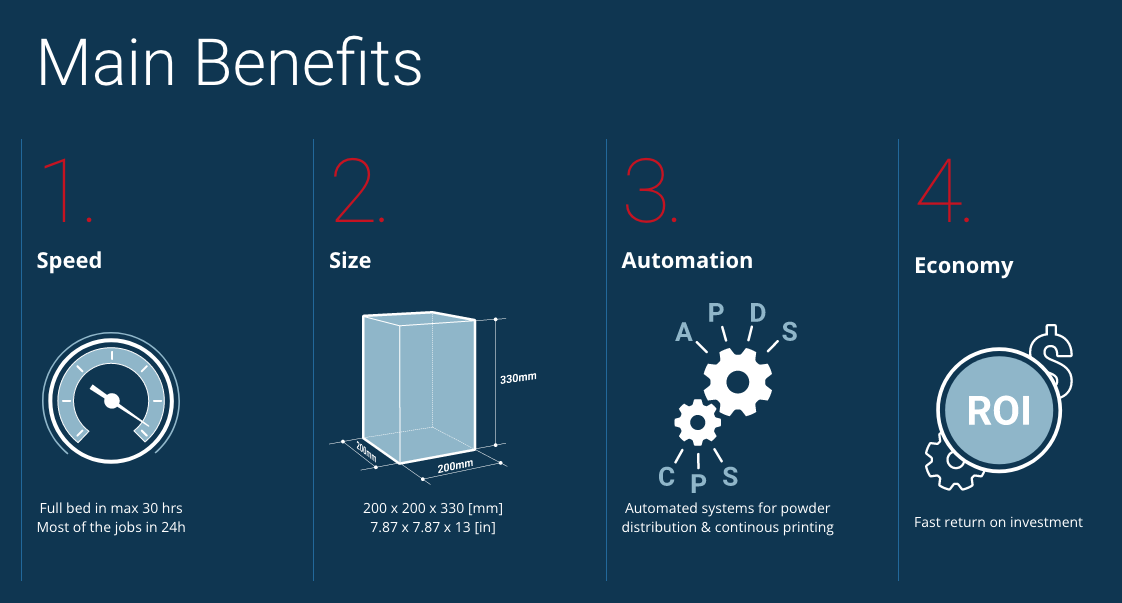

Key advantages of the NILS 480

Continuous Printing System
With this solution, fill the powder once and print two full beds or a few lower print beds. All of this without repeating the print preparation
process and powder filling. How does the NILS do this? The previous bed automatically ejects, lifting a full cake to the cooling box. The
printing bed comes back and another print automatically begins.

Easy operation
With automated systems, an effective ecosystem with post-processing, and easy material change, you can be sure the printing experience
will be smooth and simple.

Automatic Powder Dispensing System
Just fill the container with powder and let the printer manage the rest of the process. This is possible thanks to the special closed powder circuit,
which circulates the powder and automates the powder dispensing. No manual work with powder is required until you receive the final print cake.

32 open printing parameters
Each of our materials has an optimized profile that allows you to gain the best quality and personalization. When you’re ready to modify or make
your own profile for changing printout properties, the NILS’ 32 parameters can be adjusted.

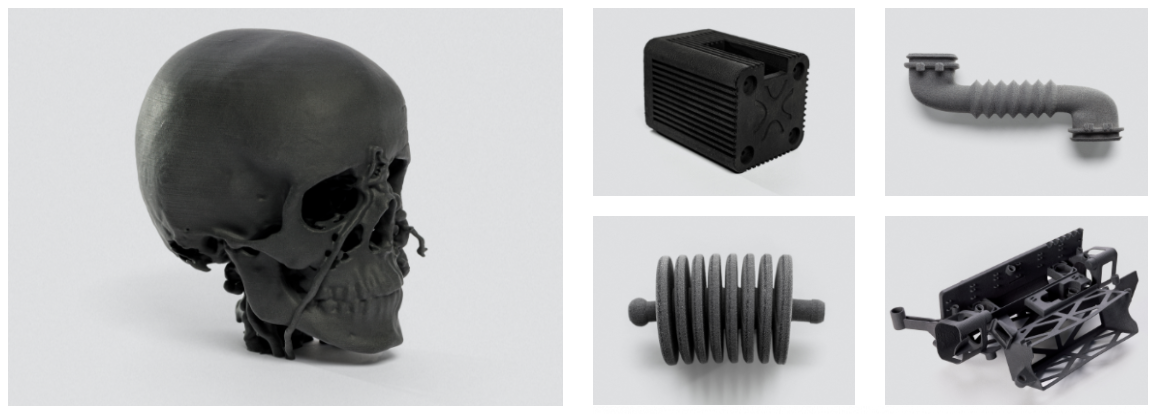

Only top quality 3D printing



Technical specification

NILS 480 Spezifikation

Technology	-	Laser Sintering
Build Volume	(W x D x H) mm	200 x 200 x 330
	(W x D x H) in	7.9 x 7.9 x 13.0
Max print diagonally	mm	435
	in	17.1
Layer Thickness (Axis Resolution)	mm	0.075 - 0.175
	in	0.003 - 0.006
Build Speed	mm / h	10 - 14
	in	0.39 - 0.56
Laser Spot Size	microns / in	650 - 700 / 0.0256
Print Preparation	Software	Sinterit Studio
Windows	Version	10 and up
Files	Types	STL, 3MF, OBJ, 3DS, FBX, DAE
Output file	Types	*.scode, *.sspf, *.sspfz
Communication		WI-Fi / Ethernet / USB
Inert gas control system		Yes
Control Panel		15,6" interactive touchscreen
Printer Dimensions	(W) mm	1200
	(D) mm	1200
	(H) mm	1750
	(W x D x H) in	47.2 x 47.2 x 68.9
Weight	kg	250
	lb	550

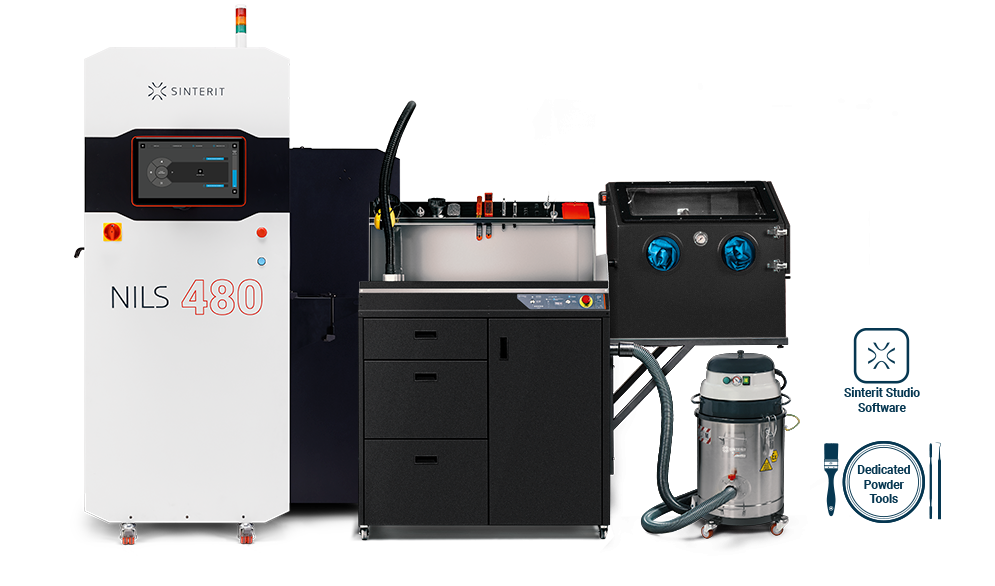

Recommended solution for NILS 480

The NILS 480 is part of one part of Sinterit’s wider SLS 3D printing solution. It can work as a stand-alone 3D printer
or with the complete post-production and powder maintenance solution. You decide what you need.
