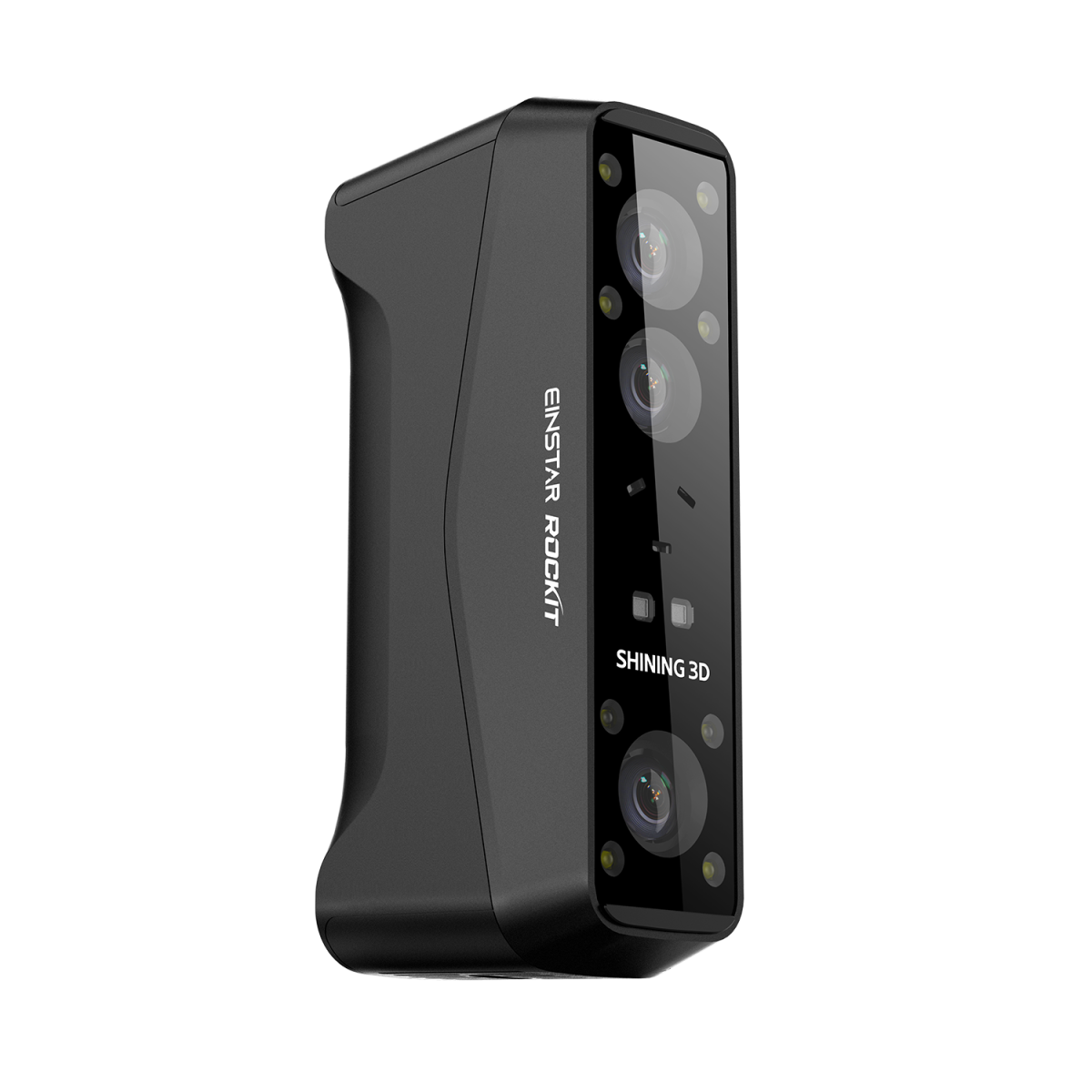

Shining3D - EinStar Rockit
– Wireless Pocket-Size 3D Scanner

The EINSTAR Rockit from SHINING 3D is the smart, wireless 3D scanner that puts
professional performance in the palm of your hand. With integrated Wi-Fi, hybrid light source (laser + infrared),
marker-free scanning, and intelligent audio feedback, it combines speed, precision,
and convenience in a compact design. Perfect for mobile applications, creative projects, and industrial inspections.

3D Scanner for Mobile Quality Control

The Rockit is your tool for unlimited 3D capture – in the studio, in the field, or on the go.
No cables, no markers, no preparation: simply power on, connect, and start scanning. I
deal for design, AR/VR, reverse engineering, cultural heritage, or the automotive industry.

Marker-Free Laser Scanning

Thanks to blue laser technology and precise tracking algorithms, you can scan complex,
detailed objects without any markers. This reduces preparation time
and makes the Rockit especially beginner-friendly. Recommended RAM: ≥ 64 GB for optimal performance.

Innovative Hybrid Light Technology

Two light sources for maximum versatility:

• 38 cross laser lines (19 + 19) for fast, large-area capture
• 7 parallel laser lines for fine details

The combination of blue lasers and infrared VCSEL enables reliable scanning even on black, shiny, or reflective surfaces
– without sprays or preparation.

True Wireless Design – Pure Freedom

With the integrated Wi-Fi module, the Rockit works without external adapters or hubs.
Scan wirelessly and transfer data to the PC in real time.
The replaceable battery provides up to 3 hours of runtime – ideal for all-day use. If interference occurs,
a cable connection is available as backup.

High Speed & Precision

Up to 90 frames per second (fps) ensure smooth, responsive scanning.
Marker-based alignment guarantees clean point cloud generation with consistent results.
The robust pocket-size housing is lightweight (approx. 420 g) and ergonomically designed.

Excellent Color & Texture Capture

The integrated 5-megapixel color camera delivers vivid textures for photorealistic 3D models.
Perfect for AR/VR, digital art, product design, and restoration.

Outdoor Performance

Whether in sunlight or in the studio – the Rockit operates reliably under bright conditions:

• Laser HD mode up to 110,000 Lux
• IR Rapid mode up to 70,000 Lux

Perfect for outdoor scans such as sculptures, monuments, or vehicle parts.

EXStar Hub Software

The new EXStar Hub platform combines the Rockit and EINSTAR 2 under one intuitive interface.
It reduces system load, speeds up scanning, and offers powerful post-processing tools:

• Real-time visualization & editing
• Optimized data processing
• Automatic alignment & cleaning
• Export to common formats (OBJ, STL, PLY)

Technical Details

• Scan speed: up to 90 fps
• Light sources: Blue lasers + Infrared VCSEL
• Scan modes: 38 cross lines / 7 parallel lines
• Volumetric accuracy: ≤ 0.1 mm
• Color camera: 5 MP
• Connectivity: Integrated Wi-Fi + USB-C
• Battery life: up to 3 hours (replaceable)
• Compatibility: Windows 10/11
• Recommended RAM: ≥ 64 GB
• Weight: approx. 420 g
• Certifications: CE, FCC

Benefits & Applications

• Marker-free scanning without preparation
• High speed with 90 fps
• Ideal for black and reflective surfaces
• Perfect for design, art, AR/VR & industry
• Wireless, mobile, and intuitive

Scope of Delivery

• EINSTAR Rockit 3D Scanner
• Carrying case
• Calibration plate & holder
• Replaceable battery
• Charging cable & power adapter
• Type-C cable for scanner & battery
• Reflectors (3 mm & 6 mm)
• Packing list & user manual

Highlights

• Compact & wireless
• Up to 90 fps
• Dual light source
• 5 MP texture capture
• EXStar software included
