Raise3D has expanded its portfolio with the DF2 resin 3D printing solution,
an ecosystem based on DLP (Digital Light Processing), consisting of
the DF2 3D printer, the DF Wash and Cure stations, the Auto-Feeding Station
as well as resin 3D printing resins and the ideaMaker laminating software,
which is optimized for resin 3D printing.

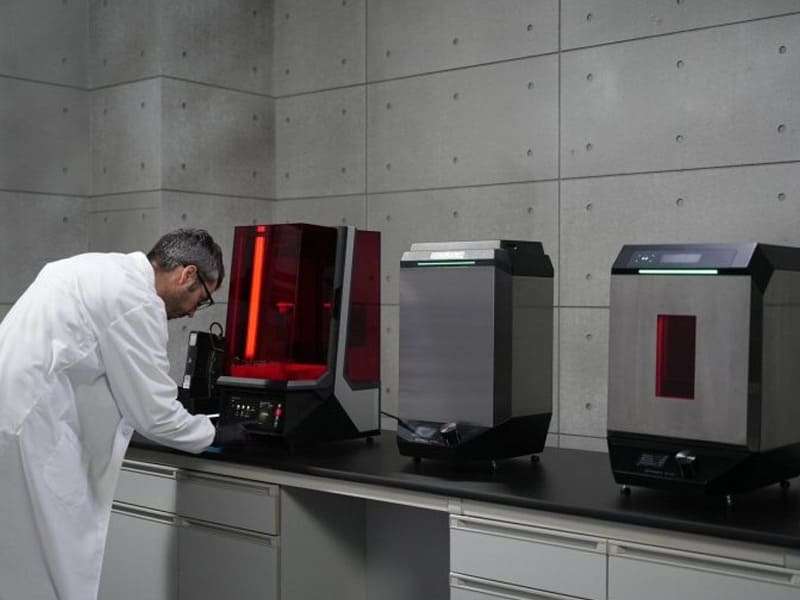

Image 1: The Raise3D DF2 solution includes a washing and post-curing device. Source: Raise3D.

The DF2 solution meets the demand for individual small-batch production and offers
5 key benefits: fast printing speeds, excellent surface finish and precision performance,
simple and comprehensible processes, overall improved reliability
as well as an efficient and secure workflow. The implementation of the Raise3D DF2 solution
leads to a reduction in working time, optimization of resin consumption and
more efficient and sustainable resin 3D printing - an equally important factor
such as increased productivity and shorter delivery times.

DF2 DLP-3D-PRINTER

The DF2 3D printer offers impressive technical specifications
and is a reliable choice for professional printing tasks.
With a construction volume of 200 x 112 x 300 mm, it offers despite its
Compact size of 450 x 400 x 730 mm provides a generous printing area.

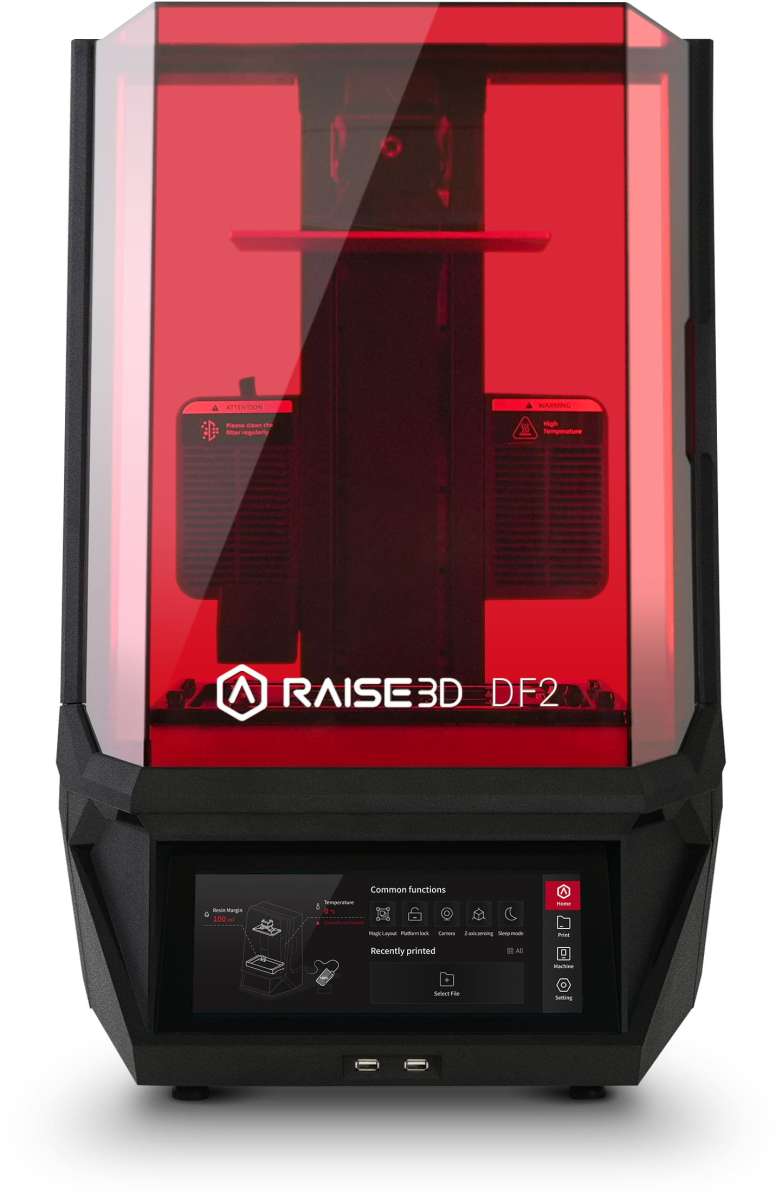

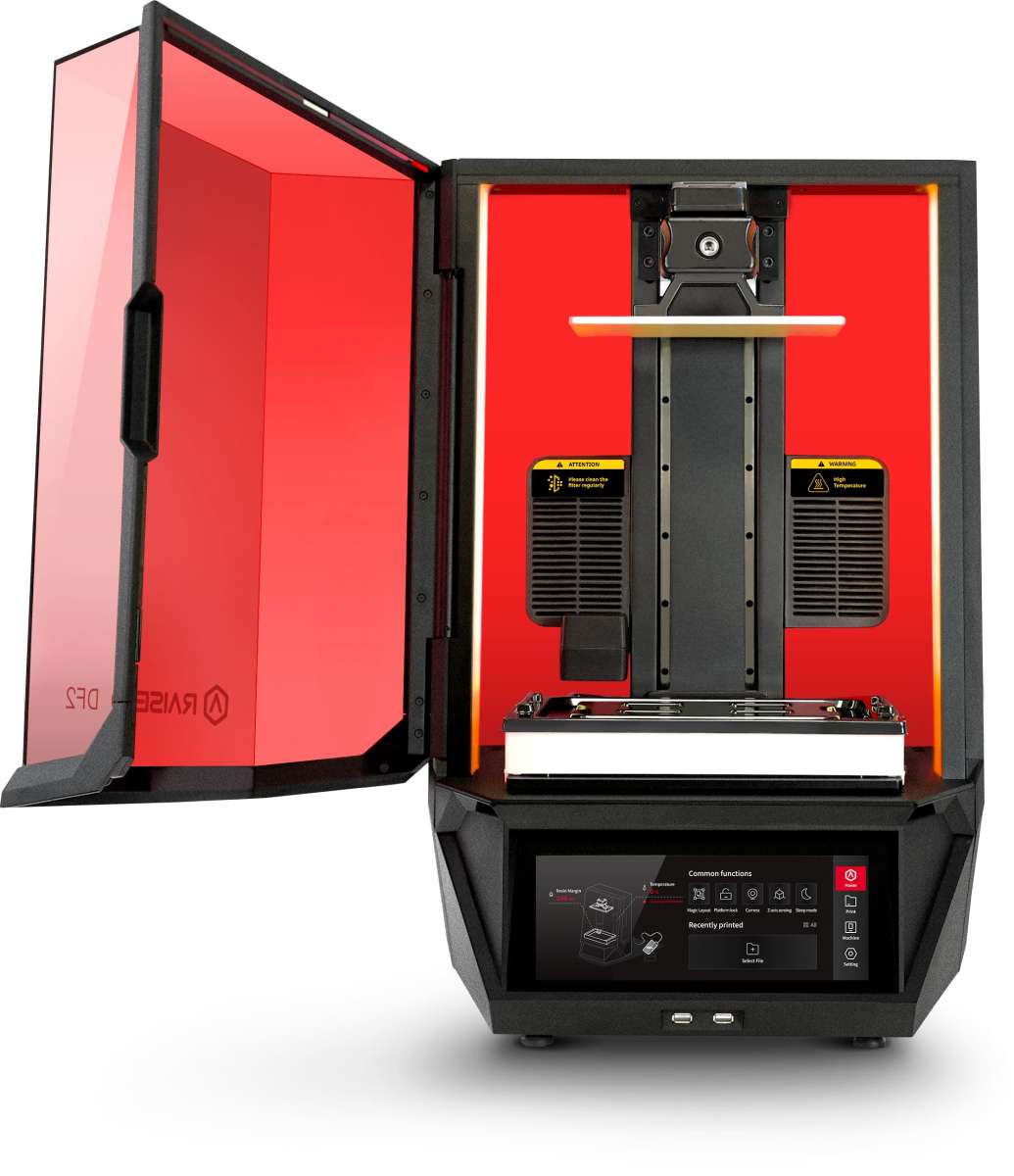

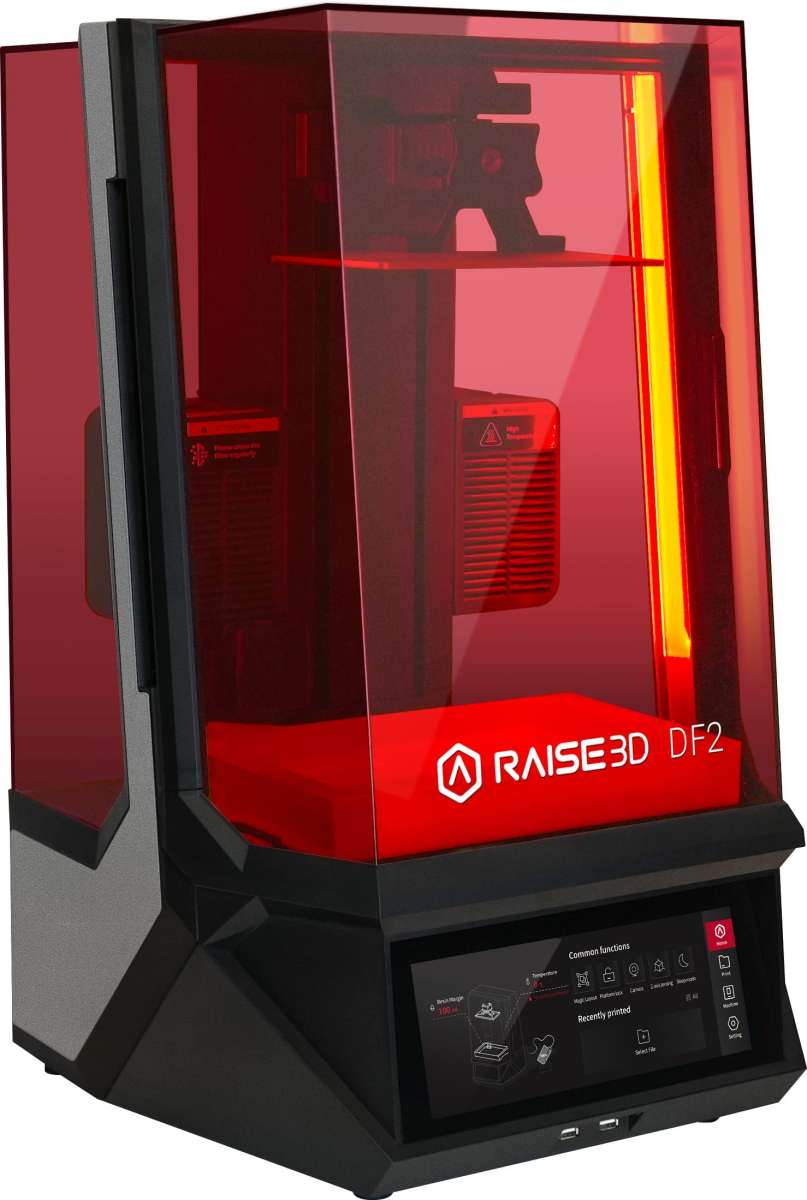

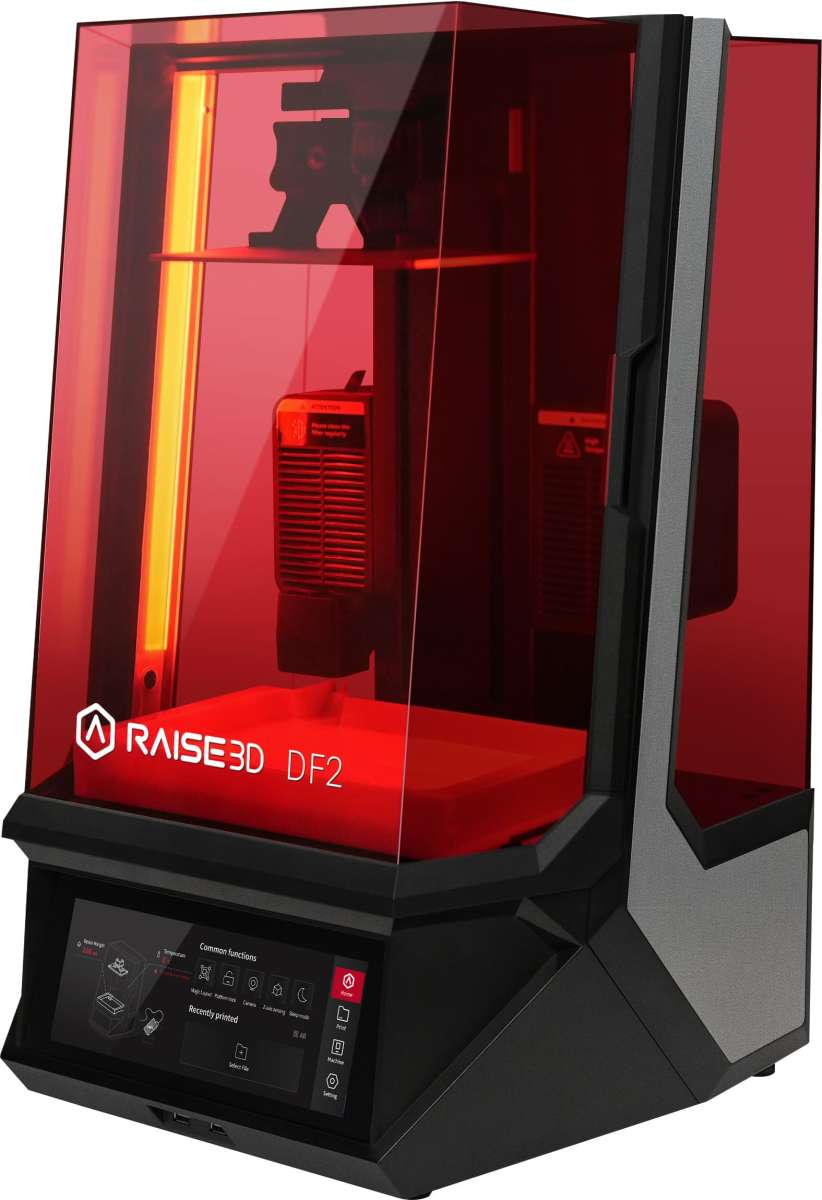

Image 2: Raise3D DF2 3D-printer. source: Raise3D.

The XY resolution of 78.5 microns ensures precision with every print,
regardless of the complexity or geometry of the model.
The printer can handle a maximum Z load of 10kg, and its
Printing speed reaches up to 25mm/h (0.1mm per layer).

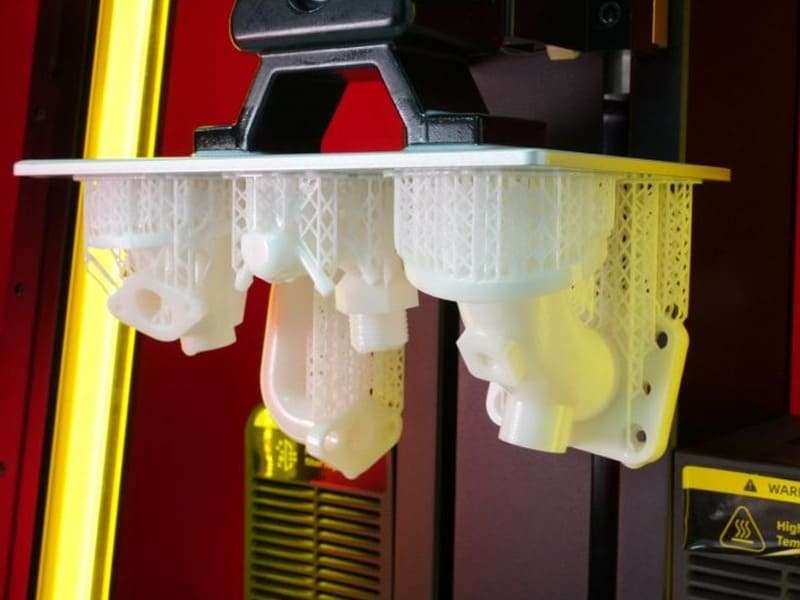

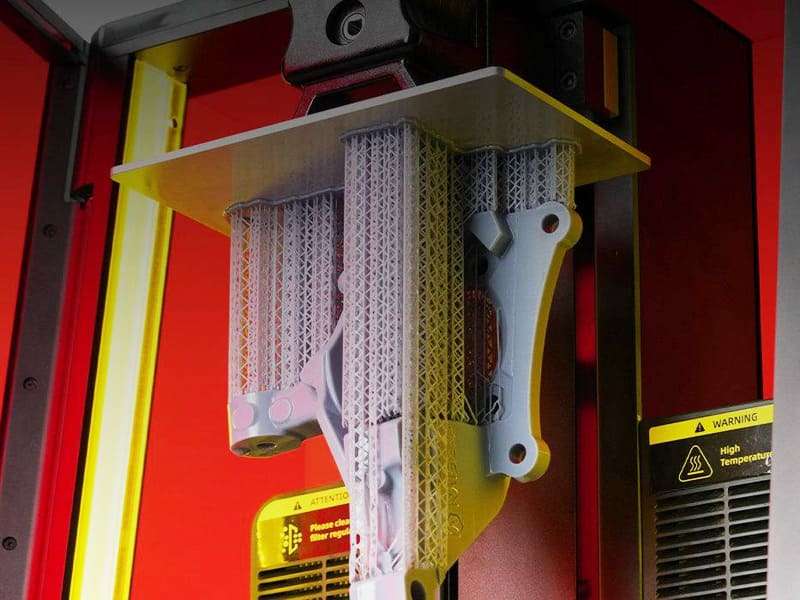

Image 3: The DF2 3D printer build plate can support models up to 10kg. Source: Raise3D.

The layer height ranges from 50 to 100 microns, offering flexibility in print quality.
The DF2 3D printer comes with a resin tank, an air filter, a termination box,
supplied with a tool set and an intelligent building board.

Smart printing

The DF2 3D printer uses the Raise3D Air-Peel technology.
This solution, placed between the bottom of the resin tank and the optical glass,
Significantly reduces the peeling force from 50 kg to 10 kg and speeds up the removal of the layers
from the film during the printing process. This advance is based on an ultra-thin film of air,
which ensures smooth removal and thus the printing speed and
isotropic properties of the printed objects improved.

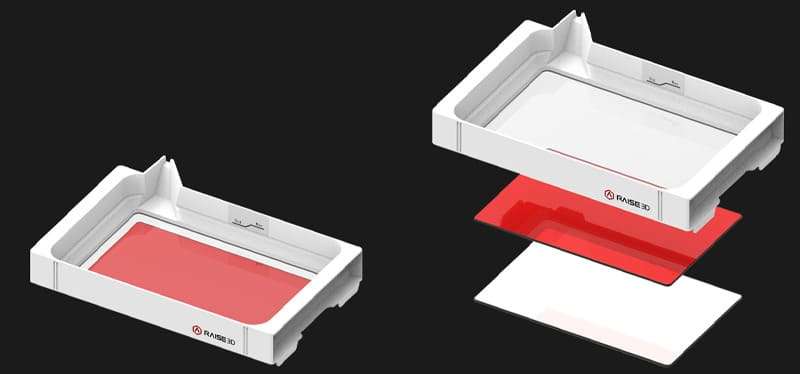

Image 4: The Raise3D Air-Peel technology. Source: Raise3D.

The DF2 printer’s intelligent build plate integrates seamlessly with post-processing devices
through embedded RFID tags. These tags record important information,
including the resin type, wash and post-cure settings.
This integration allows operators to control the washing and post-curing phases
effortlessly manageable, regardless of their familiarity with the manufactured objects.

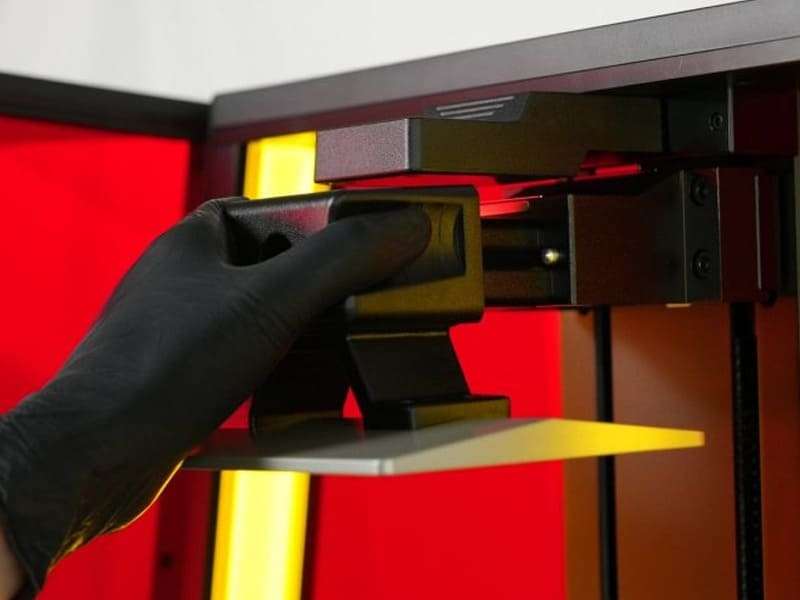

Image 5: The intelligent building board of the DF2. Source: Raise3D.

Thanks to the Intelligent Resin Management system with features such as Auto Resin Refill,
Resin Material Auto-Recognition, Ultrasonic Liquid Level Monitoring and
Assisted Resin Tank Cleanup the DF2 efficiently processes resin during
of the entire 3D printing process and ensures efficiency and sustainability.

Excellent component quality

The DF2 uses industrial-grade optical components,
which minimize loss and eliminate dispersion,
to ensure the reproduction of sharp layers for improved durability and image quality.

Image 6: The advanced optical components ensure excellent component quality. Source: Raise3D.

1. High transparency of the nFEP film with 97% transparency.
2. Optical glass (tempered with oleophobic coating) with 92% transparency, manufactured by Schott Germany.
3. Reflective mirror with aluminum coating, 98% reflectivity.
4. Industrial grade DMD chip for 405 nm 3D printing (Texas Instruments).
5. 402 nm LED light source with highly heat-conducting copper tube and active and passive cooling by fans.
6. Multi-part, low-distortion (<0.1%) glass lens for DLP technology.

Guaranteed with an XY pixel size of 78.5 μm and a resolution of 2560 x 1440
This printer produces precise and smooth finishes with every print, thanks to its superior hardware
and integrated anti-aliasing technology.

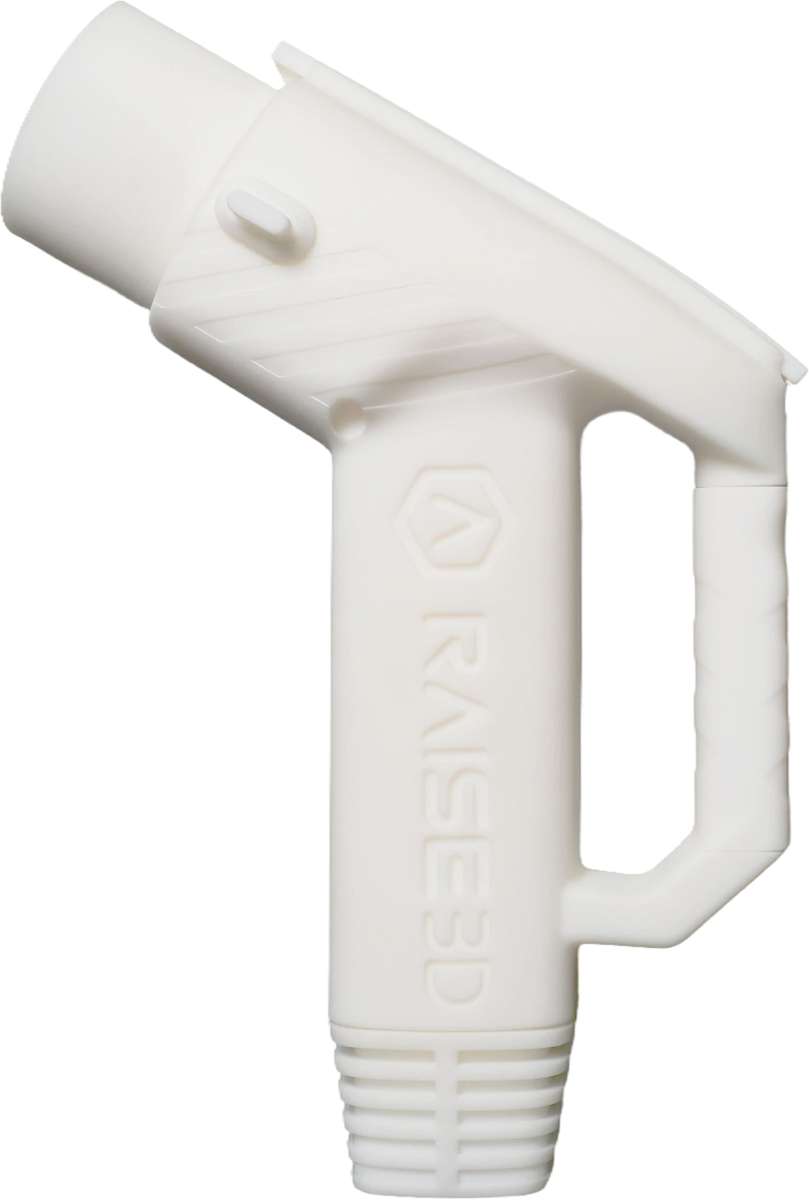

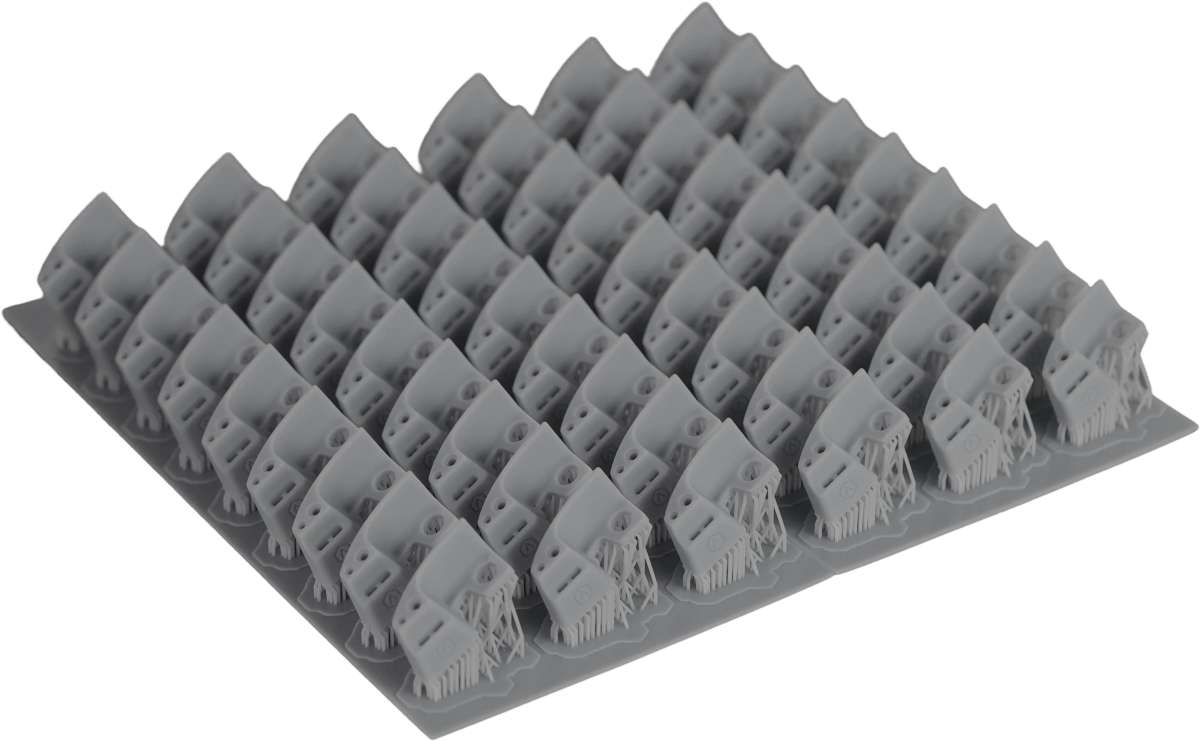

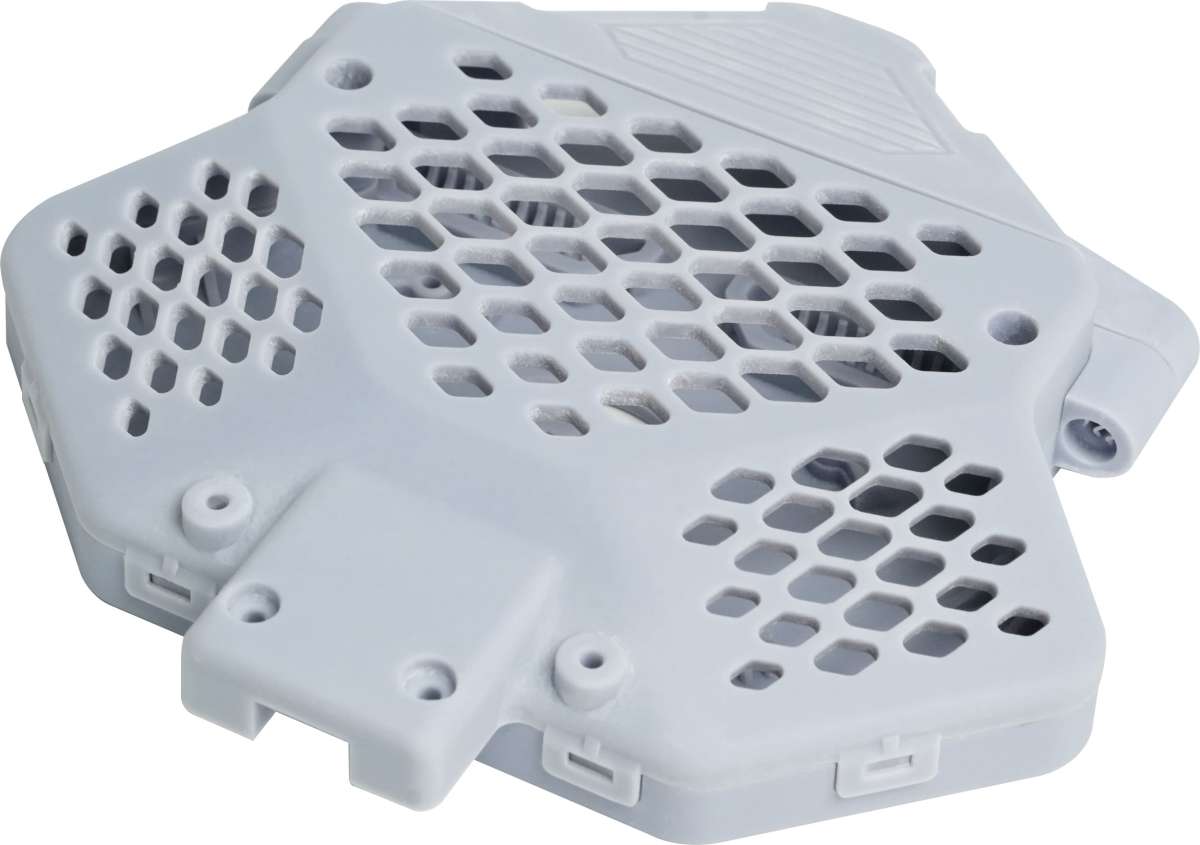

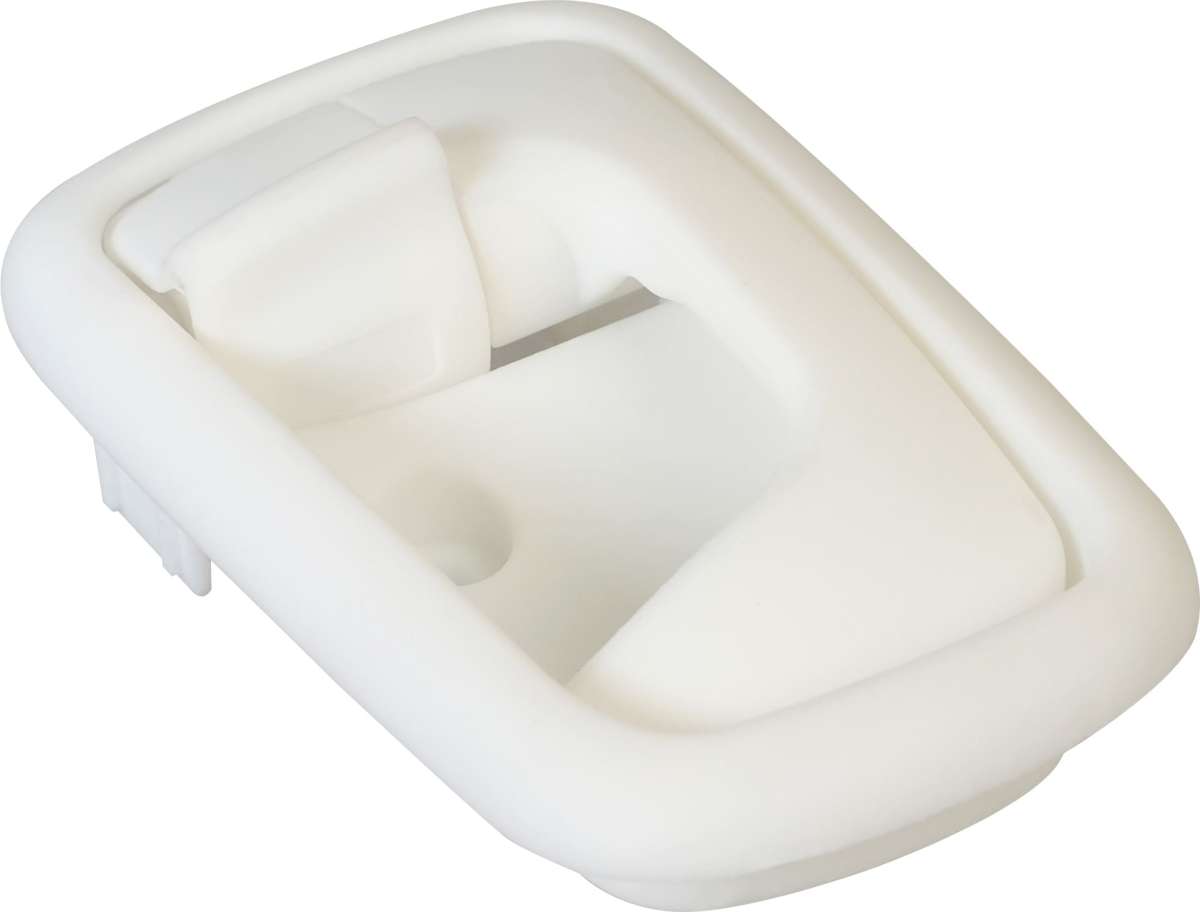

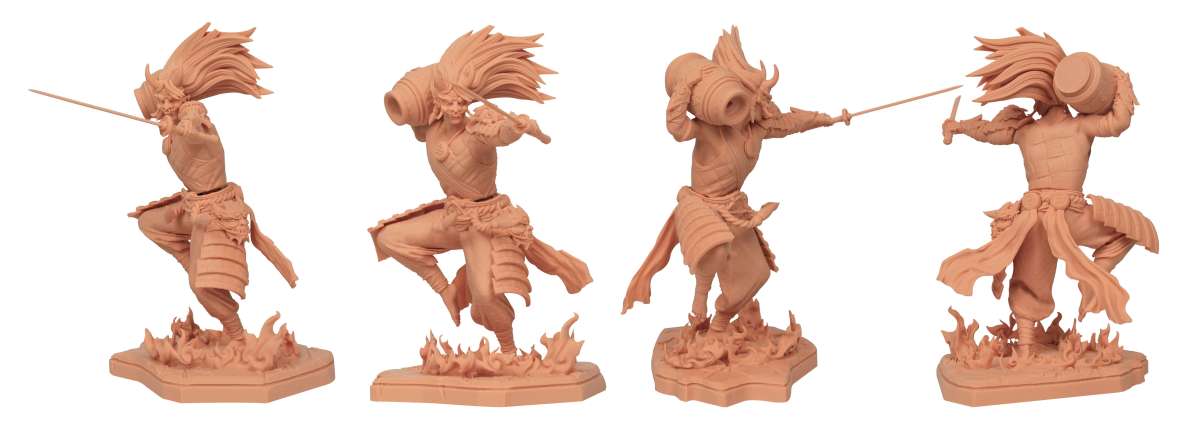

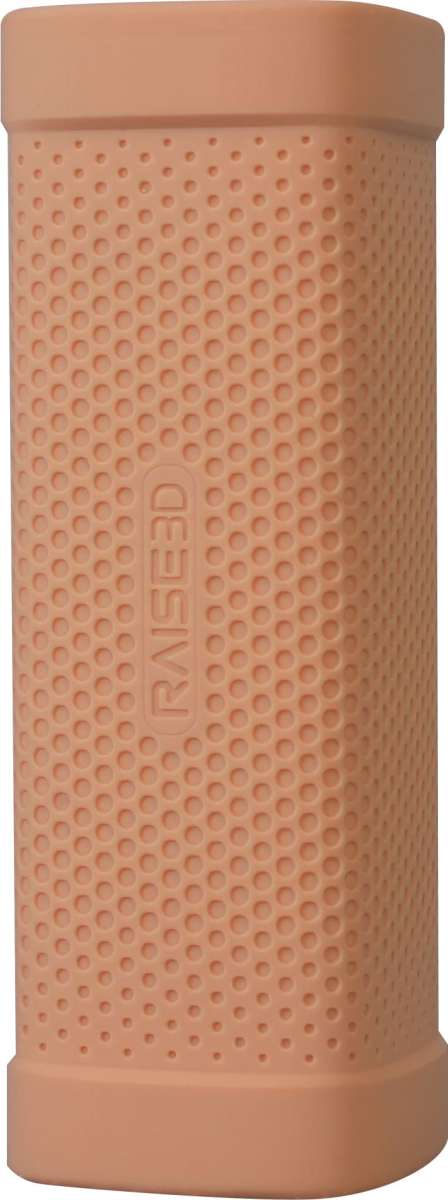

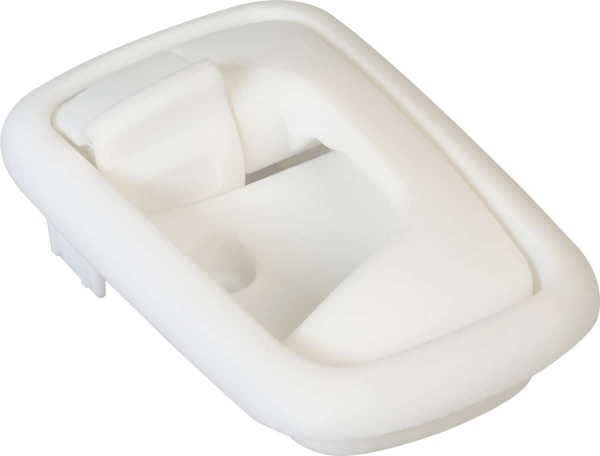

Image 7: The quality of the parts printed with the DF2 printer. Source: Raise3D.

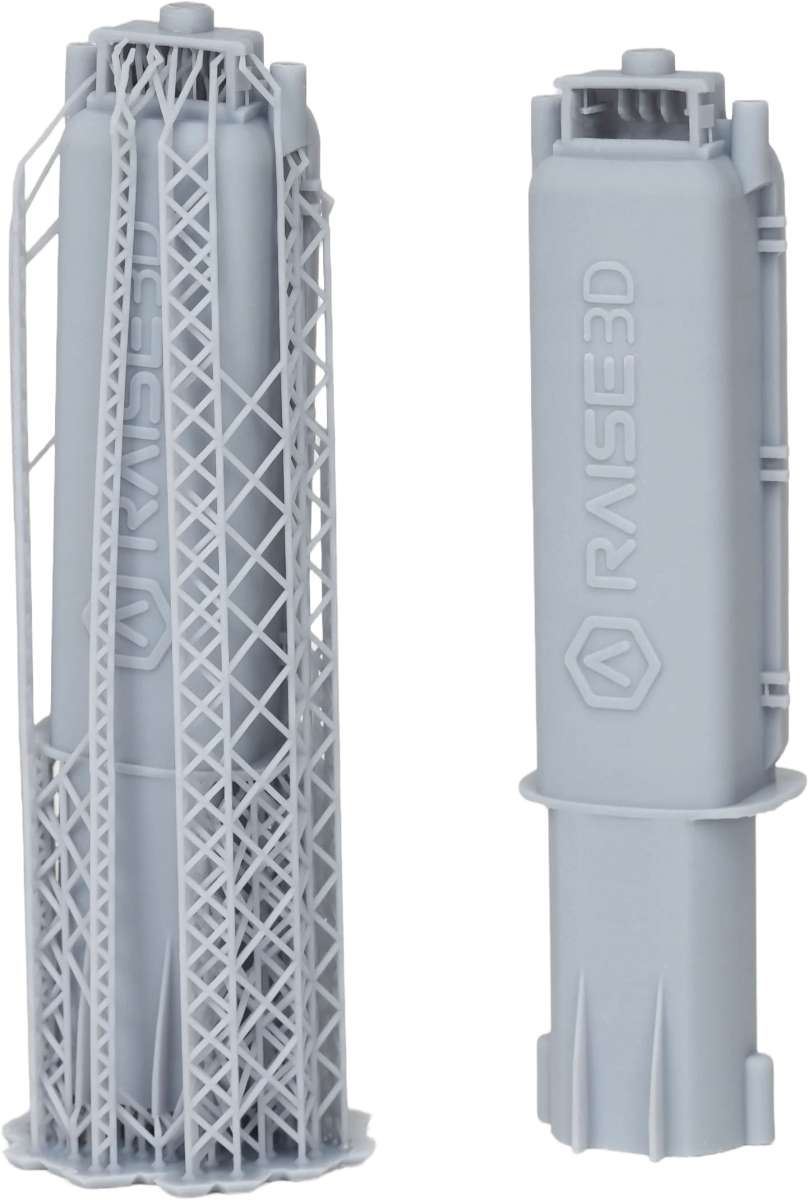

The 3rd generation intelligent grid support improves print success rates
further and reduces the risk of operating errors. Furthermore, minimized
the advanced support structure residue, reflecting the need for
Rework by grinding or finishing is reduced.

Robust and reliable

The DF2 resin printer undergoes an accurate system calibration at every stage.
Additionally, each unit is pre-calibrated at the factory and ready to use.
The printer provides a stable printing environment with a heated chamber (max. 40ºC),
What happens when using special resins that require certain temperatures?
is crucial for consistent results. The dust-proof and leak-proof design
also ensures long-lasting performance and durability.

Efficient and safe

The DF Wash post-processing device minimizes manual tasks through automation
Drain using an easy-to-use automatic pump and door mechanisms.
This not only reduces but also increases the need for manual intervention
the efficiency of cleaning by optimizing the solvent removal process from the washing station,
minimizes user contact with chemical residues.
The versatility of the DF Cure post-curing machine features a spacious curing area,
which offers space for large models.
Additionally, their multi-wave curing system provides compatibility with a variety
of 3D printing resins safely, increasing their adaptability in various printing scenarios.

Connectivity

The DF2 is equipped with a 10.25-inch touchscreen (1920 x 720) with Magic Layout.
This feature allows the user to choose the print layout directly from the screen
from changing and duplicating prints easily.
Another useful feature is the automatic preprint check,
which ensures that all working conditions such as resin type, resin edge or
Setup/feeding station installation is correct.

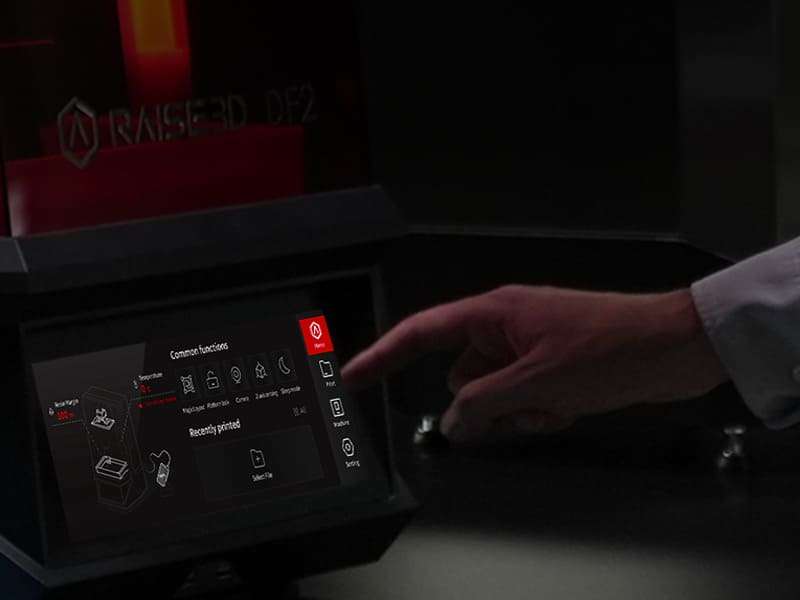

Image 8: The DF2 printer screen. Source: Raise3D.

The DF2 3D printer offers advanced connectivity options,
including Wi-Fi, Ethernet, LAN and two USB ports,
to provide users with versatile ways to connect and control the device.
It even has a live camera for real-time monitoring.

Image 9: The DF2 Complete Package comes with ideaMaker software optimized for resin 3D printing. Source: Raise3D.

With RaiseCloud as its remote management software, users can manage printing tasks
conveniently remotely monitor and manage. The printer supports a variety of file formats,
including STL, OBJ, 3MF and OLTP to ensure compatibility with various design formats.
Regardless of the operating system, whether WINDOWS, macOS or LINUX,
The DF2 offers a seamless and accessible 3D printing experience.

Compatible materials

As far as compatible materials are concerned, the DF2 solution was designed for
designed to be used with Raise3D’s easy-to-use resins.
The Raise3D resin catalog includes both general and technical materials.
In this way, the Raise3D resin offering covers the needs
of individual small series production for precise, high-resolution rapid prototyping
as well as for advanced industrial applications with functional applications.

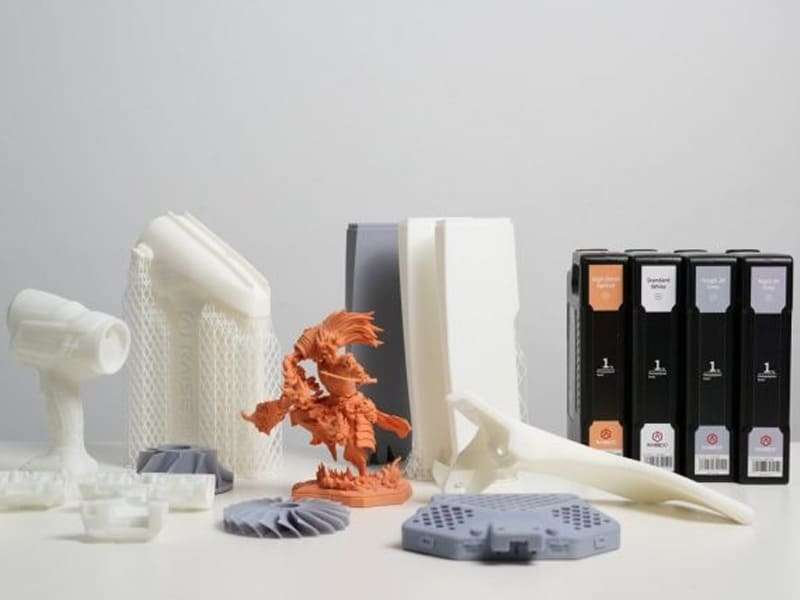

Image 10: DF2 is compatible with Raise3D resins and third-party materials. Source: Raise3D.

In addition to offering high-quality 3D printing resins, Raise3D works with brands like
Loctite and BASF together to develop co-branded 3D printing resins.
Additionally, Raise3D is committed to the Open Resin Program (ORP) which allows the use
of third party materials.
Some of the validated materials are the Loctite IND405 resin or Loctite PRO476 resin as well
the BASF Ultracur RG3280 resin or RG 1100 B resin.
This open material philosophy gives users access to a significantly expanded selection
of high-performance resins, resulting in greater flexibility,
Freedom and inclusivity in the 3D printing workflow ensured.

DF2 complete package

The DF2 3D printer comes in a complete package bundle with all
necessary hardware and software to realize the full potential of the
Leverage Raise3D resin 3D printing workflows.
In addition to the DF2 DLP 3D printer, the complete package includes:

1. DF Wash – This washing station performs deep cleanings using dual turbines, handwash simulation and a dual fan air drying system. DF Wash offers a process-controlled, efficient and easy-to-maintain solution with automatic cleaning and emptying. Included are essential components such as the electric siphon pump, washing basket, disposal system and hydrometer for complete functionality. DF Wash has a 14 liter tank, a maximum wash volume of 200 x 112 x 300 mm and is compatible with solvents such as IPA alcohol, water or TPM solvent.
2. DF Cure – This post-cure station features a robust solution with multiple versatile UV curing (LED 365/385/405 nm, mixed) and heating profiles (air heating up to 120ºC), enabling traceable and customizable processes. Heat-resistant gloves and a tray are included for improved usability.
3. Automatic Feeding Station - The Raise3D Auto-Feeding Station serves as an automated hardware extension for the DF2 3D printer. Their job is to make it easier to handle the resin filling processes efficiently. Equipped with an ultrasonic module for liquid level detection and automatic dosing, the automatic feeding station automatically replenishes the material when a shortage is detected. This device is only compatible with the DF2 3D printer.

Image 11: The automatic feed station, operating with the DF2 printer. Source: Raise3D.

1. ideaMaker laminating software - With every hardware purchase, the user can benefit from free use of the ideaMaker laminating software. This software from Raise3D is a powerful tool, specifically designed for seamless integration with the DF2 printer. In addition to precise 3D printing, this software offers an intuitive interface and extensive customization options, as well as additional features such as antialiasing, auto-assist, contour compensation, suction cup detection, texture generation, reduced Gcode size, and much more.

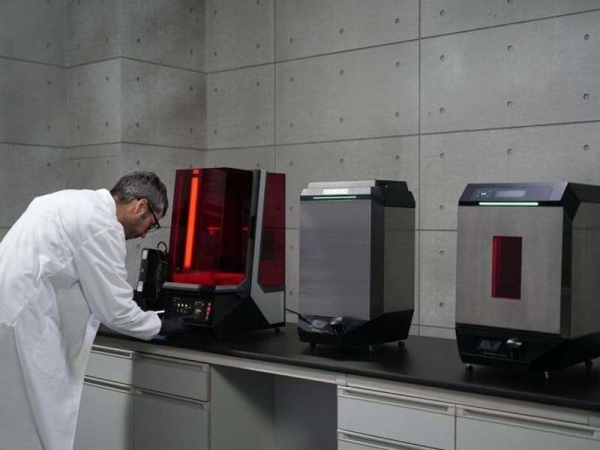

Image 12: the DF2 complete package. source: Raise3D.

The DF2 complete package offers the best value for money,
as purchasing the bundle results in up to 10% savings compared to
the purchase of each component individually.

Simplicity, efficiency and accessibility

The Raise3D DF2 solution offers fast printing, smooth surfaces,
Precision and reliability for prototyping in engineering,
the production of aids and small series production.
Unlike the cumbersome DLP workflow with other similar systems
on the market facilitate the intelligent building board with an RFID tag and
the user-friendly operation of the machines throughout the entire printing, washing and post-curing process,
to ensure consistency and efficiency. The broad compatibility with proprietary,
co-marketed and third-party resins increase the value of the DF2 solution
making it a proven ecosystem for any application.

Technical Description:

Raise3D DF2 printer

Print Technology: Digital Light Printing (DLP)
Build Size (W × D × H): 200 × 112 × 300 mm (7.87 × 4.41 × 11.8 inch)
XY Resolution: 2560 x 1440
Max Z Workload: 10 kg
Max Printing Speed: 25 mm/h (0.1 mm per layer)
Layer Height: 50-100 micron
Resin Management: Auto Resin Feeding, Resin Level Detection, Resin Confirmation
Control Panel: Touch Screen (Resolution: 1920 × 720)
with Magic Layout (Allow to easily adjust the print layout and duplicate prints)
RFID Print Platform: Record the type of resin used and the printing, washing and curing settings
Level Calibration: Calibrated in factory
Chamber Heating: Max 40℃

Raise3D Resins: Raise3D Standard White Resin, Raise3D High Detail Apricot Resin, Raise3D Tough 2K Grey Resin,
Raise3D Rigid 3K Grey Resin, Raise3D High Clear Resin (Coming soon), Raise3D High Temperature Resin (Coming soon)
Co-branding Resins with BASF and Henkel: LOCTITE 3D IND405™, LOCTITE 3D PRO476™,
Ultracur3D® RG 3280, Ultracur3D® RG 1100 B
ORP (Open Resin Program): Coming soon

Raise3D DF Wash

Washing Tank Volume: 14L
Max Washing Size: 200 x 112 x 300 mm (7.87 x 4.41 x 11.8 inch)
Compatible Solvent: IPA, Water, TPM
Washing Features: Twin-turbo Washing, Hand Washing Simulation
Drying Feature: Double Fan Air Drying
Drainage: Automatic Liquid Drainage with Waste Container
Wash Profile: RFID Auto Set or Manual Entering


Raise3D DF Cure

Max Curing Size: φ 230 x 300 mm (φ 9 x 11.8 inch)
Curing Source: LED (365nm, 385nm, 405nm mixed); Max Air Heating Temperature up to 120℃
Cure Profile: RFID Auto Set or Manual Entering
