Modix Big-2Meter Everest

The Modix BIG-2Meter, also called Everest,
is the latest innovation of the Modix FDM professional,
self-assembly 3D printer kits that stands out above the rest thanks to
its astounding height reflected in the title.
As such, it enables printing of objects up to 2 meters tall in a single print,
which greatly reduces post-processing times due to the machine’s ability to
produce various life-size items as a whole, without further gluing and
assembly from smaller parts.

Plus, the printer comes with a brand new printhead capable of working
with thick layers and processing more than 500g of material per hour,
providing remarkable print speed.


Based on the Big Meter model, the Modix Everest shares its gantry,
electronic, and heating components with the highly productive predecessor.
Also, being a part of the Generation 4, the machine is powered by
a sturdy modular construction composed of T-slot aluminum profiles
and a robust motion system.
Compared to the previous generation, the V4 printers are easier and
faster to assemble as well as more reliable and accurate, with a number
of handy improvements.

Committed to the company policy, the Modix BIG-2Meter Everest
can be easily personalized and enhanced in functionalities.

It comes with an improved feature-set, fresh design tweaks,
and some advanced mechanisms.
In particular, the fourth iteration is engineered with a bunch of redesigned
key components and high-grade premium parts, namely the electronic expansion
board Duex 5 enabling completely automated calibration, stronger NEMA-23 motors
and CNC machined brackets for much faster and more stable printing,
optical end-stop switches for higher accuracy and repeatability,
improved PTFE tube and wires management for smooth and convenient maintenance,
built-in crash detector for additional safety, and an integrated emergency stop button
ensuring immediate response.
In addition, all the Generation 4 models benefit from a filament sensor,
which keeps track of potential clogging, and Wi-Fi connectivity for remote control.




Apart from the above-mentioned features, the Modix BIG-2Meter supports
a variety of optional add-ons, such as a magnetic print bed, IDEX dual printhead,
advanced air filter system, and more. With the right upgrades,
you will get an industrial workhorse at a good price.

The Modix Everest can be successfully used in prototyping
and small-scale manufacturing for printing functional prototypes, end-use products,
and top-quality spare parts. Considering its outstanding capabilities in terms of print size
and speed, the Modix BIG-2Meter will become an indispensable tool for
multiple production spheres, from automotive to commercial design.

The following picture contains several test prints showcasing the printer’s performance
with different layer thickness settings.
For example, this 2m-tall bottle with 2 perimeters has been printed at 1.2 mm layer height
and took only 17.5 hours. Despite the resolution, it boasts a rather decent surface quality.
This particular model used 8.2 kg of filament.




Print quality

The Modix BIG-2Meter Everest is an FDM 3D printer that can print layers at 600 micron.
This way one can produce parts with relatively smooth exterior surfaces,
which is more than enough for most applications of life-size models.




Dedicated to fast and efficient large-format 3D printing, the Everest model is equipped
with the high-flow Griffin Ultra hotend capable of printing thick layers with up to 500 g of material per hour.
This enables rapid production of impressively tall objects, while significantly reducing total print times.




Due to the improved motors on the X axis
(compared to NEMA-17 motors for the Modix V3 3D printers),
the BIG-2Meter Everest provides the accelerated travel speed of up to 350 mm/s
and maximum printing speed of up to 250 mm/s.

Starting with the Generation 4, the Modix devices come by default
with the electronic expansion board Duex 5, with a dedicated stepper motor driver allocated
for each Z and X axis motor.
Thanks to this thoughtful upgrade, the printer offers a full set of automated calibration routines,
including automated bed tilt, bed leveling, gantry alignment,
and Z offset calibration making for enhanced printing precision.


Designed with a reinforced frame made of strong 4080 mm profiles
(double the size of the BIG-Meter model), the Modix Everest is capable of printing well
even without the enclosure, although this would hardly be preferable, as the included enclosure
helps maintain the internal ambient temperature.
In addition, the bed is attached to the HIWIN rails installed on the Z profiles,
which stabilizes the entire frame while moving down during the printing.

The standard variant of the Modix BIG-2Meter Everest is engineered with a single nozzle.
However, it is supplied with several Volcano brass nozzles of 0.4, 0.6, and 0.8 mm in diameter.
It also supports 1.0 and 1.2 mm sizes (available as an optional add-on).
Moreover, the printer can be equipped with the IDEX module for multi-material printing
of complex internal geometries. This extreme flexibility provides the user with wider design capabilities.



Materials

Thanks to the improved extruder structure, the Modix BIG-2Meter Everest
can print with PLA, PETG, PVA, ABS, ASA, PC, Nylon, TPU, Woodfill, Carbon composite,
and other specialty materials from almost any manufacturer.



For more complex projects, one can use the optional Modix IDEX add on.
It includes a secondary printing subsystem, consisting of a Griffin print head, clog detector,
PTFE, and spool mount, and enables high-quality multi-color and soluble material printing.




All the Modix V4 3D printers come with a default clog detector that can easily detect
filament run-out, under-extrusion, and hotend clogs, which allows the user
to quickly fix the problem and avoid negative impact on the quality of the printed items.



Build volume

The enormous build area of 38.2 x 40.6 x 78.7 inches (970 x 1030 x 2000 mm)
lets you print just about anything.
Thanks to its incredible height, the Modix BIG-2Meter Everest eliminates the need for
assembling parts from multiple smaller prints.
By enabling printing of objects up to 2 m tall, it drastically reduces the time
spent on gluing and assembly, leading to stronger, seamless final products.

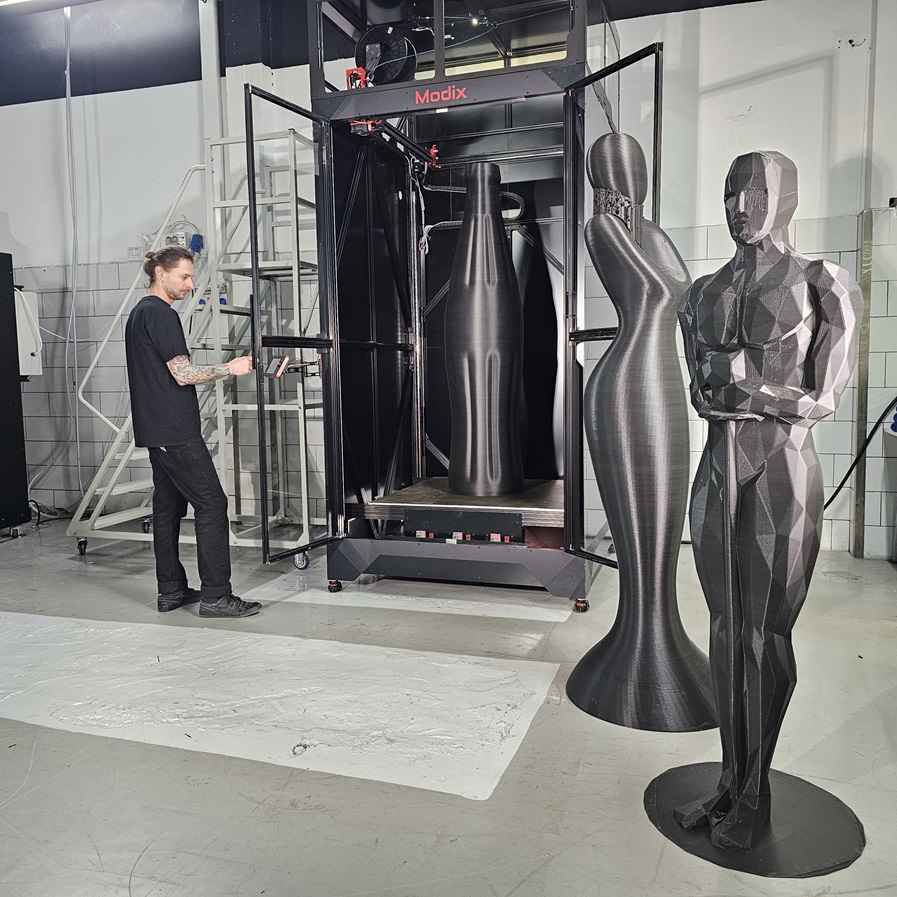

Notice how big this bottle model is compared to the user:



Printer controls and software

The Modix BIG-2Meter Everest 3D printer comes with a 7-inch tilting touchscreen
with emergency stop button for smooth real-time interaction.
It also features USB and SD card slots as well as a Wi-Fi module with easy
web-access interface for remote operation.
Thus, one can easily transfer their 3D models from a computer via a USB cable,
SD card, or share them over Wi-Fi using a PC or a mobile phone.



The Modix Everest supports almost any type of 3D model format.
This means that you can use the slicing software of your choice to prepare files for printing,
namely, Cura, Slic3r, Simplify3D, and many others.




What’s in the box

The printer comes in several boxes which include:

• All the parts required to assemble the Modix BIG-2Meter Everest 3D printer
• Powder-coated aluminum components
• Huge aluminum print bed
• Hex and screwdriver sets
• Cable and wire sets
• Power cords
• Power supply
• Enclosure
• Casters
• 7-inch tilt screen
• Modix Griffin printhead
• New Griffin Ultra printhead
• Internal spool mounting
• Power Distribution Unit (PDU)
• SD card

The list of available optional add-ons includes:

• IDEX dual printhead
• Removable magnetic bed
• Active air filter
• Set of spare filters
• Spare PEI sheet x3
• Spare Griffin Ultra printhead
• Extended warranty

For some items, package content may change. In case of any questions, please get in touch.

Specifications

Print Volume: A stunning 970 x 1,030 x 2,000 mm (XYZ)
When equipped with the Griffin Ultra printhead.
Total size: 1356x1445x3068 mm (XYZ)
Make sure your installation location has a high ceiling.
Weight: ~236 KG
Assembly - Serves as a self-assembly kit and can therefore be used through narrow
and short doors can be entered.
Please ask us about assembly services.
Duet3D Wi-Fi 32-bit controller and Duex5 expansion card
Automatic bed tilt calibration and 100 measuring points for bed leveling.
Minimum power requirement – ​​single phase, 208-240V:
North America Customers: NEMA L6-30P 30A
Receptacle EU/AU/UK customers: IEC 309 32A Blue (2P+E) socket

Look and feel

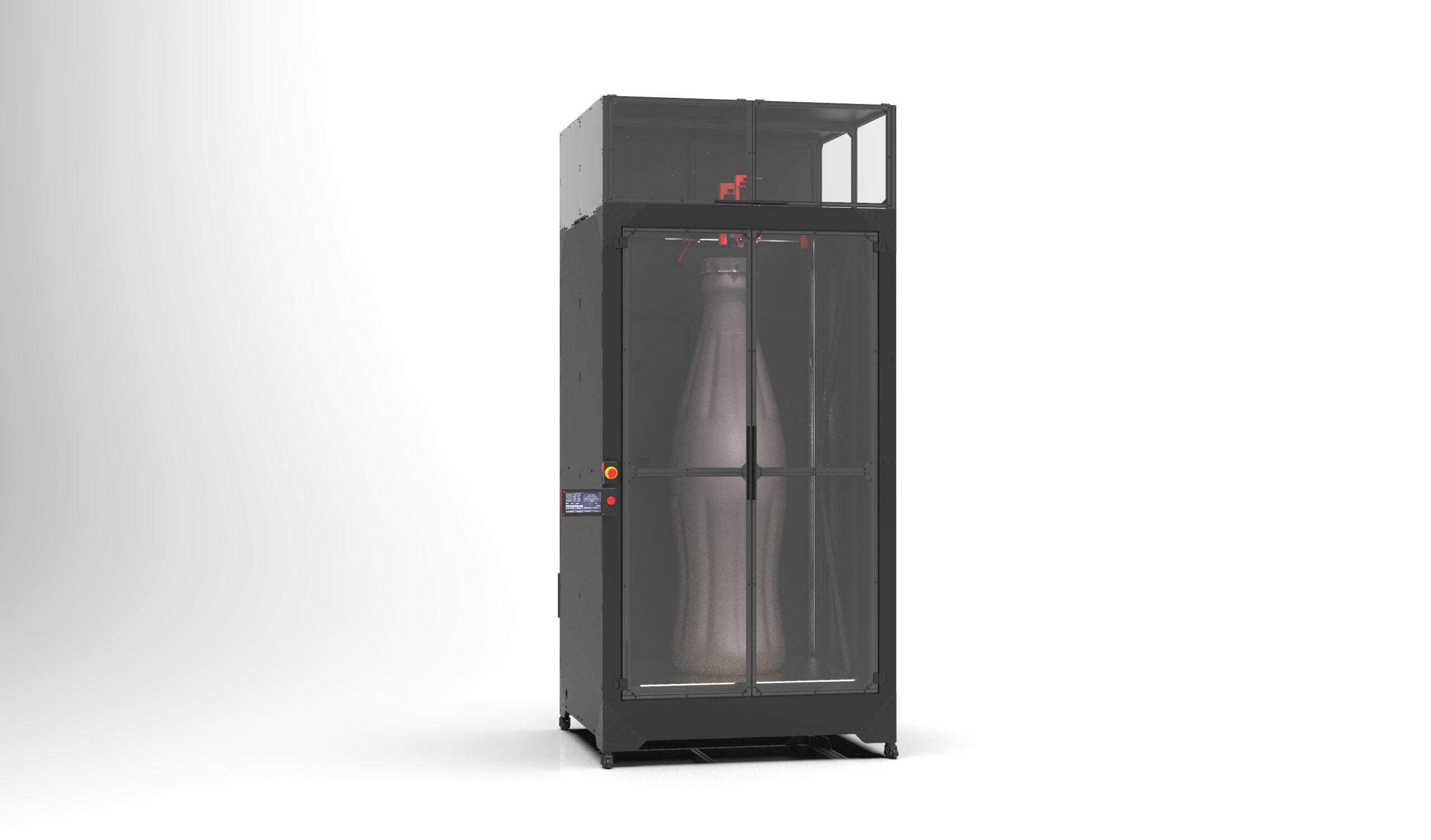

The Modix BIG-2Meter Everest is available in black with gray and red trimmings.
Its stylish look and superior adaptability make it ideal for any professional and hobby applications.

The printer dimensions are 53.4 x 56.9 x 120.8 in (1356 x 1445 x 3068 mm).
It weighs approximately 520.3 lb (236 kg).

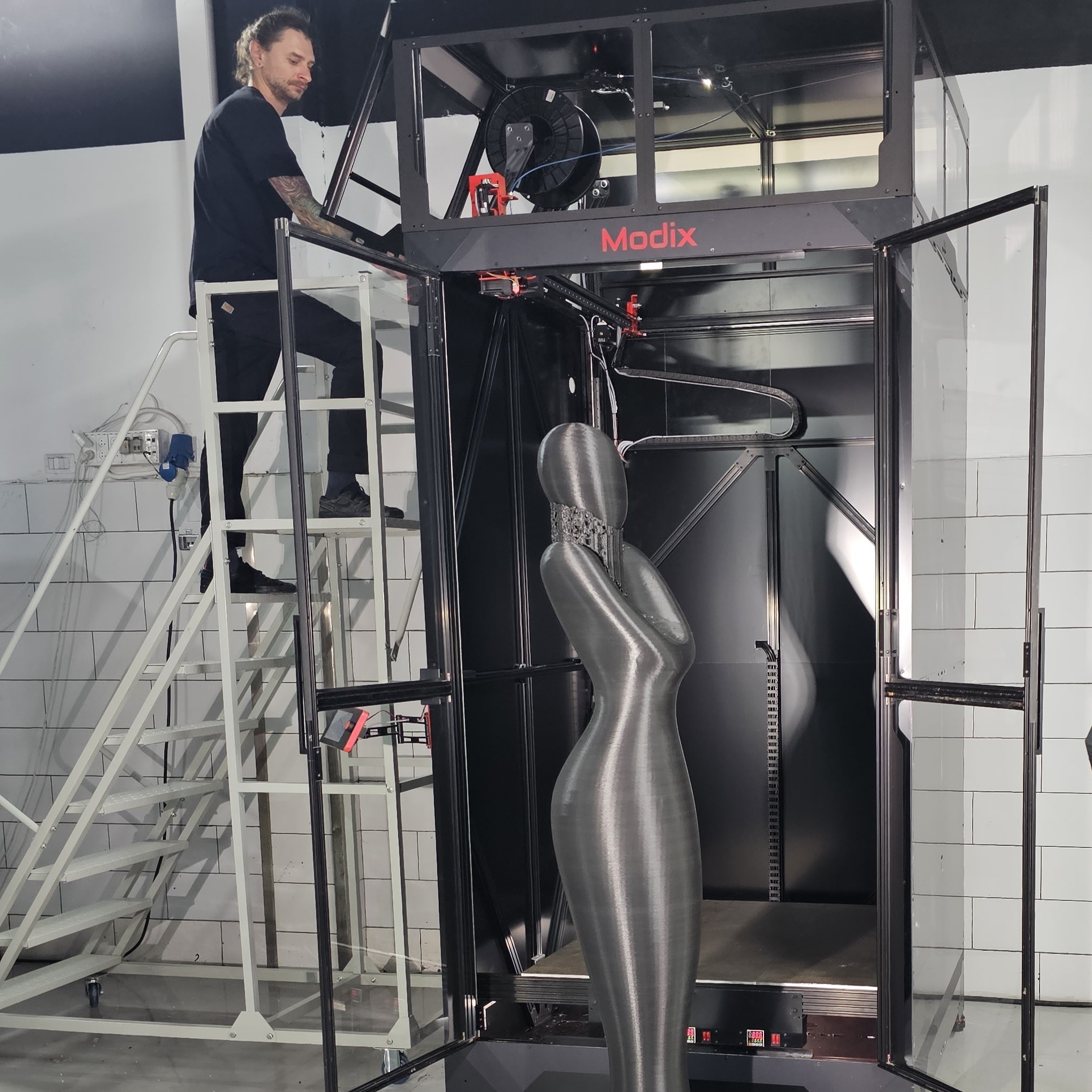

The spool holder is mounted inside the machine.

For safety purposes, Modix have modified the top lid of the machine
to hold the filament spools inside the printer.

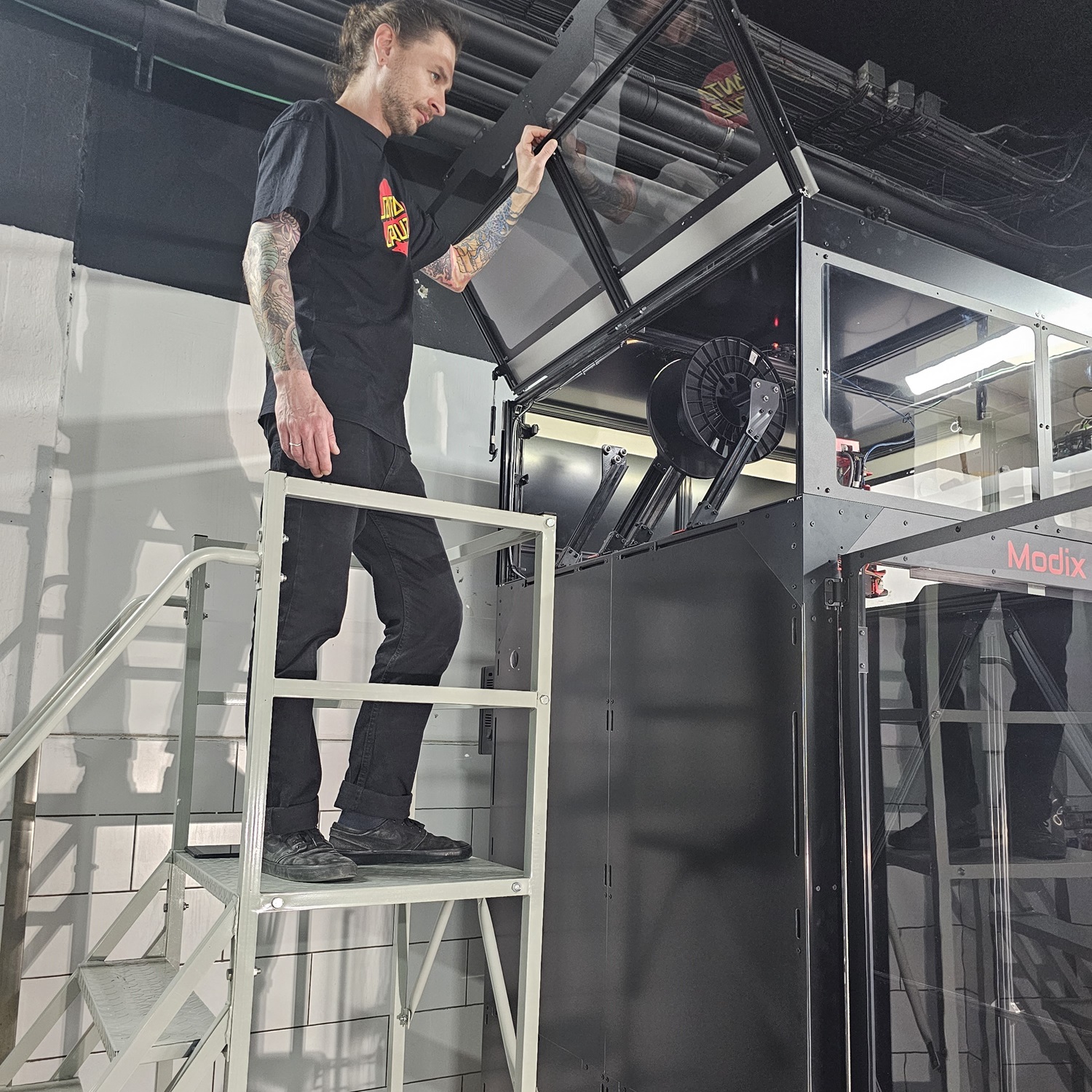

Replacing spools and other ongoing maintenance and assembly will require working at heights,
so please check your local regulations for the required safety equipment and instructions. T
he manufacturer recommends using a platform ladder, which is more convenient
and safer than a standard one, especially when climbing up with a spool in one’s hands.
Please note that Modix does not include a ladder or other safety equipment with the printer.





Warranty

The Modix warranty policy is available at the link below:

https://www.modix3d.com/modix-general-terms-and-conditions-of-online-sale/
