AquaSolve - PVA - Natural
AquaSolve - PVA - Natural
AquaSolve - PVA - Natural

AquaSolve - PVA - Natural

Stock:
1 pieces
35,90 EUR

incl. 20% tax

Add to wish list
Description

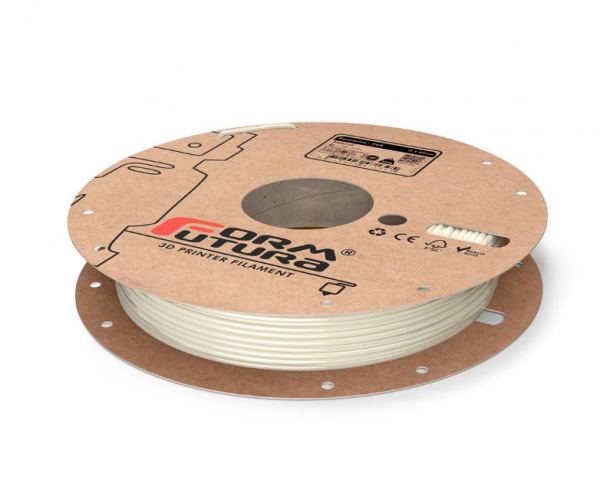

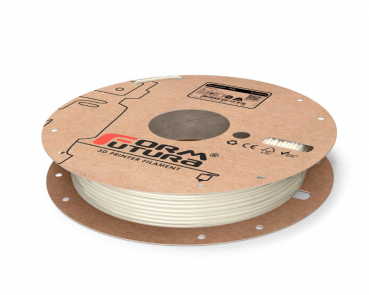

 AquaSolve PVA (polyvinyl alcohol)
is a water-soluble support material for complex multi-extrusion 3D printing.
AquaSolve PVA is a 3D printer filament with good thermal stability and can be
3D printed at relatively low temperatures. This makes AquaSolve PVA an
ideal support material for PLA-based materials with good thermal and chemical adherence.


Key features

  • Excellent (cold) water solubility

  • Good thermal stability, resulting in less risk on deterioration/crystalizing inside the nozzle

    • Max thermal stability of 210° C, tested up to 256 seconds with no flow

  • Biodegradable once dissolved in water

    • Safe dissolution in tap water

    • Can be disposed of in the kitchen sink, or household drain as the material is “ok biodegradable water” certified

  • Good bonding to PLA-based materials and other (thermo)plastics that print within a similar temperature range



Applications

  • Reliable multi-extrusion 3D printing of complex structures that require a water-soluble support material

    • 3D printing geometries with large overhangs, or complex hollow structures

  • PVA Molds


General printing guidelines *
Nozzle size: ≥ 0.15mm Layer height: ≥ 0.1mm Experience level: Expert
Print temp: ± 190 - 210° C * Fan speed: 0 - 30%
Heat bed: ± 0 - 60° C Enclosure needed: No
*) Above displayed settings are meant as guidance to find your optimal print settings.
These ranges in settings should work for most printers, but please do feel free to experiment outside
these ranges if you think it is suitable for your printer. There are a lot of different type of printers, hot-ends,
and printer offset that it is extremely difficult to give an overall one-size-fits-all setting.

*) Do not exceed a printing temperature of 225˚C, because AquaSolve PVA will then crystallize to quickly
and it will no longer flow and/or dissolve in water. Printing with PVA materials does require a certain level of
3D printing expertise as PVA cannot stay too long in the hot secondary/support nozzle and needs to flow and
by that needs expert tweaking to find the optimal “waiting temperature” for the material not to deteriorate/crystalizing
in the hot secondary/support nozzle when not being 3D printed.


Filament length
ρ: 1.23 g/cc 50 gr coil 0.3 Kg spool
Ø 1.75mm ± 16.9m ± 101m
Ø 2.85mm ± 6.4m ± 38m


PVA compatibility overview *






 		 AquaSolve PVA

 		 Atlas Support

 		 Helios Support


ABSpro

 		 -

 		 -

 		 +


ABSpro Flame Retardant

 		 -

 		 -

 		 +


ApolloX

 		 -

 		 -

 		 ++


CarbonFil

 		 -

 		 ++

 		 -


Centaur PP

 		 No data

 		 No data

 		 No data


ClearScent ABS

 		 -

 		 -

 		 ++


Crystal Flex

 		 -

 		 -

 		 +


EasyCork

 		 +

 		 +/-

 		 -


EasyFil ABS

 		 -

 		 -

 		 ++


EasyFil HIPS

 		 -

 		 -

 		 ++


EasyFil PLA

 		 ++

 		 +

 		 -


EasyWood

 		 ++

 		 +

 		 -


FlexiFil

 		 No data

 		 No data

 		 No data


Galaxy PLA

 		 ++

 		 +

 		 -


HDglass

 		 -

 		 ++

 		 -


LimoSolve

 		 -

 		 -

 		 ++


MagicFil Thermo PLA

 		 ++

 		 +

 		 -


Matt PLA

 		 ++

 		 +

 		 -


MetalFil

 		 No data

 		 No data

 		 No data


Pegasus PP Ultralight

 		 No data

 		 No data

 		 No data


Premium ABS

 		 -

 		 -

 		 ++


Premium PLA

 		 ++

 		 +

 		 -


Python Flex

 		 -

 		 -

 		 ++


ReForm - rPET

 		 -

 		 ++

 		 -


ReForm - rPLA

 		 ++

 		 +

 		 -


ReForm - rTitan

 		 -

 		 -

 		 ++


Silk Gloss PLA

 		 ++

 		 +

 		 -


StoneFil

 		 +

 		 +/-

 		 -


STYX-12

 		 No data

 		 No data

 		 No data


Thibra3D SKULPT

 		 No data

 		 No data

 		 No data


TitanX

 		 -

 		 -

 		 ++


Volcano PLA

 		 +

 		 -

 		 ++






*) Above PVA compatibility overview is meant to give guidance on which of our PVA based support materials
– AquaSolve PVA, Atlas Support, and Helios Support – is advised as support material in combination with various
Formfutura filaments that can be used as a primary building material.
*) Please do note that the above-shown PVA compatibility overview is purely meant as general guidance and advice
based on our in-house expertise and experience and that it is not to be seen as a fixed principle or rule.
There are numerous factors that determine the best fitting PVA support with primary building materials and it
actually varies per 3D printer. Below overview can, according to our current state of knowledge,
be used as guidance for the vast majority of 3D printers.




General guidance for printing with PVA support materials


Printing with PVA, in general, isn’t plug and play and does require a fair amount of 3D printing expertise
as there isn’t a generic one-size-fits-all setting for dual extrusion printing with PVA materials.
The optimal PVA settings can even vary between the same models of 3D printers.



One of the most common challenges are to establish a good bond between the PVA support
material and the primary building material. Below parameters are of utmost importance to establish good adherence.


  • Verify the extrusion distance between the printed object and the PVA support.
    • The default setting in most slicer software is often set at a distance of 0.1mm or 0.2mm, which works well for break-away support, but not for PVA support.
    • For PVA support materials the extrusion distance must be set to 0.0mm as both materials must really come into contact with each other.
  • The printing (nozzle) temperature is extremely important and it is advised to measure the actual temperature of the nozzle and to compare this temperature with the temperature set in the print settings.
    • If the actual temperature of the nozzle is for instance 10° C lower than the temperature in the print settings it might very well be that the layer of PVA support material is not flowing optimally into the layer of the primary building material. It is often seen that the actual nozzle temperature varies from the print temperature set in the slicing software.
  • Verify if the nozzles of your printer are properly leveled and have exactly the same height so that there is no “height difference” when layering the PVA support material on top of the primary building material.
    • In order to verify this it is recommended to 3D print a 5cm x 1cm rod and to print every 1 to 2 layers with the left nozzle and the following 1 to 2 layers with the right nozzle and to repeat this process multiple times. If you notice a non-perfect layering then the nozzles aren’t properly leveled. This process can be done with PLA for instance.




Product export information
HS Code: 39169090 Description: Monofilament Country of origin: the Netherlands


Compliance *
This filament is compliant to below-listed directives and regulations.
  • RoHS directive 2011/65/EC
  • REACH directive 1907/2006/EC
*) This declaration of conformity to directives and regulations is prepared according to
our present standard of knowledge and may be amended if new cognitions are available and
applies only for the above-described products.
Documents
Technical Data Sheet  (149.7 KB)
