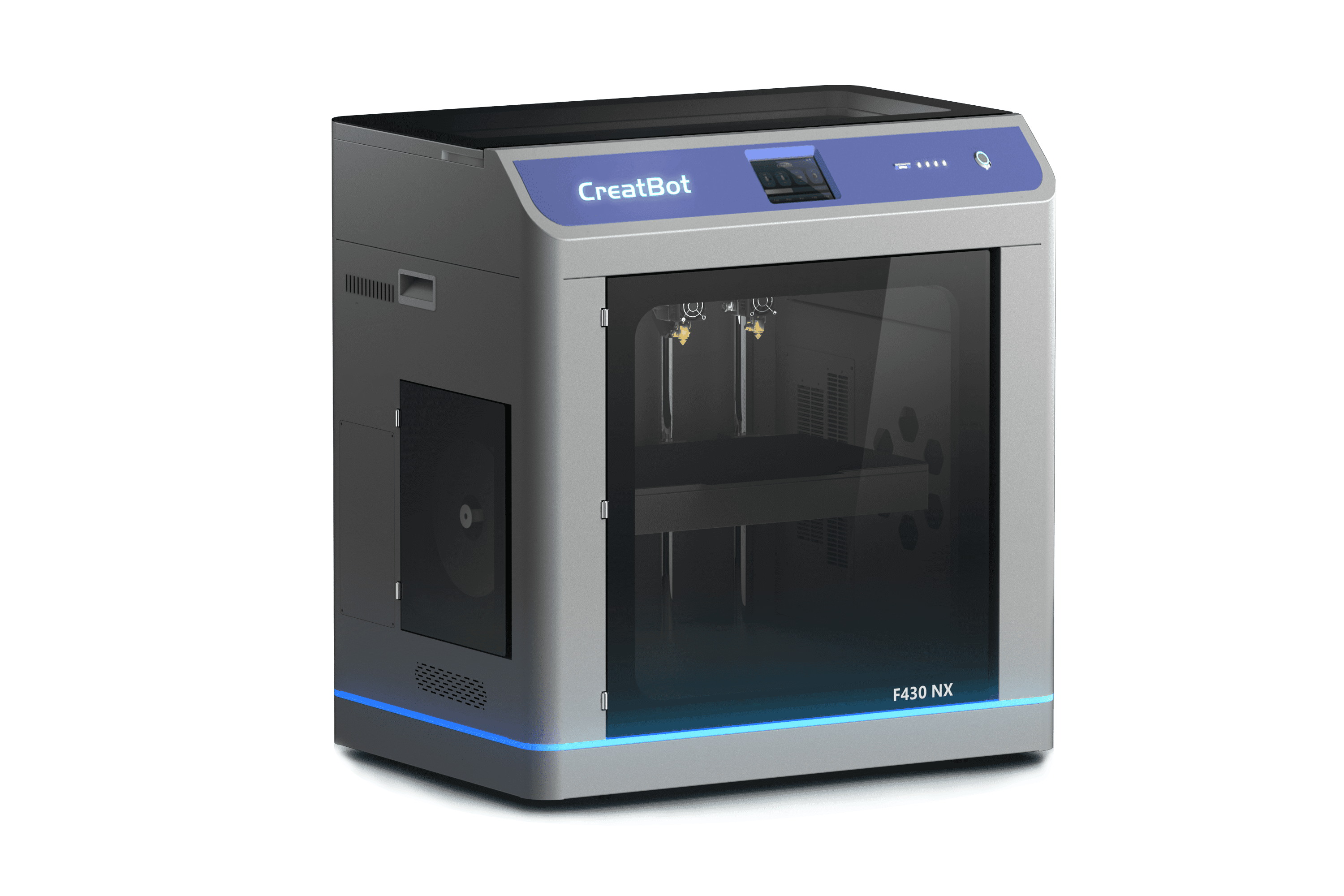

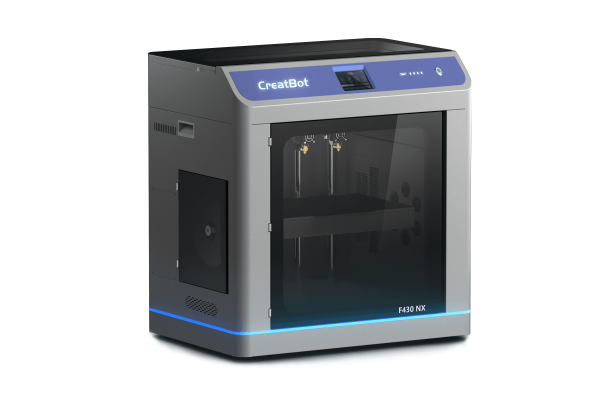

CreatBot F430 NX

A new generation of professional-grade high-speed 3D printer

The CreatBot F430 series has been proven to be one of the best-selling professional 3D printers,
with a cumulative global sales volume of more than 5,000 units.
Now, the new generation product F430 NX of this series has been released.
It has a more advanced design concept and profound technical reserves, with powerful performance and no shortcomings.
It has a brand-new appearance design; high-precision machined parts are used as the structural framework;
the independent dual-nozzle memory silicon carbide large-flow extrusion head enables it to be perfectly compatible
with high-performance consumables and high-speed printing.
The operation process is simpler, and the 7/24 operation is more stable. In the professional field, it will be your first choice.

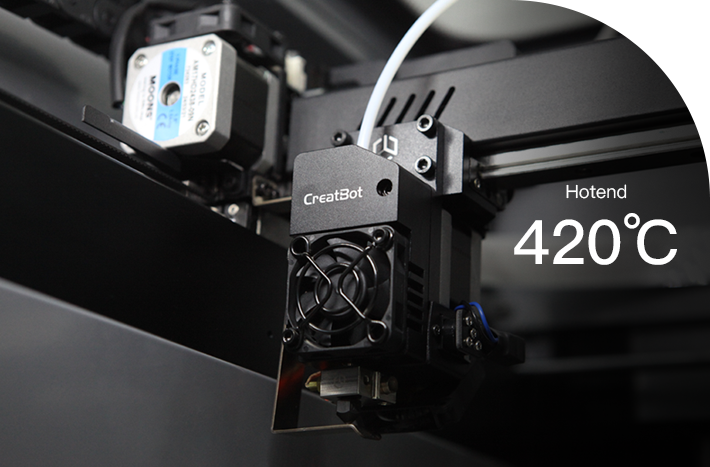

High temperature hotend 420°C

Using the latest technology of one-piece die-cast memory alloy hot end and super wear-resistant nozzle,
temperature resistance up to 420°C. Compatible with PLA, ABS, ASA, PC, nylon, carbon fiber, and glass fiber materials.
The nozzle aperture wear rate does not exceed 10% after printing carbon fiber materials for 2000 hours.

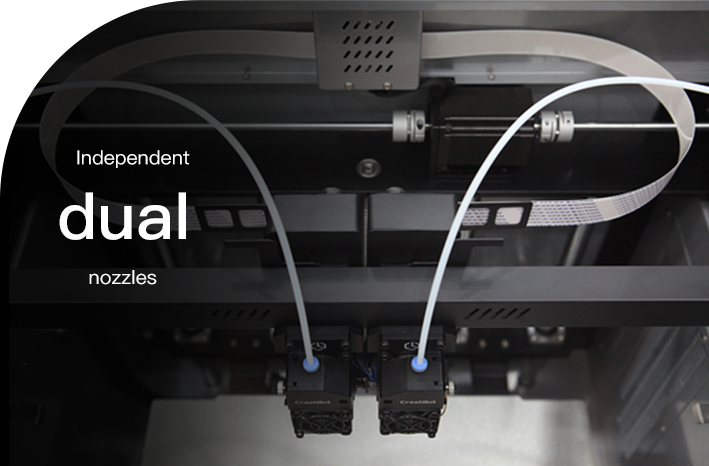

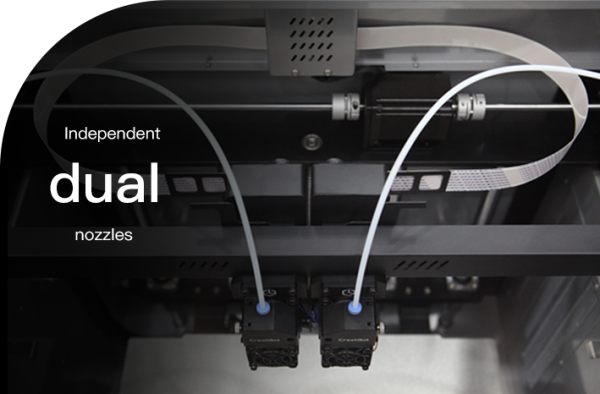

Independent Dual Extruders (IDEX)

This is the best solution for printing engineering-grade materials with independent support materials,
ensuring the best quality of engineering-grade material printing. It also supports copy, mirror, and backup mode printing.

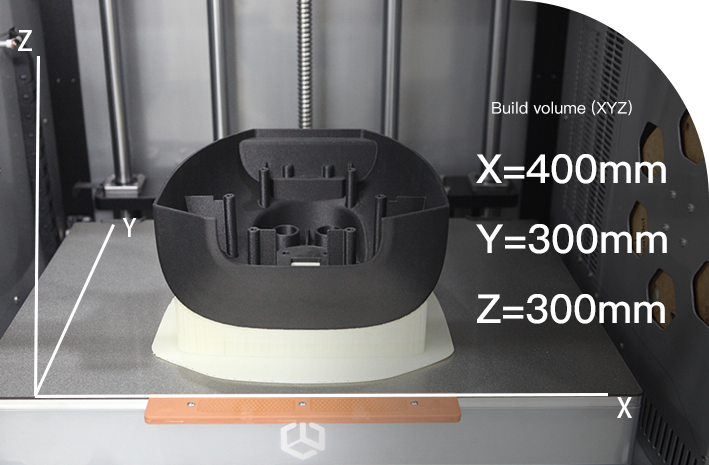

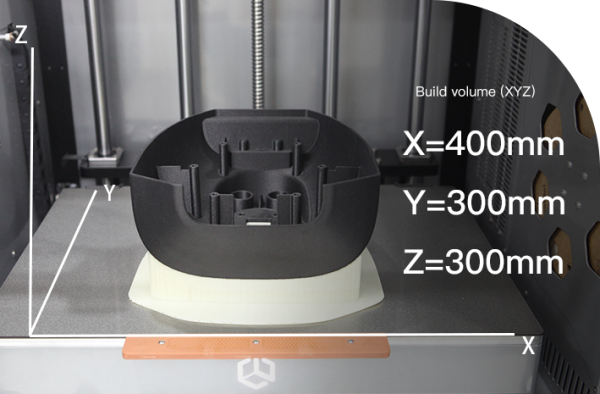

Big build volume

The printing size of single printing reaches 400*300*300mm, and the printing size with support materials
reaches 360*300*300mm. The printing size is larger than that of most professional-grade products on the market.






Z axis reinforcement

The back side of the Z-axis is composed of a high-precision ball screw and 4 reinforced optical axes,
with high-precision tight fit and synchronous movement. The surface of the model is uniform
and free of impurities, improving the printing surface quality of engineering-grade materials.

Active heating of hot bed/chamber

The active heated bed heating temperature reaches 140°C and the active chamber heating temperature reaches 70°C.
It effectively prevents the shrinkage and cracking of engineering-grade materials,
allowing ABS, ASA, PC, Nylon, UltraPA-CF, etc. to be perfectly formed and the mechanical properties to be maximized.

Superior Dimensional Accuracy

The F430 NX is specifically designed with a tight combination of high-precision machined structures
to maintain dimensional accuracy and tight tolerances when printing the largest parts in engineering-grade materials.
Not only does the F430 NX avoid warping and layer adhesion issues, but it creates massive parts with industrial-grade precision.

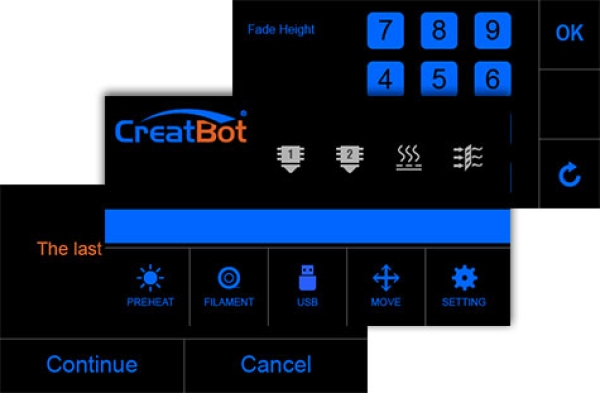

High-resolution touch screen

Adopting 5-inch high-resolution capacitive touch screen, it has no delay in operation,
delicate touch, user-friendly interface and convenient operation and management.

Technical Specs
