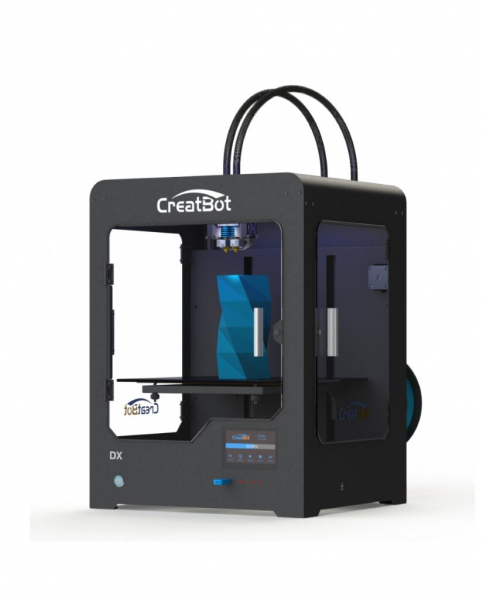

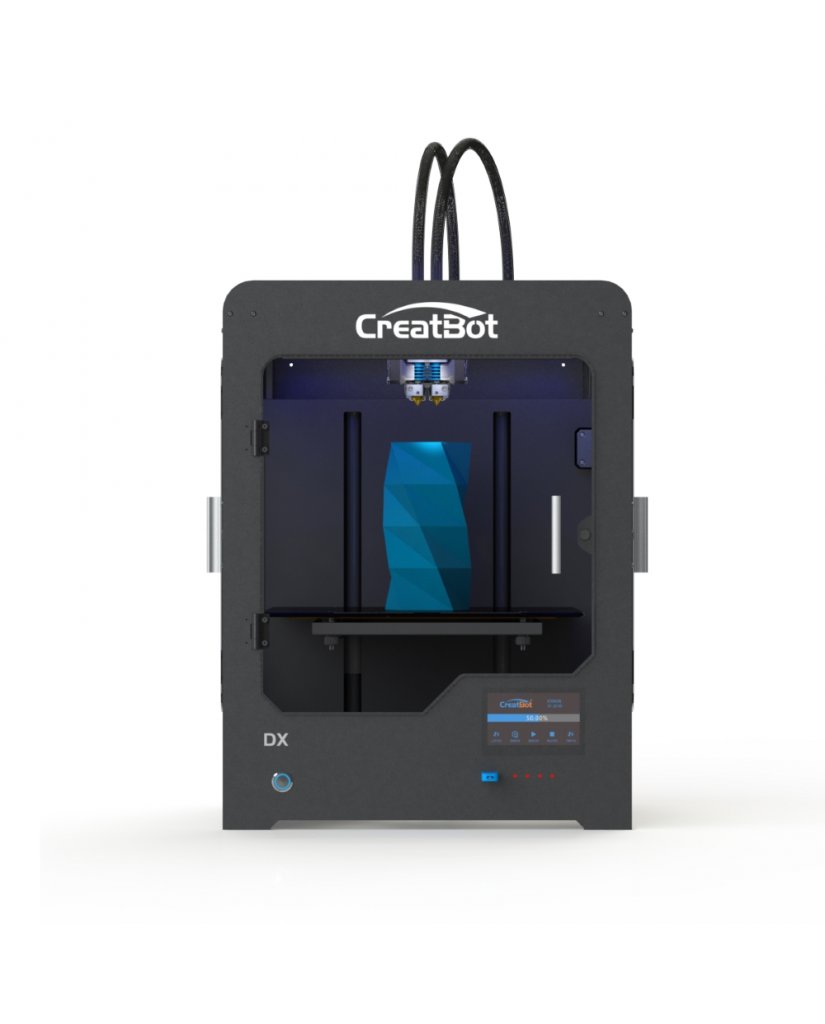

The CreatBot DX is a great-value dual-extruder 3D printer which can process ABS*,
PP, Nylon* and other filaments that tend to warp. Its large large build volume of
300 x 250 x 300 mm enables you to 3D print large parts.

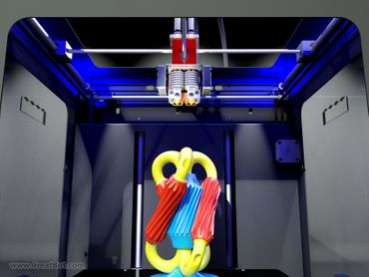

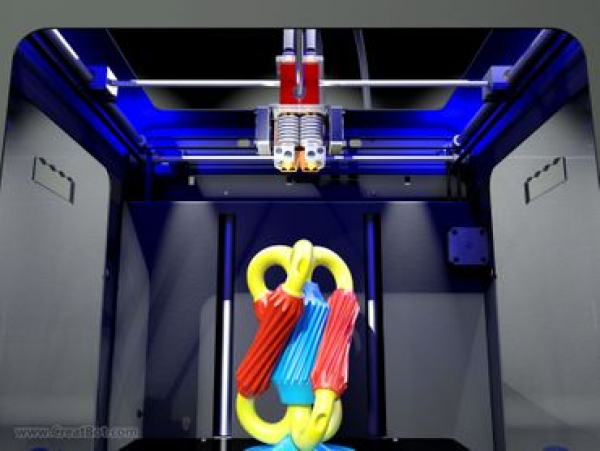

With the dual extruder system, you can work with support filament.
Large volume 3D printer with dual extruder and high-temperature (up to 350° C)
Size matters!

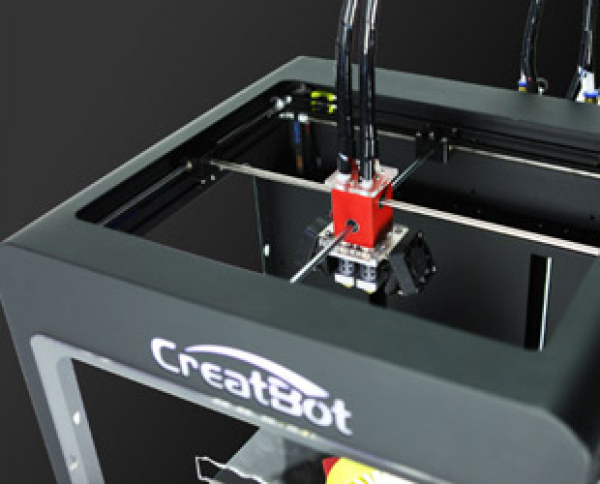

This solid constructed 3D printer has dual print heads. It comes along with a semi enclosed building chamber with see through walls. Furthermore, CreatBot DX has a heated glass 3D printing bed and a Bowden style extruder. This superior quality extruder has the stepper motors positioned at the back of the manufacturing machine which results in a light weight extruder head assembly enabling high speed 3D printing.
The CreatBot DX 3D prints beautifully in PLA and ABS* as well as other filaments like PP or PC*. Manufacture with high-tech filaments including soluble HIPS and PVA. With the CreatBot DX you buy a great machine for engineering, additive manufacturing and education. Manufacture complex objects for production work, large architectural models, sculpture, jigs and fixtures. It is your choice what to build.
Product Highlights:
All metal chassis
Smart adjustable extruder
Automatically shutdown
Multi-function keypad
Gear motors feeder
Ceramic panel hot bed
Metal hot bed tray
Large build volume of 300 x 250 x 300 mm
High resolution
Filament detection system
3D print in temperatures up to 350 ° C
Continued 3D print in case of power loss
All enclosed build area
Temperature Up To 350°C

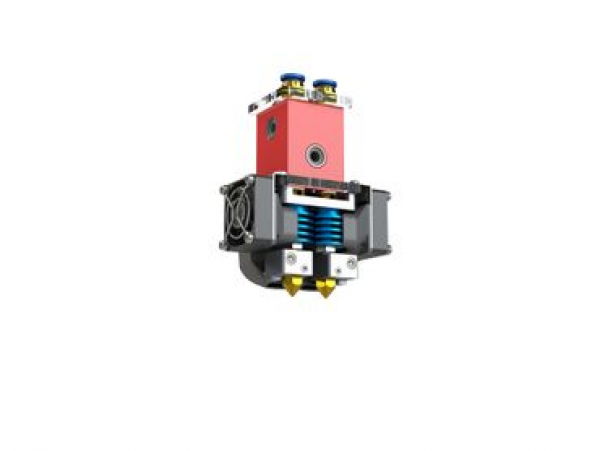

We are the first one to publish 350°C ultra-hight temperature nozzle to mass market and it possess exclusive patent. This kind of nozzle allow to print with a variety of filaments. And the fantasy blue metal cooling sink can efficiently cool down the heatbreak. The nozzle height can also be micro adjusted. And we accept customized for single/double/triple head.
All metal hotend, more durable
350°C support more filaments
Nozzle height adjustable
Supports up to 3 hotends
High Precision
We exclusively research and develop the extruder feeding system support high-speed printing, and accuracy can reach high to 0.05mm, it allows to extrude filament steady without block.
Precision up to: 0.05 mm Speed up to: 200 mm/s
Stability
The whole-steel body not only ensure the stability when printing but also greatly extend the usage period. the optimization and cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3D printers have been working for 9 years and more than 30,000 hours.
Large Build Size
We provide variety of printing sizes for you reference. The largest build volume is 5 to 20 times bigger than it of other ordinary 3D printers in nowadays market.
CreatBot DX build volume: 300*250*300 mm

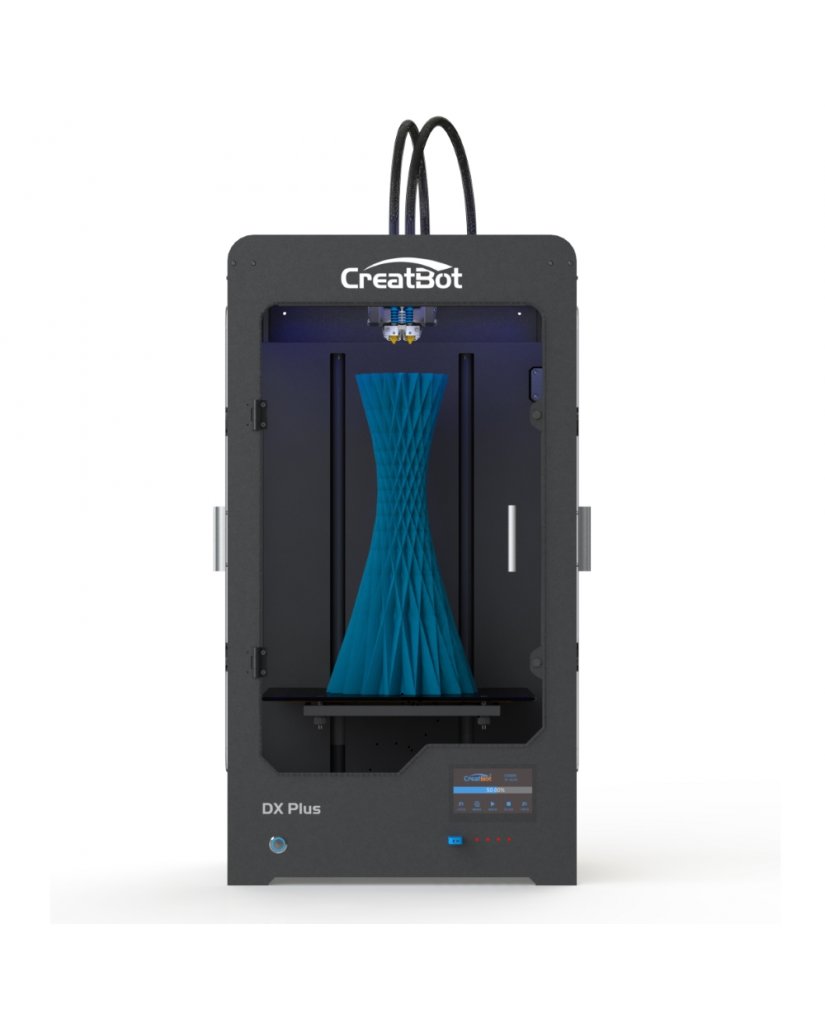

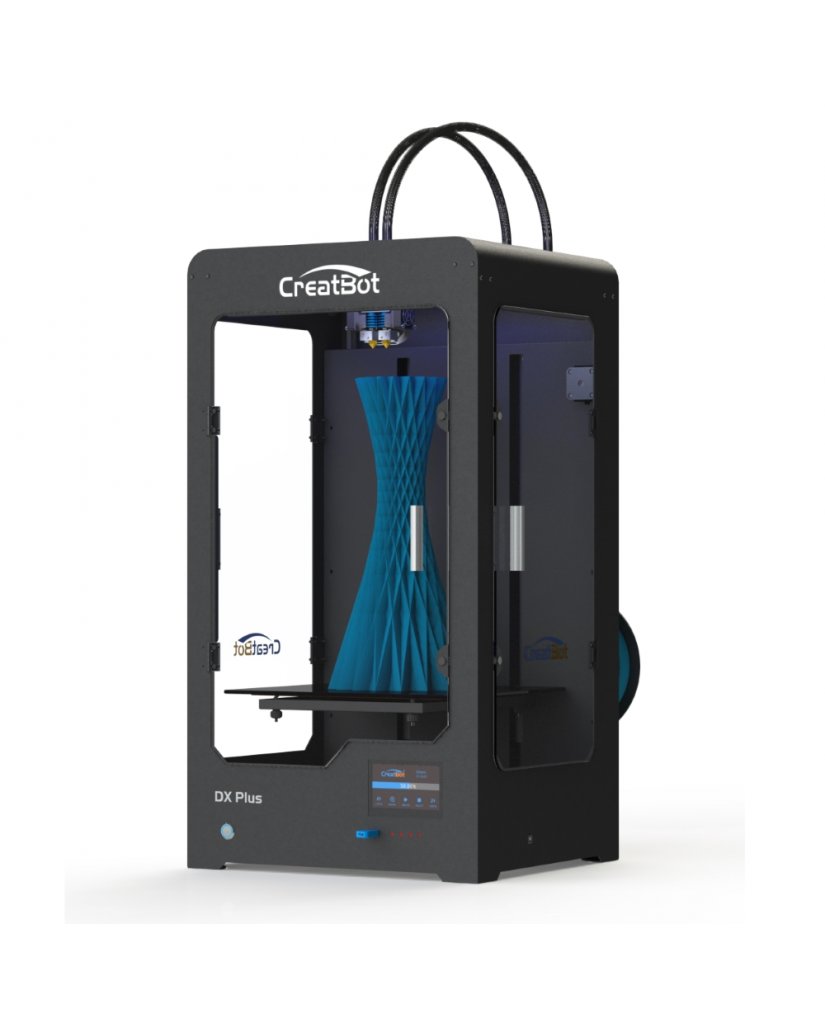

CreatBot DX Plus build volume: 300*250*520 mm
Outage Restored & Filament Detection
The printer will automatically memorize the current position and save print data. Lower the platform and withdraw filament when power off suddenly. It will continue to print from the last stopped point after power’s on.
The printer will avoid invalid printing by stoping print and warning when filament runs out.
Outage Restored
Filament Detection
Power Outage Restored Video
Filament Detection Video
Glass Ceramic Platform
The printer has mico-crystal platform so that can support hight thermal efficiency, you can set the parameters to turn off the hot bed automatically after the specified number of layers.
Easy Touch Screen
The printer has a 4.3" touch screen, more easy to operate. We also provide One-Key to preheat, print, home as p-4 rounded-lg bg-light border as other shortcut keys.
More Features

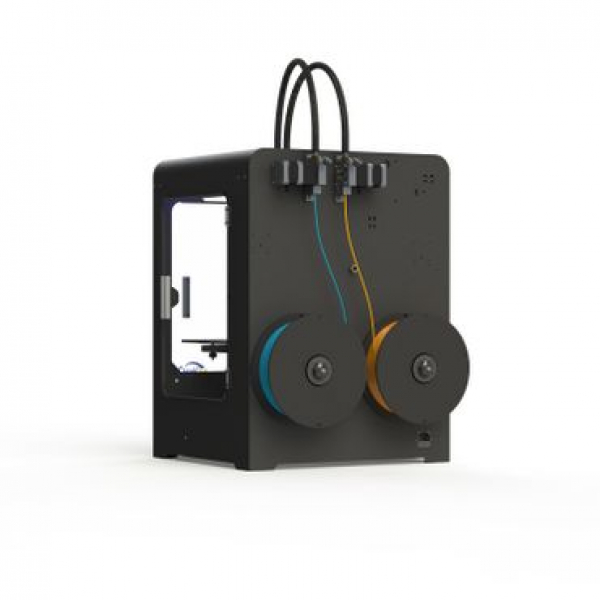

Simple Feeding Frame
The stepper is separated with the hotend, so that the hotend is even lighter, smaller and will has less inertia of movement, also greater space utilization.

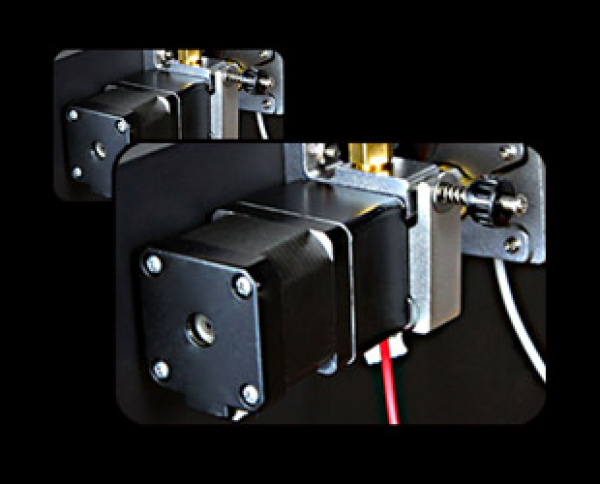

Filament Feeder
Geared motor can reduce speed intelligently and it support super torque so that it can feed filament in high precision without slipping and delay when withdrawing the filament.
Triple Extruders
upport three color printing, support printing sort of material.
Technical Specs
Printing
Print Technology
Fused Deposition Modeling
Build Volume
300*250*300 mm (DX)
300*250*520 mm (DX Plus)
* 3 nozzles build width:280mm
Number of Nozzles
Double (Max.3)
Resolution
0.05 mm
Layer Resolution
0.05 mm
Filament Diameter
1.75 mm (3.0/2.85 mm optional)
Filament Compatibility
PLA, ABS, Carbon Fiber, PTEG, etc.
Nozzle Diameter
0.4 mm(0.3 0.5 0.6 0.8 1.0 mm)
Print File Type
STL, OBJ, AMF, Gcode
Speed
Best Printing speed
45 mm/s
Max. Printing speed
200 mm/s
Software
Software Bundle
CreatWare, Simplify 3D, Cura, Slice 3r, etc
Supported File Types
STL,OBJ,AMF
Operating Systems
Win7/8/10, MacOS
Special Function
Outage Restored
Save data when power is off
Filament Detection
Pause printing when filament run out
Automatic Shut-down
Turn off the power automatically when printing is complete
Temperature
Ambient Operating Temperature
15-32 ℃
Max. Nozzle Temperature
260 ℃
Max. Bed Temperature
100 ℃
Electrical
Power Requirements
100V-110V or 200V-240V / 50-60Hz
(Depending on your country's default voltage)
Max. Power
360 W
Screen
4.3" Touch Screen with Multi-language
Control Chip
ATmega 2560
Storage Media
U Disk
Connectivity
USB
Mechanical
Construction
Power-Coated Steel, Aluminum Casting for Motion Components, POM etc
