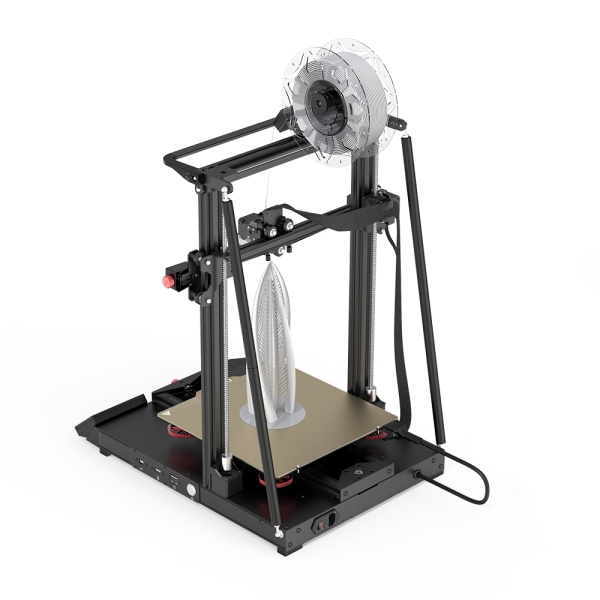

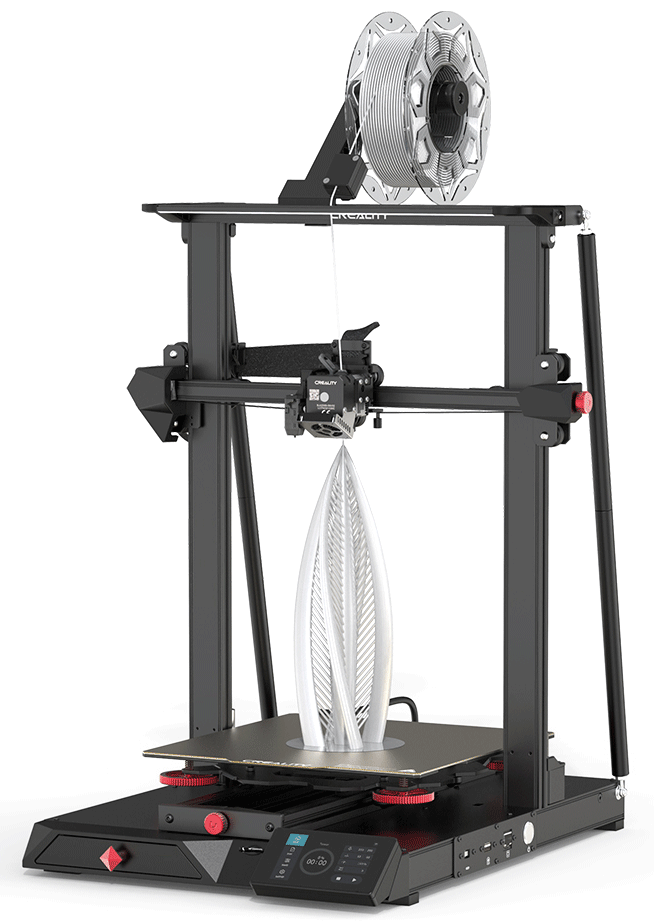

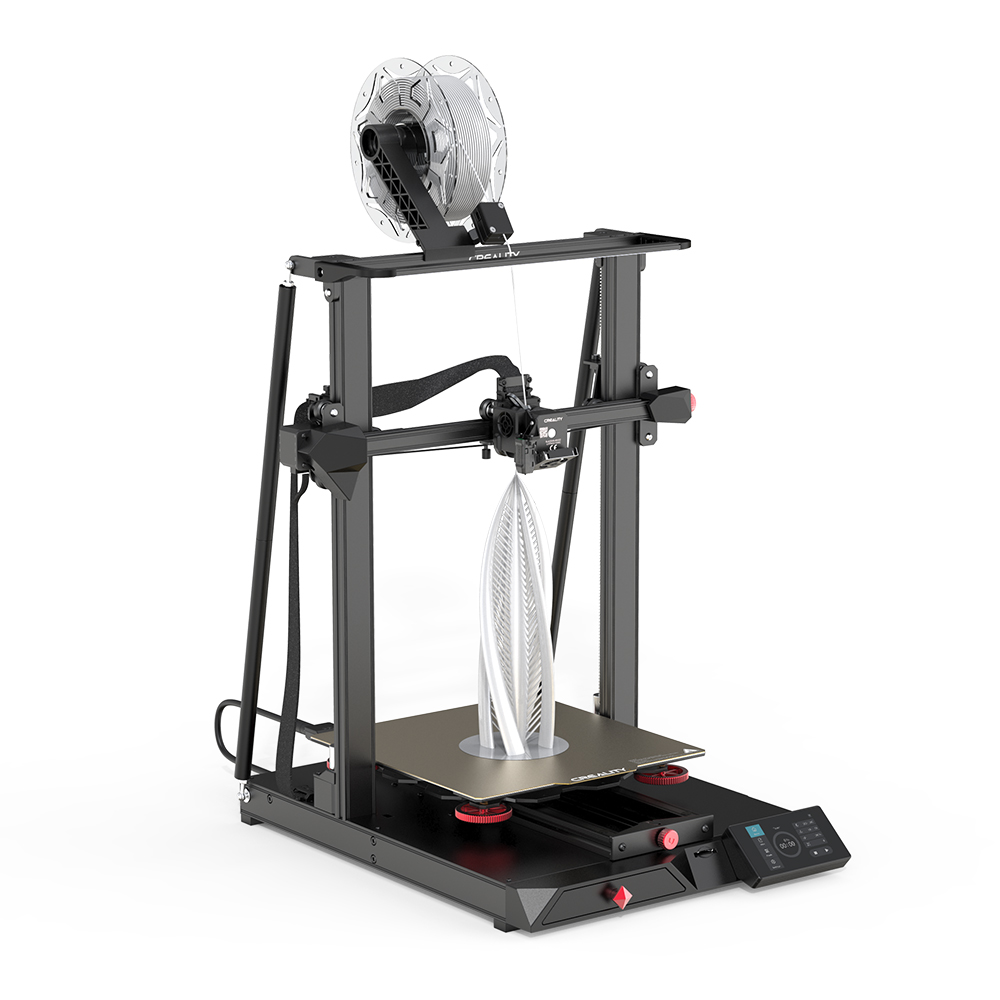

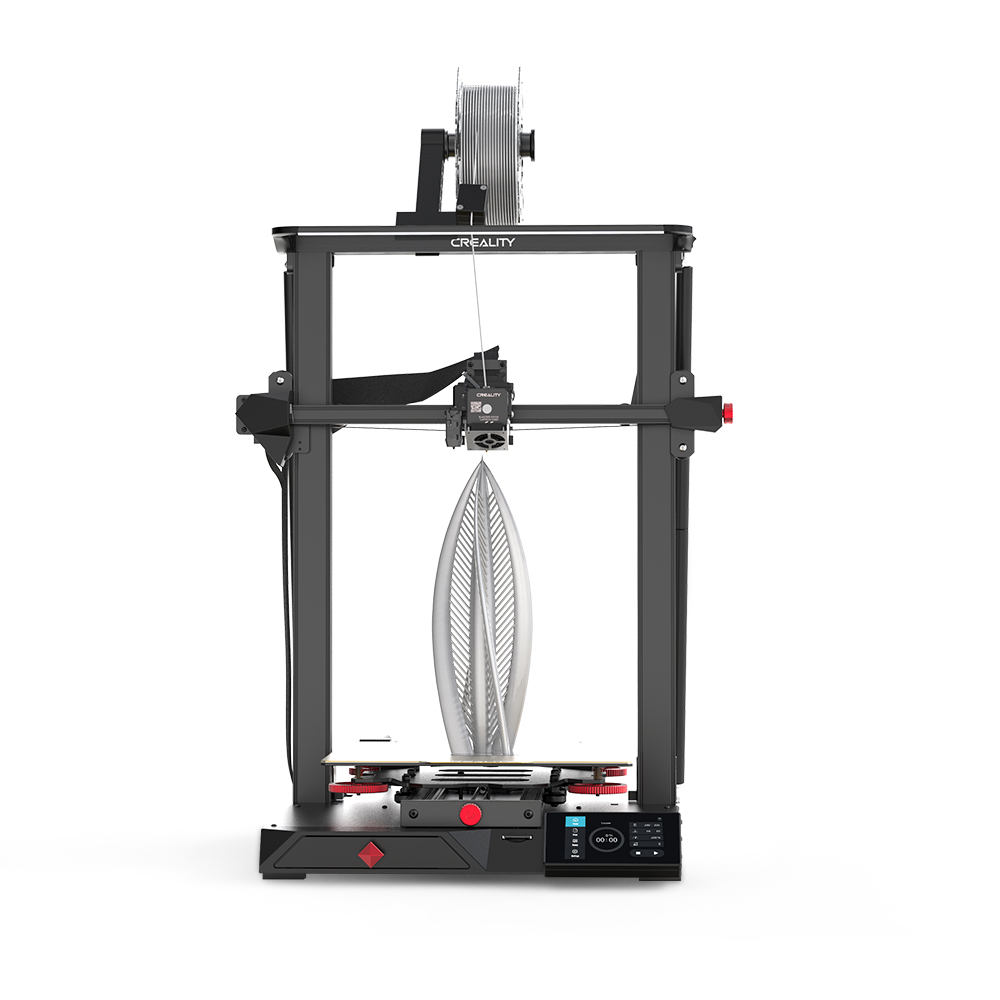

CREALITY CR-10 SMART PRO
- 300 x 300 x 400 mm
Characteristics:
- improved BL Touch - automatic leveling
- Improved filament sensor
- continue printing function
- Upgraded driver
- Double feed gear in the extruder
Supports Wi-Fi/Bluetooth/RJ45, remote control via Creality Cloud App,
Dual mode leveling, equipped with AI HD camera and LED light,
Full metal dual gear direct extruder compatible with various filaments,
magnetic bed made of spring steel with PEI coating, bendable to take out models,
Print size 300x300x400mm.
Creality CR-10 Smart PRO
Creality CR-10 Smart PRO 3D printer with automatic leveling of the printing table,
reinforced construction which enables more accurate printing of 3d models.
The printer is one of the latest models of 3d printers in 2021.
The price of the printer is very affordable considering what this model also offers.
All Creality 3D Printers are known for being easy to set up and suitable for beginners in 3d printing.
Creality CR-10 Smart Pro supports Wi-Fi/Bluetooth/RJ45, Remote Control via Creality Cloud App,
Dual-mode Levelling, Equipped with AI HD Camera and LED Light, Full-metal Dual-gear Direct Extruder
Compatible with Diverse Filaments, Spring Steel PEI Magnetic Sheet Bendable to
Take Out Models, Print Size 300x300x400mm.
New updates:
- It has an improved BL Touch automatic leveling of the heating table with an accuracy of 0.001mm
- Improved filament runout sensor
- Resume printing function
- Upgraded driver
- Double feeder gear in the extruder
Upgraded driver
It features the silent TMC 2208 driver, making the 3D printer appear quieter than the others.
Elegant and compact design
With the new sophisticated look, you can see that the creators have managed to hide all the electronics of the 3D Printer.
Improved automatic leveling of the heating table
Compared to the semi-automatic leveling contained in the previous model, the heating table
leveling process is now fully automatic. The BL Touch now balances the heating table with 0.001mm accuracy.
Capricorn tube
Capricorn tube is a high temperature resistant Teflon tube with an inner diameter of 1.9 mm ± 0.05 mm,
which prevents the filament from sticking inside the tube. This is especially useful when printing with flexible filaments.
Resume printing function
The printer has the additional function of continuing printing after a power outage,
which saves you time and reduces waste material.
Technical Specifications:
| Construction an Technical Details | |
| Usable Nozzle Type | MK8 |
| Usable Filament Diameter | 1.75 mm |
| Max Nozzle Temperature | 300 ºC |
| Open Filament System | Yes |
| Extruder Type | Direct drive |
| Build Area | 300 mm x 300 mm x 400 mm |
| Build Plate Temp Max | 110 ºC |
| Build Plate Surface | PEI |
| Build Plate Material | Flexible Steel Plate |
| Build Plate Attachment | magnetic |
| Build Plate Leveling System | BL-Touch |
| Build Chamber During Process | Open |
| Extruder Number Of | 1 |
| Installation Space / Requirements | |
| Total Mass Overall Dimensions | 550 mm x 490 mm x 650 mm |
| Total Weight | 13.7 kg |
| Max Power Consumption | 350 W |
| Voltage | AC: 100 V - 240 V |
| DC: 24 V | |
| Equipment | |
| Hepa Filter | No |
| Filament Runout Sensor | Yes |
| Power Loss Fail Safe | Yes |
| Touch Screen | Yes |
| Camera | Yes |
| Connection | |
| SD Card | Yes |
| Ethernet Port | Yes |
| WLAN | Yes |
| Cloud Control | Yes |
| Accuracy | |
| Layer Height | 0.1 - 0.4 mm |
| Resolution | 0.1 mm |
| Shipping | |
| Shipping Box | 660 mm x 575 mm x 290 mm |
| Shipping Weight | 17 kg |
