Constructions-3D Mini Printer 3D- concrete printer EDUCATION Edition
Constructions-3D Mini Printer 3D- concrete printer
EDUCATION Edition
Complete solution for 3D concrete printing in a reduced format,
which are both for production and for the research is intended.

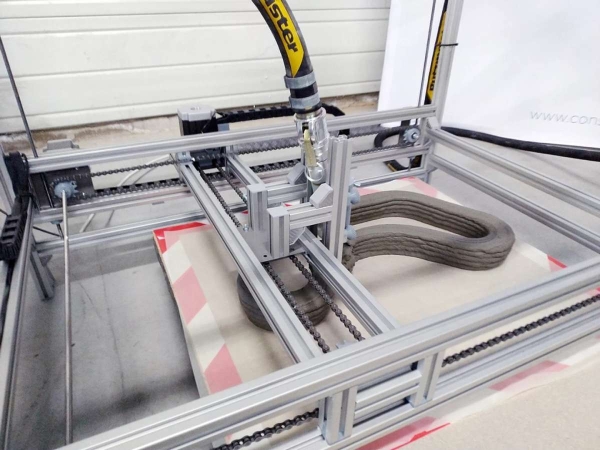

The Constructions 3D Mini Printer is a 3D concrete printer designed for research and
development is determined and allows the possible uses in an intuitive way to understand 3D

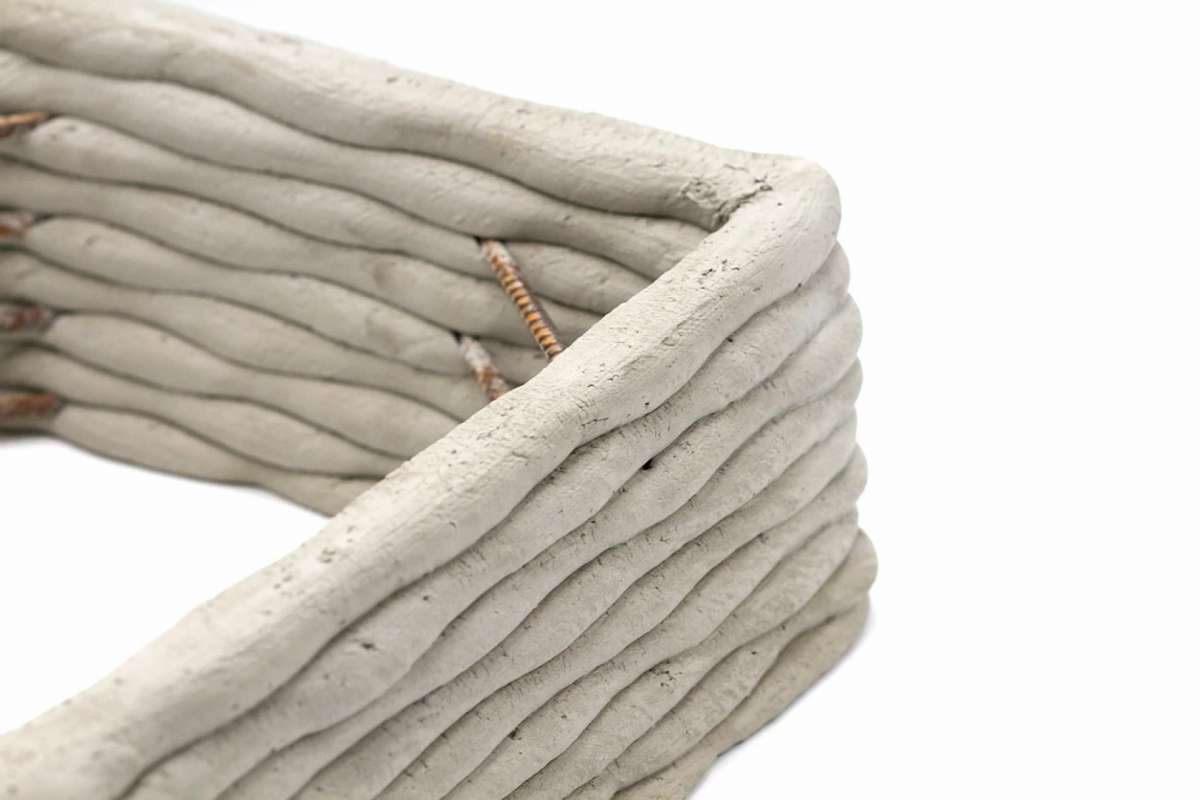

printing of concrete structures.
The mini printer is capable of printing to a working size with an accuracy of 0.5 cm of 660 x 520 x 700 mm.

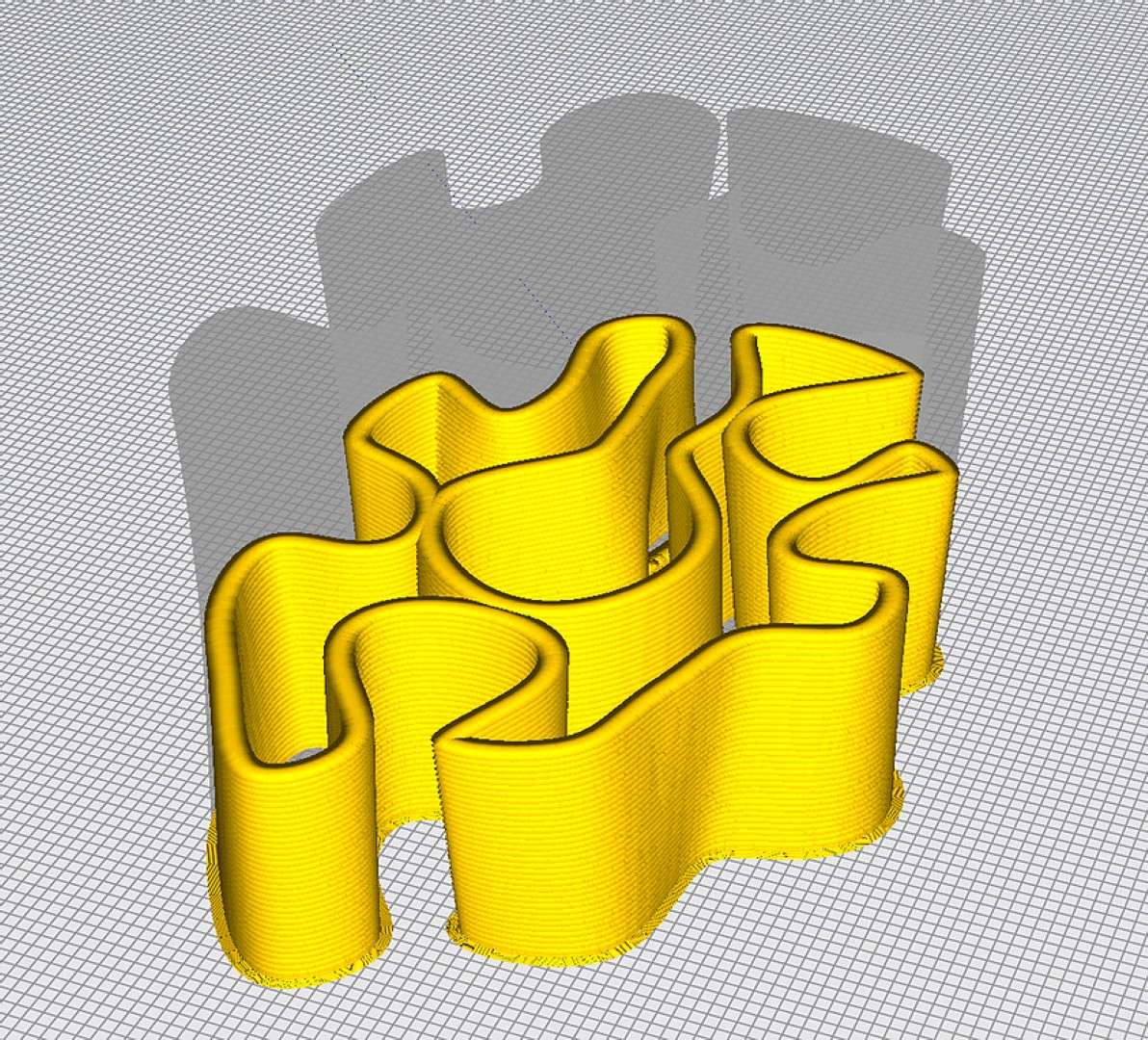

Thanks to the easy-to-use software, compatible with any design software and the one for
the concrete environment Optimized mechanical structure of the machine,
you can start your concrete 3D printing with ease.
Our team of experts is available to advise and support you with your 3D printing project.
- measurements: 615 mm x 520 mm x 600 mm
- feed speed up to 300 mm/sec.
- accuracy: 0,5 cm
- compatible materlias: mortals / coatings / adhesive

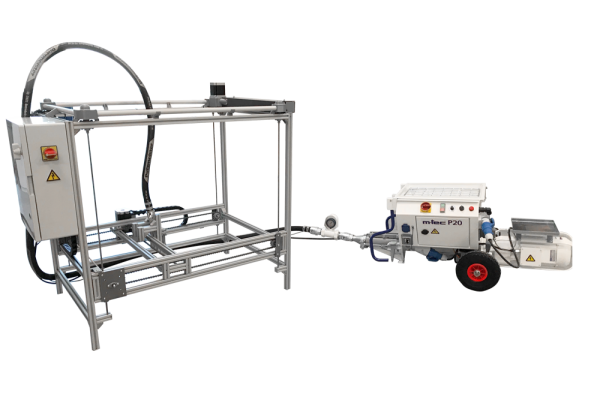

CONTENT OF PACKAGE
- 3D-CONCRETE PRINTER
- PUMP SYSTEM
- CONTROL UNIT
Our service includes:
- Advice
- COMMISSIONING and TRAINING

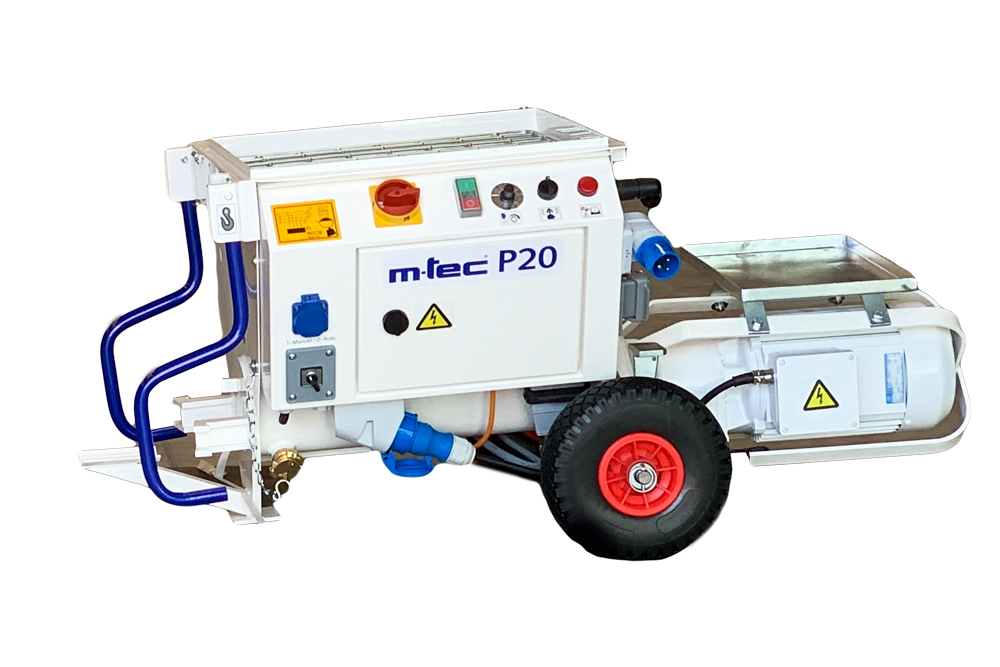

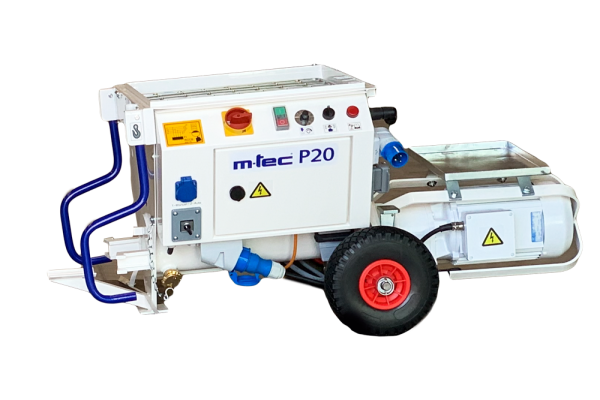

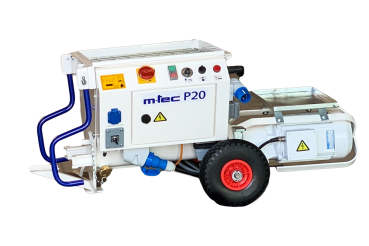

| PUMP SYSTEM | |
| Pump system | Spray pump |
| Type of corrodible material | mortals / coatings / adhesive |
| Filling of Pump | Pro waste |
| groceries | 230 V |
| Max transport pressure | 30 Bar |
| Max Transport distance | 30 m |
| Pump performance | 4kW. 230V. 50Hz |
| usual material. throughput | 5L / min |
| Maximum flow rate | 50L / min |
| Minimale flow rate | 1 L / min |
| Maximale grain size | 6mm |
| Fiber Compatibility |
Yes, up to 25mm and 2% by mass
|

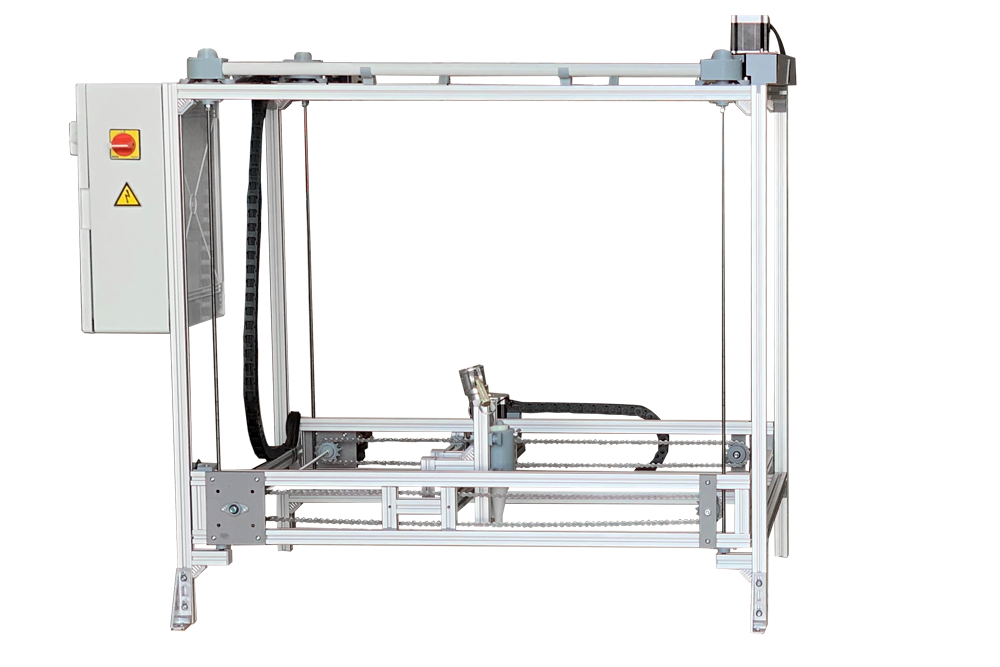

| PRINTER | |
| accuracy | 0,5 cm |
| Print size (XYZ) | 660 x 520 x 700 mm |
| Print speed | up to 300 mm/s |
| groceries | 220V one phase |
| CONSTRUCTION MATERIALS-3D | |
| Type | Specific mortar with cementitious base / dry material |
| Minimale ambient temperature | + 5°C |
| Maximale Uambient temperature | + 35°C |
| start with settingsi 20°C | 30 min |
| flexural strenght | 12 Mpa |
| Mechanical compressive strength | 75 Mpa |
| grain size | 0-2 mm |
| ABRAMS-cone weakening | 2,5 cm |
| density | 2.2 |
| displacement under tension | < 0,6 mm |
| contains | 1,2 T BigBag or 25kg-bag |
| preservation | 12 months from the date of manufacture, in the original unopened packaging |
| water amount per 100 kg Material | 12L |
- Technical Data Sheet (56.53 KB)
