BCN3D Epsilon W27

The BCN3D Epsilon W27
3D printer brings industrial strength to your workshop

The new BCN3D Epsilon W27 is designed to enable professionals to keep innovating.
It is the most powerful, most reliable and most precise 3D printer in the BCN3D portfolio.
Its industrial performance guarantees unparalleled performance for your workbench or factory floor.

Based on the capabilities of the Sigma and Sigmax desktop 3D printers, a new one follows
Generation of machines, improved performance, industrial reliability and full accessibility
united for smooth daily operation. This complete professional 3D printing solution was made
designed to help innovators - from manufacturers to engineers to designers -
the simple creation of functional parts, prototypes, manufacturing devices or
Allow tools with the highest throughput for maximum efficiency.

BCN3D Epsilon W27 is an FFF 3D printer, ideal for a workshop environment, suitable for the
Use in prototyping applications and the production of small series projects with the most modern
Materials. With IDEX technology, a large volume (more than 27 liters capacity) and the
Duplication and mirroring modes, the BCN3D Epsilon W27 is able to generate the best number of
To offer solutions for different markets.

Advantages of the BCN3D Epsilon W27 3D printer

• Ideal for small batch production: duplicate and mirror modes combined with the best industrial materials.
• Ideal for consumer parts: printable with fiber-filled materials that offer the best resistance and endurance.
• Ideal for toolmaking: can be printed with various nozzles that deliver highly resistant parts.
• Ideal for prototyping: Can print with ABS, PP and PA for the best prototypes or concepts.

The BCN3D Epsilon W27 is a powerful professional 3D printer that, thanks to its passive
Heating chamber and its final housing can supply large components with materials suitable for industrial use.
Driven by the Independent Dual Extruder (IDEX) system,
the BCN3D Epsilon W27 delivers exceptionally strong functional parts with quality and precision.

Scope of delivery of the BCN3D Epsilon W27

• 1x BCN3D Epsilon W27 3D printer with 0.4mm hotends
• ​1x glass printing plate
• 2x PLA filament spools
• 2x spool holder
• 1x Quick Start Guide and warranty documents
• 1x SD memory card
• 1x ethernet cable
• 1x USB cable
• 1x spatula
• 3x hex keys
• 1x needle-nose pliers
• 10x shims for printhead leveling
• 1x USB dongle
• 1x IEC cable
• 1x nylon cleaning filament
• 1x Magigoo sticky stick 50ml
• 1x calibration gauge for leveling the print bed
• 1x sample part for the print quality

Comparison of BCN3D Epsilon W50 vs. W27

The only difference between the BCN3D Epsilon W50 and W27 is the installation space of the corresponding printer.
The W50 has a space of 50l (rounded), the W27 has a space of 27l (rounded).
The different installation space sizes are decided by the length of the Z-axis or the height of the printer.
The W50 has a maximum Z-height of the print volume of 400mm. The W27 has a maximum Z-height of 220mm.

Large print volume

The BCN3D Epsilon W27 has one of the largest build volumes on the market with a
Print volume of 420 x 300 x 220 mm. Print on a large scale with water soluble
Support material or put multiple pieces on a build plate to help you maintain productivity,
that you have chosen.

Driven by BCN3D IDEX technology

In combination with the Independent Dual Extrusion (IDEX) technology, the mirror and
Enables duplication mode, the BCN3D Epsilon W27 proves to be the perfect tool
for cost-effective series production.

Closed, passively heated installation space

A completely closed installation space maintains the internal temperature where it is up
can reach 60 ° C. That way you can get large-sized, functional
Print parts with special materials suitable for industry and thus suitable for industry
Get results.

Industrial applications with the Hotend X

Thanks to the new Hotend X, industrial applications are also special
Alloy of tool steel feasible. In combination with the BCN3D Epsilon W27
allows you to print with fiber-filled materials, giving you stiffer T.
Print quickly for the most demanding tasks. BCN3D Epsilon
W27 users work with filaments such as PP GF30, PAHT CF15 and PET CF15.



HEPA and activated carbon filters

In order to be able to work with technical and abrasive materials, work safety
must be guaranteed. The BCN3D Epsilon W27 has unrivaled safety features such as
a HEPA filter and a carbon filter that prevent the release of potentially harmful particles and
vapors into the air and ensure a shielded environment for the area around the printer.

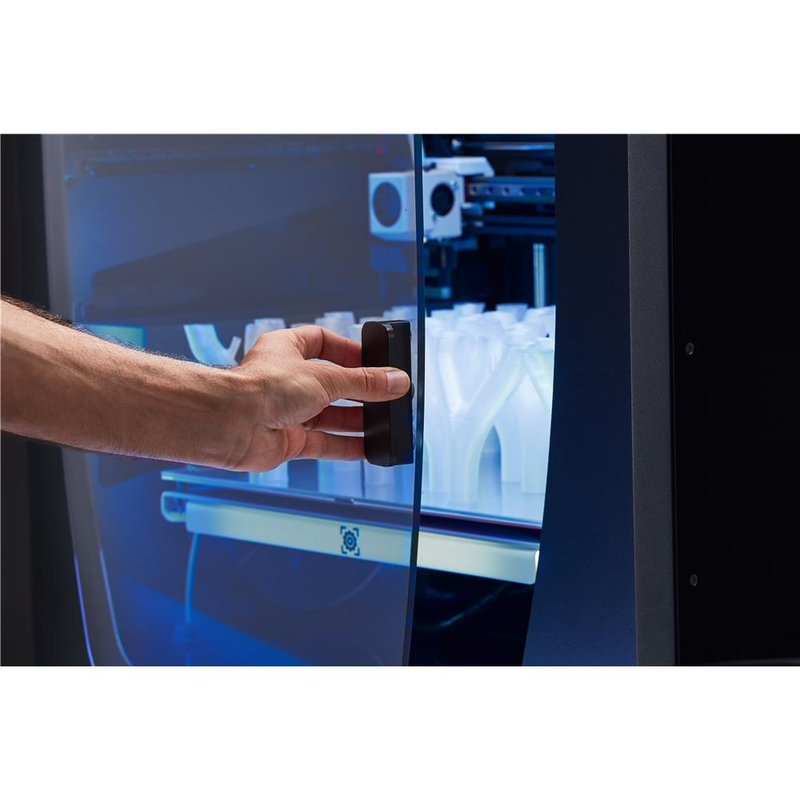

Safety stop of the BCN3D Epsilon W27

The new "Safety Pause" function stops printing every time the case door is opened, so your experience
is always completely safe. Of course, the printing can continue smoothly as soon as the housing door is closed again.

BCN3D cloud and WiFi printing

The BCN3D Epsilon W27 3D printer is equipped with the latest connectivity options.
With the new BCN3D cloud service, you can easily send your print files from anywhere
via WiFi for a smooth workflow. Manual firmware upgrades are also no longer necessary.
If you choose to, OTA (Over The Air) updates will ensure your 3D printer is always up to date.

5 inch full color display

The responsive, multi-lingual 5-inch touchscreen built into the control panel makes operation
effortless and easy - you can simply swipe through the menus and tap options to select them.
Detailed information such as the building board and nozzle temperature keep you up to date
on current jobs and enable you to intervene easily.

Technical Specifications

Technology: FDM
Execution: finished device
Filament diameter: 2.85 mm
Printer dimensions (HxWxD): 750 x 690 x 530 mm
Weight: 33 kg
Color gray
Print head: Independent dual extruder
EAN: TBD
Nozzle diameter: 0.4mm, 0.6mm, 0.8mm, 1.0mm

Manufacturer: BCN3D
Manufacturer country: Spain
Manufacturer's guarantee: 1 year
Warranty: 2 years

Printing platform: Heated, passively heated installation space
Supported material: All common filaments
Max. Print area (HxWxD): 420 x 300 x 220 mm
Connection options: SD card / network
Software: BCN3D Cura
System requirements: Windows / Mac / Linux
File format: .stl / .obj / .amf / .3mf
Display: full color touchscreen

Special features: Independent Dual Extrusion, Printing Modes: Simple, Dual, Duplication, Mirror
