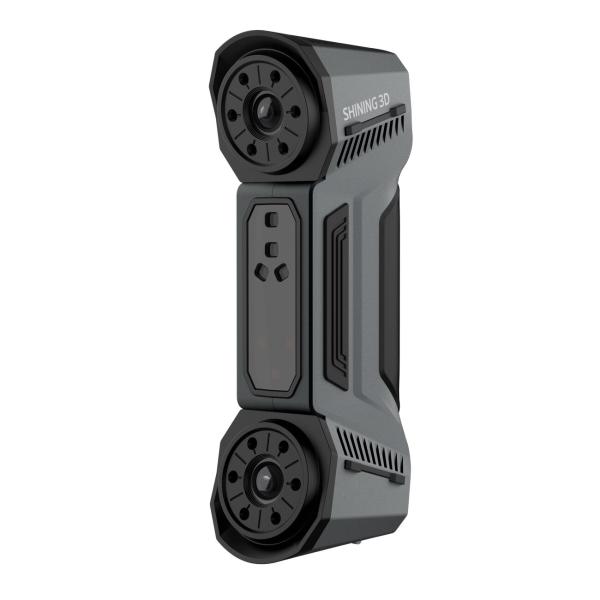

FreeScan Combo Laser Handheld 3D-Scanner
The FreeScan Combo, with its small dimensions of 193 x 63 x 53 mm and a weight of only 620 g,
has two light sources: a blue laser and an infrared VCSEL. As a lightweight and portable metrology
scanner, it is equipped with four working modes: multiple line scanning, single line scanning, fine
scanning and infrared scanning.
It can be used for precision metrology inspection, reverse design, additive manufacturing and other
applications in many manufacturing sectors, such as automotive, aerospace, rail, heavy industry,
mold making, foundries and medical.
LIGHT SOURCE
Blue laser + Infrared VCSEL
ACCURACY
Up to 0.02 mm
WEIGHT
620g
COMPACT SIZE
193mm×63mm×53mm
BLUE LASER + INFRARED LIGHT
An innovative combination of blue laser and infrared light sources meets the requirements
for various industrial 3D scanning scenarios.
4 SCAN MODES, MULTIPLE SCAN OPTIONS
- 26 laser lines for global scanning;
- 7 parallel blue laser lines for fine scan detail;
- 1 single blue laser line for obtaining deep borehole data;
- Infrared light source scans quickly without markers.
1,860,000 points/s
26 LASER LINES
Global scanning, smooth and efficient.
No fear of black or reflective surfaces
0.02 mm
A SMART CHOICE FOR METROLOGY APPLICATIONS
Accuracy in laser scanning mode is up to 0.02 mm, meeting metrology requirements.
PRECISE AND DETAILED SCANNING
Smaller scanning area with 7 parallel laser lines
SCANNING OF DEEP HOLES WITH COMPLETE DATA
Optimized lens angle and single line for better deep hole data acquisition.
Complete data for full-size 3D inspection.
INFRARED LIGHT SCANNING
No markings are required for workpieces with many features.
The infrared light source can be used directly for fast scanning.
620g
POWERFUL AND ERGONOMIC
Ergonomic design, compact, convenient and easy to use.
Metal body in line with modern industrial aesthetics.
