TranScan C

SHINING3D developed the Transcan C as a professional-grade 3D scanner capturing exceptionally high resolution and
accurate scans of objects from small to medium size for a great variety of industries. In addition, the 12 MP cameras
produce rich and detailed textured 3D model, giving an intuitionistic image of the physical object.

· Adjustable scanning range to meet various object scanning needs.

· Smoothly shift between 3 levels of resolution in one project to create great detail with high efficiency.

· 12 MP professional color cameras provide rich and detailed color textured 3D model.


Features

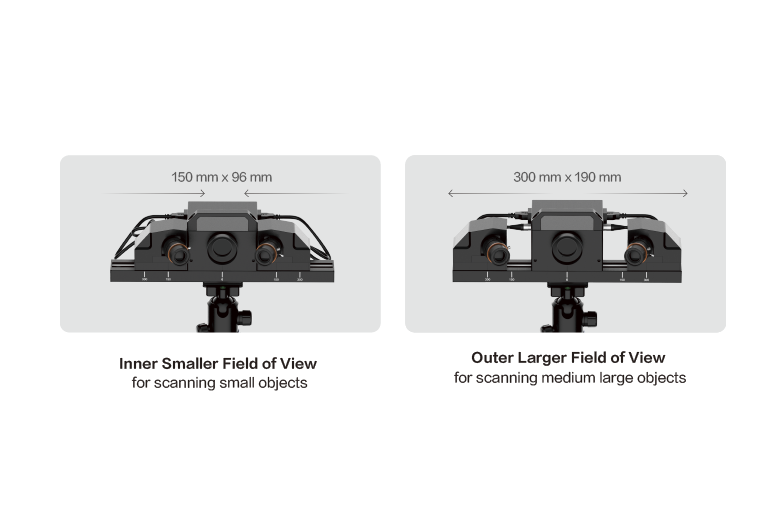

Ready-to-Use Dual Scan Range

The slide-rail design enables an easy switch of the scanning range between 150 mm x 96 mm and 300 mm x 190 mm
meeting the needs of scanning objects of different sizes effectively.

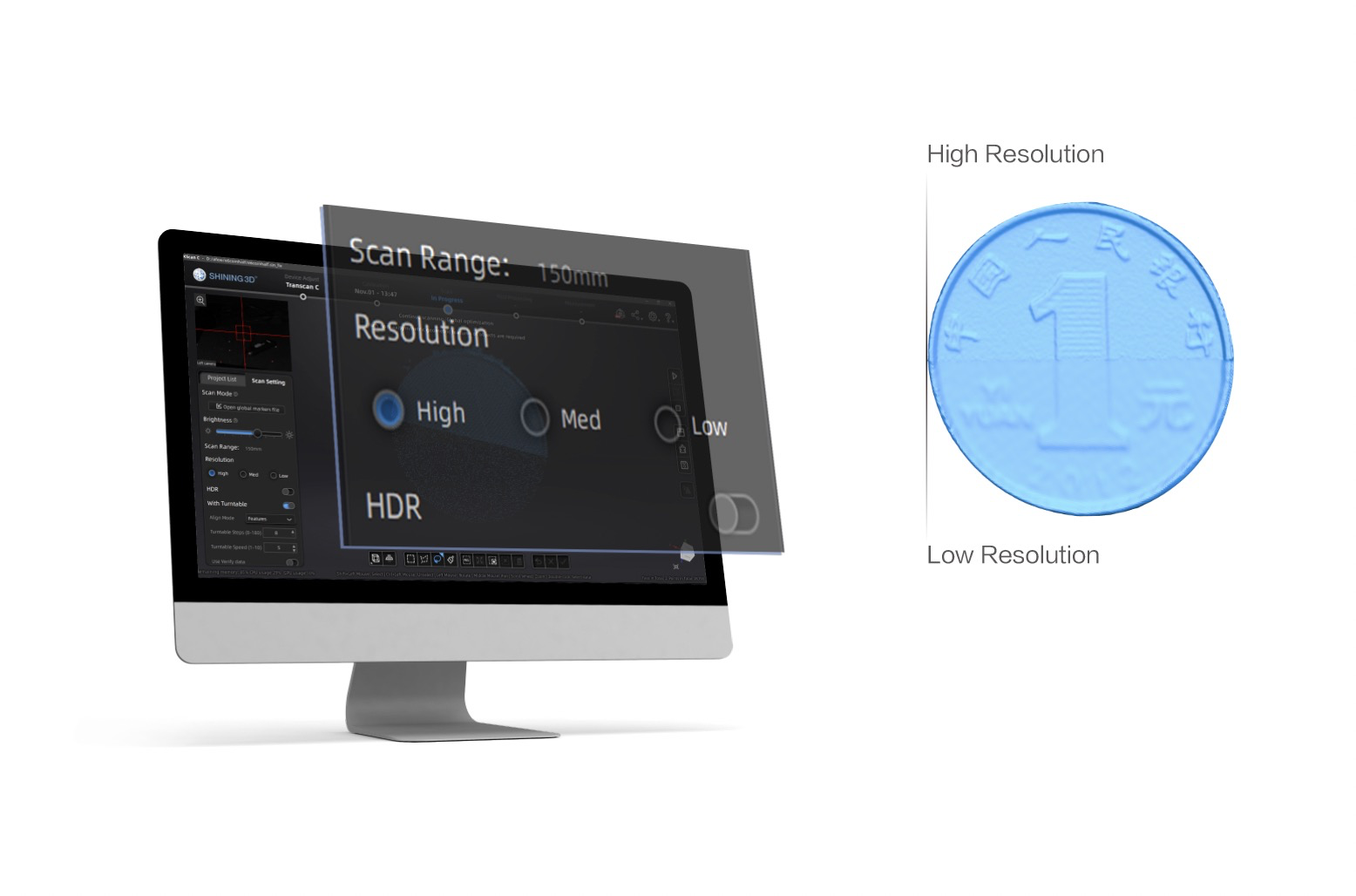

Multi-Resolution Fusion

The Multi-Resolution Fusion Algorithm allows a mixture of 3 levels of resolution of high, medium or low in one project for
complex scanning tasks, which highly improves efficiency without duplication of work.

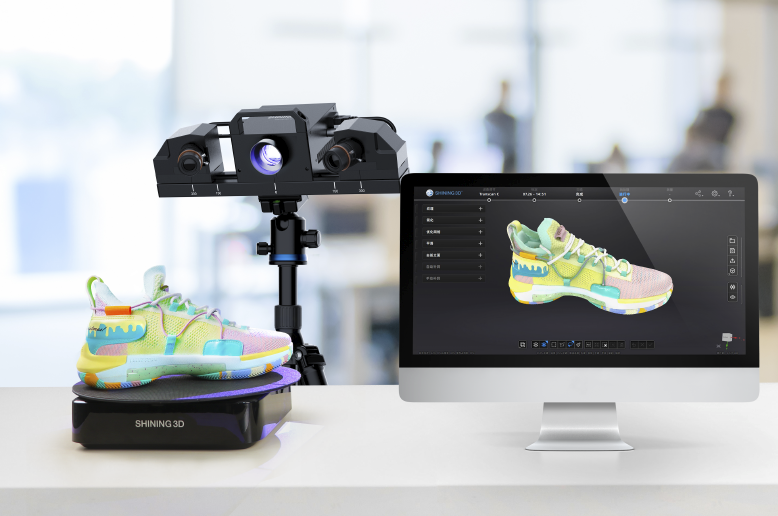

High Color Fidelity

Two 12 MP professional color cameras are installed to capture a detailed 24-bit color map, replicating the authentic color
of the physical object. Transcan C is the ideal solution to capture color 3D data for virtual display.

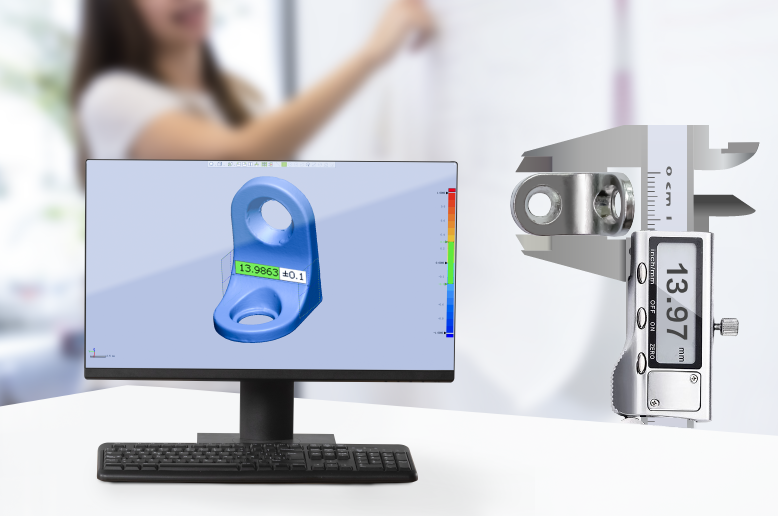

High-Accuracy Scan Data

The compact design scanner produces high accuracy of 0.035 mm at its inner position, and of 0.05 mm at its outer position.
These results are valuable for many applications for measurement.

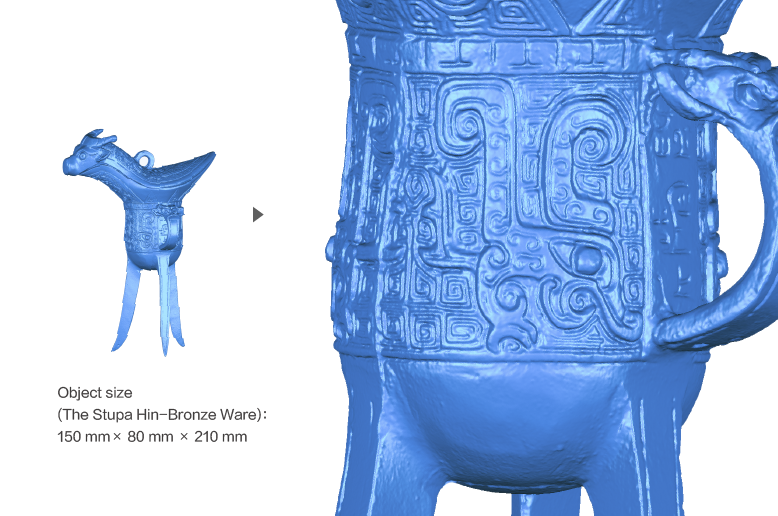

Micro Details Reproduction

The minimum point distance can reach

0.0375 mm (resolution)

to reproduce fine details on the surface in its inner position of 150 mm x 96 mm.

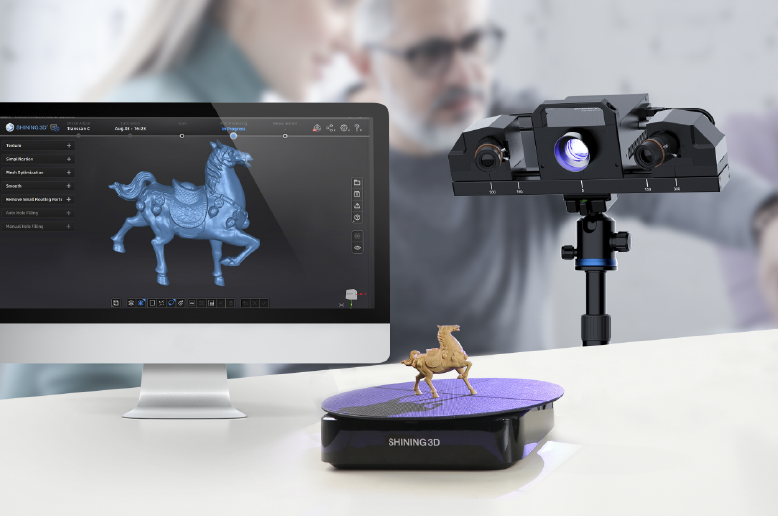

Intelligent Operation

The scanning process is fully automatic with the turntable. Combined with the scanning software's stitching algorithm,
this ensures the efficient acquisition of 3D data without manual intervention.

The software interface guides the user through a simple operation process while providing powerful tools for the hustle-free
optimization of the scan results.


Specification


Light Source

White LED Light

Calibration Mode

Manual calibration

Scan Mode

Structured-light scan with automatic turntable

Scan Range

150 mm x 96 mm 丨300 mm x 190 mm

Single Shot Accuracy

0.035 mm丨0.05 mm

Scan Speed

<70 s (8 scans/turn without texture); <3 s (single frame without texture)

Texture Color

RGB 24-bit color

Texture acquisition method

Fully automatic soft light shooting

Texture Map

12 mega pixels, high fidelity color

Align Mode

markers alignment; feature alignment; manual alignment

Working Distance

260 mm 丨480 mm

Point Distance

0.0375 mm；0.075 mm；0.114 mm 丨0.075 mm；0.154 mm；0.23 mm

Data Format

OBJ, STL, ASC, PLY,3MF

Working Temperature

Indoor, room temperature

System

Win10; 64-bit

Recommended Computer Configuration

Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GeForce RTX 1060; Video memory: ≥4 G; Processor: I7-8700; Memory: 32 GB

Size

Host module: 332 mm x 110 mm x 142 mm (bare machine size) Tripod components: 475 mm x 120 mm x 120 mm (bare machine size) Turntable module: 320 mm x 320 mm x 68 mm (bare machine size)

Weight

Host module: 2.74 KG (net weight)Tripod assembly: 2.165 KG (net weight) Turntable module: 2.008 KG (net weight)

Maximum Turntable Load-Bearing Capacity

≤10 KG
