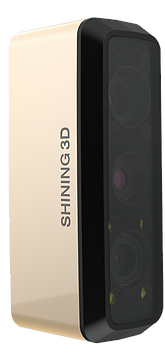

Professional 3D Digitizing Solution for Versatile Applications in an Easy Way
- Offers an enhanced Handheld HD Scan Mode and enlarged scan range
- Captures 3D model of medium to large size objects with high efficiency
- Meets demands for wider range of applications
Professional 3D Digitizing Solution for Versatile Applications in an Easy Way
Scan Speed
(Handheld Rapid Scan)
30 ftps 1,500,000 points/s
(Handheld HD Scan)
20 ftps 1,100,000 points/s
100 Data Capture Lines
312 × 204 mm
Outstanding Scan Performance
Incredible Scan Speed and Efficiency
Scan Large Ocjects in Minimum Time
High Accuracy
Catch Fine Detail
Scan Accuracy
(Fixed Scan) - 0,04 mm
Volumetric Accuracy
(Handheld HD Scan) - 0.05 mm+0.3 mm/m
Minimum Point Distance
(Handheld HD Scan) - 0,2 mm
Versatile Scan Modes & Align Modes
Scan Modes:
Handheld Rapid Scan, Handheld HD Scan, Fixed Scan
Align Modes:
Feature alignment, markers alignment, turntable coded targets alignment, and manual alignmentModular Design to Meet a Wide Range of Applications
Design Color Pack, Industrial Pack, and HD Prime Pack as optional add-ons to
EinScan Pro 2X Plus for different scanning experience.
HD Prime Pack
(Only for EinScan Pro 2X Plus)

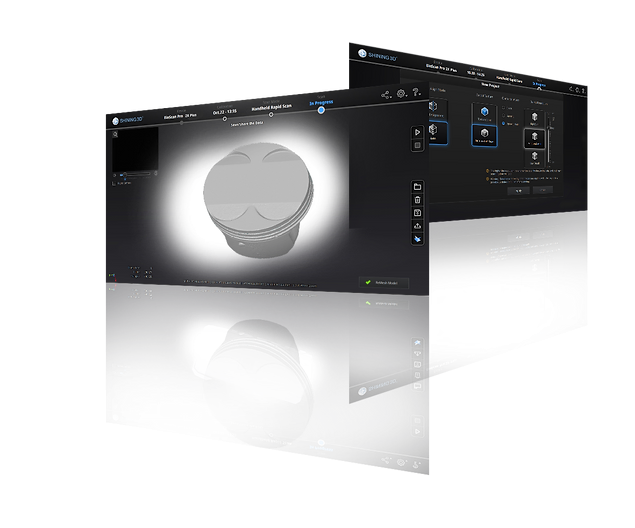

New Scanning Software EXSCAN PRO
Brand-new UI and Workflow
New Operation Mode Option
Allows users a faster scanning experience during operation and set the resolution option afterwards
during the data processing, which improves scanning efficiency.
High Compatibility
Outputs standard file formats includes STL, OBJ, PLY, ASC, 3MF and P3
Solid Edge SHINING 3D Edition
Design Tool From SIEMENS PLM Software
Convergent Modeling
Synchronous Modeling
Reverse Engineering
Generative Design
Simulation
Additive Manufacturing
Portable & User-friendly Design
With a lightweight and compact size, you can easily take the EinScan Pro 2X Plus anywhere like a laptop,
enjoy plug-and-play installation and unlimited scanning experience.
Package Size
37×36.5×13.5 mm
Lightweight
1.13 KG
Technical Specification:
|
Modell |
EinScan-Pro 2X Plus |
|||
| Scan Mode | Handheld HD Scan | Handheld Rapid Scan | Fixed scan with turntable (Add-on) | Fixed Scan without turntable (Add-on) |
| Single Shot Accuracy | 0,05 mm | 0,1 mm | 0,04 mm | 0,04 mm |
| Volumetric Accuracy | 0,3 mm/m (Markers alignment) | 0,3 mm/m (Markers alignment) | / | / |
| Scan Speed | 20fps 1.100.000 points/sec 100 data capture lines |
30fps 1.500.000 points/sec |
/ | / |
| Point distance | 0,2 - 3 mm | 0,25 - 3 mm | 0,24 mm | 0,24 mm |
| Single Scan Range | 208*136 mm - 312*204 mm | |||
| Depth of Field | +- 100 mm | |||
| Working Distance | 510 mm | |||
| Align Mode | Markers | Feature, Markers, Hybrid | Markers, Feature, Turntable, Manual, Turntable coded targets | Markers, Feature, Manual align |
| Texture Scan | No | Yes (with additional Color Pack) | Yes (with additional Color Pack) | Yes (with additional Color Pack) |
| Outdoor Operation | Set up the shelter of cover to avoid direct sunlight | |||
| Special Scan Object | For a transparent, reflective or dark object, please powder spray prior scanning | |||
| Light Source | LED | |||
| Printable Data Output | Able to export watertight 3D model directly to 3D printing | |||
| Data Format | OBJ, STL, ASC, PLY, P3, 3MF | |||
| Scanner Body Weight | 1,13 kg | |||
| OS System Support | Windows 7, 8 or 10, 64 bits | |||
| Display Card | NVIDIA GTX770 or higher - Display memory > 4GB, CPU: i7 or higher; RAM: 16GB or higher; USB 3.0 |
|||
- EinScan-Pro 2X Plus - Comparison (1.58 MB)
