EinScan-Pro 2X V2 including Industrial and color Pack

EinScan-Pro 2X V2 - Bundle including Industrial and color Pack

The EinScan Pro 2X V2 is the next generation of handheld 3D scanners, incorporating the
latest technology based on feedback from thousands of users and the valuable input of
SHINING 3D’s R&D team. With increased speed and accuracy, this portable and versatile
scanner will greatly improve the efficiency of high-quality 3D modeling.


Versatile Scan and Align Modes

Scan Modes:
Handheld Rapid Scan, Handheld HD Scan, Fixed Scan with or without a turntable.

Align Modes:
Feature alignment, Marker alignment, Texture alignment, Turntable coded-targets alignment,
Global markers alignment, Manual alignment.





Modular Design Scans Objects of All Sizes

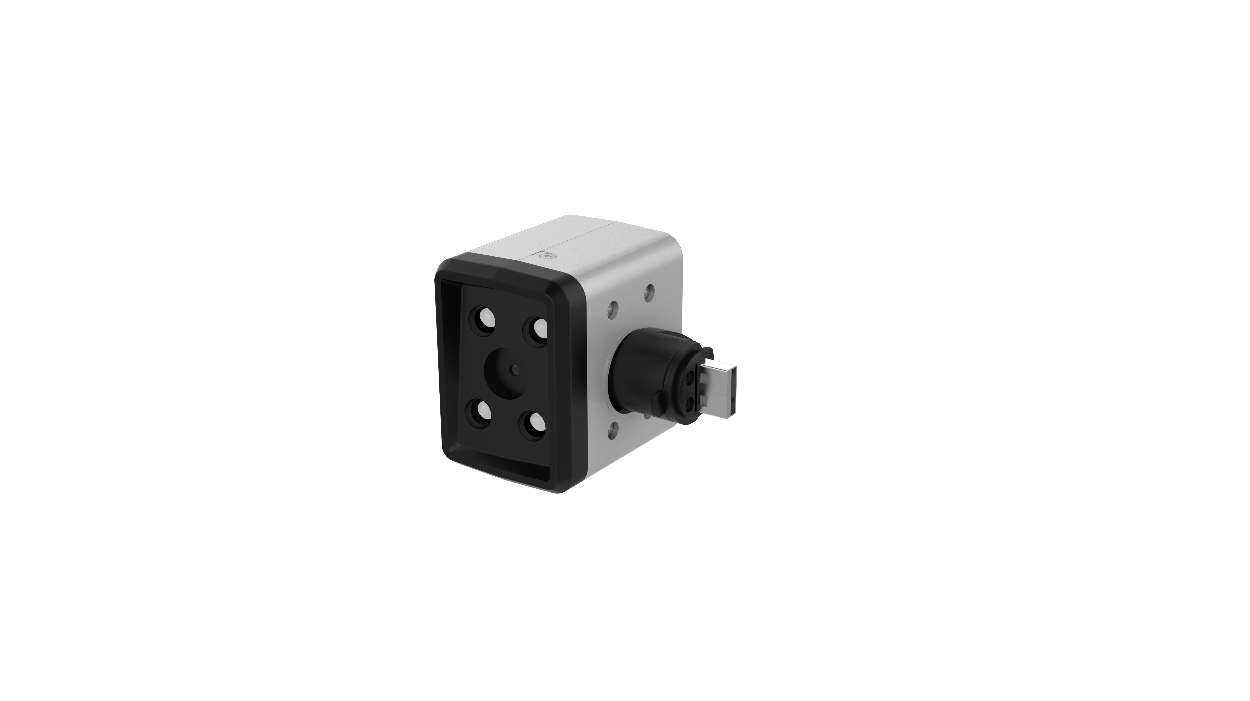

Color Pack:
Enables the EinScan Pro 2X V2 to capture full-color texture along with geometry.

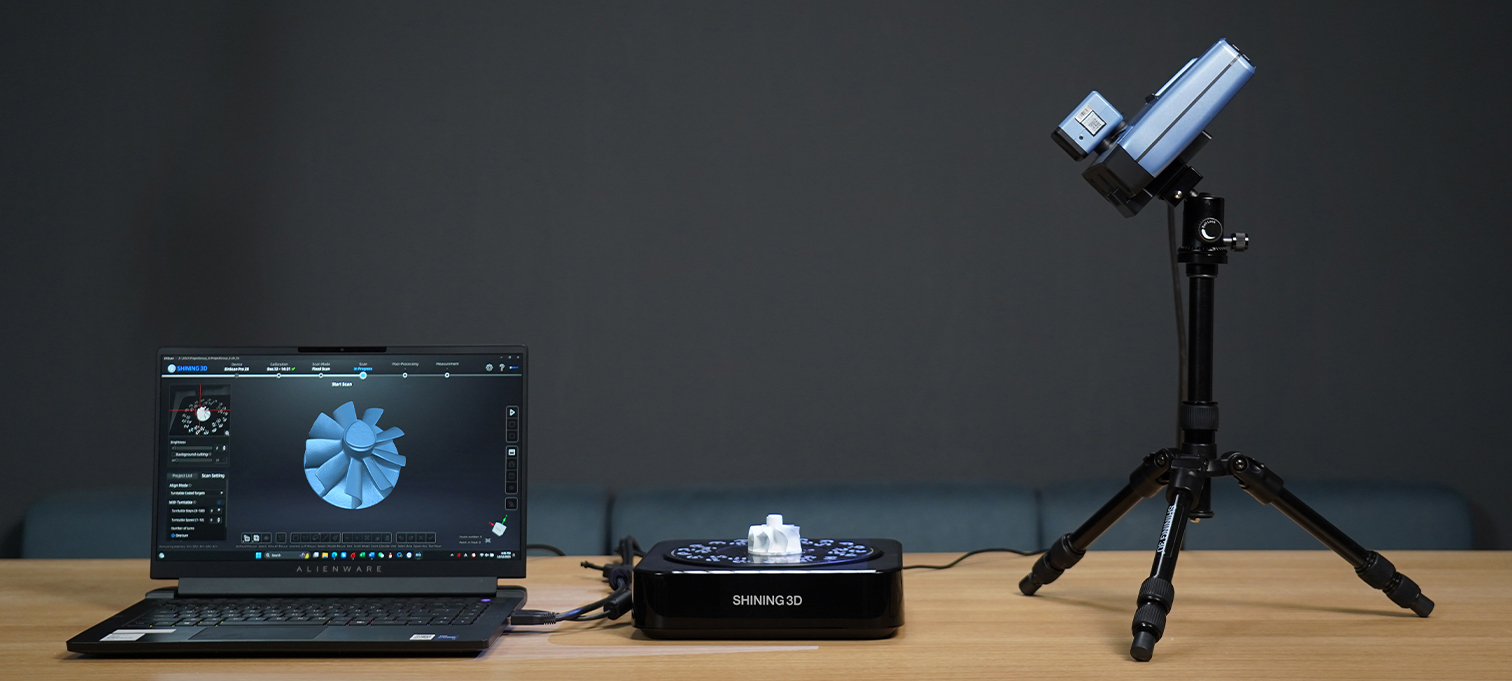

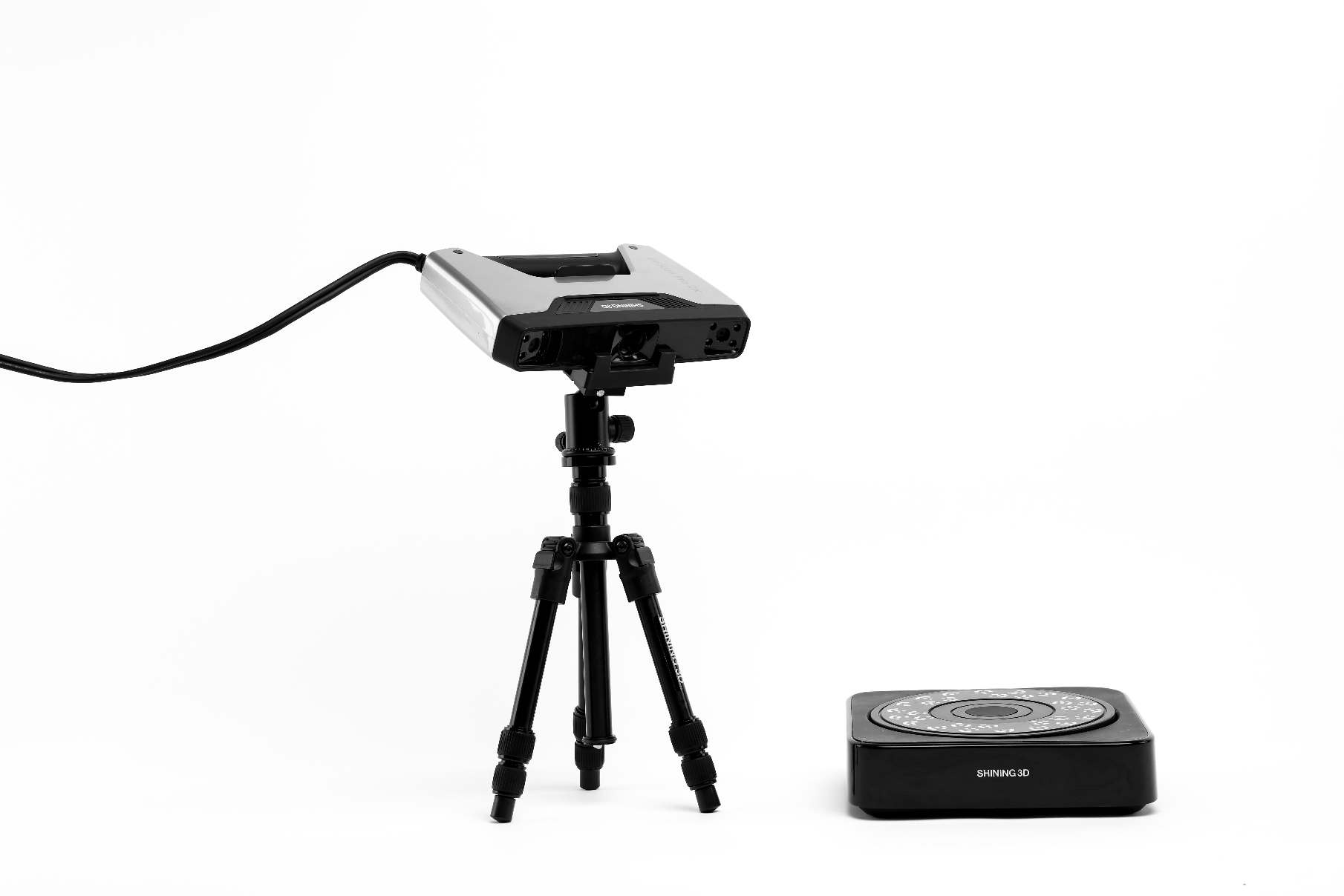

Industrial Pack:
Enables the EinScan Pro 2X V2 to perform static automatic scans on a tripod for improved accuracy.

Texture Mapper Lite:
Download the free software Texture Mapper Lite to combine scanned data and photogrammetry using
digital camera photos, and create a photorealistic texture 3D model.



Outstanding Scan Performance

Incredible Scan Speed and Efficiency
High Accuracy
Catch Fine Detail

Scan Speed
(Handheld Rapid Scan)
30 ftps 1,500,000 points/s

Scan Accuracy
(Fixed Scan)
0.04 mm

Volumetric Accuracy
(Handheld Rapid Scan)
0.1 mm+0.3mm/m

Minimum Point Distance
(Handheld HD/Rapid Scan)
0.2 mm

IMPROVE EFFICIENCY OF HIGH-QUALITY 3D MODELING

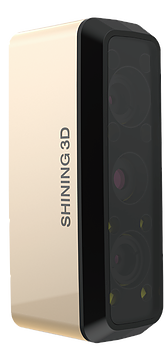

Meet the completely new EinScan Pro 2X V2, the next generation of handheld 3D scanners with the
latest technology. These new models are based on the feedback from thousands of users and the valuable input of
SHINING 3D’s own R&D team. Being faster and more accurate than ever before, the portable versatile
EinScan Pro 2X V2 will improve the efficiency of high-quality 3D modeling.

Portable & User-friendly Design
With a light weight and compact size, you can easily take the EinScan Pro 2X V2 anywhere like a laptop, enjoy
plug-and-play installation and unlimited scanning experience.

Scan Faster than Ever Before
The latest development in data capture hardware and optimized algorithms, make the next generation EinScan Pro 2X V2
series a dramatic breakthrough in scanning speed, processing up to 1,500,000 points per second (30 fps) under Handheld
Rapid Scan Mode.

High Speed Data Transmission - USB 3.0

High Accuracy
Single scan accuracy under Fixed Scan without Turntable Mode is up to 0.04 mm. When using markers, the volumetric
accuracy under handheld scanning modes is up to 0.05mm+0.3mm/m.

Catch Fine Details
The minimum point distance is up to 0.2mm under Handheld Rapid Scan and Handheld HD Scan modes, generating
high resolution 3D data.

Versatile Scan Modes & Align Modes
Supports Handheld Rapid Scan, Handheld HD Scan, Fixed Scan without Turntable, and Fixed Scan with Turntable modes,
as well as multiple alignment modes including feature alignment, markers alignment, turntable coded targets alignment,
and manual alignment.

Modular Design to Meet Wider Range of Applications
Color Pack, Industrial Pack, and HD Prime Pack as optional add-ons to EinScan Pro 2X V2 series for various scanning
experiences and applications.














 3D Scanning for Reverse Engineering


New Scanning Software EXSCAN PRO

The new scanning software EXSCAN PRO provides a brand-new UI and workflow. The 3D scan process is as
simple as taking a video for either new or experienced users.

EXSCAN PRO

∙ Brand-new UI and Workflow
∙ User-Friendly Operation
∙ New Operation Mode Option
Allows users a faster scanning experience during operation and set the resolution option afterwards during the data processing ,
which improves scanning efficiency.

∙ Simultaneous Data Display
∙ High Compatibility Outputs standard file formats includes STL, OBJ, PLY, ASC, 3MF and P3 (global markers file).
Compatible with most mainstream software packages in the market.

By saving watertight models, seamlessly connect to 3D printers for 3D printing.
∙ Mesh Editing

Provides mesh editing such as clean, merge, hole filling, data simplification, smoothing, sharpen etc.

Color Pack
(For EinScan Pro 2X & 2X Plus)
Gets the full-color texture with geometry.








Industrial Pack
(For EinScan Pro 2X & 2X Plus)
Makes a static automatic scan on a tripod
possible for a better accuracy.













HD Prime Pack
(Only for EinScan Pro 2X Plus)
Allows markers free scanning under Handheld
HD Scan mode to achieve fine detail
3D data when the object surface has
enough geometries.














TECHNICAL SPECIFICATIONS EINSCAN PRO 2X V2

Model	EinScan Pro 2X V2
Scan Mode	Handheld HD Scan	Handheld Rapid Scan	Fixed Scan with Turntable (with Add-on: Industrial Pack)	Fixed Scan without Turn­table(with Add-on: Industrial Pack)
Scan Accuracy	up to 0.05 mm	up to 0.1 mm	0.04 mm (single shot accuracy)	0.04 mm(single shot accuracy)
Volumetric Accuracy	0.3 mm/m (Markers Alignment)		/	/
Scan Speed	20 fps100,000 points/s 7 data capture lines	30 fps1,500,000 points/s	Single Scan < 1s	Single Scan < 1s
Point Distance	0.2 mm-2 mm	0.2 mm-2 mm	0.16 mm 0.16 mm
Single Scan Range	135*100 mm——225*170 mm
Depth of Field	±100 mm
Working Distance	400 mm
Light Source	LED
Align Mode	Markers Alignment	Markers Alignment, Fea­ture Alignment(with rich geometrical features on the surface), Hybrid Alignment (Markers and Feature)	Turntable Coded Targets, Feature, Markers, Manual Alignment	Markers, Feature, Manual Alignment
Texture Scan	No	Yes (with Add-on: Color Pack)
Outdoor Operation	Set up the shelter or cover to avoid direct sunlight
Special Objects for Scanning	For the transparent, highly reflective or some dark objects, please spray powder before scanning
Printable Data Output	Able to export watertight 3D model directly to 3D printing
Output Formats	OBJ , STL , ASC , PLY , P3 , 3MF
Scanner Body Weight	1.13kg (include the USB3.0 cable)
Supported OS	Win 7, Win 8, Win 10, 64 bit
PC Requirements	Display card: NVIDIA GTX770 or higher; Video memory>4G; CPU: i7 or higher; RAM: 16G or higher; USB 3.0
