Engineering LCD Series – Flex 63A Resin

Engineering LCD Series – Flex 63A Resin

Formfutura’s Engineering LCD Series photopolymer 3D printing resins are specifically engineered for compatibility
and excellent processability with all type of open source LCD / LED / MSLA 3D printers.

Engineering LCD Series – Flex 63A Resin
Flex 63A Resin is a very flexible and extremely transparent 3D printing resin with a low surface shore hardness of 63A.
The combination of flexibility with elasticity make  FormFutura’s Engineering LCD Series – Flex 63A Resin a very versatile
3D printing resin for a wide range of applications.

Key features

• Excellent flexibility
• High elongation properties up to 80%

• Good elasticity properties

• Extremely transparent with virtually no discoloration and/or yellowing
• High dimensional accuracy and low shrinkage

• Almost odorless processing

• Compatible with all open-source SLA, DLP, and LCD 3D printers in the range of 385 - 405nm

Applications

• Seals and gaskets
• Soft touch applications
• Functional prototyping
• Wearables
• Short-run manufacturing


Print Settings

Anycubic Photon Mono

50µm
First / Burn-in Layers: 2x to 3x 45 Seconds
Normal Layers: 3 to 4 Seconds
Lifting Distance: 10mm
Light-off Delay: 3
Bottom Light-off Delay: 4


Anycubic Photon Mono SE

50µm
First / Burn-in Layers: 2x to 3x 45 Seconds
Normal Layers: 3 to 4 Seconds
Lifting Distance: 10mm
Light-off Delay: 3
Bottom Light-off Delay: 4

Anycubic Photon Mono X (Work In Progress Settings)
Use the RERF Calibration Test see Mono X Manual for more information about this.


50µm
First / Burn-in Layers: 2x to 3x 45 Seconds
Normal Layers: 2.5 to 3.5 Seconds
Lifting Distance: 15mm
Light-off Delay: 3
Bottom Light-off Delay: 4
UV Power: 50 ~ 60%

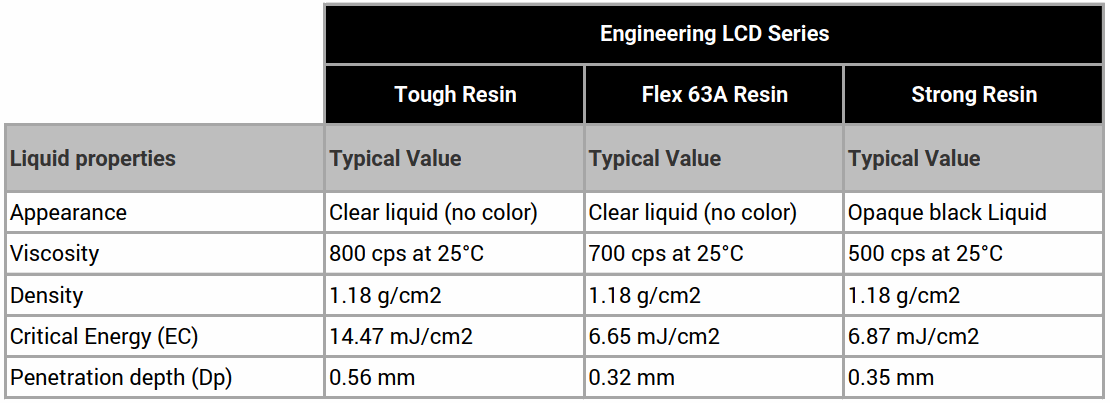

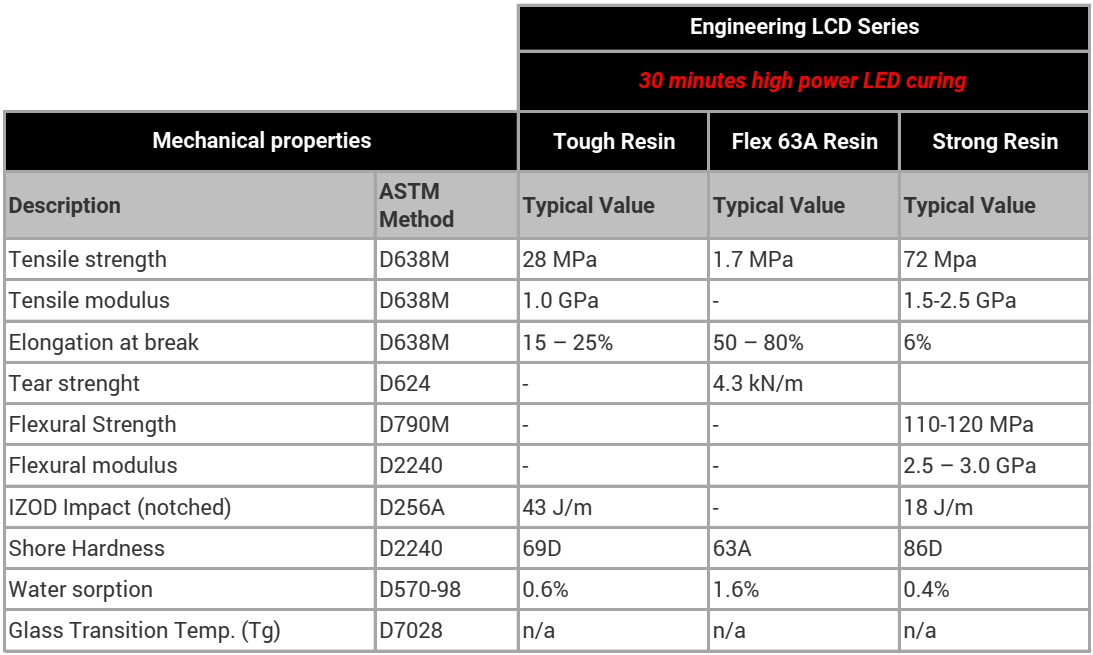

Comparison of technical specifications for FormFutura Engineering LCD Series 3D printing resin






Preparation(s) before starting to print

• Shake the bottle for at least 2 minutes before each use.

• After shaking the bottle, leave the resin to rest for 10 minutes to let air bubbles get out of the resin

• • The resin can be poured back from the vat into the bottle once your print is finished

• Always use protective measurements like safety glasses and nitrile gloves when handling resins.



Post-processing

• We do advise you to post-process your 3D print in order to achieve the material properties

• • Rinse your 3D printed object in IPA or (Bio)Ethanol for approximately 5 minutes

• An ultrasonic cleaner is preferred/recommended

• • Make sure that IPA and/or (Bio)Ethanol rinsed objects are perfectly dry before further post-curing

• Place the rinsed parts in a well-ventilated area for at least 30 minutes, or use pressurized air for at least 2 minutes

• • Cure your object in a high power curing chamber for approximately 20-30 minutes at 65° C

• The preferred curing wavelength is between 300-410nm



Safety

Please always be aware that when 3D printing with resins that you are working with chemicals and that you should
always be cautious and use the personal protective equipment as stipulated in our safety data sheets.

• Always wear Respiratory Protection when sanding/cutting the resin object.

• Always use nitrile gloves when handling resins and uncured resin objects.
