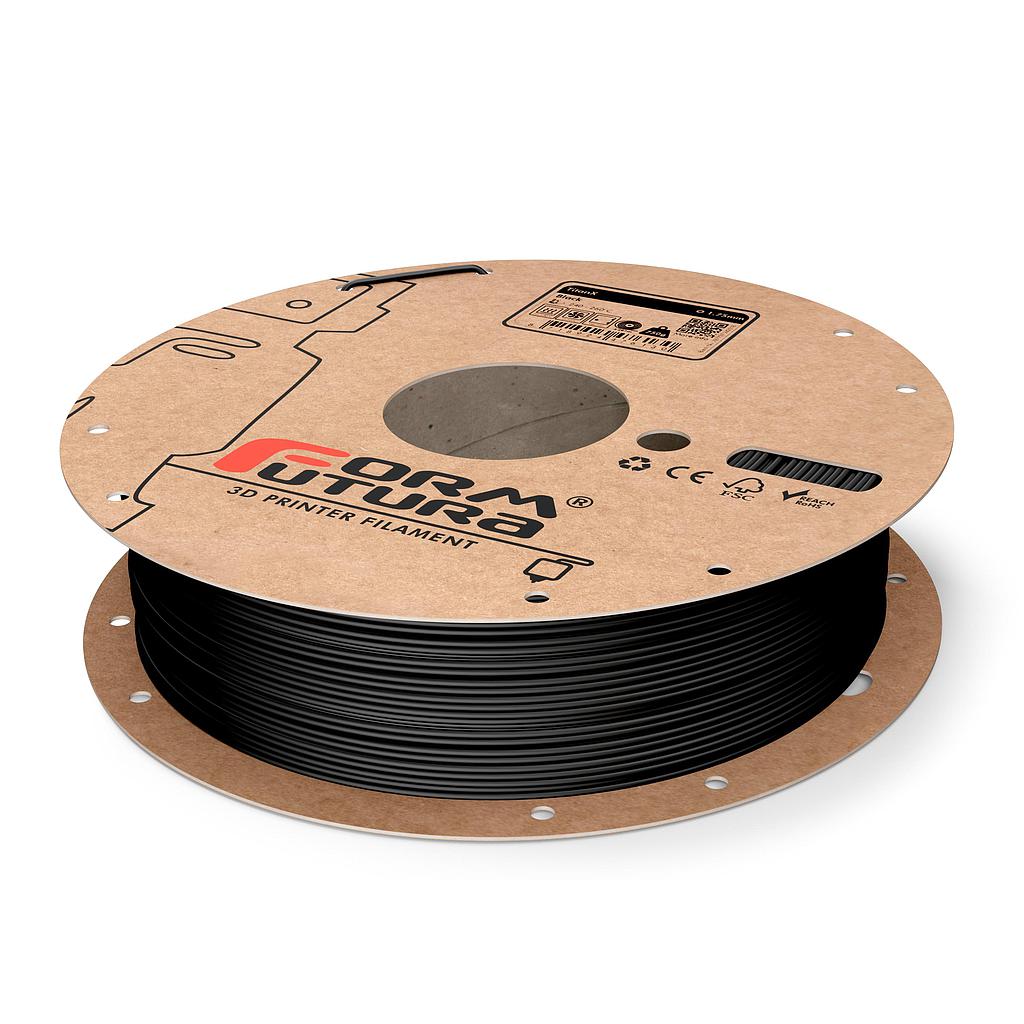

TitanX™

TitanX™

TitanX is an industrial-grade, high-performance and FFF/FDM-optimized ABS based engineering filament. TitanX is the evolution of ABS into a warp-free filament with unsurpassed mechanical properties and is extremely suitable for 3D printing large scale and high precision engineering objects. TitanX is truly FFF/FDM-optimized as it has zero warping, a perfect interlayer adhesion and can be printed directly on a heated glass plate without any adhesives or tapes to be used.

Unique features

• FDM/FFF-optimized

• • Warp-free printing and no deformation after cooling

  • Optimized filament flowing behaviour and inter-layer adhesion

  • Excellent adhesion to heated glass plate, Kapton tape, PET tape and Formfutura EasyPad

• Greatly improved mechanical properties and strength

• High impact resistance

• Much less smell compared to when printing with “normal” ABS-based filaments

• Printing with remarkable fine detail




  General printing guidelines *

  Nozzle size: ≥ 0.15mm	Layer height: ≥ 0.1mm	Flow rate: ± 106%
  Print temp: ± 240 - 260° C	Print speed: Medium	Retraction: Yes ± 5mm
  Heat bed: ± 80 - 90° C	Fan speed: 0-25%	Experience level: Beginner / Intermediate

  *) Above displayed settings are meant as guidance to find your optimal print settings. These ranges in settings should work for most printers, but please do feel free to experiment outside these ranges if you think it is suitable for your printer. There are a lot of different type of printers, hot-ends and printer offsets that it is extremely difficult to give an overall one-size-fits-all setting.



  Filament length

  ρ: 1.10 g/cc	50 gr coil	0.75 Kg spool	2.3 Kg spool	4.5 Kg spool	8 Kg spool
  Ø 1.75mm	± 18.9m	± 283m	± 869m	± 1701m	± 3024m
  Ø 2.85mm	± 7.1m	± 107m	± 328m	± 641m	± 1140m



  Product export information

  HS Code: 39169090

  Description: Monofilament

  Country of origin: the Netherlands
