Modix BIG-Meter

Modix BIG-Meter is a professional self-assembly FDM/FFF 3D printer kit.
The BIG-Meter is one of the latest additions to the company’s lineup and, without a doubt,
is among the biggest and ambitious ones in the world of large-format 3D printing. Aside from an outstanding
build volume of 1,010 x 1,010 x 1,010 mm, the printer offers a handful of other useful features. For example,
it has a 100-probing-points automatic bed leveling system, filament run-out sensor, dual-zone silicone heater,
and can be equipped with a secondary print head. In addition, it offers a PEI print surface that provides ultimate layer
adhesion and ensures hassle-free print removal. In addition, it is able to produce highly precise outputs with an
ultra-fine surface finish at the minimum layer thickness of 40 microns.

The Modix BIG-Meter is designed to provide the utmost degree of reliability and precision. It is equipped with a
robust frame made of T-slot aluminum profiles, employing powder-coated aluminum-based brackets and joints.
Its axes feature Hiwin MGW motion rails that ensure swift and unparalleled movement smoothness. In addition,
the Z-axis motion system features 4 ball screws for improved stability. Moreover, the printer employs high-grade
low-noise Trinamic TMC2660 stepper motor drivers. The BIG-Meter is powered by an easily-configurable RepRap Firmware.
The machine can also be upgraded with an active air filter, high-temperature sensor, or the E3D Super Vulcano hotend.

The BIG-Meter is made for industrial applications and is expected to be used by experienced makers. It is perfect for prototyping,
batch production of automotive and other parts, product development, sculpting, film, advertising, and a number of other industries.

Credit: @Shawn Hicks / Instagram

With such a large build volume and outstanding print quality, the 3D printer can be used in a number of professional applications.
For example, it can be used to create enclosures and casings for other 3D printers.

Specifications:

• Print quality
• Materials
• Build volume
• Printer controls
• What’s in the box
• Look and feel
• Price

Print Quality

The Modix BIG-Meter is an FFF/FDM 3D printer that can print layers at a minimum layer height of 40 μm.
This way you can produce parts with smooth exterior surfaces.

Credit: @Goodyear Tires / Instagram

The Modix BIG-Meter comes stock with a 0.4 mm nozzle, giving you the best balance between speed and detail.
The printer is compatible with nozzles of different sizes, allowing you to choose the best option for a particular application.

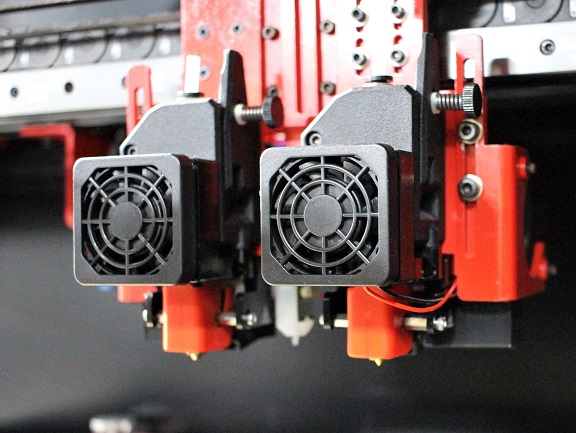

It can also be equipped with an additional nozzle for multi-material printing.

The print head runs on Hiwin MGW9W motion rails, which makes printing reliable, fast and precise. The motion rails along with
Trinamic TMC2660 stepper motor drivers make for very quiet and reliable operation.

Materials

The Modix BIG-Meter offers a variety of filament types to choose from. It is compatible with PLA, ABS, composites such as
Carbon fiber, Wood, Copper, Brass, Magnetic, PHA, PVA , Hips, Nylon, TPE & TPU (flexible) Co-Polyester, and PETG.

Each of the BIG-Meter’s extruders is equipped with a fan, allowing printing with PLA-type materials. Additional cooling

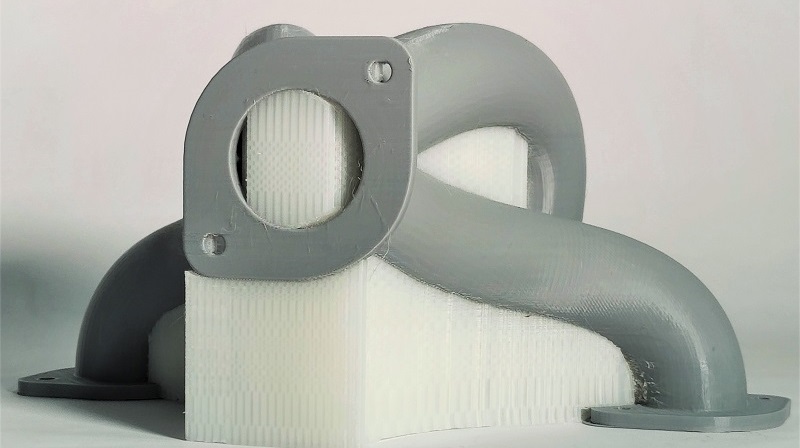

also reduces warping, stringing, and other issues associated with FFF/FDM printing. Another advantage of the device is its ability to print in different colors.

Build Volume

Modix BIG-Meter offers an extra-large build volume of 40 x 40 x 40 in (1,010 x 1,010 x 1,010 mm) that lets you print just
about anything. Such a build area lets you produce outstandingly large parts, or simultaneously print several middle-sized models at once.

Printer Controls

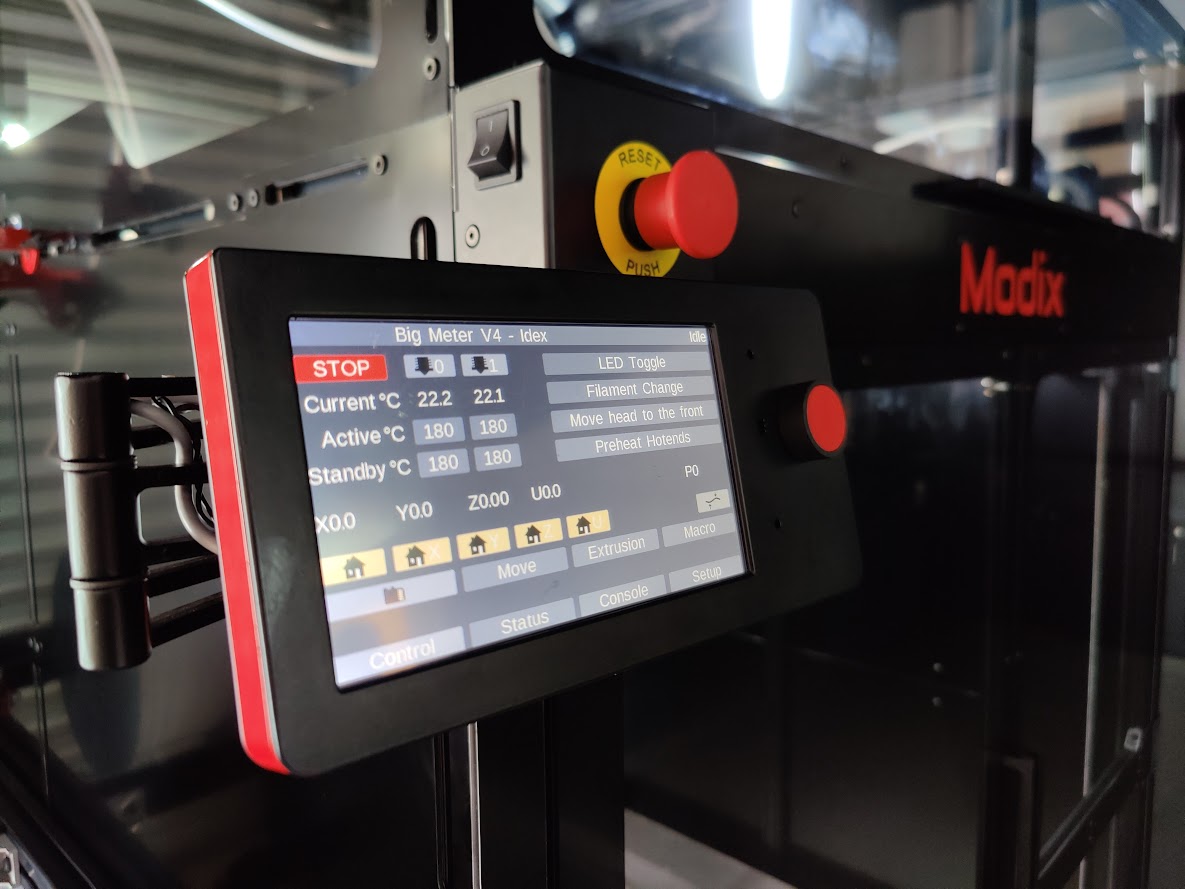

The Modix BIG-Meter can be controlled via PC, smartphone, or its built-in 7″ LCD display.

The BIG-Meter features Wi-Fi, USB, and SD card connectivity, making it a highly accessible machine.

Source: 3D Universe / YouTube

The machine can interact with a 3D model of almost any format and is compatible with a number of slicing software solutions, such as
Simplify3D, Slic3r, Cura, Printerface, and many others.

What’s in the Box

• Modix BIG-Meter main units
• Powder-coated aluminum components
• Hex and screwdriver sets
• Cable and wire sets
• SD card
• Spare parts
• A huge aluminum print bed
• 7-inch touchscreen
• Spool holder
• Power cords
• Power supply
• Dual print head (default)

For some items, package content may change. In case of any questions, please get in touch.
