Zortrax M300 Plus

Large volume FDM Wi-FI 3D printer

Zortrax M300 Plus is a large build volume desktop 3D printer with wireless connectivity.
It's designed to work as a reliable basic production unit in huge 3D printing farms.
Zortrax M300 Plus has one of the largest workspaces among all desktop class 3D printers.


Desktop 3D printer capable of producing large models

Zortrax M300 Plus is a 3D printer with one of the largest workspaces in its class. It works in LPD technology,
Zortrax's original take on Fused Deposition Modeling (FDM), guaranteeing the highest quality results and low
maintenance. Multiple Zortrax M300 Plus 3D printers can be connected into a wireless 3D printing farm producing
large models in short to medium series.

Large workspace
Its large workspace, measuring 300 x 300 x 300 mm, is enough to print big models in one go.

Wi-Fi and Ethernet connectivity
Multiple Zortrax M300 Plus 3D printers can be connected into large networks with Wi-Fi or Ethernet. Models can be also
loaded to each of the printers directly from a USB storage device.

Material end detection
The printer will automatically switch into pause mode when it runs out of filament.

Upgraded extruder and nozzle
A redesigned extruder and new geometry of the nozzle now allow 3D printing with flex-type materials.


Based on the reliable M series 3D printers

Zortrax M300 Plus' design is largely based on the acclaimed, award-winning Zortrax M Series 3D printers. It is a refined
successor to the original M300 model, a large volume 3D printer used by professionals at NASA Johnson Space Center
and Vins Motors among others.


Intuitive interface

Zortrax M300 Plus is a plug & play device that can be used for high quality 3D printing right out of the box. There is no assembly
needed before you start to work. You can select available options and preview 3D models directly on the highly intuitive built-in touchscreen.
Automatic firmware updates over Wi-Fi will bring all future interface functionalities directly to the printer.

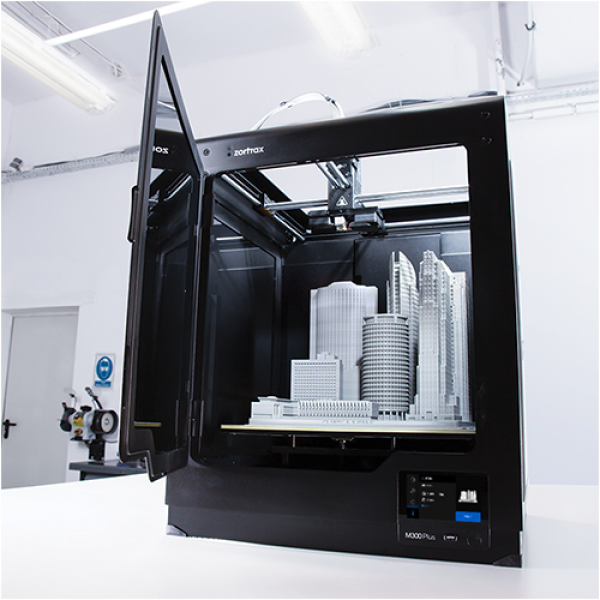

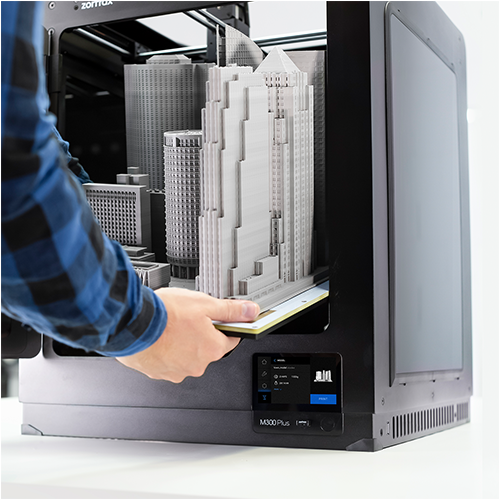

3D printing big models in one go

Zortrax M300 Plus large workspace is particularly useful when 3D printing big models in one piece is needed. One of the biggest build
platforms among desktop class devices makes Zortrax M300 Plus an efficient production tool capable of accommodating multiple models
in its workspace.


Network of large build volume 3D printers

Thanks to Zortrax M300 Plus' wireless connectivity, you have a device capable of creating a 3D printing farms, where each printer has a
build platform of 300x300x300 mm. With the Wi-Fi module as well as the ethernet and USB ports, you have the option to connect your
printers in any sort of configuration to fit your convenience.

Connect
Wi-Fi connectivity allows creating 3D printing networks by connecting your devices into an impressive manufacturing ecosystem.

Manage
Using Zortrax's slicer application you can manage your progress remotely from your computer screen. Choose and switch
3D printers to divide the workload between the devices for an efficient and quick production process.

Check
Keep and eye on the 3D printing process thanks to a camera built-in inside the printing chamber or rely on the smart functionalities
like material end detection to minimize waste.


Main features of Z-SUITE 2

Z-SUITE is a dedicated slicing application that also works as a wireless command center of smart, reliable Zortrax 3D printers
with Wi-Fi capability. It possesses a variety of functionalities that enhance the experience of using Zortrax M300 Plus.

Intuitive interface
Z-SUITE 2 is designed for you to have the most intuitive and user-friendly experience.

Tabbed projects
Switch between tabs to work on multiple projects at the same time.

Quality of Zortrax materials profiles
Use dedicated Zortrax materials to achieve the best results.

External materials support
Z-SUITE and Zortrax M300 Plus allow you to use external 3D printing materials.


Intuitive model processing

Just load your digital project and Z-SUITE 2 will automatically convert it to a ready-to-print model.

Thin wall detection

Z-SUITE 2 pinpoints walls that would be too thin to be printed properly, for you to deal with problematic
areas before printing the model.







Multiple infill options

Different infill patterns allow you to achieve required durability of the model and reduce the amount of filament needed.








Editable supports

Take full control over models' support structures. Freely adjust automatically generated support or manually add your own.









Dedicated filaments

Zortrax M300 Plus has the same wide selection of 3D printing materials as its original predecessor, with the addition of Z-ULTRAT.
The upgraded extruder also allows you to 3D print with more experimental and flex-type filaments.

Available materials: Z-ULTRAT , Z-PETG , Z-GLASS , Z-HIPS , Z-ASA Pro , Z-PLA Pro , Z-ESD


Z-PLA Pro

High Quality
and Biodegradability

Based on PLA, this eco-friendly plastic filament was enhanced with gypsum for smoother and richer in detail surface.
Recommended for architectural mock-ups and high-end showcase models.








Z-HIPS

Sturdiness with
Flawless Surface

A 3D printing material best used for models requiring smooth semimat surfaces which can be effortlessly post-processed.
It’s highly resistant and perfect for mechanical prototyping or performance testing.







Z-GLASS

Light-transmitting
properties

This semi-transparent filament can 3D print light-transmitting models and parts ready for final production or precise prototyping.
Z-GLASS is durable, resistant to scratching and unaffected by light and chemicals.

Z-ULTRAT

Superior Durability

Unique to Zortrax, this plastic filament provides your models with unyielding impact and temperature durability,
along the superior surface quality. Based on ABS, the filament comes in a broad color palette.

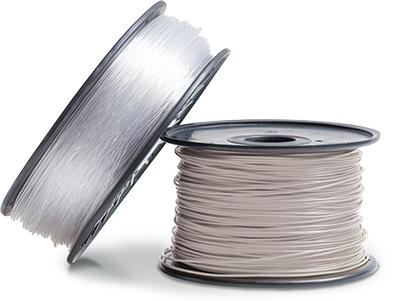

External materials

Zortrax M300 Plus is compatible with third-party filaments. The external materials feature of Z-SUITE allows you to
experiment with all standard 1.75mm filaments. Simply load a spool of material and select its type in the software.
The external 3D printing profiles are based on thoroughly tested presets proven to deliver reliable results with most
types of external materials.









Accessories
Zortrax HEPA Cover for Zortrax M300 and M300 Plus
Zortrax HEPA Cover is a filtering device. It´s objective is to improve the quality of your 3d-prints and to filter out most
of 3d-printing emissions, including ultra fine partricles. HEPA Top Cover sovles following issues:

reduces warping by keeping the temperature stable inside the printing chamber,
eliminates unpleasants smells,
filter out over 99 % of 3d-printing emissions, including ultra fine particles.


Specification for Zortrax M300 Plus

Device features

Build volume: 300 x 300 x 300 mm (11.8 x 11.8 x 11.8 in)
Material container: Spool
Material diameter: 1.75 mm (0.069 in)
Nozzle diameter: 0.4 mm (0.016 in)
Support: Mechanically removed - printed with the same material as the model
Extruder: Single (upgraded for more demanding materials)
Extruder cooling system: Radial fan cooling the extruder block; two fans cooling the print
Hotend: Redesigned (v3), new geometry of the nozzle
Platform: Perforated, heated
Material endstop: Mechanical
Connectivity: Wi-Fi, Ethernet, USB
Operating system: Android
Processor: Quad Core

Printing​
Technology: LPD (Layer Plastic Deposition) – depositing melted material layer by layer onto the build platform
Layer resolution. 90-290 microns
Minimal wall thickness: 400 microns
Platform levelling: Automatic measurement of platform points' height

Temperature
Maximum printing temperature (extruder): 290° C (554° F)
Maximum platform temperature: 105° C (221° F)
Ambient operation temperature: 20 - 30° C (68- 86° F)
Storage temperature: 0 - 35° C (32- 95° F)

Electrical​
AC input: 110 V ~ 5.9 A 50/60 Hz ; 240 V ~ 2.5 A 50/60 Hz
Maximum power consumption: 360 W

Software​
Software bundle: Z-SUITE
Supported input file types: .stl, .obj, .dxf, .3mf
Supported operating systems. Mac OS X / Windows 7 and newer versions

In the box​
3D Printer, Hotend V3, Side Covers, Z-SUITE, Starter Kit, 2 spools of material, spoolholder

Additional information
All information contained in this brochure and specification is subject to change without notice.
