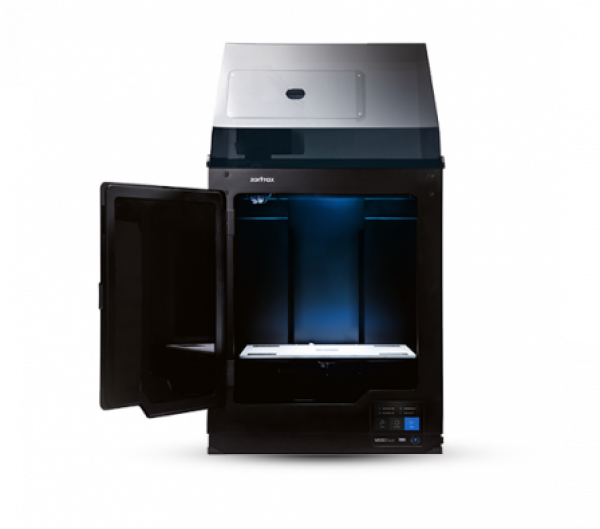

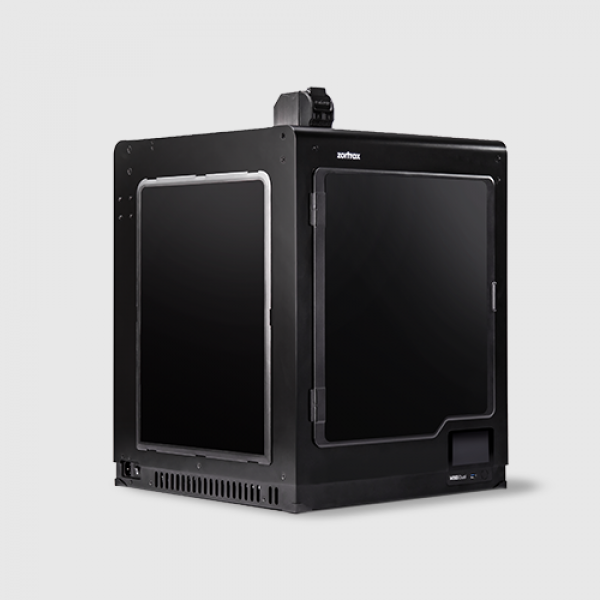

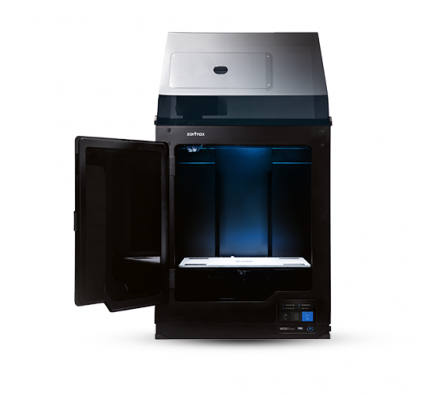

Zortrax M300 Plus is a large build volume desktop 3D printer with wireless connectivity.
It's designed to work as a reliable basic production unit in huge 3D printing farms.
Zortrax M300 Plus has one of the largest workspaces among all desktop class 3D printers.
Desktop 3D printer capable of producing large models
Zortrax M300 Plus is a 3D printer with one of the largest workspaces in its class. It works in LPD technology, Zortrax's original take
on Fused Deposition Modeling (FDM), guaranteeing the highest quality results and low maintenance. Multiple Zortrax M300 Plus
3D printers can be connected into a wireless 3D printing farm producing large models in short to medium series.
Large workspace
Its large workspace, measuring 300 x 300 x 300 mm, is enough to print big models in one go.
Wi-Fi and Ethernet connectivity
Multiple Zortrax M300 Plus 3D printers can be connected into large networks with Wi-Fi or Ethernet. Models can be also loaded to each
of the printers directly from a USB storage device.
Material end detection
The printer will automatically switch into pause mode when it runs out of filament.

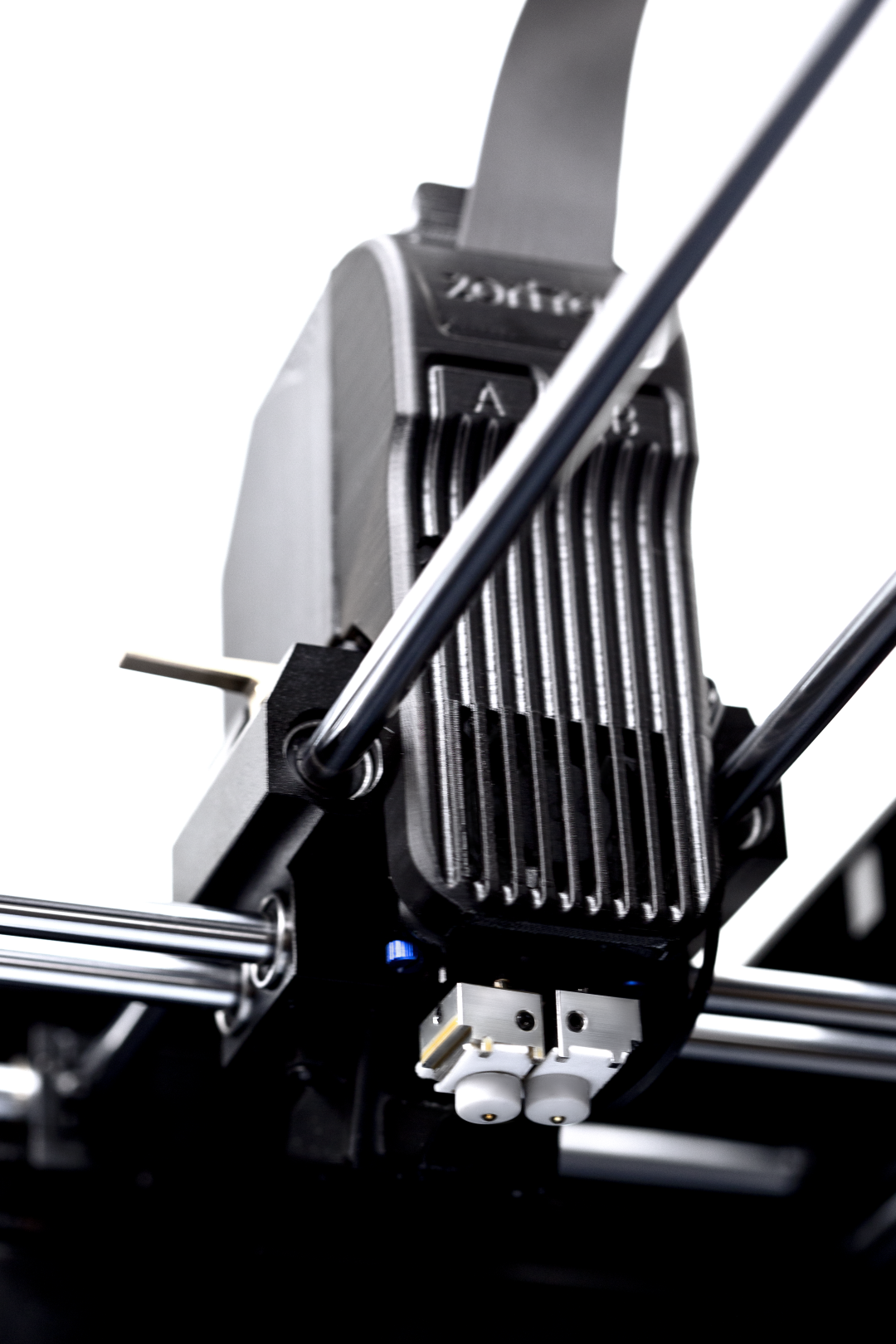

Upgraded extruder and nozzle
A redesigned extruder and new geometry of the nozzle now allow 3D printing with flex-type materials.
Intuitive interface
Zortrax M300 Plus is a plug & play device that can be used for high quality 3D printing right out of the box.
There is no assembly needed before you start to work. You can select available options and preview 3D models
directly on the highly intuitive built-in touchscreen. Automatic firmware updates over Wi-Fi will bring all future interface
functionalities directly to the printer.

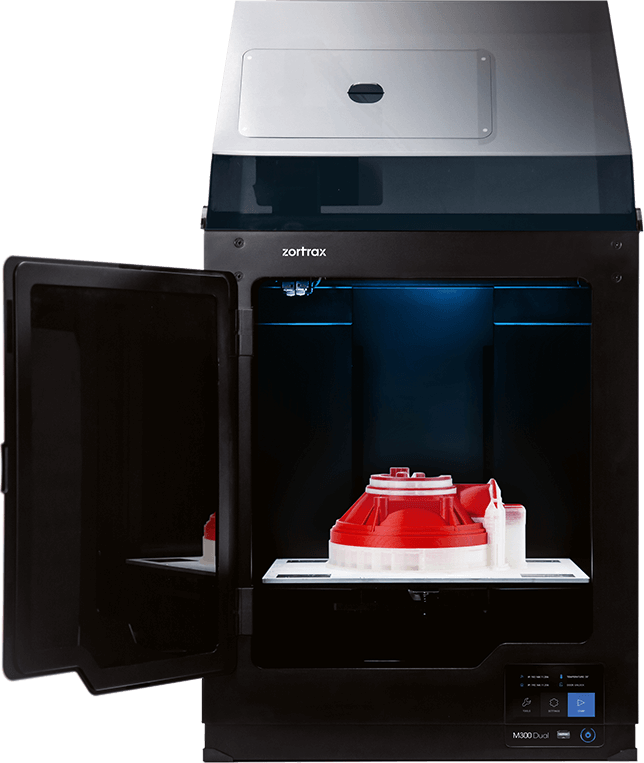

3D printing big models in one go
Zortrax M300 Plus large workspace is particularly useful when 3D printing big models in one piece is needed. One of the
biggest build platforms among desktop class devices makes Zortrax M300 Plus an efficient production tool capable of
accommodating multiple models in its workspace.
Network of large build volume 3D printers
Thanks to Zortrax M300 Plus' wireless connectivity, you have a device capable of creating a 3D printing farms, where each
printer has a build platform of 300x300x300 mm. With the Wi-Fi module as well as the ethernet and USB ports, you have the
option to connect your printers in any sort of configuration to fit your convenience.
Connect
Wi-Fi connectivity allows creating 3D printing networks by connecting your devices into an impressive manufacturing ecosystem.
Manage
Using Zortrax's slicer application you can manage your progress remotely from your computer screen. Choose and switch 3D printers
to divide the workload between the devices for an efficient and quick production process.
Check
Keep and eye on the 3D printing process thanks to a camera built-in inside the printing chamber or rely on the smart functionalities
like material end detection to minimize waste.
Main features of Z-SUITE 2
Z-SUITE is a dedicated slicing application that also works as a wireless command center of smart, reliable Zortrax 3D printers
with Wi-Fi capability. It possesses a variety of functionalities that enhance the experience of using Zortrax M300 Plus.
Intuitive interface
Z-SUITE 2 is designed for you to have the most intuitive and user-friendly experience.
Tabbed projects
Switch between tabs to work on multiple projects at the same time.
Quality of Zortrax
materials profiles
Use dedicated Zortrax materials to achieve the best results.
External materials
support
Z-SUITE and Zortrax M300 Plus allow you to use external 3D printing materials.
Smart labs of 3D printers
Z-SUITE 2 slicing software is a link between your idea and product. Use the multitude of functionalities and tools to
streamline the 3D model preparation process.
Intuitive model processing
Just load your digital project and Z-SUITE 2 will automatically convert it to a ready-to-print model.
Thin wall detection
Z-SUITE 2 pinpoints walls that would be too thin to be printed properly, for you to deal with problematic areas before printing the model.
Multiple infill options
Different infill patterns allow you to achieve required durability of the model and reduce the amount of filament needed.
#
Editable supports
Take full control over models' support structures. Freely adjust automatically generated support or manually add your own.
Specification for Zortrax M300 Plus: Device features
Build volume: 300 x 300 x 300 mm (11.8 x 11.8 x 11.8 in)
Nozzle diameter: 0.3 mm (0.012 in), 0.4 mm (0.016 in), 0.6 mm (0.024 in)
Extruder: Single (upgraded for more demanding materials)
Extruder cooling system: Radial fan cooling the extruder block; two fans cooling the print
Hotend: Redesigned (v3), new geometry of the nozzle
Platform: Perforated, heated
Material endstop: Mechanical
Connectivity: Wi-Fi, Ethernet, USB
Operating system: Android
Processor: Quad Core
Touchscreen: 4" IPS 800 x 480
Camera: Yes
Printing
Technology:LPD (Layer Plastic Deposition) – depositing melted material layer by layer onto the build platform
Layer resolution: 90 -290 microns (for 0.4 mm [0.016 in] nozzle)
Minimal wall thickness: 400 microns (for 0.4 mm [0.016 in] nozzle)
Platform levelling: Automatic measurement of platform points' height
Temperature
Maximum printing temperature (extruder): 290° C (554° F)
Maximum platform temperature: 105° C (221° F)
Ambient operation temperature: 20 - 30° C (68- 86° F)
Storage temperature: 0 - 35° C (32- 95° F)
Electrical
AC input: 110 V ~ 5.9 A 50/60 Hz ; 240 V ~ 2.5 A 50/60 Hz
Maximum power consumption: 360 W
Software
Software bundle: Z-SUITE
Supported input file types: .stl, .obj, .dxf, .3mf
Supported operating systems: Mac OS X / Windows 7 and newer versions
In the box
3D Printer, Hotend V3, Side Covers, Z-SUITE, Starter Kit, 2 spools of material, spoolholder, 0.4 mm (0.016 in) nozzle
Additional information
All information contained in this brochure and specification is subject to change without notice.
External filaments: Applicable
Support: Mechanically removed - printed with the same material as the model
Filament container: Spool
Filament diameter: 1.75 mm (0.069 in)
