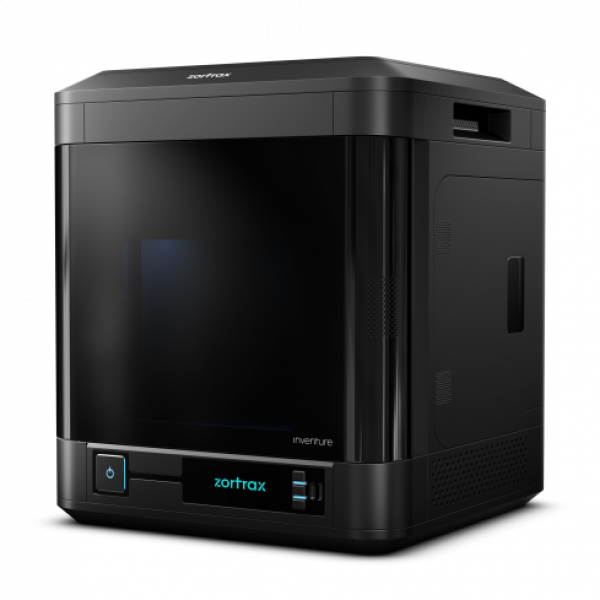

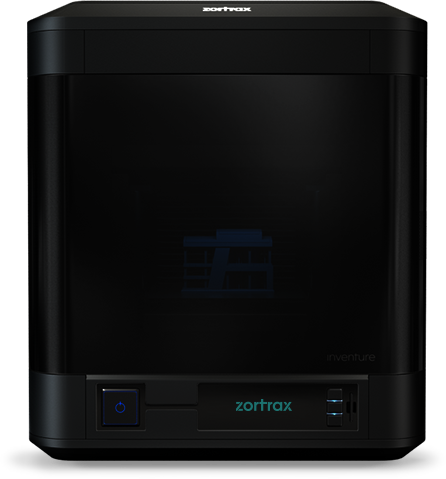

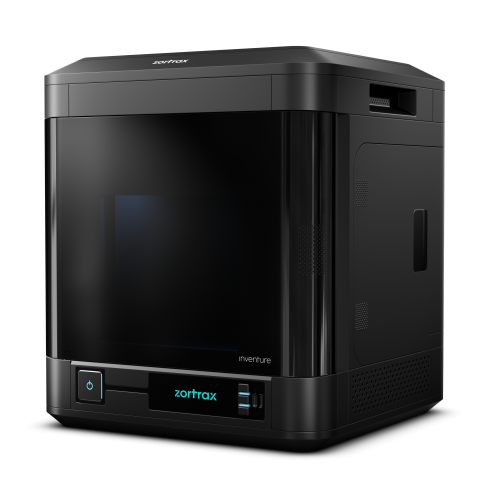

Zortrax Inventure
Smart Professional.
double it is.
Together with Zortrax Inventure, we have launched an original
system of printing two materials at once, with two, separate
nozzles. The materials change automatically –
between Z-PETG or Z-PLA and Z-SUPPORT.
dissolveWHAT REMAINS.
Zortrax Inventure is equipped with a quick and easy-to-use
Dissolvable Support System. DSS is a fluid-flow station that dissolves
the support. You can leave your print in a water for a few hours and find it without any remains. This process is completely hands-free and also time-saving.
ALL
at once.
Printing intricate objects and moving mechanisms
with tight tolerance has never been easier.
No matter whether the moveable part is
being placed inside or outside the model.
The built-in encoders and automatic
change of materials only ensures it.
Features on demand:
The new technology called Layer Plastic Deposition Plus. LPD Plus,
combined with the Dissolvable Support System brings the most technological
solutions to a broader audience. Smartly and professionally.

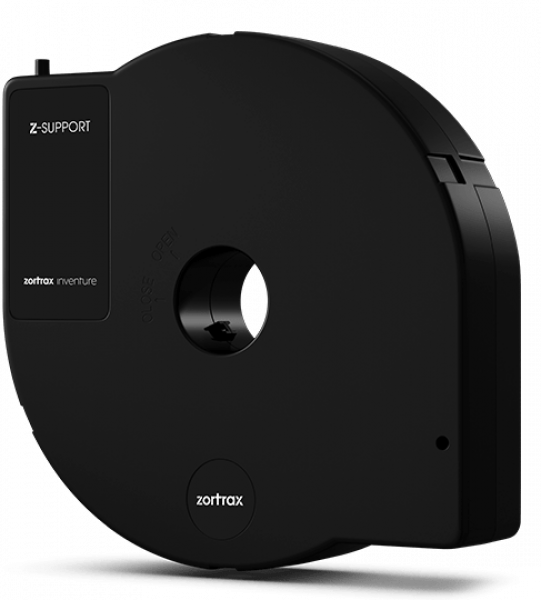

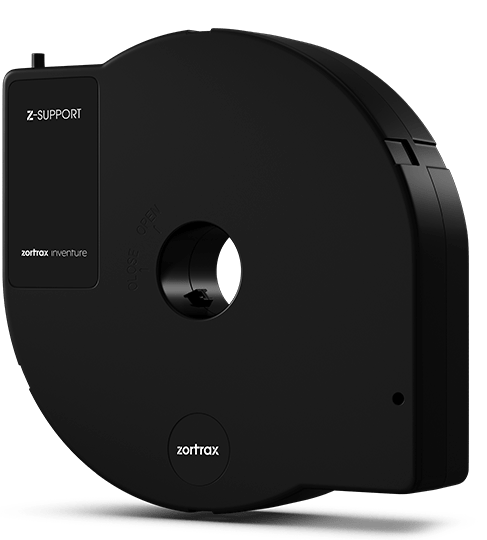

Z-SUPPORT
that comes with Zortrax Inventure is the unique support material
that dissolves in water, available in a cartridge.
Implementation of the DSS solution and Z-SUPPORT in fact reduces the users
effort to the minimum
SUPPORT YOUR MAIN MATERIAL
Z-SUPPORT combined with Z-PETG or Z-PLA allows you print moving
mechanisms at once.
physical
dimensions
Inventure 3D printer
350 x 350 x 400 mm
(13.7 x 13.7 x 15.7 in)
22.5 kg (49.6Ibs)
Inventure shipping box
460 x 450 x 520 mm
(18.1 x 17.7 x 20.5 in)
26 kg (57.3 lbs)
DSS Station shipping box
330 x 330 x 380 mm
(12.9 x 12.9 x 14.9 in)
9 kg (19.8 Ibs)
Printing:
technology
LPD Plus – advanced technology with DSS system
build volume 135 x 135 x 130 mm
5.3 x 5.3 x 5.1 in
resolution 90-200 microns
material container cartridge
wall thickness: minimal: 400 microns,
optimal: 800 microns
resolution of single printable point: in XY axis: 400 microns,
in Z axis: 90-200 microns
material diameter: 1.75 mm (0.069 in)
nozzle diameter: 0.4 mm (0.015 in)
minimum single positioning: 1.5 microns
positioning precision (X/Y): 1.5 microns
z-axis single step: 1.25 microns
temperature
Inventure 3D printer:
extruder maximum temperature: 380° C (716° F)
heated chamber: yes
chamber maximum temperature: 90°C (194°F)
ambient operation temperature: 15°-35°C (60°-95°F)
storage temperature: 0°-35°C (32°-95°F)
DSS Station (recommended): for Z-PETG 40°-50°C (104°-122°F)
for Z-PLA max. 40°C (104°F)
additional information:
time settings should depend on the size and complexity of the model and the amount of support structures.
3D printer
support: Dissolvable – printed with a different material than the model
HEPA filter: yes
material consumption sensor: yes
chip with information about material: yes
extruder: printing with the main and the support material
connectivity: SD card (included)
available materials:
Z-PETG
Z-PLA
Z-SUPPORT
electrical
AC input: 110/240V ~ 2 A 50/60 Hz
power requirements: 24 V DC @ 7 A
power consumption: 160 W
software
software bundle: Z-SUITE
file types: stl .obj .dxf .3mf
supports: Mac OS X / Windows 7
and newer versions
