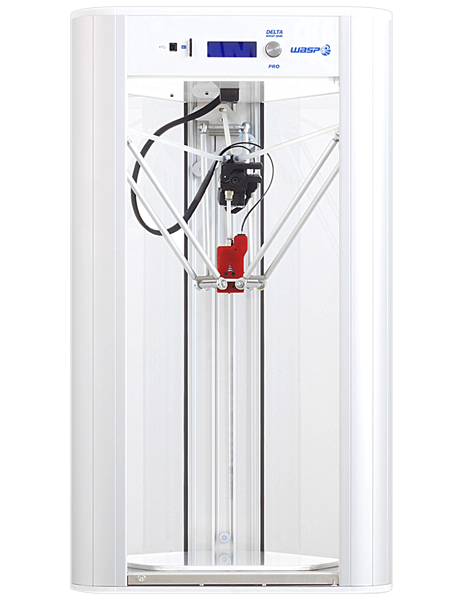

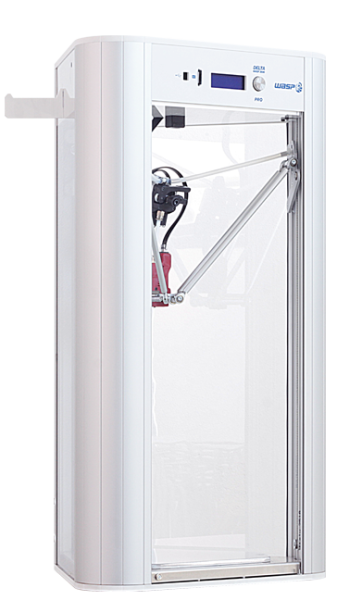

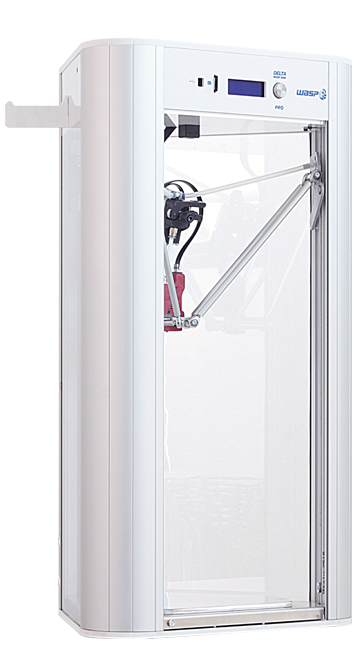

The Delta WASP 2040 PRO is made of aluminium and PMMA, with undeformable steel core belts.
Delta WASP 2040 PRO is the powerful, versatile and fastest Delta 3D printer you need every day.
The machine is equipped with a system of auto-calibration and a rectified print bed that grants the best performances in time.
The print driver is suspended SUSPENDED BOWDEN(cc) to make printing faster and minimise the weight on the moving parts.
The machine includes all WASP systems for print recovery such as RESURRECTION SYSTEM(cc), FREE ZETA SYSTEM(cc)
and the end filament sensor.
Precise and reliable on all materials with pieces up to 40 cm. Delta WASP 2040 PRO is the powerful and versatile Delta 3D printer
you need every day.
PRINTER DETAILS
Build volume: Ø200 x h 400 mm
Minimum layer height: 50 micron
Print speed: max(*) 500 mm/s
Traversing speed: max(*) 800 mm/s
Acceleration(*): 15,000 mm/s2
Bed temperature: max 110 C°
Extruder / Nozzle diameter: Standard WASP SPITFIRE RED extruder with LT cartridge, nozzle 0.4 mm
* All speed data refer to a Delta WASP 2040 PRO with WASP SPITFIRE RED extruder 0.4
MATERIAL
Suitable filaments Ø1.75
PLA
PETG
ABS
PA Carbon
EXTRUDER CORES

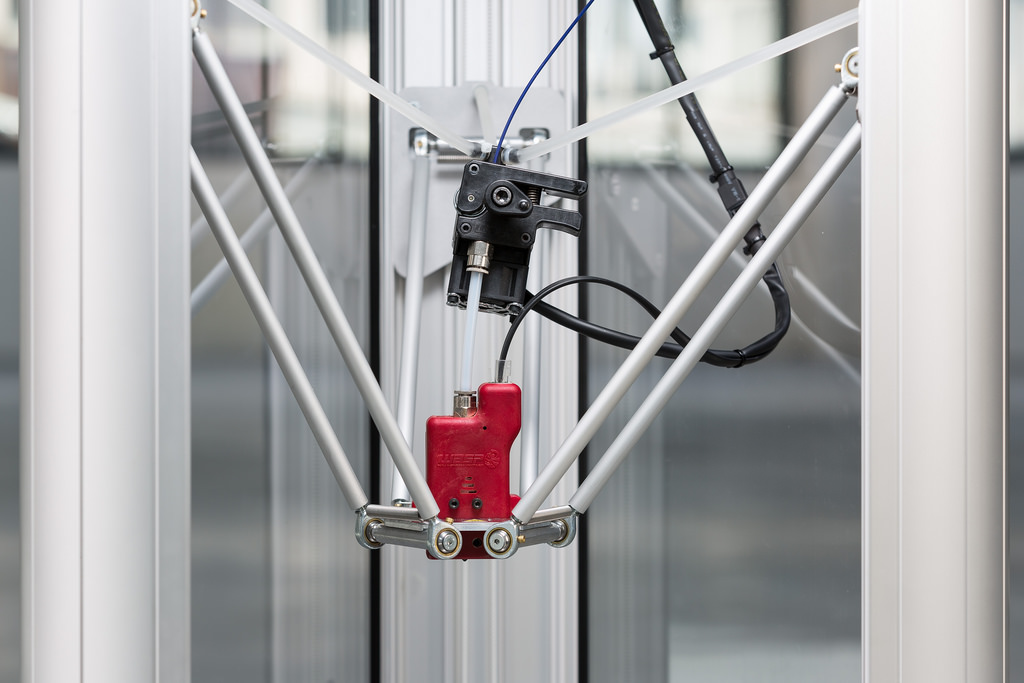

RED SPITFIRE Extruder: Extruder for high quality, fast prints
Nozzle diameter: 0.4 mm, 0.7 mm, 1.2 mm (filament diameter 1.75 mm)

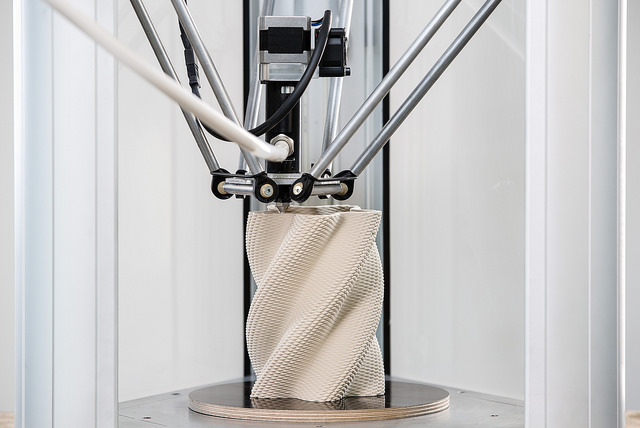

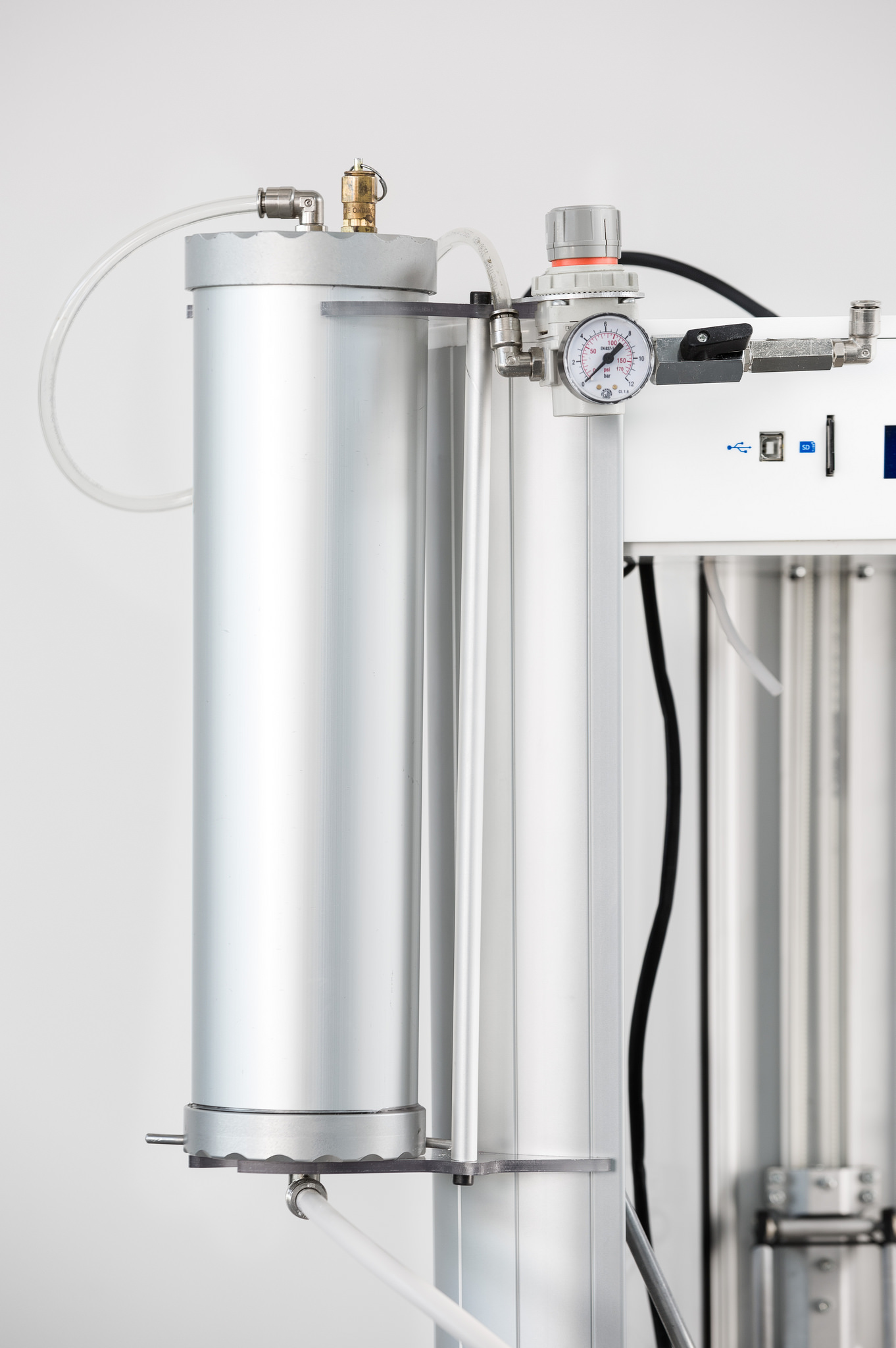

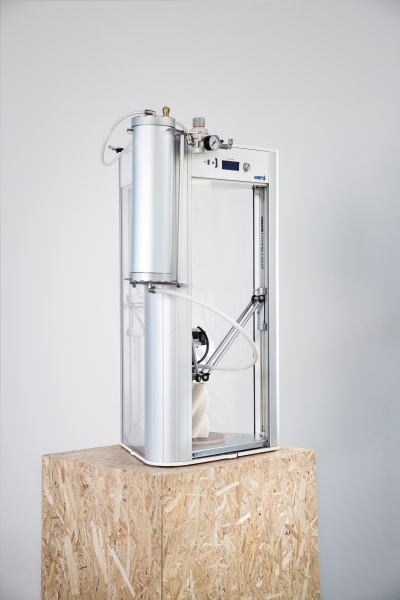

LDM WASP extruder: extruder for dense-flow materials
Nozzle diameter: 1.2 mm
HIGHLIGHTS
free-zeta system (cc)
Re-zeta system (cc)
LDM WASP extruder compatible
exclusively suspended bowden cable (cc)
self-calibrating system
excellent motor cooling
rectified fibral aluminium plate
integrated end-filament sensor
higher temperature
precise heat-resistant mechanics
steel belt for high temperatures
DIMENSIONS AND WEIGHT
dimensions: 49 cm x 44 cm x 87 cm
weight of the machine: 25 kg
Dimensions and weight for cardboard packaging: 50 cm x 58 cm x 101 cm, weight 30 kg
