Ultimaker S5

Key features

Enhanced reliability

Active bed leveling ensures a perfect first layer, a closed front controls airflow, and
a filament flow sensor will pause your print and notify you if you run out of material.
Trust the S5 to do its job while you do yours.

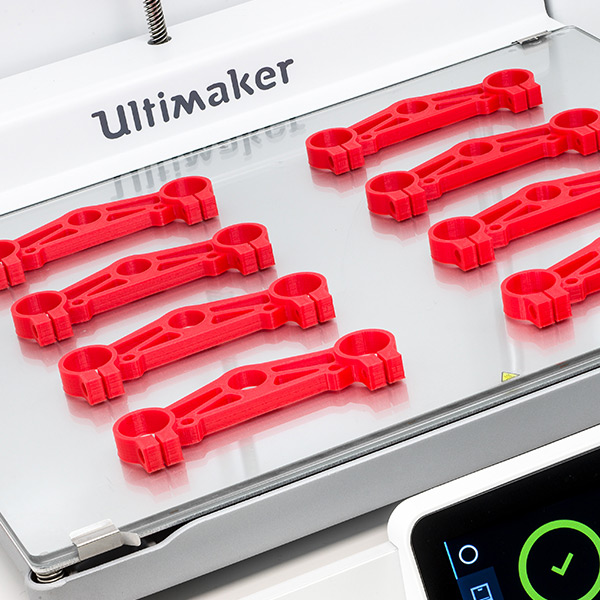

 Bigger build volume

A build volume of 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches) gives even more freedom
to realize your designs or print multiple parts in one go, so you can meet demand with
maximum efficiency, while fitting comfortably on your desk.

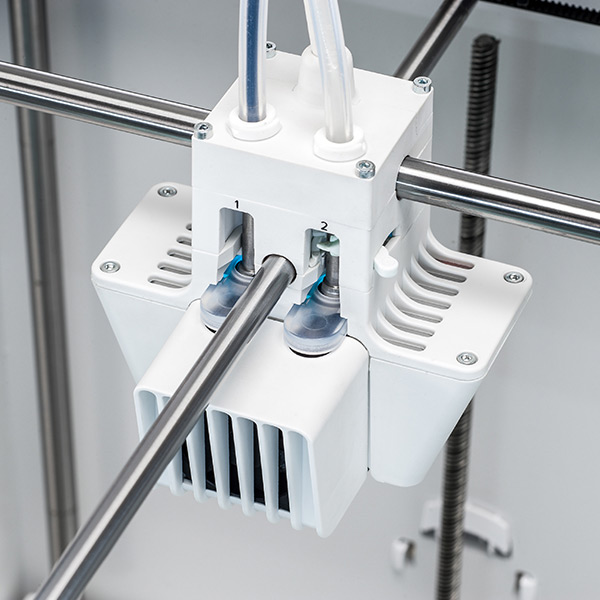

 Fast setup, high uptime

With Ultimaker’s unique print core design, swap nozzles in seconds to switch between
build and support materials, or choose from 0.8, 0.4, or 0.25 mm print cores for fast or detailed prints.

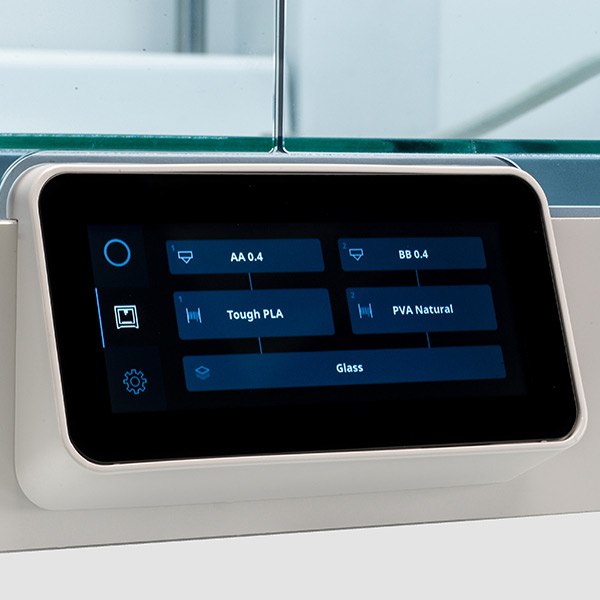

 Easy touch control

A 4.7-inch (11.9 cm) touch display makes operating the 3D printer effortless, displaying
visual guides to explain configuration changes and maintenance, plus a visual preview of your print.








 Designed to connect

The Ultimaker S5 auto-detects material and print core configuration, while over-the-air firmware
upgrades make adding the latest features simple. Print over Wi-Fi, Ethernet, or from a USB stick,
and monitor progress via the built-in camera.

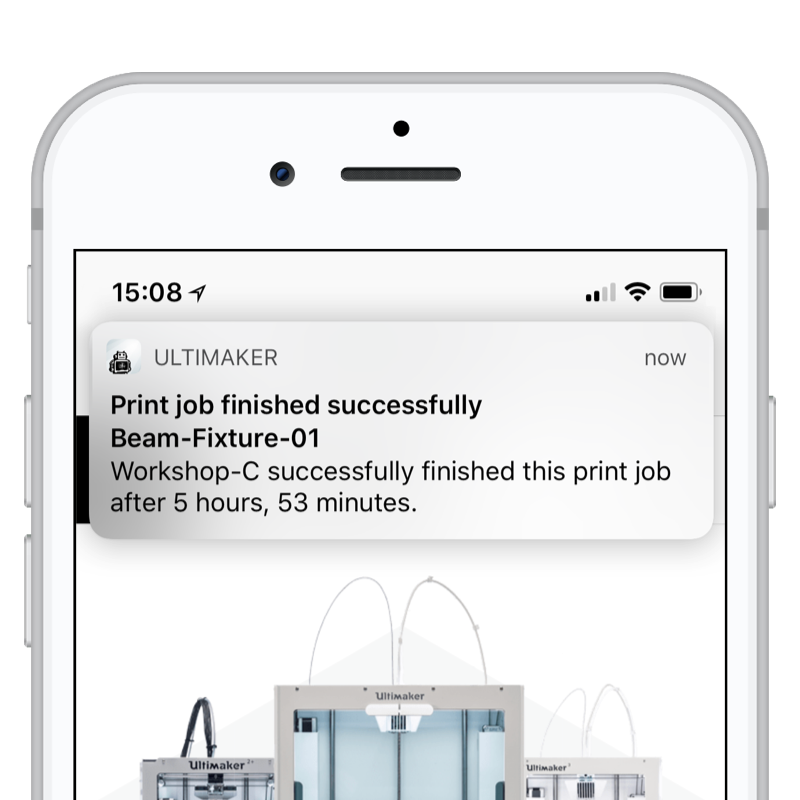

Stay connected, stay productive

The Ultimaker app lets your monitor and control Ultimaker 3D printers from a mobile device and can
even keep you updated with live notifications outside your local network.



Complex prints made easy

Create intricate geometries and technical models by combining your build material with water-soluble
PVA support material, then remove supports by simply resting the print in water.

Ultimaker 3D printers are the most reliable dual extrusion machines on the market.

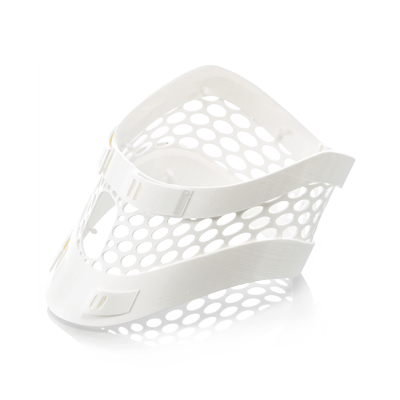

Printed on the Ultimaker S5

Optimized materials

Ultimaker materials are extensively tested to give the best results on the Ultimaker S5.
And Ultimaker Cura software comes with preconfigured profiles, so you don’t need to
spend time on complex slicing settings.






Limitless possibilities

3D print everything from quick prototypes to complex, technical parts with Ultimaker’s range of
build and support materials. And with an open filament system,
you can also choose a custom material solution.










Dimensions and Weight:

457 mm
18.0 inches520 mm
20.5 inches495 mm
19.5 inches

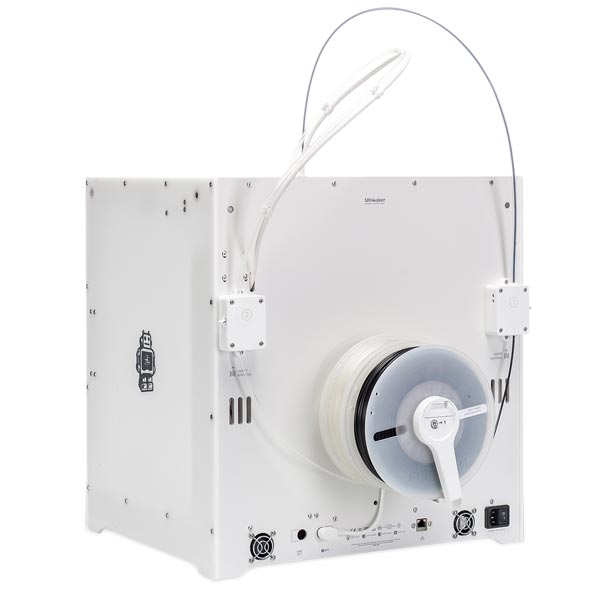

Dimensions with bowden tube
and spool holder:
495 x 585 x 780 mm
(19.5 x 23 x 30.7 inches)

Weight:
20.6 kg (727 ounces

Build volume:

Left or right nozzle, or dual extrusion:
330 x 240 x 300 mm
(13 x 9.4 x 11.8 inches)

Printer and printing properties

Assembly type: Pre-assembled
Layer resolution:
0.25 mm nozzle: 150 - 60 micron
0.4 mm nozzle: 200 - 20 micron
0.8 mm nozzle: 600 - 20 micron
Build plate: Heated glass build plate:
Heated aluminum build plate (available fall 2018)
Build plate leveling: Active leveling
Print technology: Fused filament fabrication (FFF)
Print head: Dual-extrusion print head with an auto-nozzle lifting system and swappable print cores
Print core replacement: Swappable print cores
Build speed: < 24 mm³ /s
Feeder type: Dual geared feeder optimized for composite materials
XYZ resolution: 6.9, 6.9, 2.5 micron
Nozzle diameter: 0.25 mm, 0.4 mm, 0.8 mm
Nozzle temperature: 180 - 280 °C
Nozzle heat up time: < 2 minutes
Build plate heat up time: < 4 min (from 20 to 60 °C)
Operating sound: 50 dBA
Display: 4.7-inch (11.9 cm) color touchscreen

Materials

System:
Open filament system
Filament diameter

2.85 mm: Supported materials

PLA, Tough PLA, Nylon, ABS, CPE, CPE+, PC, TPU 95A, PP, PVA, Breakaway
Also supports third-party materials

Software and connectivity

Supplied free software

Ultimaker Cura – print preparation software
Cura Connect – printer management solution
Supported OS

macOS, Windows and Linux
Plugin integration

SolidWorks, Siemens NX, Autodesk Inventor
Supported file types

STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG
File transfer

Wi-Fi, LAN, USB port


Operating requirements

Operating ambient temperature

15 - 32 °C (59 - 90 °F)
Nonoperating temperature

0 - 32 °C (32 - 90 °F)
Power rating

500 W


Service and support

Training

Our dedicated network of local service partners provides Ultimaker S5 training (recommended).
Warranty

You’ll enjoy a comprehensive 12-month warranty (excl. print core).
Lifetime support

Expert technical support via email, phone, or from our global community is available to you for the lifetime of your printer.
Extended support

Online resources, extensive manuals (in multiple languages), material technical and safety data sheets (in multiple languages),
a detailed knowledge base, and much more.


What’s in the box

• 750 g spool of Ultimaker Tough PLA
• 750 g spool of Ultimaker PVA
• Two swappable 0.4 AA print cores
• A swappable 0.4 BB print core
• Glass build plate
• Aluminum build plate (available fall 2018, will be shipped free to existing S5 owners)
• Ethernet cable
• USB stick, glue stick, hex screwdriver, oil, and grease
• A calibration card and XY calibration sheets
