Tiertime UP600D Dual Extrusion 3D-Printer

he UP600 industrial 3D printer is designed to tackle very large print jobs with the same ease and precision you have
come to expect from other Tiertime printers. It can accurately produce sizable 3D printed parts at an industrial scale.
Applications include: engineering, prototyping, short-run production, one-off fabrication, large scale-modeling, medical,
R&D, education, prop manufacturing, architecture, and industrial tooling.

At 400 x 500 x 600 mm, the UP600’s build volume is more than twice as large as that of the UP300. It is capable of printing
objects 15.7 inches wide by 23.6 inches tall by 19.7 inches deep with a liquid volume of 120 liters or more than 31 US gallons.

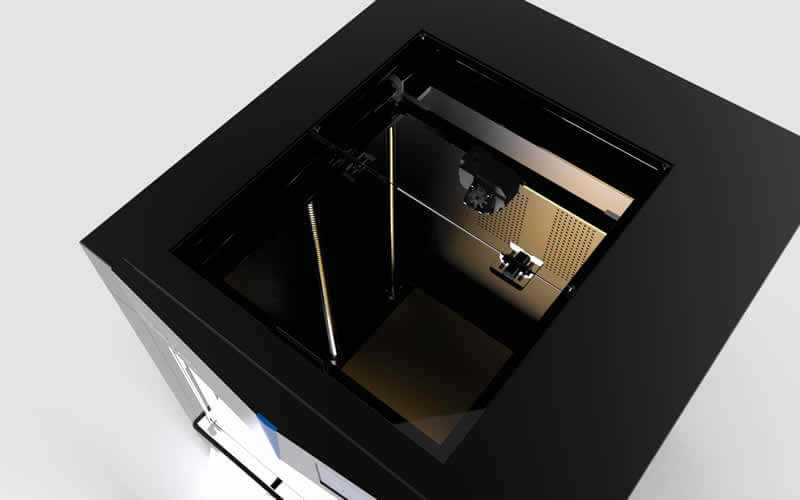

Heated Build Chamber

Objects are printed inside a heated build chamber to minimize deformation caused by high temperature plastic cooling too quickly
and absorbing naturally-occurring airborne moisture in the process.

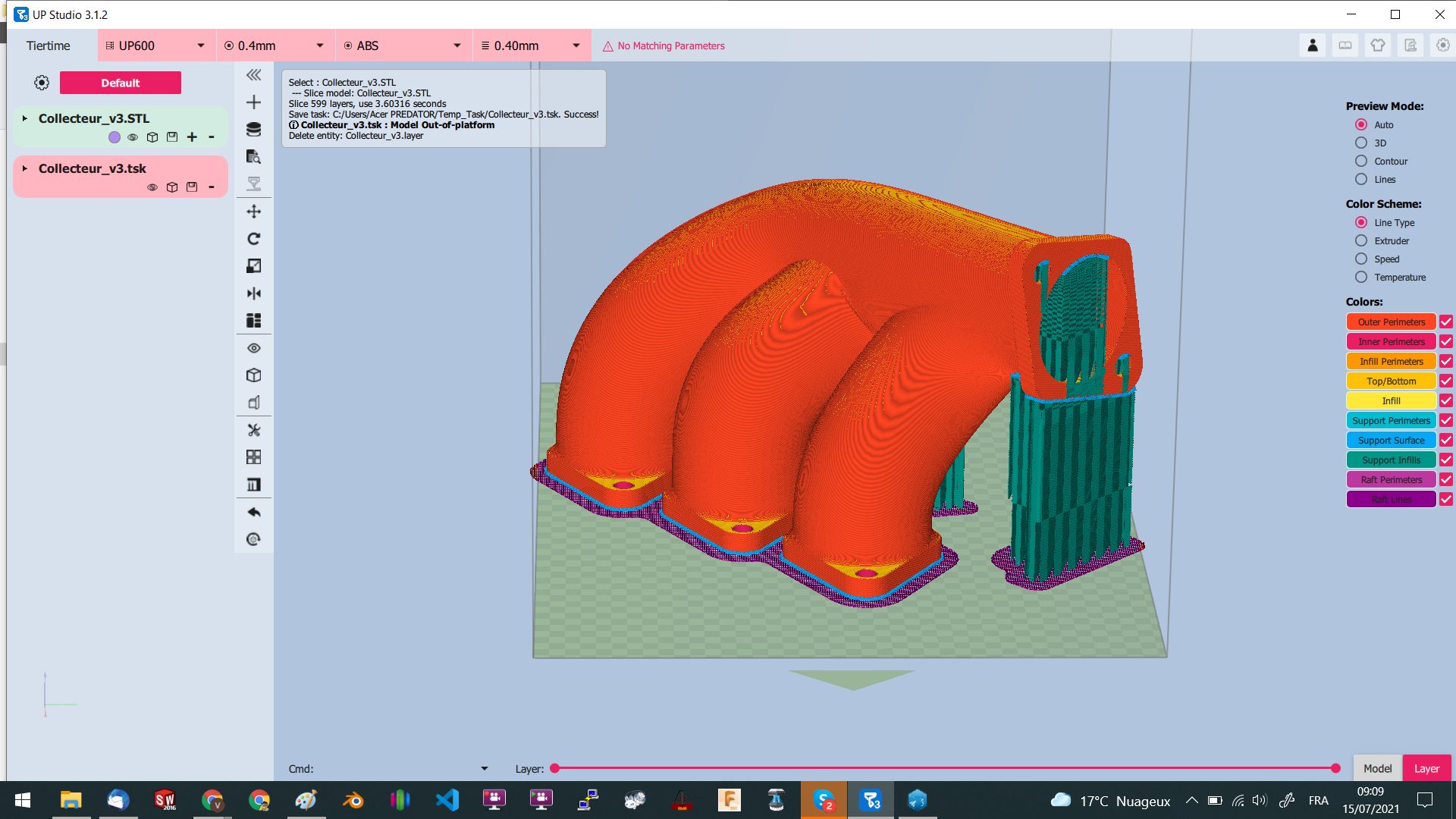

Powerful Software Package

UP Studio 3.0 is a dedicated software package and state-of-the-art slicing engine developed for Tiertime machines. It supports both
dual and single material printing and offers granular print parameter control at every possible level. Within a single print job, multiple
models can be printed with different settings and each model can have designated sections with their own settings. Alternatively,
operate in Basic mode for a plug ‘n play experience.




Adaptive Layer Thickness

The UP600 can increase print speed by printing smaller layers only where they are required to produce fine detail. Different
layer height variation ranges can be applied on a per model or per section basis.

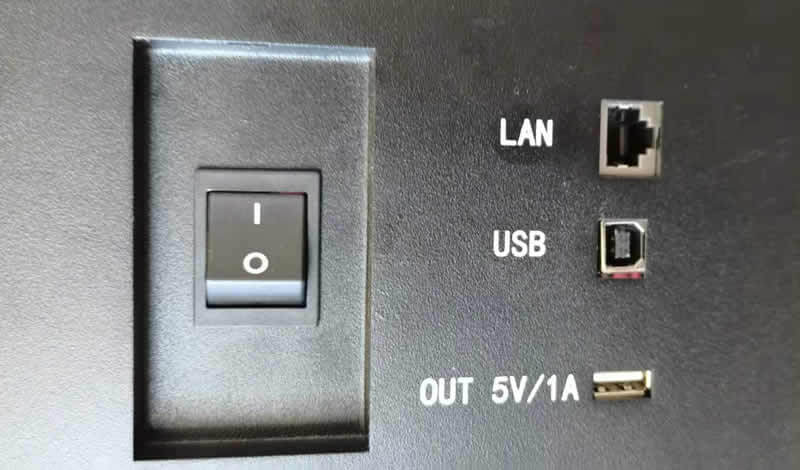

Connectivity

Connectivity options include Wi-Fi, Ethernet, USB cable, and USB memory stick. Multiple users on a network can send tasks to the printer,
which can be monitored and managed via the Tiertime Print Queue.

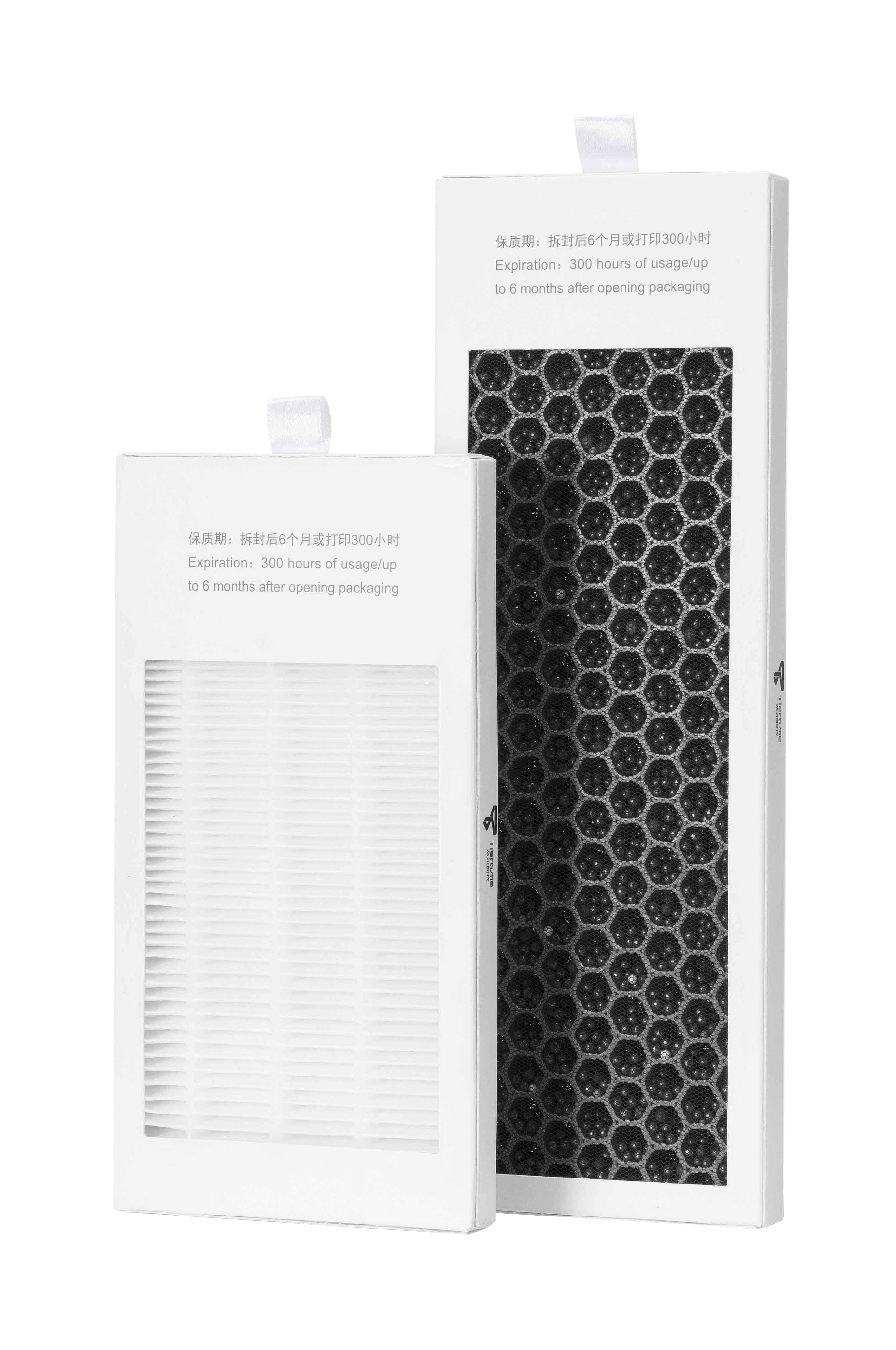

Dual Air Filtration

The UP600 incorporates Tiertime’s two-stage HEPA and activated carbon air filtration system, providing maximum UFP
and VOC reduction for a safe operating environment.

Specifications

Printer and Printing Properties	Printing Technology	MEM(Melting Extrusion Modeling)
	Print Head	Single Extruder LT
	Number of Print Heads	One LT Single Extruder
	Build Volume (XYZ)	500 x 400 x 600mm (19.7 x 15.7 x 23.6 in)
	Layer Resolution (mm)	0.1 / 0.15 / 0.2 / 0.25 / 0.3 / 0.35 / 0.4 / User Defined
	Nozzle Diameter	0.4mm (included) 0.5, 0.6, 0.8, 1.0mm (sold separately)
	XYZ Resolution	7, 7, 1 micron
	Dimension Accuracy	±0.1mm / 100mm
	Build Plate	Resilent Magnetic Composite Plate ( 20 – 80℃)
	Extruder Temperature	< 300℃
	Extruder Travel Speed	< 200mm/sec
	Print Speed	< 15.6mm^3/s
	Power Input	100-240VAC 50-60Hz, 360W
	Operating Ambient Temperatures	0-30℃, 0-40% RH
Printer Features	Air Filtration System	Dual Filtration: HEPA + Activated Carbon Filters
	Connectivity	USB, WIFI, Ethernet, USB Stick
	Touchscreen	7inch (TFT-LCD), Linux System, 16G
	Calibration and leveling	Semi-Automatic
	Safety Features	Pause Printing When Front Door Opened
	Blackout Recovery	Yes
	Heated Chamber	Max 54℃, 1KW
	Filament Runout Detection	Yes
Slicing Software	Supplied Software	UP Studio 3.0
	Miltilingual Support	10 Languages and growing
	Supported OS	Windows and MacOS
Software Features	Preview Support Structures	Yes
	Editable Support Struetures	Yes
	Pause to Change Filament Type	Yes
	Tiertime Print Queue	Yes
	OTA Upgrade	Yes
Compatible Materials	Filament Diameter	1.75mm
	Tiertime Filaments	UP Fila ABS, ABS+, PLA, TPU and more
	Third Party Filaments	Yes with Predefined Profiles
	Filament Spool Compatibility	2kg
Physical Properties	Machine	Fully Enclosed, Full Metal Frame
	Dimensions	780 x 1150 x 850mm (W x H x D)
	Net Weight	120KG
