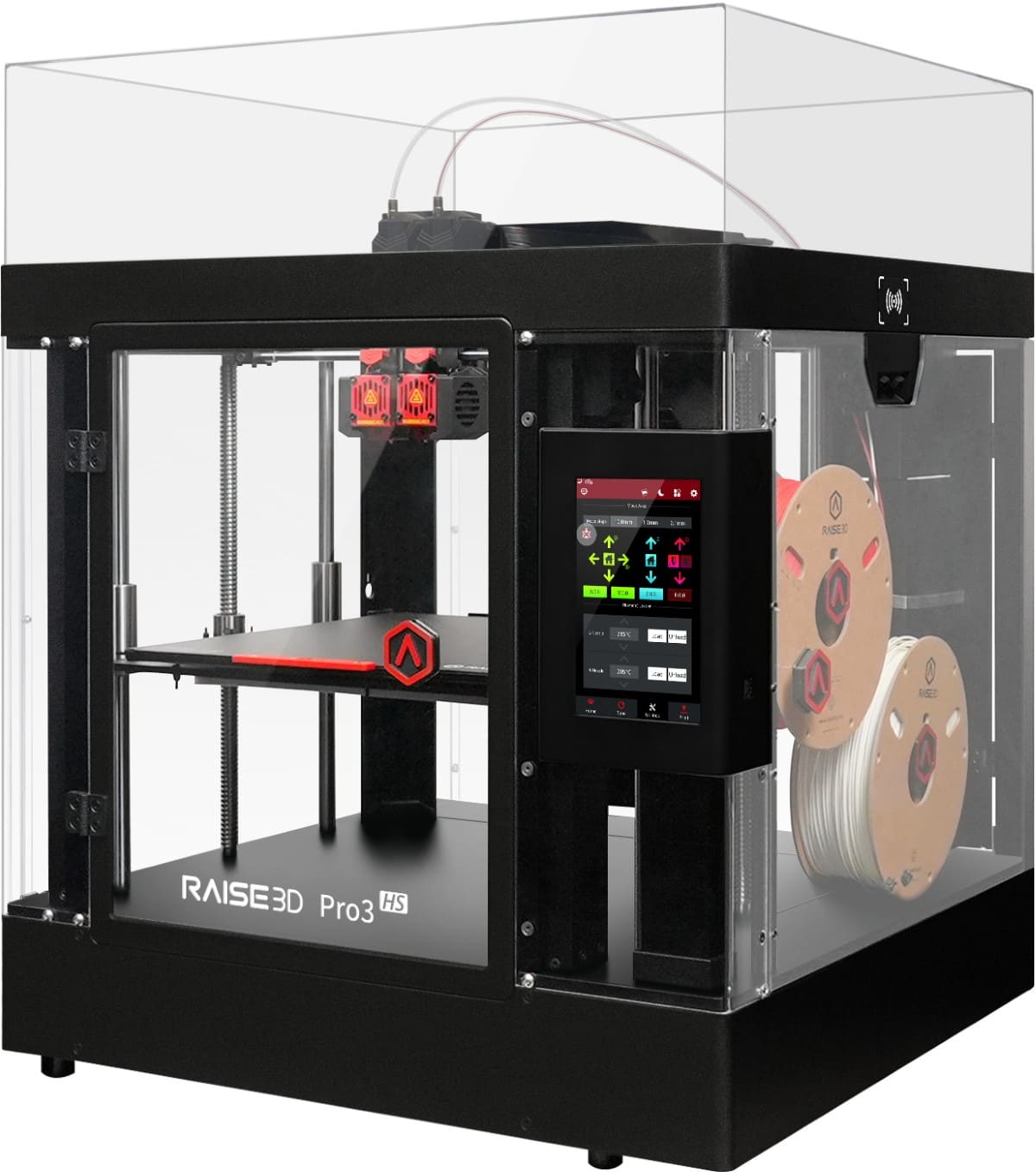

Raise3D Pro3 HS
Raise3D Pro3 HS

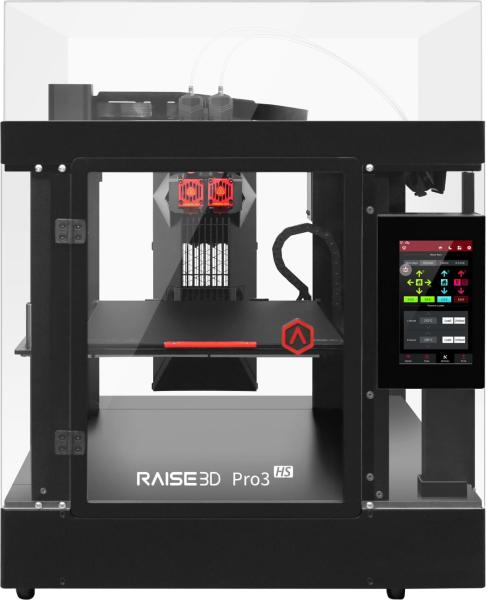

Raise3D Pro3 HS - Highspeed
About speed: 3D printing of large parts easily
The Raise3D Pro3 HS Series is a high-performance machine in professional quality, built on thedifferent performance specifications of the flagship Pro3 Series of Raise3D. It ensures print speed,
production efficiency and reliability. With Hyper FFF® technology, you get high-speed printing for
bonded materials. The new automatic filament exchange function supports 2.5 kg filament rolls
and is suitable for general manufacturers and printers, small series efficient and reliable to produce,
it is suitable for end-use parts or manufacturing problems.
The most important new Raise3D upgrades
Built-in Hyper FFF® technology
Equipped with a high flow rate and an active algorithm for vibration reduction, the Raise3D Pro3 HSseries is in the range, printing at a standard speed of 300 mm/s. Even with Hyper Core high-performance
materials, it can still achieve cutting speeds of 200-300 mm/s, which brings the 3D printing capability of
the user to a new level.
Compared to the selected Raise3D Pro3 series, the Pro3 HS series is reduced by 30 to 70% depending
on the size of the model.
Optimization of the drive system
The newly installed speed motor with closed-loop control allows a closed-loop control, which is affectedby the precision of the electronic control, to operate with a precise high-speed pressure without any speed
problems. At the same time, the equipment development was reduced by 27%, while the work environment
was optimized.
Furthermore, the couplings were reinforced with a double membrane type, which increased their endurance
and life expectancy further. The optimized optical axle structure of the couplings is designed for better sealing
and increased durability and movement stability.
Automatic filament switch
The Raise3D Pro3 HS series is equipped with an automatic filament switch, which allows for a break-freeprint if a filament is stuck to the end.
If a print head of the material is removed, the second print head of the print prefix may be significantly affected,
the continuity and effectiveness of the print prefixes and the risk of print failures are increased at the same time.
Broken construction plate
The new construction plate has a stronger magnetic grip and heat is fast, the wear rate has been reducedand the pressure efficiency has been reduced. It is 1 mm thinner and should be heated for 2 minutes or more to 100 °C.
The fast heating time reduces the waiting time to the beginning of printing and reduces the printing efficiency.
New RFID filament sensor (available in bulk)
The RFID filament sensor* identifies the filament type and tests the print parameters to prevent print errorsand prevent the use of false materials. The time frame is reduced for the examination of print output and
increases the efficiency and success of the prints.
(*This function is available only if the balls support RFID tagging)

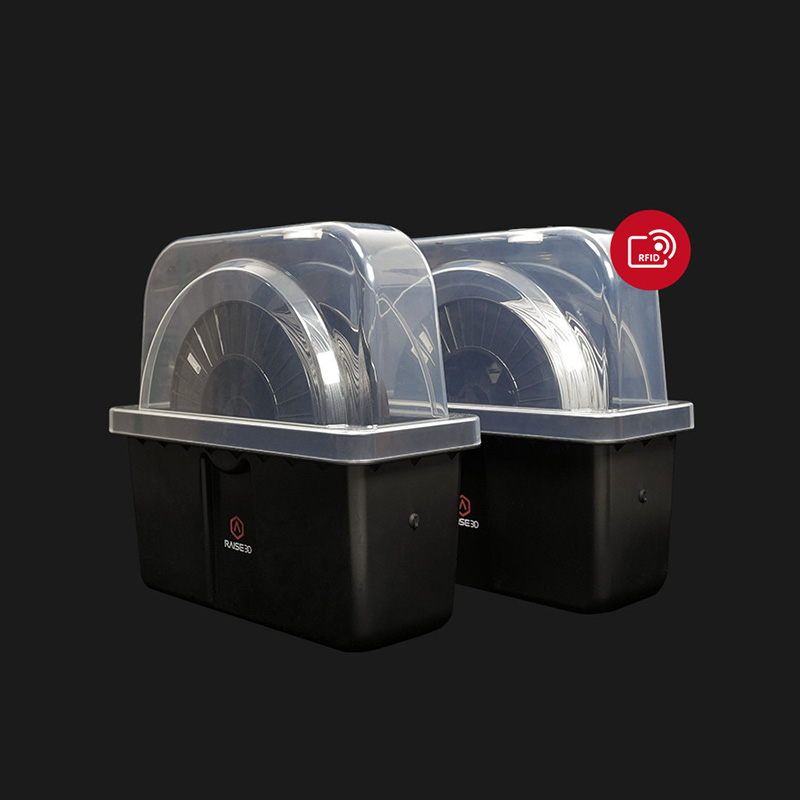

2.5 kg large roll storage boxes (separately available)
To reduce the filament consumption manually, the dual-extruder connection of the Pro3 HS printer can nowprint from two external 2.5 kg material boxes. It can be printed up to 120 hours long without any residue
(at 1 kg / 24 hours).
The Spulenbox is connected to a new cutting point with the printer, allowing the connection of the filament
hose and a reibungslose guidance of the filaments to the printer.
Hyper Core Filament and New Hot End in Delivery
The newly developed Hyper Core Filament from Raise3D offers a fast melting and cooling rate for high-speedprinting with a reduced strength and stability in Z-Ring, making it ideal for demanding end-to-end applications.
A heat-resistant material with high flow rate and silicone coating and a roll of Hyper Core filament are included
in the delivery of the Pro3 HS printer, making it easy to print from the raw materials.
- Raise3D Pro3 HS in Detail -
Highly windproof print with high-performance components

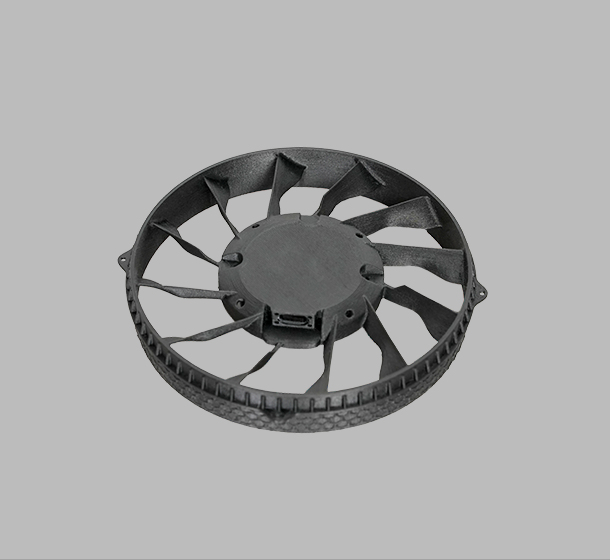

The Raise3D Pro3 HS Series supports the high wind speed of the materials used with 200-300 mm/s, including Hyper Core High-Performance Materials for end-use, to meet the high standards and requirements of the user and to ensure production efficiency as well as product quality. . Thank you for this support for high-performance manufacturing materials, the printed parts can also be effectively integrated into the most demanding applications.
The Raise3D Pro3 HS Series supports the high wind speed of the materials used with 200-300 mm/s, including Hyper Core High-Performance Materials for end-use, to meet the high standards and requirements of the user and to ensure production efficiency as well as product quality. . Thank you for this support for high-performance manufacturing materials, the printed parts can also be effectively integrated into the most demanding applications.
- High performance building materials
- open Filament Program

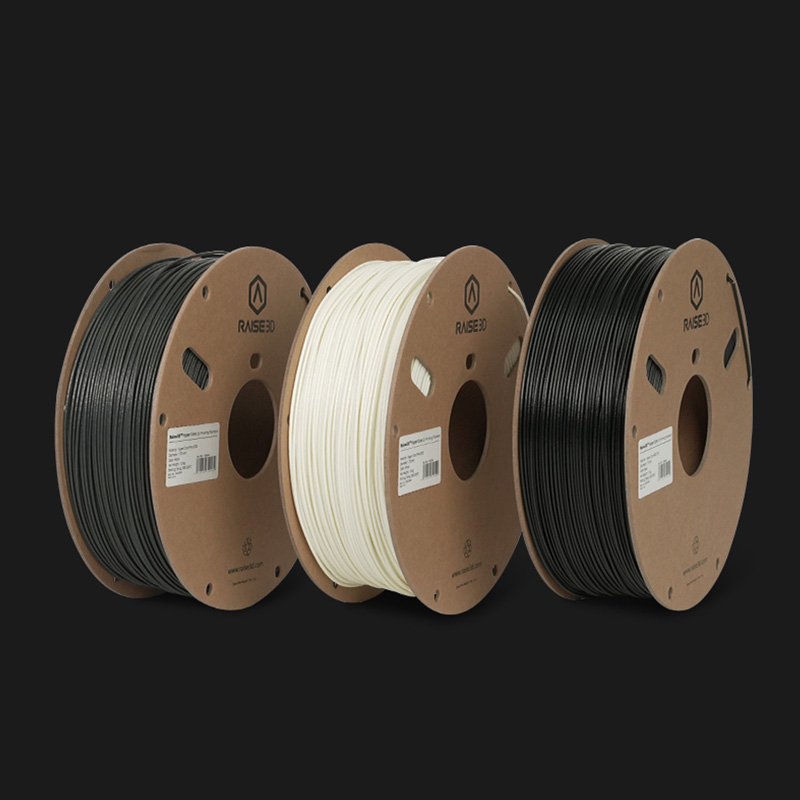

Hyper Core: PPA CF/ PPA GF/ ABS CF
Hyper Speed: PLA/ ABS
Industrial: PPA CF/ PPA GF/ PET CF/ PET GF/ PETG ESD/ PET Support/ PPA Support
Premium: PLA/ ABS/ ASA/ PETG/ PC/ TPU-95A/ PVA+
Higher efficiency and reduced productivity

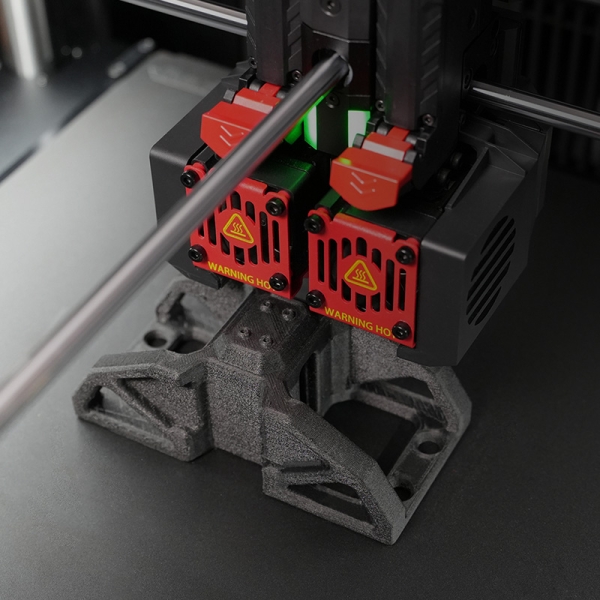

The Raise3D Pro3 HS series is equipped with Hyper FFF® technology, allowing precise and reliable high-speed printing. This technology combines a hot end with a high flow rate and an active algorithm for vibration reduction. The Pro3 HS series has standard pressure speeds up to 300 mm/s and uses a speed motor with a closed regelkreis in the drive system. This is due to the control of the extrusion movement and the precision of a high-speed print without any damage. The new construction plate is made for a uniform magnetic connection, which reduces the reshaping of the model. An optimized coupling increased movement stability and the robust whole metal frame ensured smooth movement and precise positioning, which was led by highly reliable printing standards.- Built-in Hyper FFF® technology
- Fast motor with closed regelkreis
- Optimized couplings
- New printing assembly plate
- Beware of whole metal frames
Longevity and durability of transparency

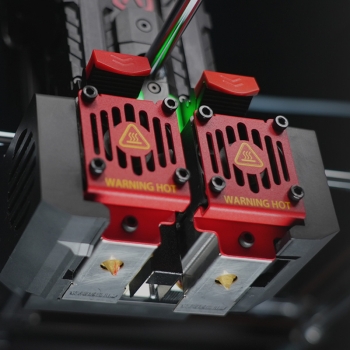

The Raise3D Pro3 HS Series is specially designed for industrial printing applications with high piece counts and has been further optimized to improve its reliability. The reinforced hot-end and the whole metal parts combined with the respective whole metal frames and the two-way extruder make it possible to continue production over many hours. The speed motors with optical encoders achieve superior performance and long-lasting durability.- Reinforced Whole Metal Hot Ends and Exhausts
- Highly resistant silicon carbide compounds for high-performance manufacturing
- Speed motors with optical encoders
Continuously extended production time and reduced consumption by manual inputs
The Raise3D Pro3 HS series is equipped with an automatic filament change function, allowing for interference-free production. Thanks for the possibility of using two 2.5 kg filaments, the machine can print continuously with up to 5 kg of material. The newly integrated RFID filament sensor detects the filament and examines the relevant parameters to prevent the use of false materials. It leads to higher production efficiency and reduces manual labor costs.- Automatic filament switch
- 2.5 kg large ball storage boxes (separately stored)
- New RFID filament sensor*
The Pro3 series includes two dual-extruder 3D printers: the Pro3 with a volume of 300 x 300 x 300 mm and the Pro3 Plus with a volume of 300 x 300 x 605 mm. Further developed from the price-conscious Pro2 series, the Pro3 series offers a user-friendly, highly effective and industrially compatible solution, which is the best choice in this segment for all customers, whether 3D printing in agile production or in small series production. used.
In terms of material compatibility, the Pro3 series of printers with the highest potential in its segment can print all filaments, which can be extruded up to 300°C, including PLA, ABS, HIPS, PC, TPU, TPE, NYLON, PETG. , ASA, PP, PVA, glass fiber reinforced, carbon fiber reinforced, metal filling and wood filling, unter anderem. Customers can receive first-class results if they use Raise3D filament and filament from third-party suppliers, which are added to the frame of the Open Filament Program.
The printers of the Pro3 series are easily integrated into a production process, which is why they are combined with the 3D printing software environment of Raise3D, the slicing software ideaMaker , the open software development library ideaMaker and the management software RaiseCloud .
Technical data of the Raise3D Pro3 HS series
Construction volumes (W × D × H)Pro3 HS:
Single extruder print: 300 × 300 × 300 mm (11.8 × 11.8 × 11.8 inches)
Print with two extruders: 255 × 300 × 300 mm (10 × 11.8 × 11.8 inches)
Pro3 Plus HS:
Single extruder print: 300 × 300 × 605 mm (11.8 × 11.8 × 23.8 inches)
Print with two extruders: 255 × 300 × 605 mm (10 × 11.8 × 23.8 inches)
Printing technology: Fused Filament Fabrication (FFF)
Printing head system: Double head with electronic printing system
XYZ-Schrittweite: 0.78125, 0.78125, 0.078125 Mikron
standard printing speed: 300 mm/s
Printing plate: Flexible steel plate with BuildTak
Leveling of the construction plate: Mesh leveling with heat detection
Material of the heated rods: Silicone
Maximum temperature of the construction plate: 120 ºC
Exhaust diameter: 0.4 mm (standard), 0.2/ 0.6/ 0.8/ 1.0 mm (available)
Maximum exhaust temperature: 320 ºC
Automatic filament switching: Available
RFID Filament Sensor: Available
Filament Release Sensor: Available
Filter: HEPA Filter with Active Coil
Movie:
https://youtu.be/ZMbVNBQdkdE
