Raise3D Pro2 Plus

Raise3D Pro2 Plus Dual Extruder 3D-Printer

Founded from quality, the Pro2 Plus refines printing for production grade environments; upgrading, and evolving traditional manufacturing.

Dual Extruder: Electronic driven lifting ; 4× increased torque performance
Massive Build Volume (305×305×605 mm/ 12*12*23.8 in)
Diverse Filament Compatibility (300℃)
Filament Sensor / Camera / HEPA Filter
Minimum 0.01mm Layer Height
Resume Print after Power Outage
7" Touch Screen
32 Bit Motion Control Board
Wireless Compatibility




Electronic Driven Lifting Dual Extrusion

Prints the most intricate projects. Expedites works. Multi-material prints.
Light speed, <1 second switching time.
1.5mm lifting distance, compatible with flexible filaments.
Over 100,000 times reliability test passed.

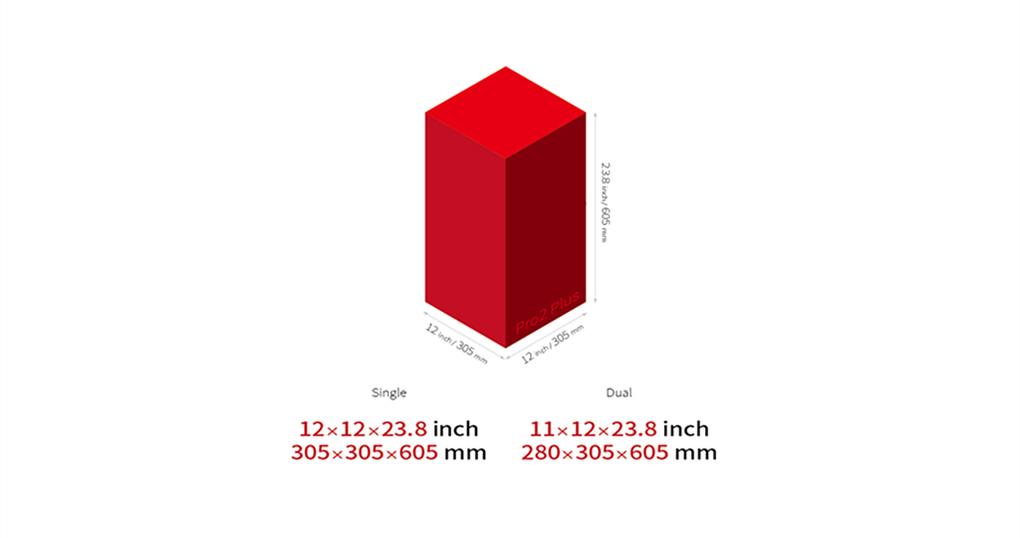

Big Building Volume

24/7 Reliability by High-Strength Aluminium Frame.

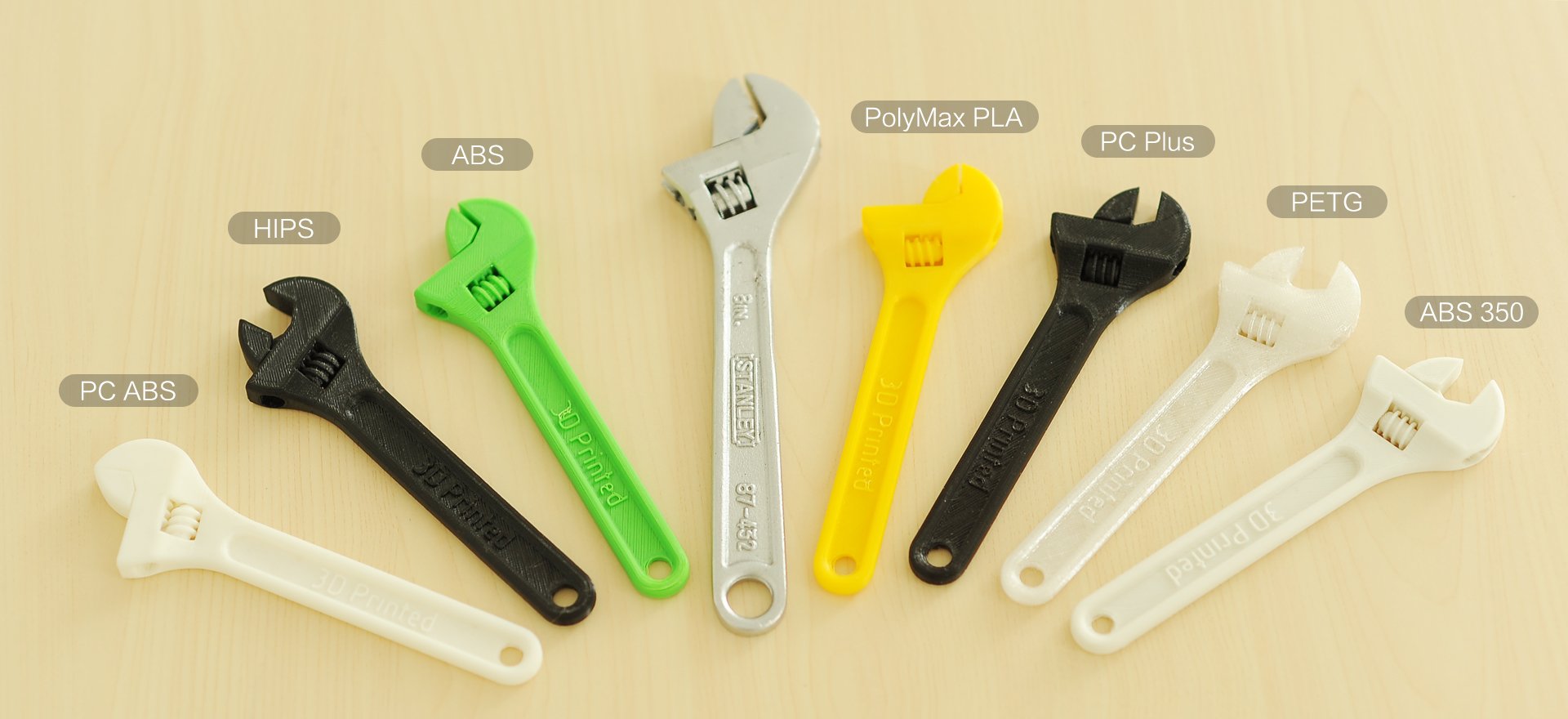

As Hot As 300℃ For Material Compatibility

PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA
PP / Glass Fiber Enforced / Carbon Fiber Enforced
Metal Particles Filled / Wood Filled

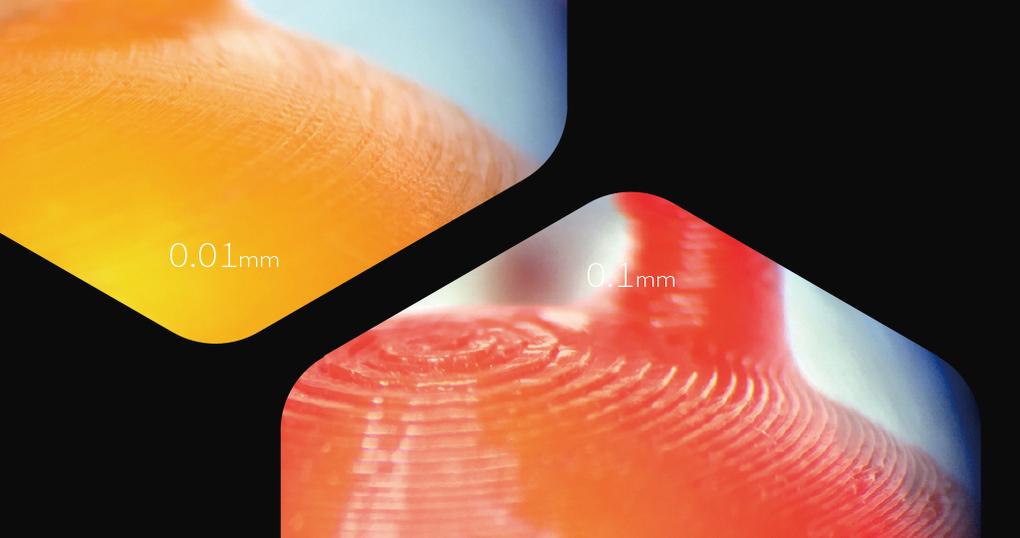

0.01MM Layer Height

Unique motion system for superior part quality and resolution.

Unmatched layer resolution - 0.01mm layer height
Interchangeable nozzle - 0.2mm nozzle for finer X/Y spot size
Precise positioning - 0.78125 micron positioning resolution on X/Y axis





Singular User Experience

7-inch touch screen.

Visual interface / Rapid reviewing / Visual print progress / Full adjustment control.

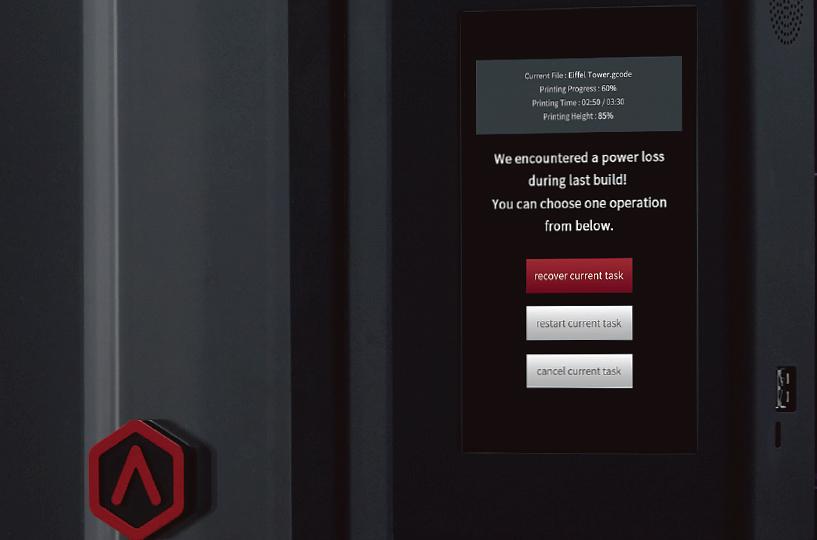

Second Generation Power Loss Resuming

Never lose a print.

“I actually knocked off the power accidentally when i hit the cord when I was vacuuming,
I was currently doing a 96 hours print with only 2 hrs left. As I raised my head to scream
in terror, I turned back on the machine and it asked me to continue print
…THIS WAS A LIFESAVER” by Shon Robinson

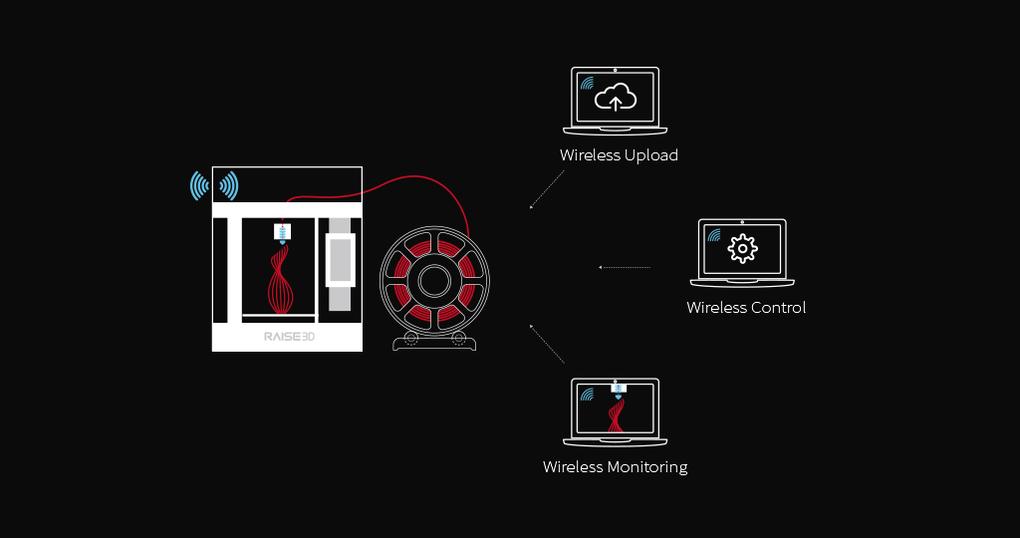

Wireless Printing and Control

Operate efficiently with ideaMaker by connecting wirelessly to your Pro2 Series Printer.
Built-in camera.

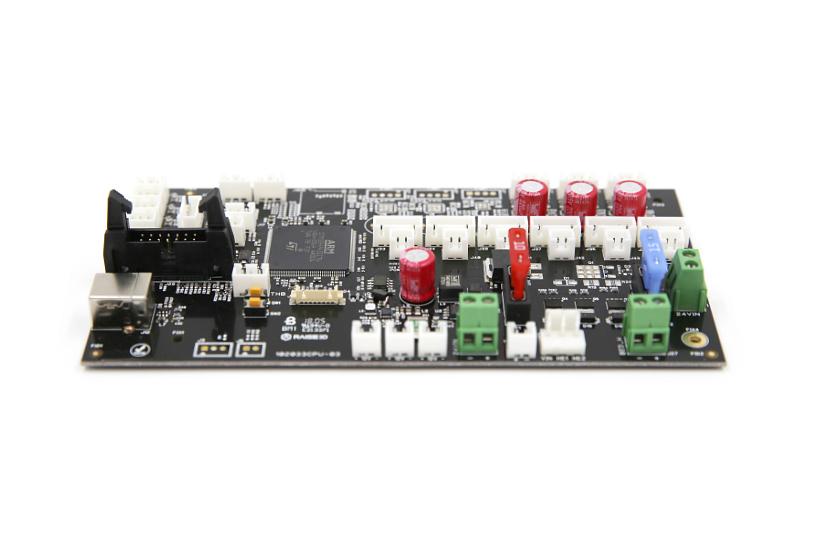

Next Generation Motion Controller

Top reliability. Accurate current control. Silky smooth movement. Superior thermal performance.

400MHz ARM Cortex-M7 32bit RISC FPU.
Industrial grade components.
Standalone motor driver.
256 micro-steps driver system.

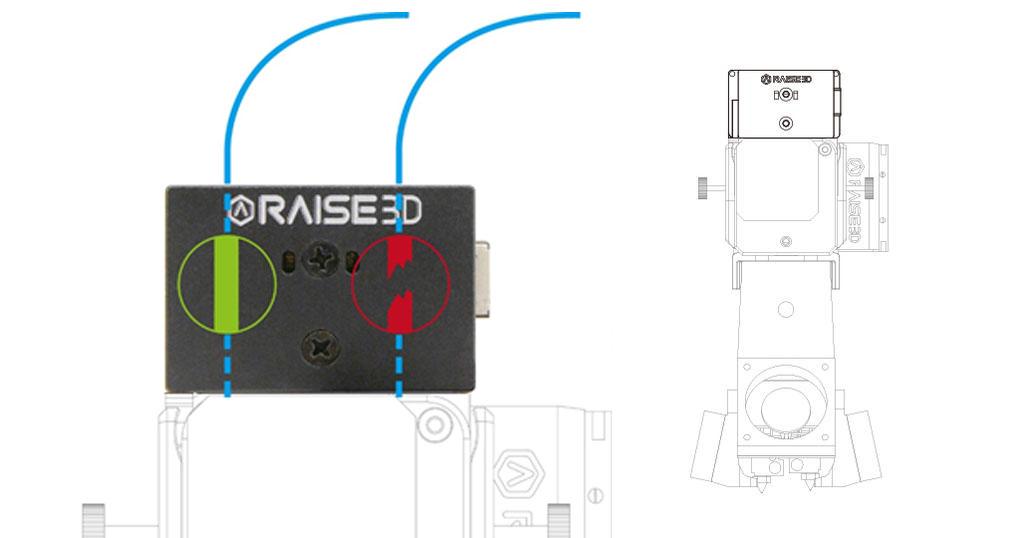

New Extruder with Filament Run-Out Sensor

Better grip. No slipping. Safer prints.

Dual gear driven.
4× increased torque performance.
Fluent and sensitive, optical run-out sensor.

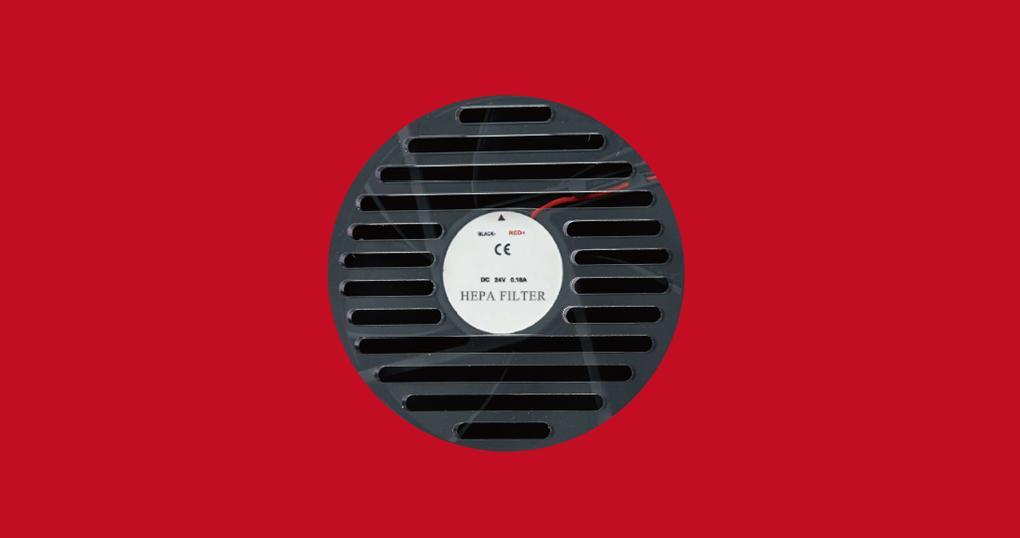

New HEPA Filter

Office environmentally friendly.
Silently protecting our health.

Absorbs >91% of particles.







New Build Plate System

Excellent warping prevention.
Even heat distribution.
Longer lifetime.
Steady and simple to use.

Aerospace grade material.
High temperature silicone heating bed.
Magnetic hold aluminium bed.
Improved 4+9 points lock system.






More Features

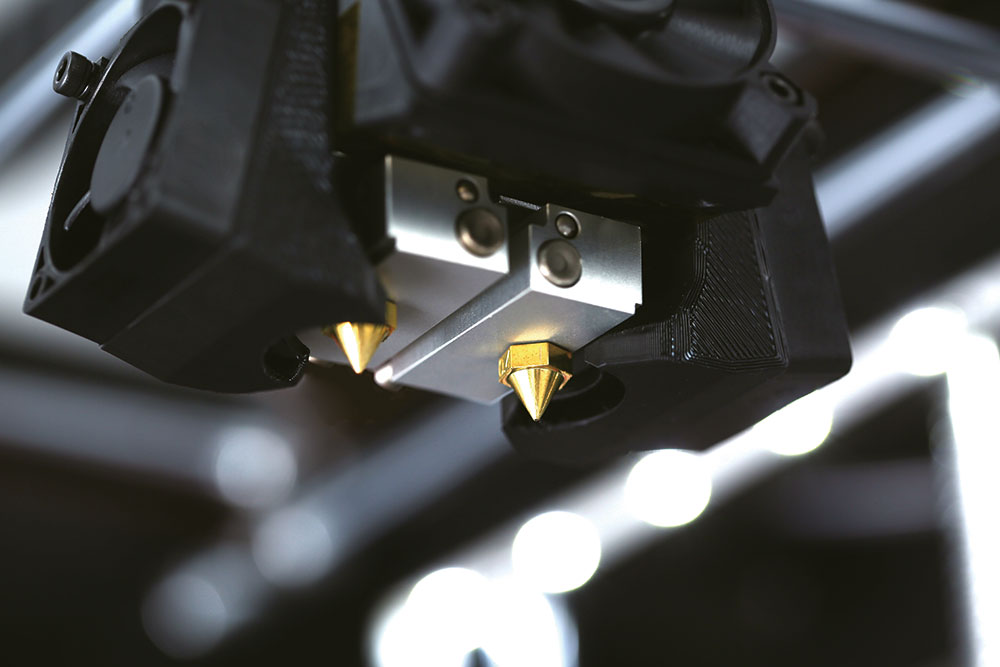

Improved Hotend Isolation/Nozzles

Build-in Camera

High Quality Optical End Stops

Software Controllable Stand-Alone Active Cooling Fan


Other Technical Specifications:

General

Print Technology: FFF
Build Volume (W×D×H):
- Single Extrusion Print: 12×12×23.8 in / 305×305×605 mm
- Dual Extrusion Print: 11×12×23.8 in / 280×305×605 mm
Machine Size (W×D×H): 24.4×23.2×43.5 in / 620×590×1105 mm
Print Head: Dual-head with electronic lifting system
Filament Diameter: 1.75mm
XY Step Size: 0.78125 micron
Z Step Size: 0.078125 micron
Print Head Travel Speed: 30 - 150 mm/s
Build Plate: Heated aluminum build plate with magnetic holding
Max Build Plate Temperature: 110 ºC
Build Plate Material: Silicone
Build Plate Leveling: Pre-calibrated leveling
Supported Materials:
PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / Glass Fiber Filled Carbon Fiber Enforced // Metal Particles Filled / Wood Filled
Nozzle Diameter: 0.2/ 0.4/ 0.6/ 0.8mm
Max Nozzle Temperature: 300 ºC
Connectivity: Wi-Fi, LAN, USB port
Monitoring: Live camera
Operating Sound: 50 dB
Operating Temperature: 15-30 ºC
Non-operating Temperature: 0-35 ºC

Electrical

Power Supply Input: Universal 100-240 VAC, 50/60 Hz
Power Supply Output: 600 Watts, 24 VDC


Software

Slicing Software: ideaMaker
Supported File Types: STL, OBJ
Supported OS: WINDOWS/ IOS/ LINUX
Machine Code Type: GCODE


Printer Controller

User Interface: 7 inch Touch Screen
Network: Ethernet 802.11b/g/n Wifi 2.4GHz/5GHz
Resume Print after Power Outage: Second Generation
Screen Resolution: 1024*600
Motion Controller: ARM Cortex M7.400MHZ FPU
Logic Controller: Freescale imx6, Quad core 1Ghz ARM processor
Memory: 1GB
Onboard Flash: 8GB
OS: Embedded Linux
Ports: Sdcard*1, Usb2.0*2, Ethernet*1
