Creator 4

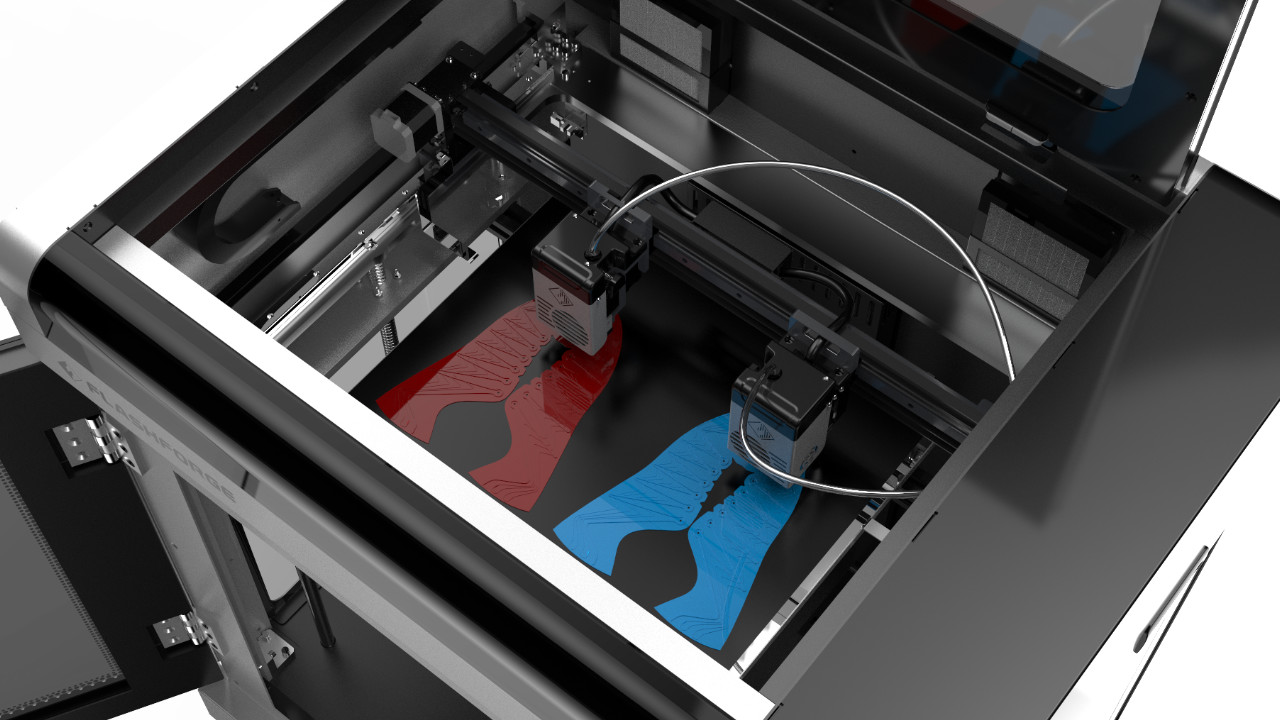

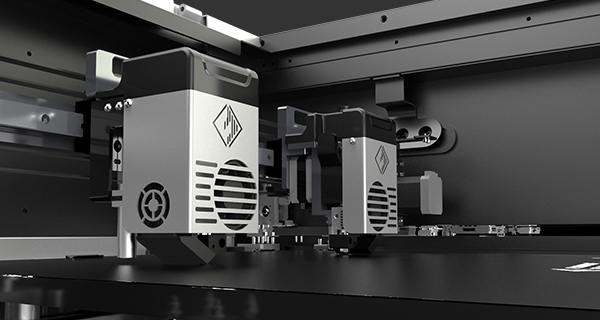

The two extruders of Creator 4 work independently, not bundled together so that when you select one extruder working
the other extruder goes away from the printing area hence not extra overflowing any filaments on the printed object. Also,
the two extruders could work simultaneously and independently to double your outputs! Creator 4 is a good choice for
mass production!

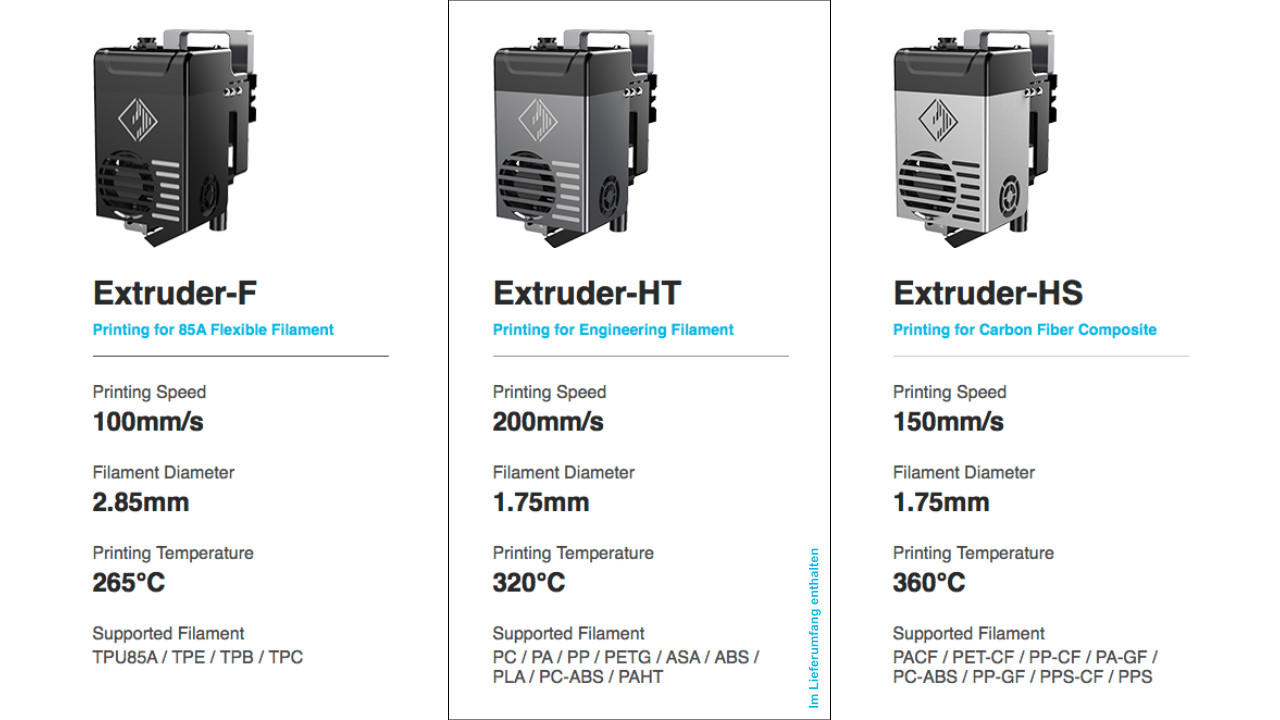

3 extruder options support multiple filaments

Extruder-Ffor flexible filament.
Extruder-HTfor engineering filament.
Extruder-HSfor carbon fiber composite.

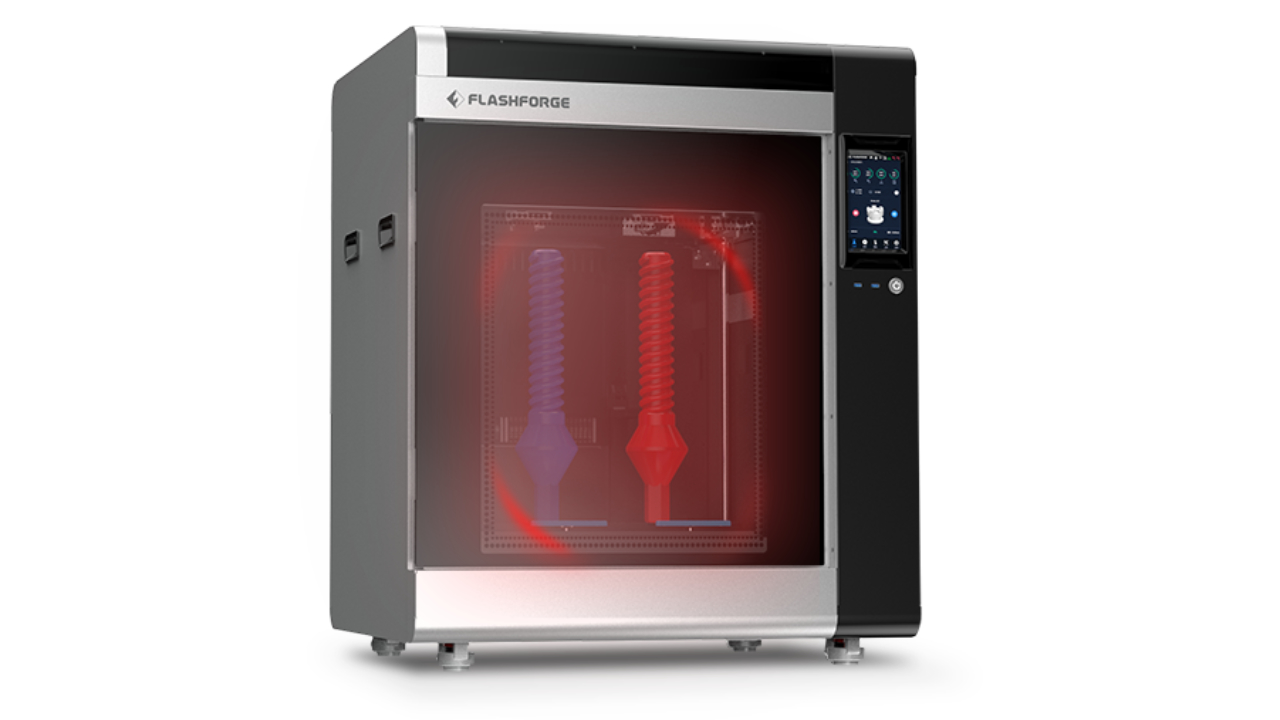

Temperature in the chamber ensures good printout quality


The advanced thermal-control system of Creator 4 keeps the print chamber at 65℃, which effectively reduces model shrinkage,
warping at corners, and furnish breakage. Creator 4 ensures good printout quality, good printing precision and improves
print success rate a lot.

Large build volume


• Printing size: 400mm*350mm*500mm;
• 500mm in vertical height meets most manufacturer's printing needs.

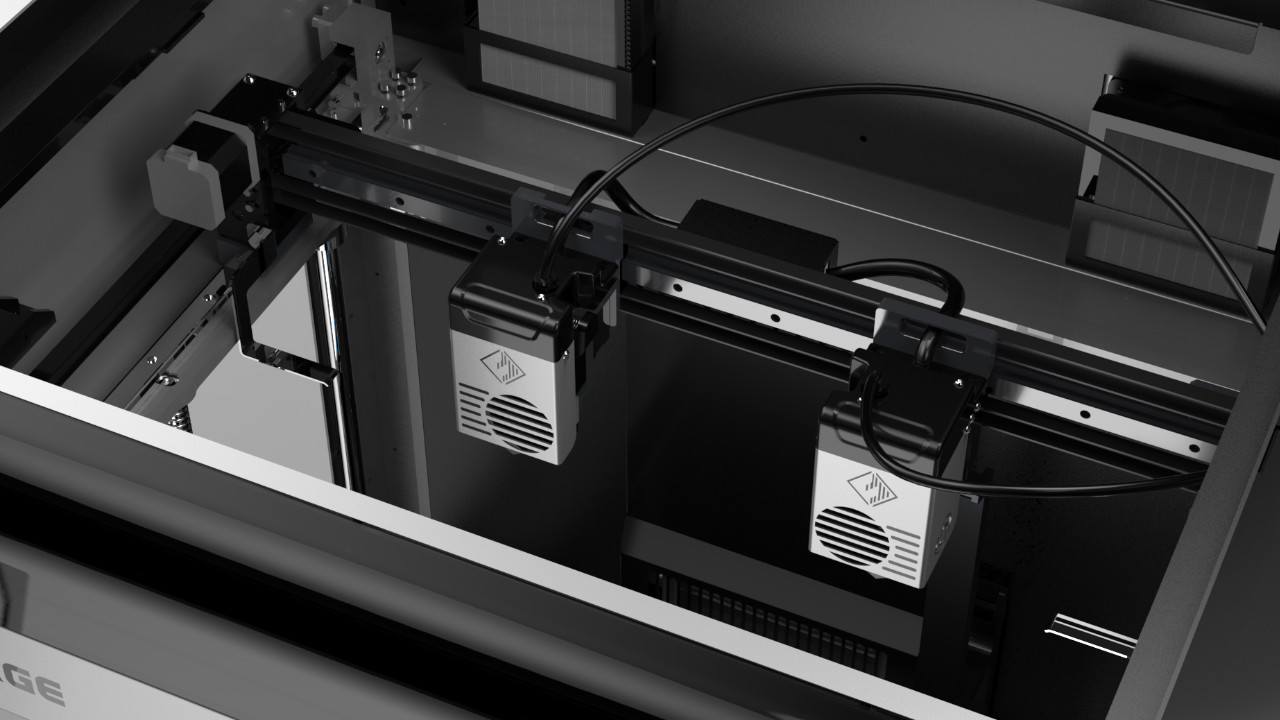

• Linear-rail leadscrew stepping along X and Y axes greatly improves motion stability, hence better printing precision.
• Brand new S-type motion control system achieves smoother start and stop, precise positioning of the nozzle, and wonderful printing details.
• CNC structure keeps machine stable and less shake when it's working.

01Different filaments can be automatically adjusted to different preheating temperatures in the chamber,
achieving higher success rate of printing. When finishing printing, the chamber temperature can be adjusted
automatically for model cooling down. Quite friendly system design for next print!

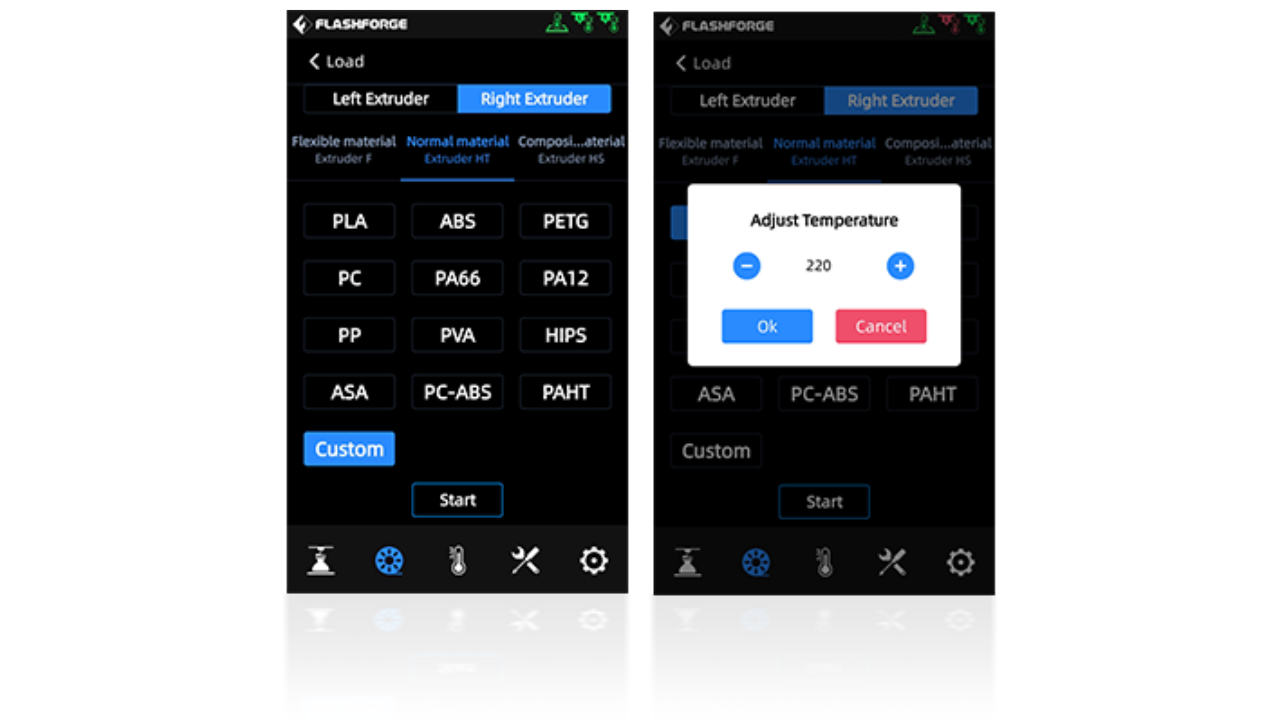

02 If you don't want the automatically set temperature, you can customize it yourself



Be compatible with various filaments with the highest temperature at 360℃

PC / PA / PP / PETG / ASA / ABS / PLA / PC-ABS / PACF / PET-CF / PP-CF / PA- GF / PC-ABS / PP-GF / PPS- CF / TPU 85A / TPE / TPB / TPC

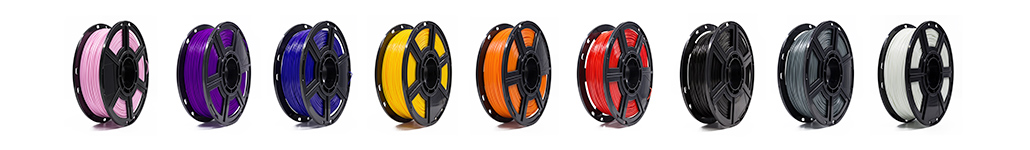

The Creator 4 series is suitable for Flashforge supreme filaments. This series is developed in
cooperation with German LEHVOSS, and the raw materials are specially formulated by LEHVOSS.
It reduces the heat shrinkage during printing, and also decreases the warpage and the need for high
chamber temperature. It meets the strength and temperature resistance required by engineering mechanics.
The filaments are certified by the LEHVOSS German laboratory.

The Creator 4 series also supports third-party filaments.

Specification:
