Precise. Reliable. Full-featured.
Thanks to the open source technology , the original Creator has been proven to be a precise andhigh quality 3D printer. With numerous upgrades based on this proven and highly popular original model,
Creator Pro takes the precision and quality to a new level, and is featured with more possibilities. It is
best-suited for enthusiasts and makers. And now the 2016 Creator Pro is more stylish and user-friendly in design.
Higher level of precision.
Top tier of print quality.
Upgraded from the outside in, Creator Pro is a very reliable 3D printer with excellent precision and professional
quality. The sturdy metal frame increases stability of the printer’s moving parts. Metal platform support and
10mm Z-axis guide rods allow for precise movement of the z-axis. The build plate is made from 6.3mm thickness
alloy of Aluminum —the same grade used in the aerospace industry, excellent heat distribution and never deformed.
The versatile chamber provides different printing environment for different materials. As a result, precise and top-tier
print quality shows up.

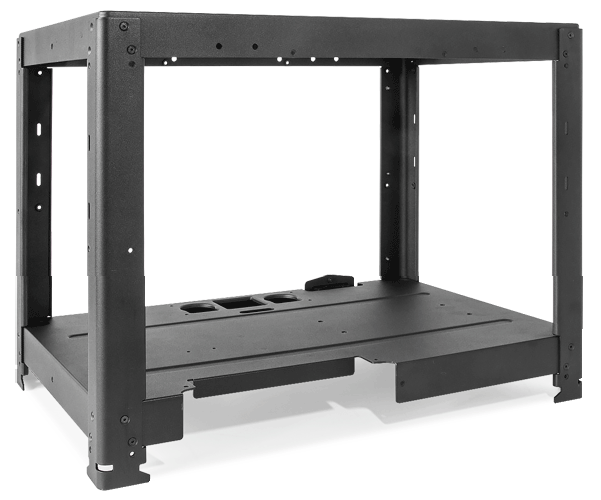

Enhanced stability construction.
Improved Precision.

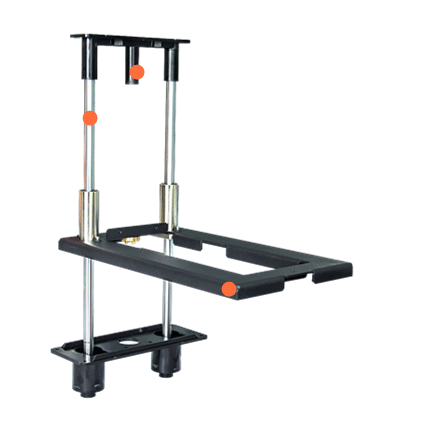

Creator Pro features a metal frame instead of wooden one of original Creator. It is optimized for the printing process
by adding much needed stiffness to reduce vibration. The metal support and 10mm Z-axis guide rods work together
to increase precision of vertical movement.
Heated 6.3mm heated aluminum build plate.
High quality prints.
The Creator Pro build plate is made from the same grade of aluminum used in the aerospace industry,
with 6.3mm thickness. This high level aluminum can always stay flat, even after continued exposure to
high heat. And yes, it can be heated to deliver desired temperature for different materials. Then reliable
and high quality prints show up.
Versatile chamber. Optimized
for ABS and PLA materials.
Creator Pro features a closable door and removable top cover to keep out dust and foreign particles.
This fully enclosed chamber also eliminates temperature interference from the exterior environment
and stabilizes the printing temperature for more successful and accurate ABS prints, less warps.
Open the door, remove the top cover and let air flows in. The chamber is ventilated to cool down
extruded PLA quickly. This yields out smoother curves on finished prints, less hung materials.

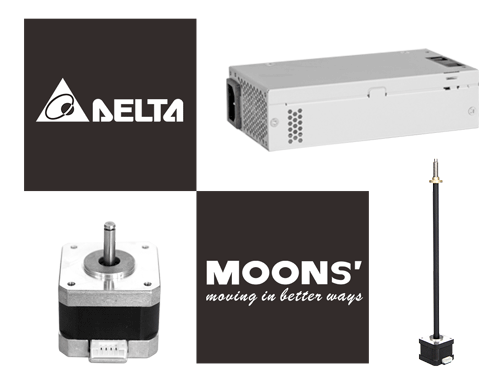

Top-quality components.
Advanced assembly lines.
From outside in, all major parts such as motors and power supply are from world’s top suppliers,
and all metal and plastic parts are molded. These bring forth a consistent and stable Creator Pro.
We set rigorous standards for assembly lines, where each machine is tested over 48hrs for top quality.
Stylish. User-friendly.
The 2016 Creator Pro comes with stylish and user-friendly design. All the metal and plastic parts go
together with each other so well because they are molded. Thoughtful design details include unibody
top cover, external handles, 180°opening front panel, plastic leveling knobs, 45°viewing control interface
and full-range power supply are added to its friendly user experience.
Open-Source Derived.
More possibilities.
Creator Pro is a straightforward 3D printer based on open source technology. It allows for flexible upgrades

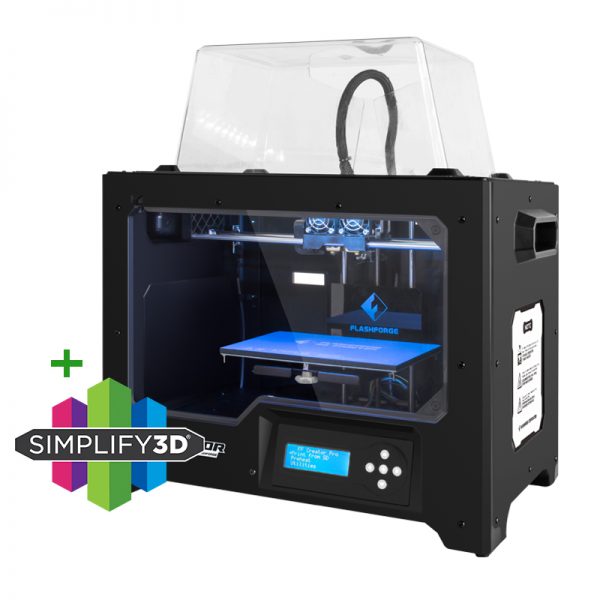

and various modifications. Meanwhile, you are able to choose your favorite software such as FlashPrint,
Simplify3D, Cura and more.
Unlock materials. Explore the Frontier.
Thanks to the proprietary dual extrusion system and enclosed chamber, Creator Pro can print a wide
range of materials including ABS, PLA, Dissolvable, Flex, T-glass and composite materials such as
woodFill, copperFill, brassFill and more.

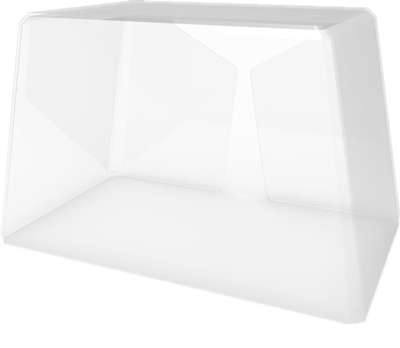

Unibody top cover. Stronger
and free of installation.
The 2016 Creator Pro comes with a one-piece top cover instead of pieces of panels need to be installed.
All you need to do is to fasten it into four corners. This one-piece lid is more stronger than original ones
and can be put into the chamber of the printer. Thus it comes in a smaller package.
External sleek handles.
Safer and more comfortable.
The new handles has sleek frames instead of two holes. It gives you more comfort and safety when you’re
trying move it from one place to another.

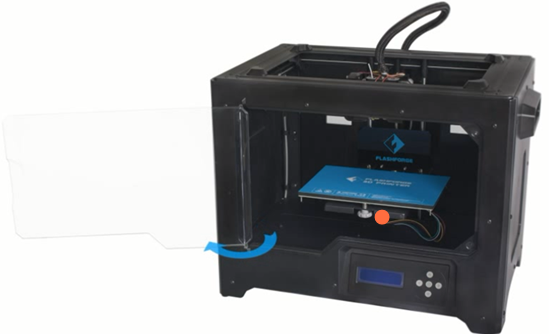

Almost 180-degree opening front panel.
More space to hand in and out.
Your arms need more space to hand into the chamber to remove your awesome prints.
Now you can make it much more easily. Leveling knobs are plastic instead of metal,
yet much bigger, aiding comfort and precision.
45-degree viewing control interface.
More comfortable and ergonomic.
Instead of vertical embedded, We tilt the control interface 45 degrees, and let you view and operate
it with more comfort. Additionally, the new Creator Pro comes with a universal power supply, matching
full range of input voltages in every country.Just plug and play!
Software:

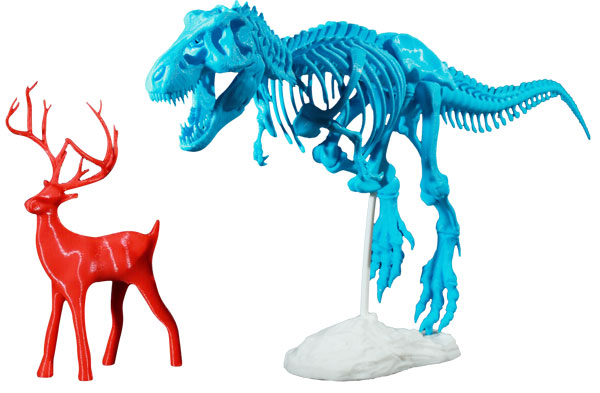

Introducing FlashPrint.
Simple to use for novices.
Yet very flexible for experts.
For beginners, the simple and intuitive interface lets you convert your design to a 3D printed model with a few clicks.
It has a list of presets for build quality, so just select what build quality you want and FlashPrint takes care of the rest.
And for experts seeking more control over the software, it has a wide range of parameters can be changed manually
as well, from temperature to printing speed and even the first layer thickness and height where to pause printing.
Once sliced, you can get layer-by-layer visualization and time and material estimates.

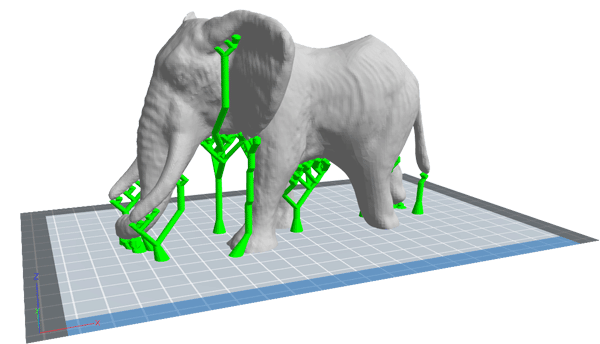

Smart supports. More possibilities.
Support generation doesn’t get any easier than this. FlashPrint automatically generates supports based on model’s
overhang angles. At same time, you can add more necessary supports to output better prints , or remove unnecessary
nes to save materials. Dendriform (treelike) supports allow you to print much more complex models, snapping off
supports easily without damaging your objects.
Cut and split.
Print bigger model.
Featured with cut and split function, FlashPrint allows you to divide your model into several separate parts when it is
too big as for one print. Limited build volume can print bigger models.
2D into 3D.
Make 3D models from images.
The 2D into 3D featured in FlashPrint allows you to convert 2D image files into 3D models. This is one of the easiest
ways to start 3D designing. All you need to do is to drag image and select parameters you want.
TECHNICAL SPECIFICATIONS
PRINTING
Printing Technology
FFF (Fused Filament Fabrication)
Build Volume
227 L X 148 W X 150 H mm
8.9 X 5.8 X 5.9 in
Layer Resolution
100~500 microns
0.0039~0.019 in
Positioning Precision
XY: 11 microns [0.0004 in]
Z: 2.5 microns [0.0001 in]
Filament Diameter
1.75 mm [0.069 in]
Nozzle Diameter
0.4 mm [0.015 in]
MECHANICAL & DIMENSIONS
Frame & Body
Powder Coated Steel + PVC Panel
Extruder Qty
Two
Product Dimension
526 x 360 x 550 mm
[20.7 x 14.1 x 21.7 in]
Shipping Dimension
560 x 415 x 500 mm
[22 x 16.3 x 19.7 in]
Product Weight
14.8 kg [32.7 lbs]
Shipping Weight
21.5 kg [47.4 lbs]
SOFTWARE & ELECTRICAL
Software
ReplicatorG
Firmware
Sailfish
File Type
STL, OBJ
Operating Systems
Windows 7,Mac OS X,Linux
Connectivity
USB, SD Card
AC Input
100-240 V, ~2amps, 50-60 Hz, 350 W
