CreatBot F430

CreatBot F430

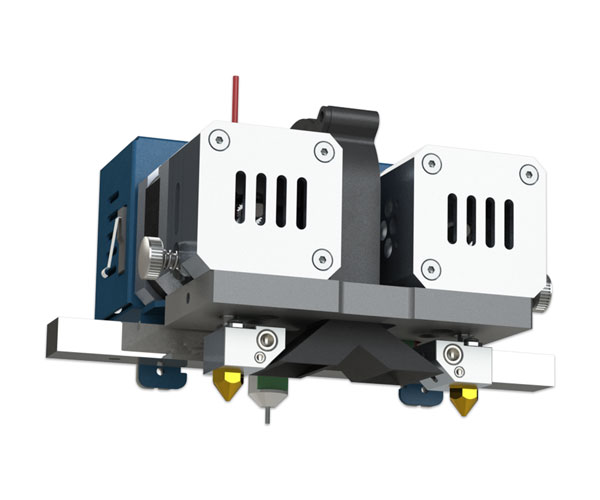

Support 420°C Hotend

We are the first one to publish 420°C high temperature nozzle to 3d printer market.
F430 equiped with dual extruders and this kind of extruder allow to print with a variety
of filaments. The nozzles height can also be micro adjusted.

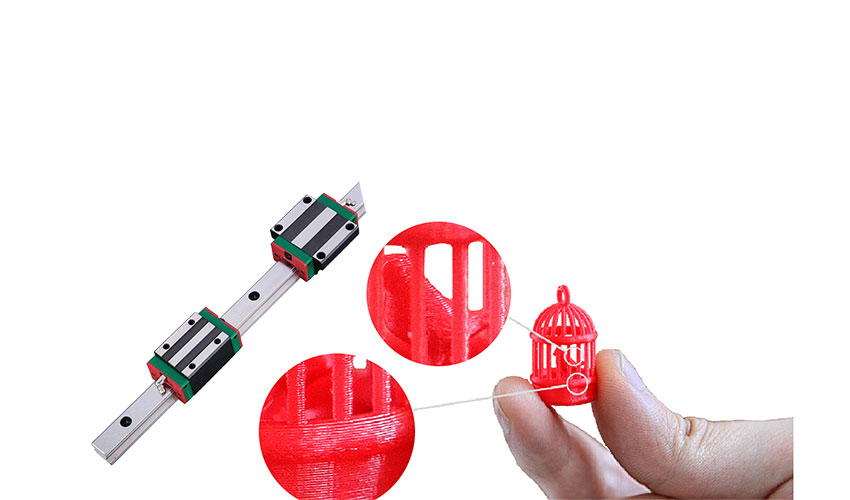

High Precision & High Speed

We exclusively research and develop the extruder feeding system and guide rail,
which support high-speed printing. Its printing accuracy can reach high to 0.04mm,
and it allows to extrude filament steady without block

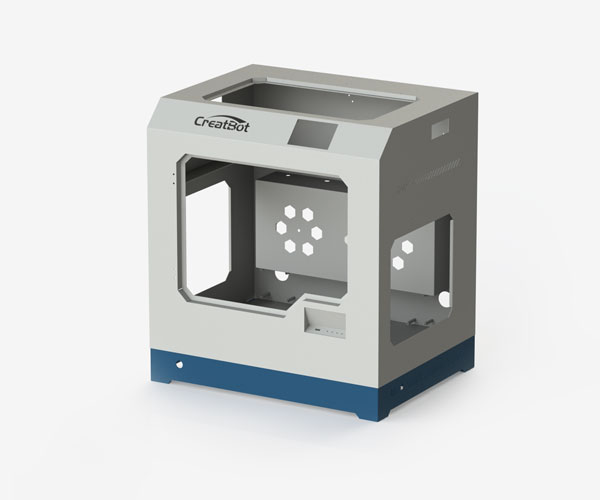

Stability

The whole-steel body not only ensure the stability when printing, but also extend the usage
period greatly. Its optimization and cooperation of overall structure ensure the sustainable
and efficient operation. The first batch of CreatBot 3D printers have been working for
5 years and more than 8000 hours.

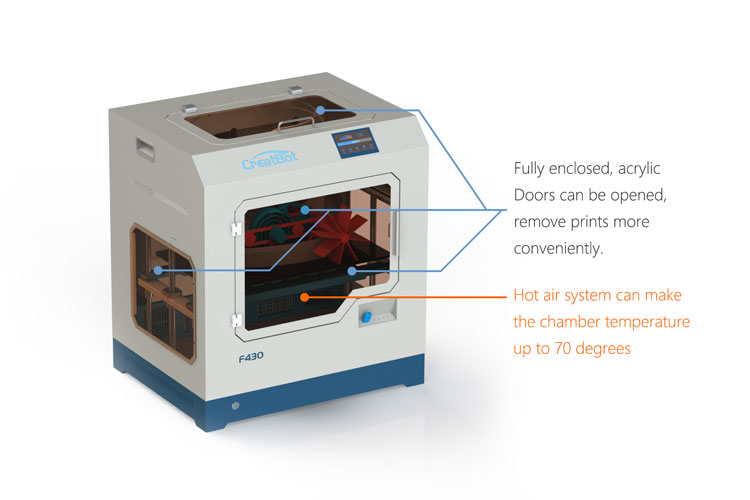

Fully Enclosed High-Temperature Chamber

Fully enclosed chamber can block all external interference and reduce noise.
Hot chamber can provide constant room temperature so that model won’t deform when printing.

Fully Enclosed     Hot Air System

Outage Restored & Filament Detection

The printer will automatically memorize the current position and save print data.
Lower the platform and withdraw filament when power off suddenly. It will continue
to print from the last stopped point after power’s on.

The printer will avoid invalid printing by stoping print and warning when filament runs out.

Outage Restored

Filament Detection

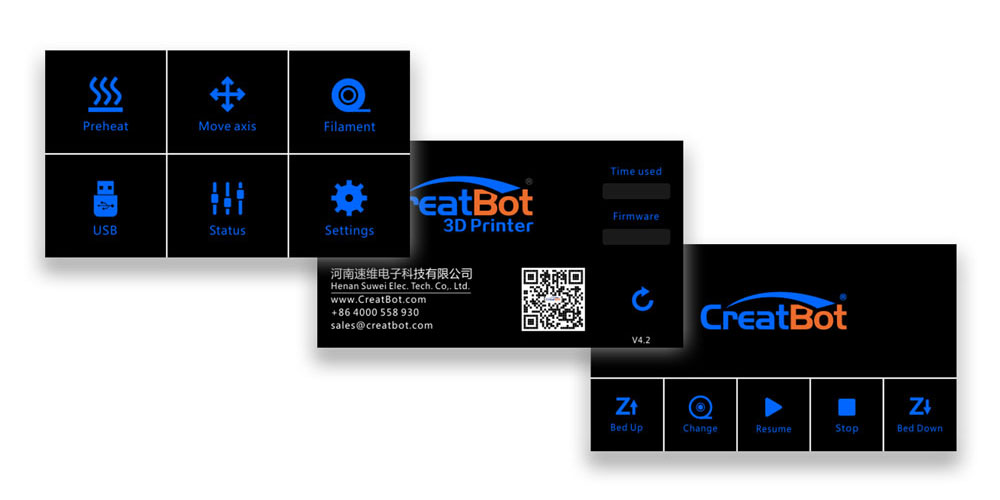

Touch Screen

The printer have all-English-menu touch screen which is easy operate and friendly use.
One key to warm,one key to print as well as many other shortcut keys.

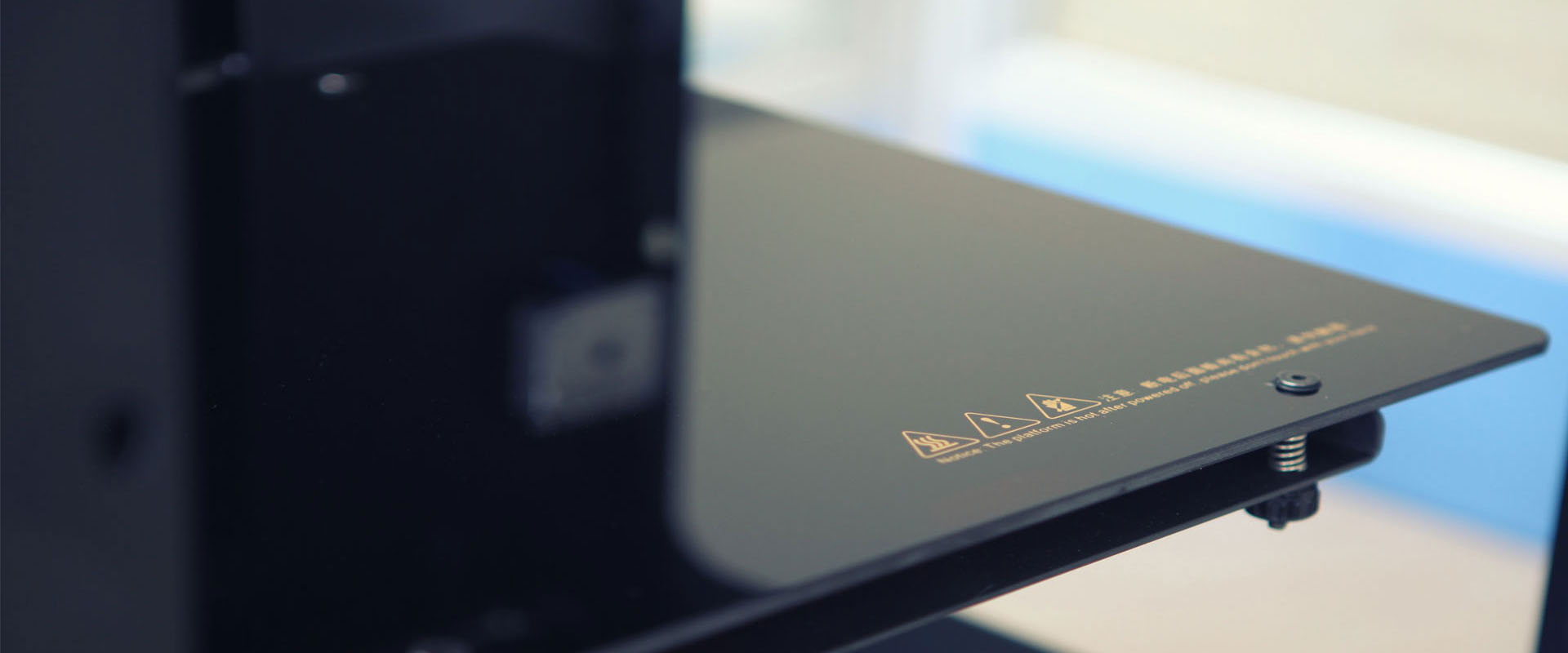

Ceramic Platform

The printer has mico-crystal platform so that can support hight thermal efficiency, you can set the
parameters to turn off the hot bed automatically after the specified number of layers.

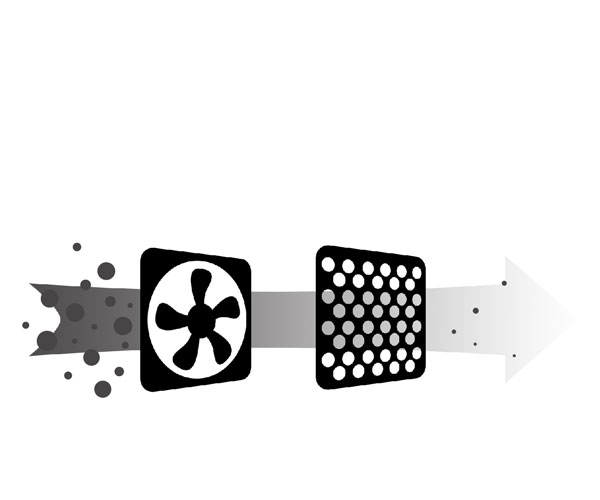

Air Filter System

The air filter system can adsorb impurities and gases that generated by printing special filament,
more safe and environmental protection which is more suitable for house, school, office space.

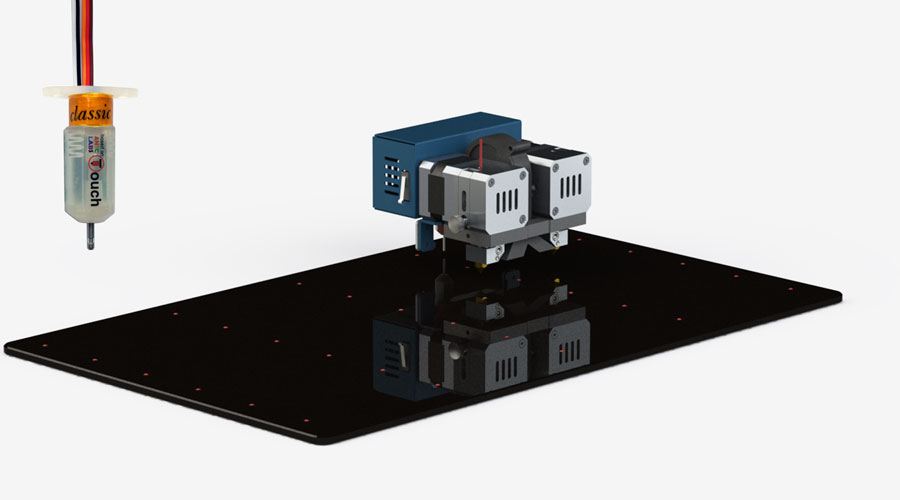

Automatic Leveling Platform

Use of 25 points through the probe to save the level of platform flatness data at the initial,
through the Z axis intelligent compensation table height in the printing process to achieve
fully automatic leveling.

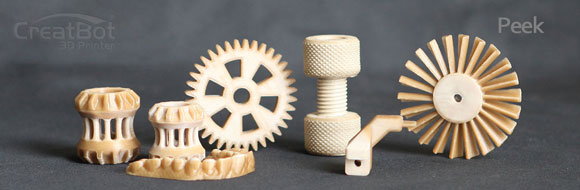

Filament & Application

standard F430 are able to print PLA,ABS,Nylon,etc perfectly. The F430-PEEK version
applied to 3D printing of PEEK. We supply high quality PEEK filament as well , which
requires 420°C extrusion temperature. The material have features of high strength,
high toughness, corrosion resistance and wear resistance. It can be used in aerospace,
electronics, medical, machinery, automotive and other industries.






Technical Specs

CreatBot F430

Printing

Print Technology: Fused Deposition Modeling

Build Volume: 400*300*300mm (F430)

Number of Nozzles: Double

Resolution: 0.04mm

Layer Resolution: 0,02mm

Filament Diameter: 1.75mm

Filament Compatibility: PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, PEEK, etc.

Nozzle Diameter:0.4mm (0.3, 0.5, 0.6, 0.8, 1.0mm)

Print File Type: GCO, GCODE

Temperature

Ambient Operating Temperature: 15-32°C

Max. Nozzle Temperature: 420°C

Max. Bed Temperature: 110°C

Max. Cabinet Temperature: 70°C

Speed

Best Printing speed: 55mm/s

Max. Printing speed: 180mm/s

Max. traveling speed: 200mm/s

Mechanical

Construction: Power-Coated Steel, Aluminum Casting for Motion Components, POM

Build Plate: Microcrystalline Ceramic Panel

Build Plate Leveling: Automatic

Extruder: Directly Drive

Stepper Motors: 1.8° Step Angle with 1/16 Micro-stepping

X Y Positioning Precision: 12.7 Microns

Z Positioning Precision: 1.25 Microns

Electrical

Power Requirements: 100-240V, 50-60Hz

Max. Power: 300W

Screen: 4.3" Touch Screen

Control Chip: ATmega 2560

Storage Media: USB Disk

Connectivity: USB

Software

Software Bundle: CreatWare Multi-language

Supported File Types: STL, OBJ, AMF

Operating Systems: Windows (7,8,10) Mac OS X

Special Function

Outage Restored: Sava data when power is off

Filament Detection: Pause printing when filament run out

Automatic Shut-down: Turn off the power automatically when printing is complete

Size & Weight

Product Dimensions & Weight: 620*485*680mm 48Kg

Packing Size & Weight: 750*580*720mm 62Kg
