All Metal Hotend
1 Hotend 260/ 1 Hotend 420 Grad
High Precision
Metal Chassis
Large BuildSize
Outage Saving
Filament Checking
BuildTak Platform
Touch Screen
Linear Guide
Precise Feeder
Fully Enclosed
Auto Leveling = Pro
Hot Air Chamber = Pro
Filaments Drying = Pro

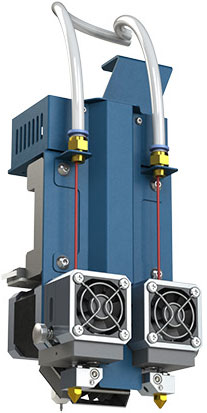

TEMPERATURE UP TO 420°C
We are the first one to publish 420°C ultra-hight temperature nozzle to mass market and it possess exclusive patent.
This kind of nozzle allow to print with a variety of filaments. And the fantasy blue metal cooling sink can efficiently cool down the heatbreak.
The nozzle height can also be micro adjusted. And we accept customized for single/double/triple head.
.jpg)
All metal hotend, more durable
420°C support more supplies
Nozzle height adjustable
Direct Head Driving
HIGH PRECISION
We exclusively research and develop the extruder feeding system support high-speed printing, and accuracy can reach high to 0.05mm,
it allows to extrude filament steady without block.
Precision up to:0.05mm Speed up to: 200mm/s

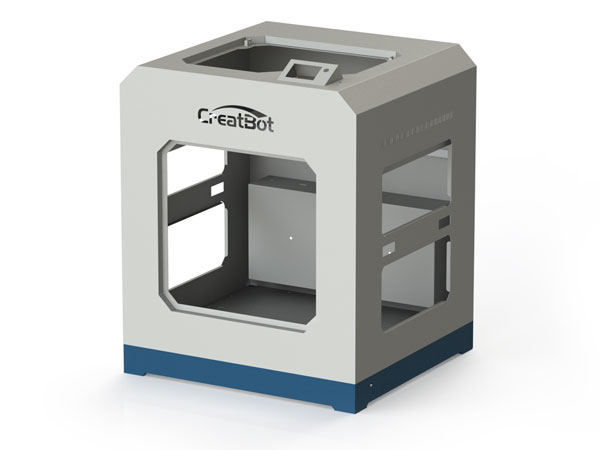

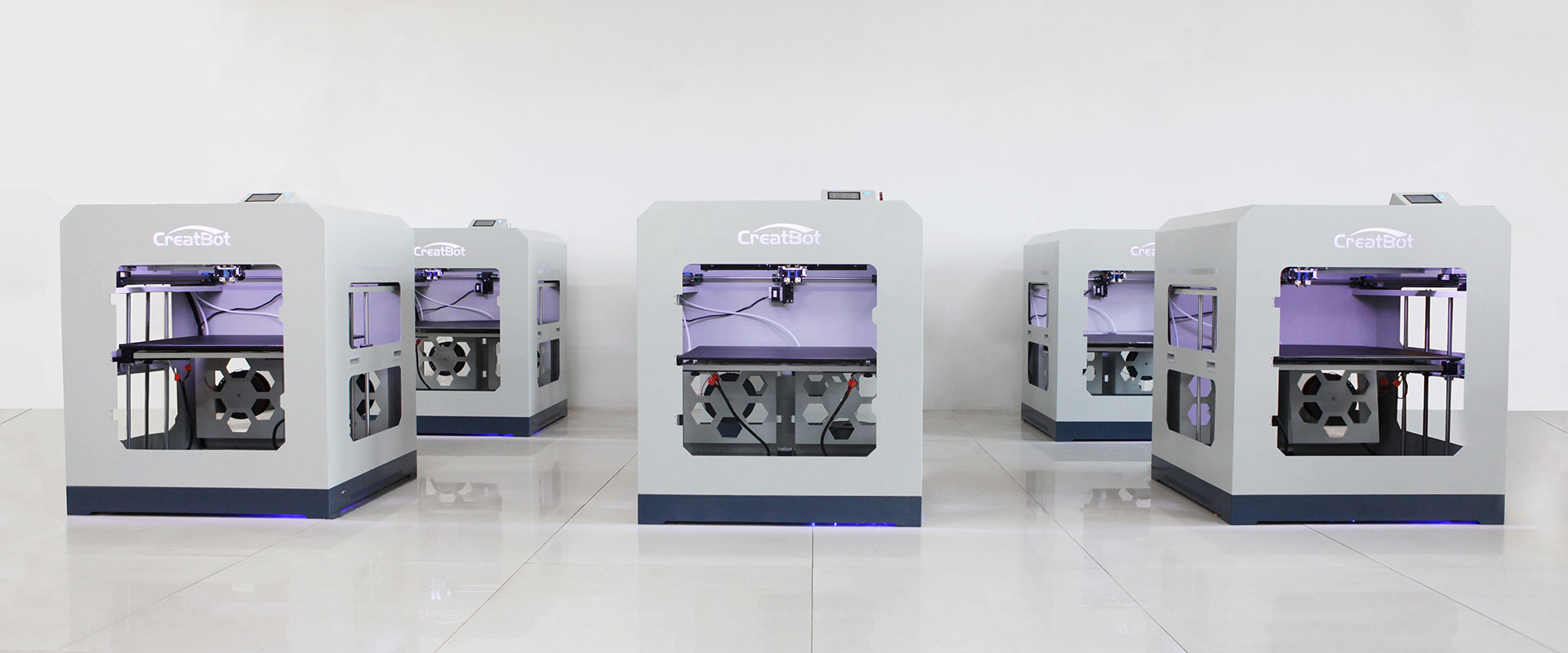

STABILITY
The whole-steel body not only ensure the stability when printing but alst greatly extend the usage period. the optimization
and cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3D printers
have been working for 5 years and more than 8000 hours.

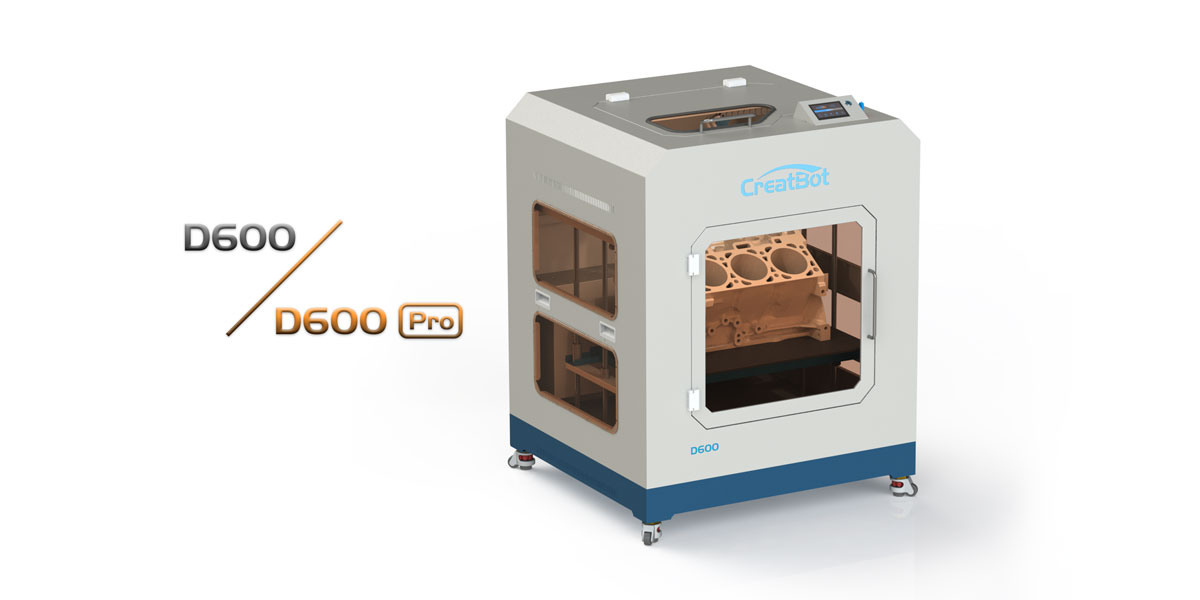

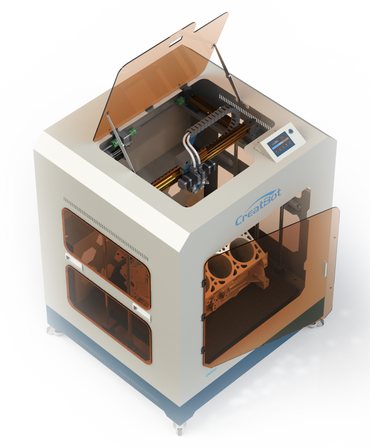

HUGE BUILD VOLUME
D600 is a real industrial level 3D printer, it can print largest build volume of 600*600*600mm, 30 times bigger than it of other
ordinary 3D printer in nowadays mass market.
CreatBot D600 build volume: 600*600*600mm
.jpg)
FULLY ENCLOSED CHAMBER
The fully enclosed chamber can block all external interference. Also this frame can reduce noises, at the same time to provide
constant temperature, so that the model won't deform.

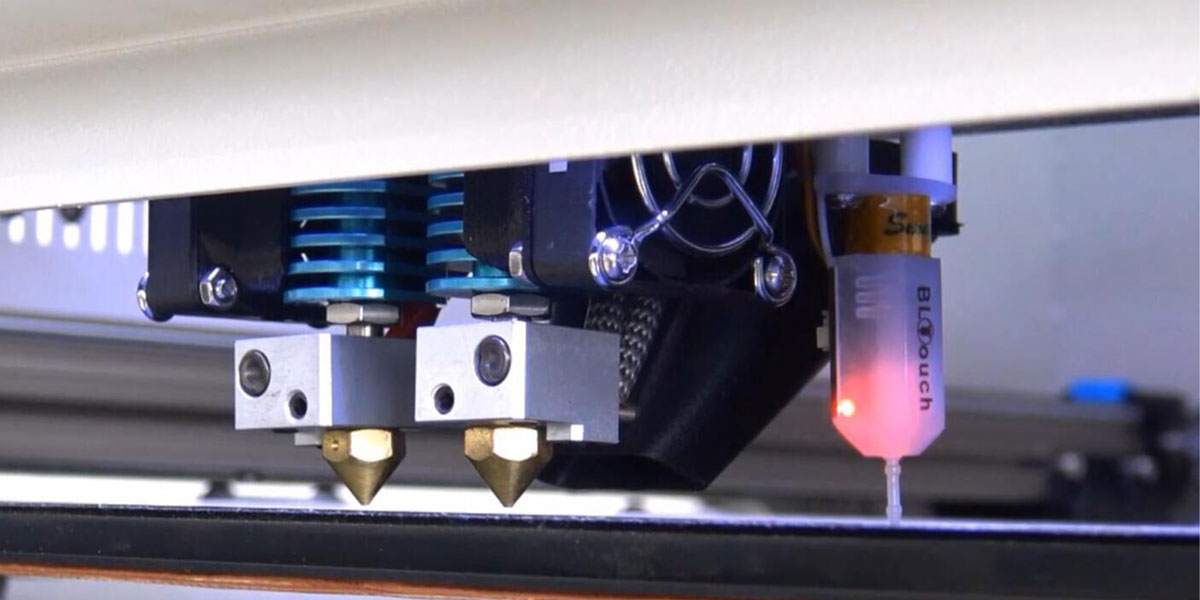

AUTO LEVELING PLATFORM PRO
Use of 25 points through the BL-Touch probe to save the level of platform flatness data at the initial, through the Z axis intelligent
compensation table height in the printing process to achieve fully automatic leveling.
ACCURATE LINEAR GUIDE RAIL
The accurate linear rail structure can print models in accuracy high reach to 4~5 times higher than the other ordinary optical axis
printers in mass market. This structure offers accurate filament feeding, so that can print large model fast and perfectly.
.jpg)

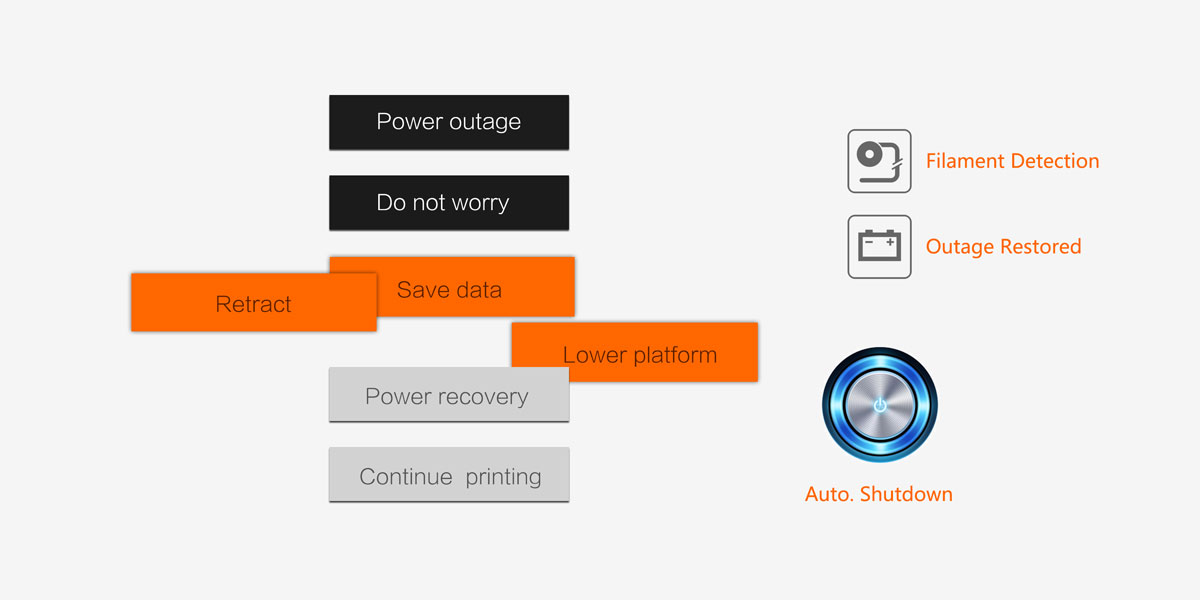

OUTAGE RESTORED & FILAMENT DETECTION
The printer will automatically memorize the current position and save the print data, lower the working platform and withdraw
filament when the power off suddenly.

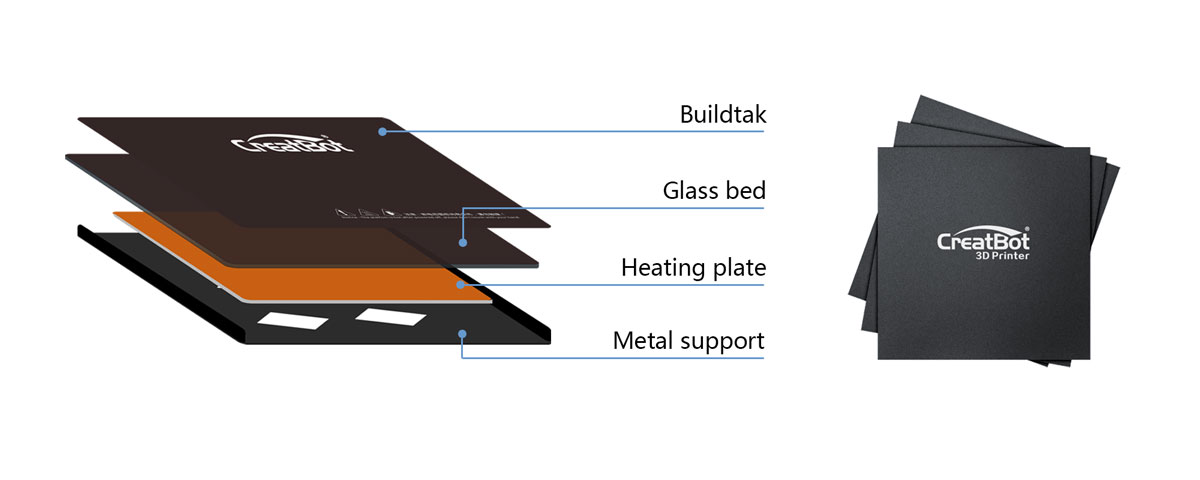

EFFICIENT PLATFORM
The platform surface is attached with the 3D printing special stickers, and the printer has vertical thermal conductivity so that can support
high thermal efficiency. You can set the parameters to turn off the hot bed automatically after the specified number of layers.

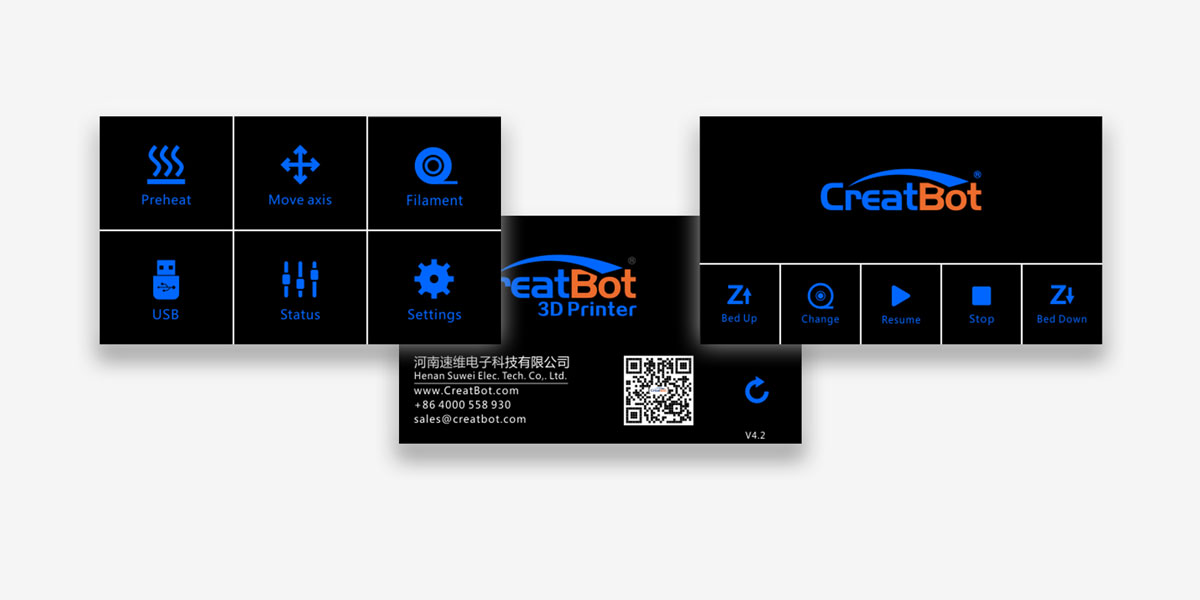

EASY TOUCH SCREEN
The printer has a 4.3" touch screen, more easy to operate. We also provide One-Key to preheat, print, home as well as other shortcut keys.
MORE FEATURES

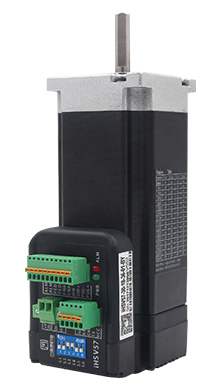

Servo Motors With Gear Reduction
High Accuracy: closed-loop control of position, speed and torque; overcome the problem of lossing step. No layer shift.
Good high-speed performance.
Stability: timeliness, fast response, no inertia, no delay.
Comfort: heat and noise are significantly reduced.
HOT AIR CHAMBER 70°C = PRO
Hot air chamber can provide constant room temperature so that model won’t deform when printing.
FILAMENTS DRYING ROOM = PRO
The function is able to dry filaments like Nylon,PC,ABS, which with high water absorption, 45°C and 65°C chamber temperature available.
TECHNICAL SPECS
CreatBot D600/D600 Plus
PRINTING
Print Technology: Fused Deposition Modeling
Build Volume: 600*600*600mm
Number of Nozzles: Double
Resolution: 0.05mm
Layer Resolution: 0.05mm
Filament Diameter: 3.0mm (1.75mm optional)
Filament Compatibility: PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, PEEK, Ultem etc.
Nozzle Diameter: 0.4mm (0.3, 0.5, 0.6, 0.8, 1.0mm)
Print File Type: GCO, GCODE
TEMPERATURE
Ambient Operating Temperature: 15-32°C
Max. Nozzle Temperature: 420 Grad
Max. Bed Temperature: 100°C
Max. Chamber Temperature: 70°C = D600 Pro
Filaments Drying Temperature: 45°C / 65°C = D600 Pro
SPEED
Best Printing speed: 45mm/s
Max. Printing speed: 120mm/s
Max. traveling speed: 200mm/s
MECHANICAL
Construction: Power-Coated Steel, Aluminum Casting for Motion Components, POM
Build Plate: Tempered glass Panel
Build Plate Leveling: Factory Leveled, Adjust Manually
Automatic = D600 Pro
Extruder:
Geared motor (1:10 rate)
Stepper Motors: 1.8° Step Angle with 1/16 Micro-stepping
X Y Positioning Precision: 5.08 Microns
Z Positioning Precision: 1.25 Microns
ELECTRICAL
Power Requirements: 100-240V, 50-60Hz
Max. Power: 1000W
4000W = D600 Pro
Screen: 4.3" Touch Screen with Multi-language
Control Chip: ATmega 2560
Storage Media: SD Card
Connectivity: USB
SOFTWARE
Software Bundle: CreatWare Multi-language
Supported File Types: STL, OBJ, AMF
Operating Systems:
Windows (7,8,10)
Mac OS X
